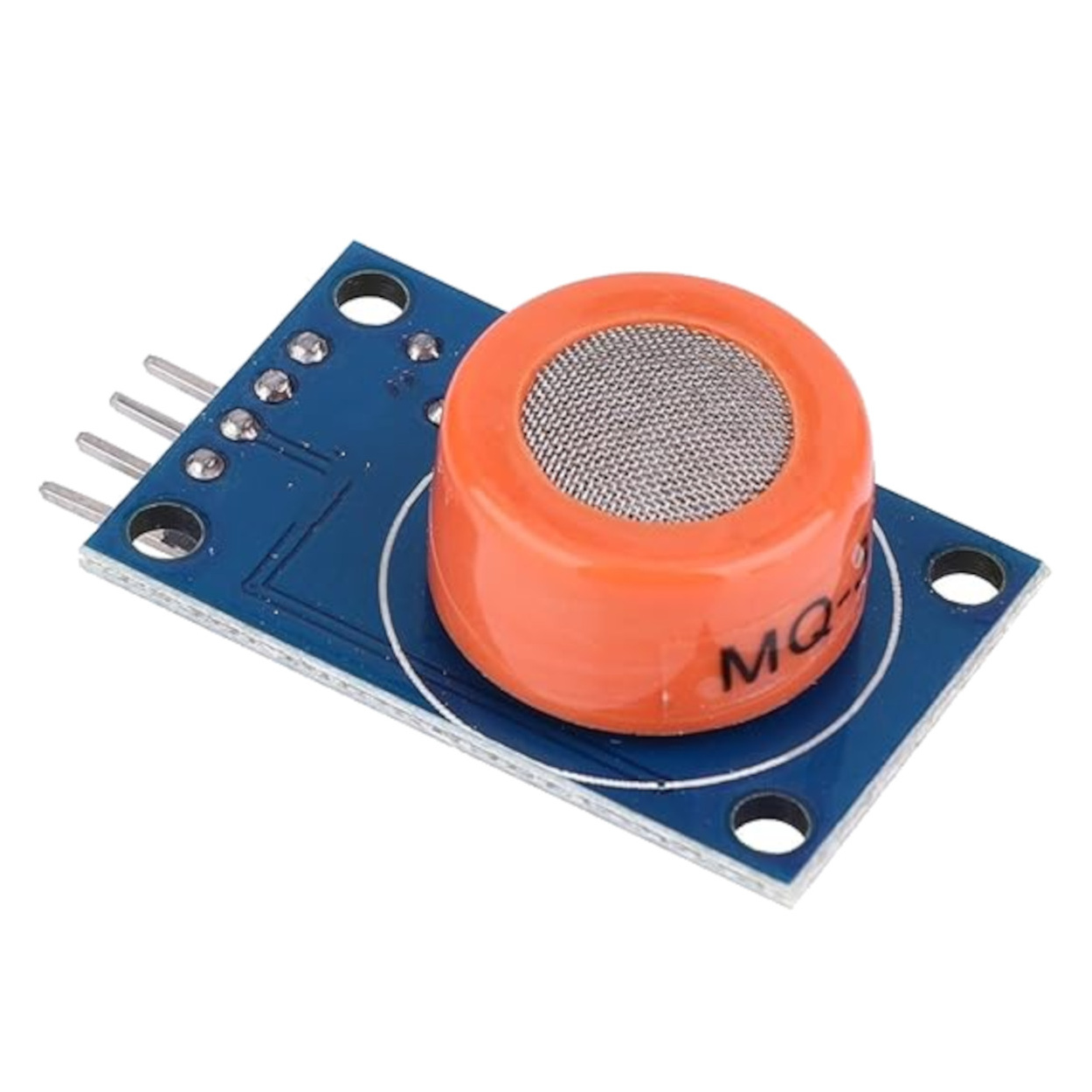

MQ-3 Alcohol Detector Gas Sensor Module - High Sensitivity Ethanol Breathalyzer

Specifications

• Target Gas: Alcohol (Ethanol)

• Operating Voltage: 5V DC ±0.1

• Current Consumption: ~150mA (Heater ON)

• Detection Range: 0.05 mg/L – 10 mg/L (Alcohol)

• Output Format:

  • Analogue (A0): Voltage varies based on gas concentration (Higher concentration = Higher Voltage).

  • Digital (D0): Logic High/Low based on an adjustable threshold.

• Pre-heat Requirement: 20 minutes (for testing), 24 hours (for precision calibration).

• Dimensions: 32mm x 20mm x 22mm

Compatibility & Platform Support It is critical to match the sensor's voltage to your microcontroller to avoid damage.

• Arduino (Uno/Nano/Mega): Directly Compatible. The 5V logic matches perfectly.

• ESP32 / ESP8266: ⚠️ Caution. These are 3.3V boards. You MUST use a voltage divider or Logic Level Converter on the A0/D0 pins to step down the 5V signal to 3.3V.

• Raspberry Pi: ⚠️ Requires ADC. The Raspberry Pi does not have Analog pins. To read the A0 signal, you need an external Analogue-to-Digital Converter (like MCP3008) or use only the Digital (D0) pin for simple "Threshold Reached" logic.

Key Applications & Projects

• DIY Breathalyser: Build a portable device that displays blood alcohol content (BAC) estimates on an LCD.

• Ignition Interlock Prototypes: Create a safety demonstration where a motor (simulating a car) won't start if alcohol is detected.

• Industrial Leak Detection: Monitor solvent storage areas for ethanol vapour leaks.

• Fermentation Monitor: Track alcohol production levels in brewing setups.

Project Evolution

• Prerequisites: You should be comfortable reading Analogue inputs (analogRead) and using Serial Plotter on Arduino.

• The Upgrade: If you have mastered simple temperature sensing, the MQ-3 introduces you to Chemical Sensing and Heater-based components. This unlocks the ability to build "Bio-Feedback" devices that react to human physiology.

• Effort Level: Intermediate. The wiring is simple, but converting raw voltage to accurate PPM/BAC requires patience and calibration.

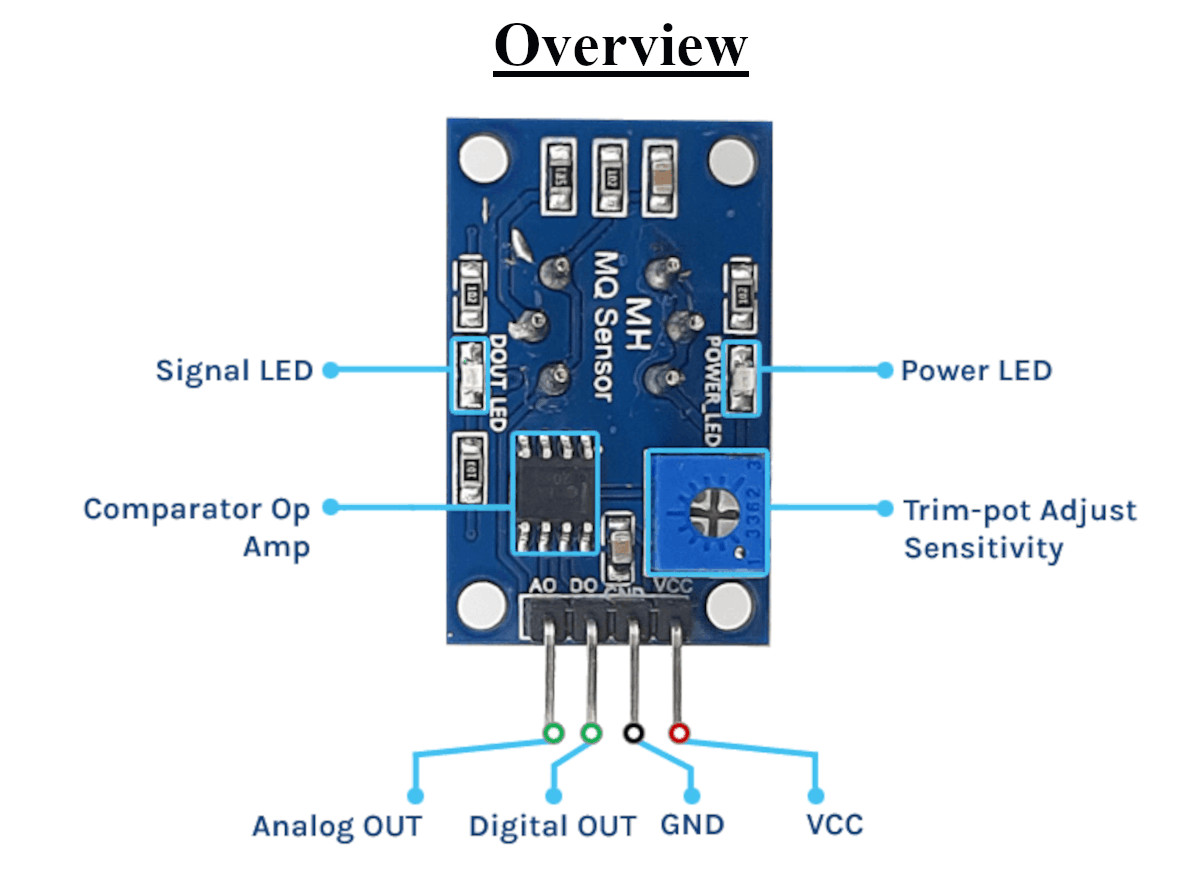

Virtual Technician: Wiring & Safety ⚠️

• VCC: Connect to 5V (Do NOT use 3.3V; the heater will not reach operating temp).

• GND: Connect to Ground.

• D0 (Digital Out): Connect to any Digital Pin (for simple limit detection).

• A0 (Analogue Out): Connect to Analogue Pin (A0-A5).

• Critical Warning: The sensor contains an internal heater. It is NORMAL for the sensor to feel warm to the touch (approx 40°C).

Accessories

• Included in the Package: 1 x MQ-3 Alcohol Gas Sensor Module

• Required Accessories (Not Included):

  • Microcontroller: Arduino Uno or Nano (Recommended for easiest setup).

  • Wires: Female-to-Male Jumper Wires.

  • Power: 5V Power Supply (if not powering via USB).

  • Optional: Logic Level Converter (for ESP32/Pi users).

Frequently Asked Questions (FAQ)

• Why is the sensor getting hot? It is normal. The internal heating coil must reach specific temperatures to chemically react with alcohol vapors.
• How long does it take to warm up? For quick tests, wait 5-10 minutes. For accurate calibration, a 24-48 hour "burn-in" is recommended.
• Can this detect other gases? It is most sensitive to Alcohol but has slight sensitivity to Benzine and Methane. It is not suitable for distinguishing mixed gases.
• How do I calibrate the digital output? Use the blue potentiometer on the back. Turn it until the LED lights up at your desired alcohol threshold.
• Does it give readings in PPM or BAC directly? No, it outputs a raw voltage (0-5V). You must calculate PPM/BAC using a code formula based on your calibration curve.
• Can I use it with a 3.3V battery? No, the heater requires 5V to function correctly. The readings will be useless at 3.3V.
• What is the "burn-in" time? New sensors stored for a long time need 48 hours of power to dry out internal moisture for stable readings.
• Is this waterproof? No. Water or condensation on the mesh will permanently damage the chemical layer.
• Why is my reading fluctuating? Ensure your power supply is stable (5V). USB power from a laptop is sometimes insufficient; an external 5V adapter is better.
• How do I clean the sensor? Do not wash it. If dusty, gently blow air. Solvents will destroy the sensor.
• What is the lifespan of this sensor? Typically 4-5 years under normal conditions.
• Can I use this for law enforcement? No. This is a hobbyist/development module and is not certified for legal or medical enforcement.
• Why does the value stick at high? If exposed to high concentration alcohol, the sensor takes time (30s-1min) to "recover" and return to zero.
• Does it detect Isopropyl Alcohol (Rubbing Alcohol)? Yes, it reacts strongly to Isopropyl Alcohol as well as Ethanol.
• What is the maximum range? It saturates around 10mg/L. Higher concentrations won't show a voltage increase.
• Can I use a 9V battery? Only if you regulate it down to 5V. Connecting 9V directly will burn the heater instantly.
• Is there a library for Arduino? No specific library is required, but the "MQUnified" library is a popular choice for advanced users.
• What does the LED on the board do? One is for Power (Red), the other (Green) lights up when the D0 threshold is triggered.
• Can it detect wine or beer vapors? Yes, it detects the ethanol evaporating from these liquids effectively.
• Is the sensitivity adjustable? Only the Digital Trigger point is adjustable via the potentiometer. The Analog gain is fixed.
