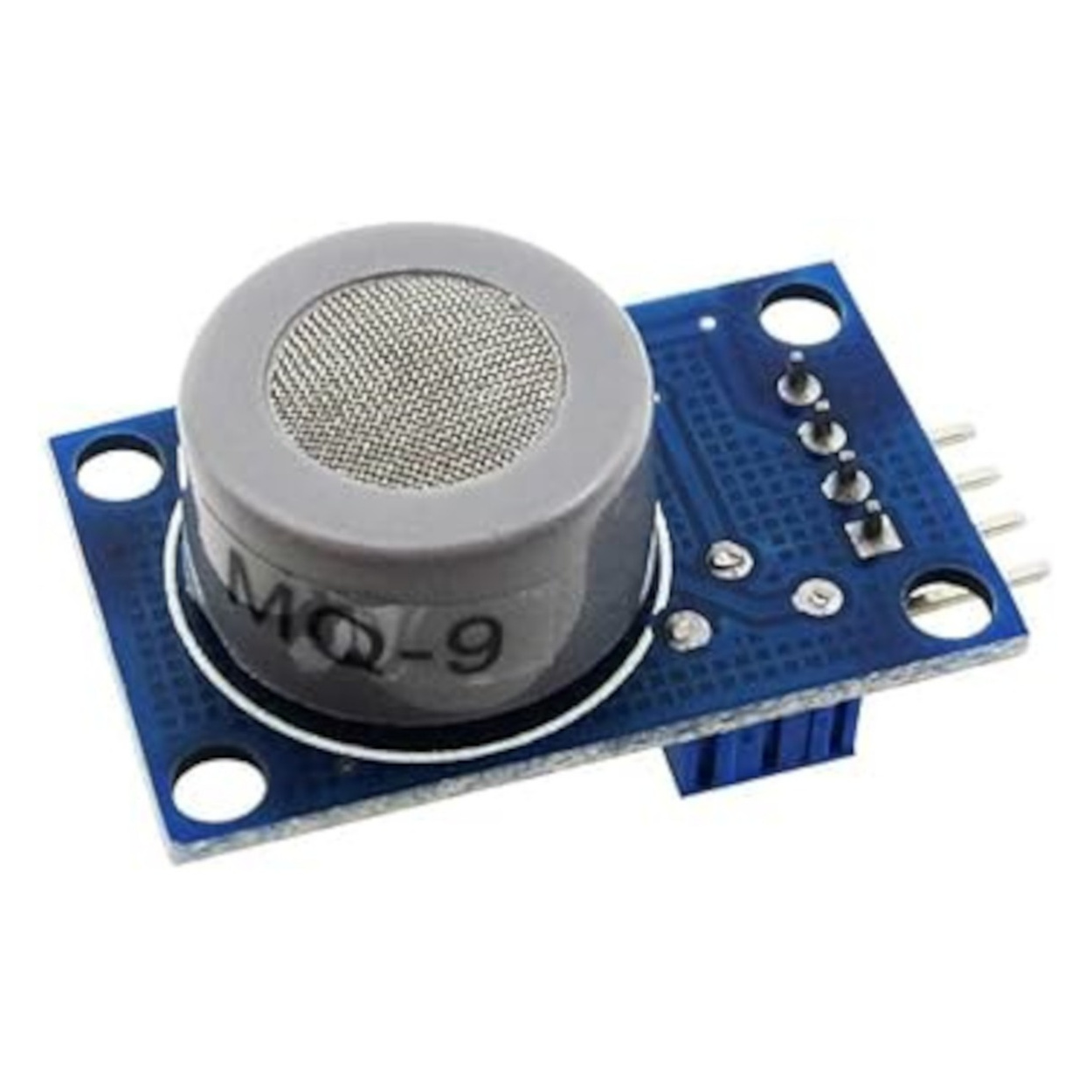

MQ-9 Combo Gas Sensor Module - Carbon Monoxide, Methane & LPG Detector

Specifications

• Target Gases: Carbon Monoxide (CO) AND Methane/LPG.

• Detection Range:

  • CO: 10ppm – 1000ppm.

  • Methane/LPG: 100ppm – 10000ppm.

• Operating Voltage:

  • Circuit: 5V DC.

  • Heater: 5V (High Temp - Methane/LPG) / 1.5V (Low Temp - CO).

• Output Format:

  • Analogue (A0): Voltage increases with gas concentration.

  • Digital (D0): Logic High/Low trigger based on adjustable threshold.

• Dimensions: 32mm x 20mm x 22mm.

Compatibility & Platform Support

• Arduino (Uno/Nano/Mega): Directly Compatible. The 5V logic matches perfectly.

• ESP32 / ESP8266: ⚠️ Caution Required. The Analog output can reach up to 4V. You MUST use a voltage divider (e.g., 10kΩ & 20kΩ resistors) to drop the signal below 3.3V to avoid damaging the ESP32 ADC.

• Raspberry Pi: ⚠️ Requires ADC. The Pi cannot read analogue voltages. Use an external ADC chip (MCP3008) or the Digital (D0) pin for a simple alarm.

Key Applications & Projects

• Universal Kitchen Alarm: One sensor to detect a gas stove leak (LPG) AND smoke/CO from burnt food.

• Garage Safety System: Monitor car exhaust (CO) and potential fuel leaks (Hydrocarbons) in a closed garage.

• Industrial Safety Robot: A mobile sniffer robot that patrols factory floors for multiple hazards.

• Fire Early Warning: Detects the CO released during the smouldering phase of a fire before flames appear.

Project Evolution

• The "Hybrid" Secret: Most hobbyists run this at a constant 5V. However, for true dual-detection, you should cycle the heater voltage (60s at 5V, 90s at 1.4V).

• The Upgrade: Use a PWM-controlled Transistor or Relay to switch the heater voltage. This allows you to read CO during the low-voltage cycle and Methane during the high-voltage cycle.

• Effort Level: Advanced. Requires circuit modification and precise timing logic in your code.

Virtual Technician: Wiring & Safety ⚠️

• VCC: Connect to 5V (Stable source required).

• GND: Connect to Common Ground.

• D0: Connect to Digital Pin (for alarm trigger).

• A0: Connect to Analogue Pin (for PPM measurement).

• Heater Warning: The sensor will get warm (~40°C). This is normal.

• Voltage Note: If powering purely at 5V (without cycling), the sensor is primarily sensitive to LPG/Methane and less accurate for CO.

Accessories

• Included in the Package: 1 x MQ-9 Combo Gas Sensor Module

• Required Accessories (Not Included):

  • Controller: Arduino Uno or ESP32.

  • Power: 5V 1A Adapter (Crucial for stable heater performance).

  • Wires: Female-to-Male Jumper Wires.

  • Alert: 5V Buzzer.

Frequently Asked Questions (FAQ)

• Can I use this instead of MQ-7 and MQ-4? Yes, it covers both ranges, but for highly specific precision, dedicated sensors are slightly better. MQ-9 is the best "All-Rounder".
• How do I switch between CO and Methane detection? Ideally, you cycle the heater voltage (1.5V for CO, 5V for Methane). At constant 5V, it detects both but is less accurate for CO.
• What happens if I just run it at 5V? It will work fine as a general "Gas & Smoke" detector, but the CO readings may drift.
• Does it detect smoke? Yes, indirectly. Smoke contains CO and other combustible particles.
• How do I calibrate it? You need to establish a baseline in clean air (Ro). The datasheet provides separate curves for CO and Methane.
• Is it waterproof? No.
• Can I use a 9V battery? No. The heater will burn out instantly. Use a 5V regulator.
• What is the warm-up time? 48 hours for first-time calibration. 2-3 minutes for quick testing.
• Why is the LED always ON? The sensitivity pot is set too high. Turn it counter-clockwise.
• Can I use it for Natural Gas (CNG)? Yes, Methane is the main component of Natural Gas.
• Does it detect Hydrogen? It has some cross-sensitivity to Hydrogen, but MQ-8 is better for that.
• What is the sensor life? ~5 years under normal conditions.
• Can I use it outdoors? Yes, but protect it from wind and rain. Wind cools the heater and skews readings.
• Is it compatible with Raspberry Pi Pico? Yes, use a voltage divider for the Analogue pin (3.3V max).
• How do I get the 1.5V for the heater cycle? You can use a PWM signal from an Arduino with a transistor/MOSFET to reduce the effective voltage.
• Is this sensor UL certified? No, it is for prototyping only.
• Can it detect rotting food? Rotting food releases Methane, so yes, in high concentrations.
• Why does the reading spike at startup? The sensor needs to burn off accumulated surface oxidation. Ignore the first minute.
• What is the current draw? ~150mA.
• Can I use it to detect car exhaust? Yes, it is excellent for this as exhaust contains both CO and unburnt hydrocarbons.
