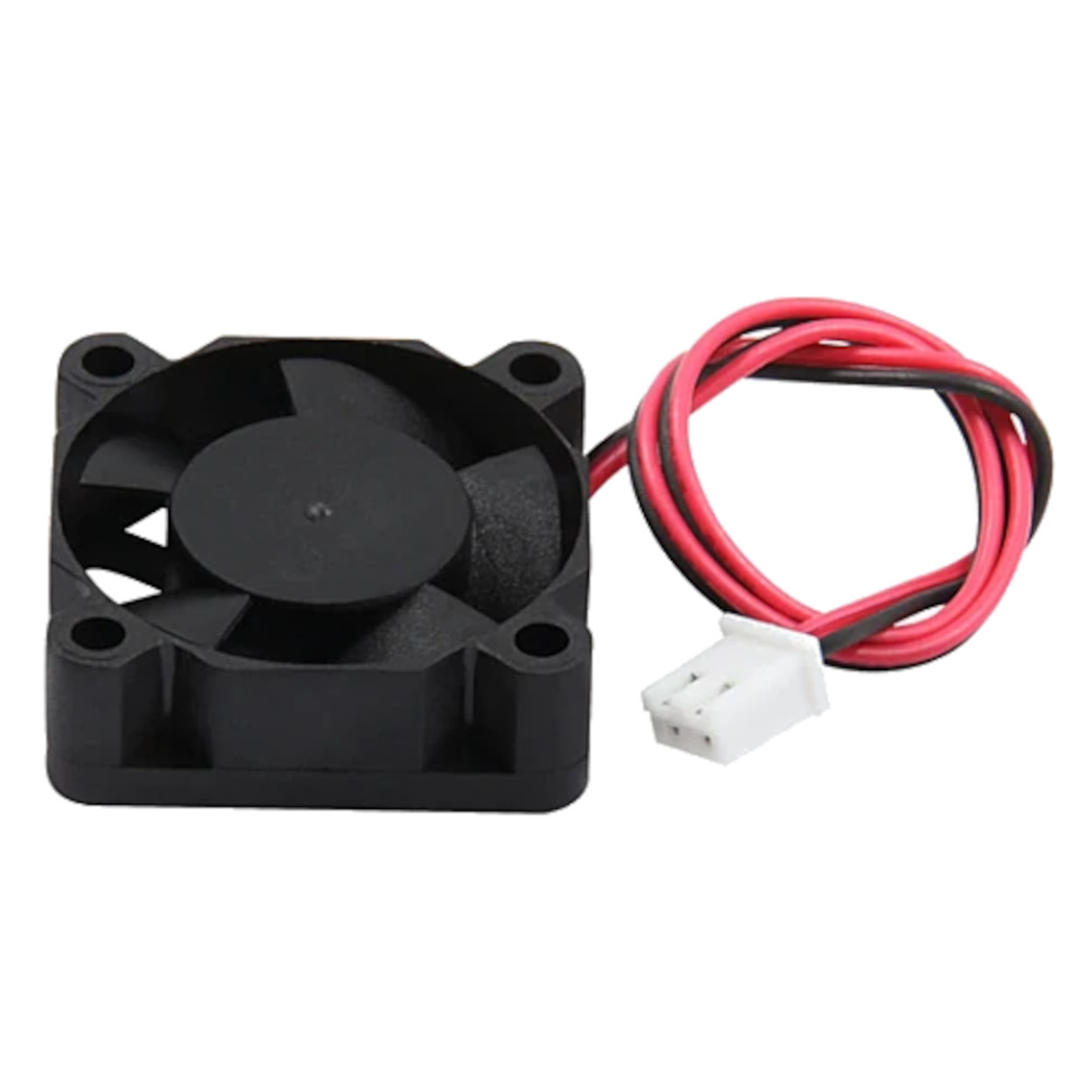

3010 12V DC Brushless Cooling Fan - 30x30x10mm Micro Axial Fan

Specifications

• Model: 3010

• Operating Voltage: 12V DC

• Motor Type: Axial Brushless DC (BLDC)

• Dimensions: 30mm x 30mm x 10mm

• Mounting Hole Spacing: 24.0mm ± 0.3mm

• Mounting Hole Diameter: ~3.2mm (Fits M3 Screws)

• Connector Type: 2-Pin Female (Red: Positive +, Black: Negative -)

Key Applications and Projects

• 3D Printer Hotends: Serving as the primary cold-end heatsink cooling fan for extruders (like the E3D V6) to prevent heat creep and filament jamming.

• Microcomputer Cooling: Mounting directly above the CPU of a Raspberry Pi 4 or Nvidia Jetson Nano to prevent thermal throttling during heavy processing loads.

• Custom Enclosures: Providing exhaust ventilation for small, 3D-printed project boxes housing heat-generating components like power supplies or motor drivers.

???? Unlock New Capabilities (Project Evolution)

• The Smart Temperature-Controlled Fan: Don't let your fan run at 100% speed all the time if it doesn't need to! Evolve your cooling setup by pairing this 12V fan with an Arduino, an N-Channel MOSFET (like an IRLZ44N), and a DHT11 temperature sensor. Program the Arduino to read the ambient temperature of your enclosure. If the temperature hits 35°C, the Arduino triggers the MOSFET to turn the fan on. If it drops below 30°C, it turns it off—saving power and eliminating unnecessary background noise!

Package Includes:

• 1 x Axial Brushless Cooling Fan 3010 12V (with pre-attached 2-wire cable and connector)

Note: Mounting screws and nuts are not included.

FREQUENTLY ASKED QUESTIONS (FAQ)

1. What does "3010" mean? It defines the physical dimensions of the fan: 30mm wide by 30mm tall by 10mm thick.

2. What voltage does this fan require? This specific model is designed strictly for 12V DC.

3. Can I run this fan on 5V (like from a USB port)? It might spin very slowly if given 5V, but it is not recommended. It is engineered for 12V and will not push an adequate amount of air at 5V. If you only have 5V available, you should purchase a dedicated 5V 3010 fan.

4. Can I run this fan on a 24V 3D printer mainboard? NO. Applying 24V to this 12V fan will instantly burn out the internal brushless controller chip and destroy the fan. You must use a step-down buck converter to drop the 24V to 12V first.

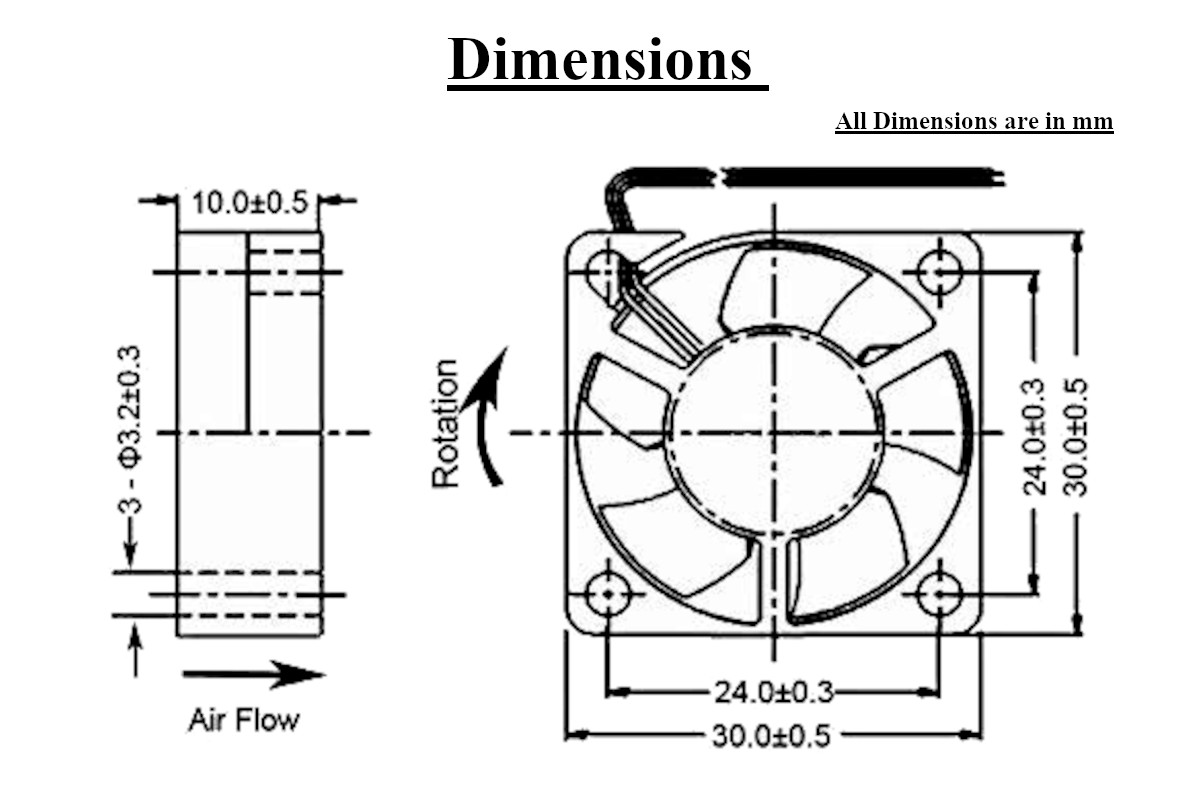

5. Which direction does the air flow? By standard design, air is pulled in through the open blade side and pushes out towards the side with the plastic cross-struts and the central sticker. The blueprint also illustrates this airflow direction.

6. What does "Brushless" mean? Brushless (BLDC) means the motor uses an electronic controller to switch the magnetic fields, rather than using physical carbon brushes that scrape against a commutator. This results in a much longer lifespan and quieter operation.

7. What size screws do I need to mount this? The corner holes are approximately 3.2mm in diameter. You should use standard M3 machine screws and nuts.

8. What is the distance between the mounting holes? The holes are spaced exactly 24.0mm apart from center to center.

9. Which wire is positive and which is negative? The Red wire is Positive (+ VCC), and the Black wire is Negative (- GND).

10. Can I reverse the red and black wires to make the fan blow backwards? ABSOLUTELY NOT. Unlike simple brushed motors, reversing the polarity on a brushless DC fan will instantly fry the internal circuit board. To reverse the airflow, you must physically unbolt the fan and flip it around.

11. Does this fan support PWM speed control? This is a 2-wire fan, meaning it does not have a dedicated 3rd or 4th wire for a tachometer or PWM signal. However, you can control its speed by applying a PWM signal to its power supply using an external MOSFET or motor driver board.

12. Is this fan waterproof? No. The internal circuit board is exposed. Keep it away from water, mist, and extreme humidity.

13. What type of connector is on the end of the wire? It features a standard 2-pin female connector with a 2.54mm pitch (often referred to as a JST-XH or Dupont-style connector).

14. Can I cut the connector off? Yes. If you need to solder the fan directly to a board or splice it into longer wires, you can simply snip the connector off and strip the red and black wires.

15. Is this fan loud? Because it is so small (30mm), the blades have to spin at a very high RPM to move air. While the motor itself is quiet, the rapid movement of the blades can produce a high-pitched "whine" that is noticeable in a completely silent room.

16. Is this a blower fan or an axial fan? This is an axial fan. It pushes air straight through the fan body along the axis of the motor. (A blower fan pulls air in the center and shoots it out the side at a 90-degree angle).

17. Can I use this to cool an entire PC case? No, a 30mm fan is far too small to ventilate a large ATX computer case. It is meant for pinpoint cooling of specific, small components like a single heatsink.

18. Why are there 7 blades instead of 5? The 7-blade impeller design is optimized to provide a good balance between static pressure (pushing air through tight heatsink fins) and overall airflow volume.

19. How long is the wire? While wire lengths can vary slightly between manufacturing batches, standard pigtails on these micro fans are typically around 10cm to 15cm long.

20. Can I plug this directly into an Arduino pin? No. An Arduino digital pin can only output 5V at about 20mA. This fan requires 12V and significantly more current. You must power the fan from a 12V source and use a transistor/MOSFET if you want the Arduino to switch it on and off.
