| QTY | Unit Price(Inlc. GST) | |
| 50+ | βΉ538.02 βΉ 455.95 + 82.07 GST | |
| 100+ | βΉ527.04 βΉ 446.64 + 80.4 GST | |
| 150+ | βΉ505.08 βΉ 428.03 + 77.05 GST | |
| 200+ | βΉ494.10 βΉ 418.73 + 75.37 GST | |
These Solid-State Relays are similar to a mechanical relay, and these modules feature 4 channels and are triggered through a Low-Level digital signal.Β
A Solid-State Relay is similar to a mechanical relay, where it can be controlled through a digital signal. Solid State Relay generates no noise and has a much longer lifespan compared to the traditional mechanical relay. When the input logic voltage is applied to the coil, the NO will connect with the COM, allowing conductivity between them. Depending on your wiring, this will turn the connected load on or off.

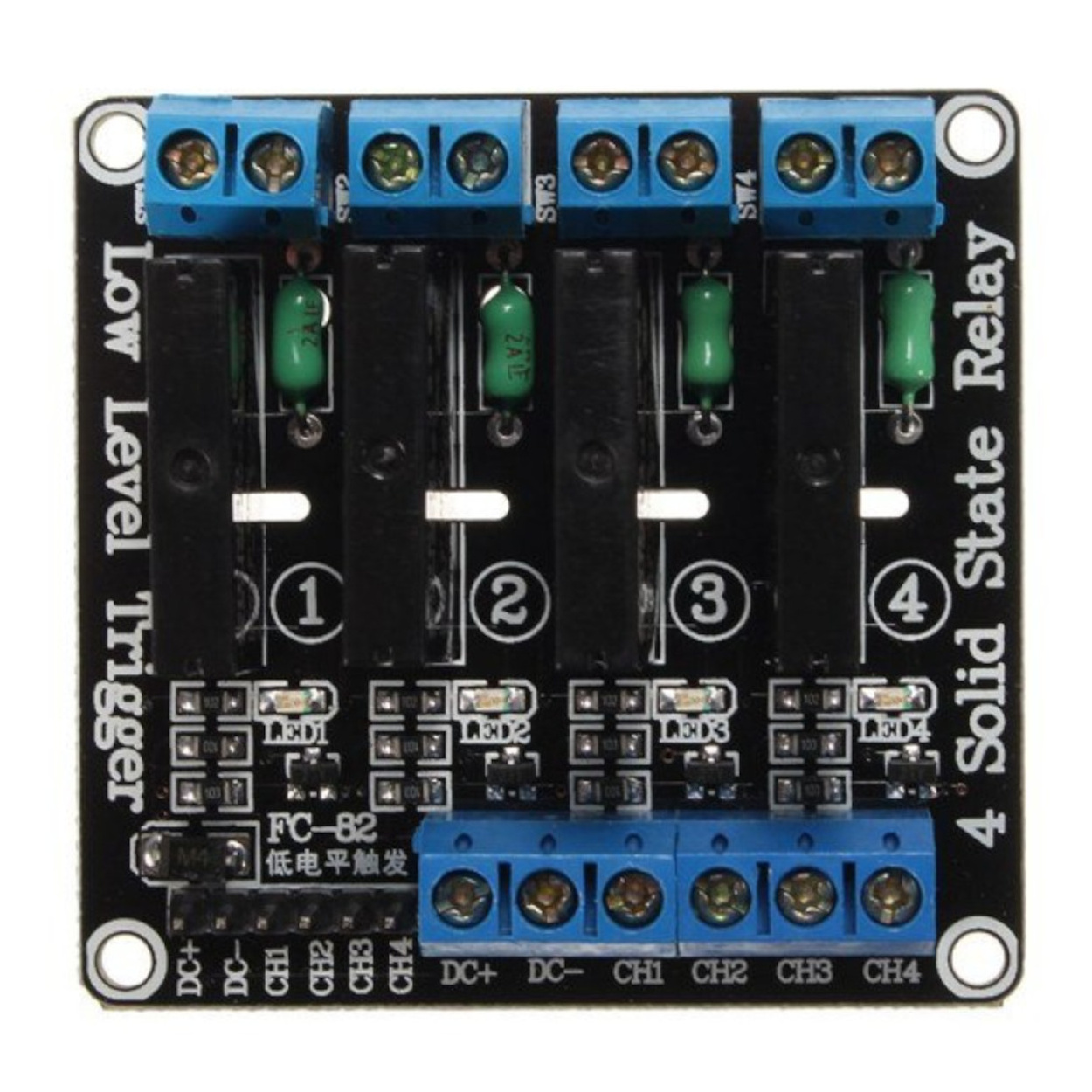

This 5V 4-Channel SSR Solid State Relay Module features G3MB SSR relays and is capable of switching AC voltages between 100 and 240V at up to 2A current. The module can be controlled from a Low-Level Trigger 0-2.5V digital source, such as an Arduino microcontroller. This is a 4 Channel SSR relay module, and each relay channel has 2 separate terminals: NO (Normal Open), COM (Common).
Low-level Trigger: Low-level trigger refers to the signal triggering voltage between the end and the negative electrode of the power supply is 0-2.5V DC, or trigger terminal voltage lower voltage than the positive power supply voltage, low to can trigger, make the relay, is usually the cathode of the power supply and the triggering end of a trigger mode connection, so that the relay is attracted.
Pinout:
Features:
Applications:
Package Includes: 1 x 5V 4-Channel G3MB-202P Solid State Relay Module Low-Level Trigger SSR
Specifications:
| Operating Voltage: | 5 V |
|---|---|
| Max Current: | 2 A |
| Number of Channels: | 4 Channel |
| Trigger Type: | Low Level |
| Isolation: | Not applicable |
| Interface Type: | GPIO |
