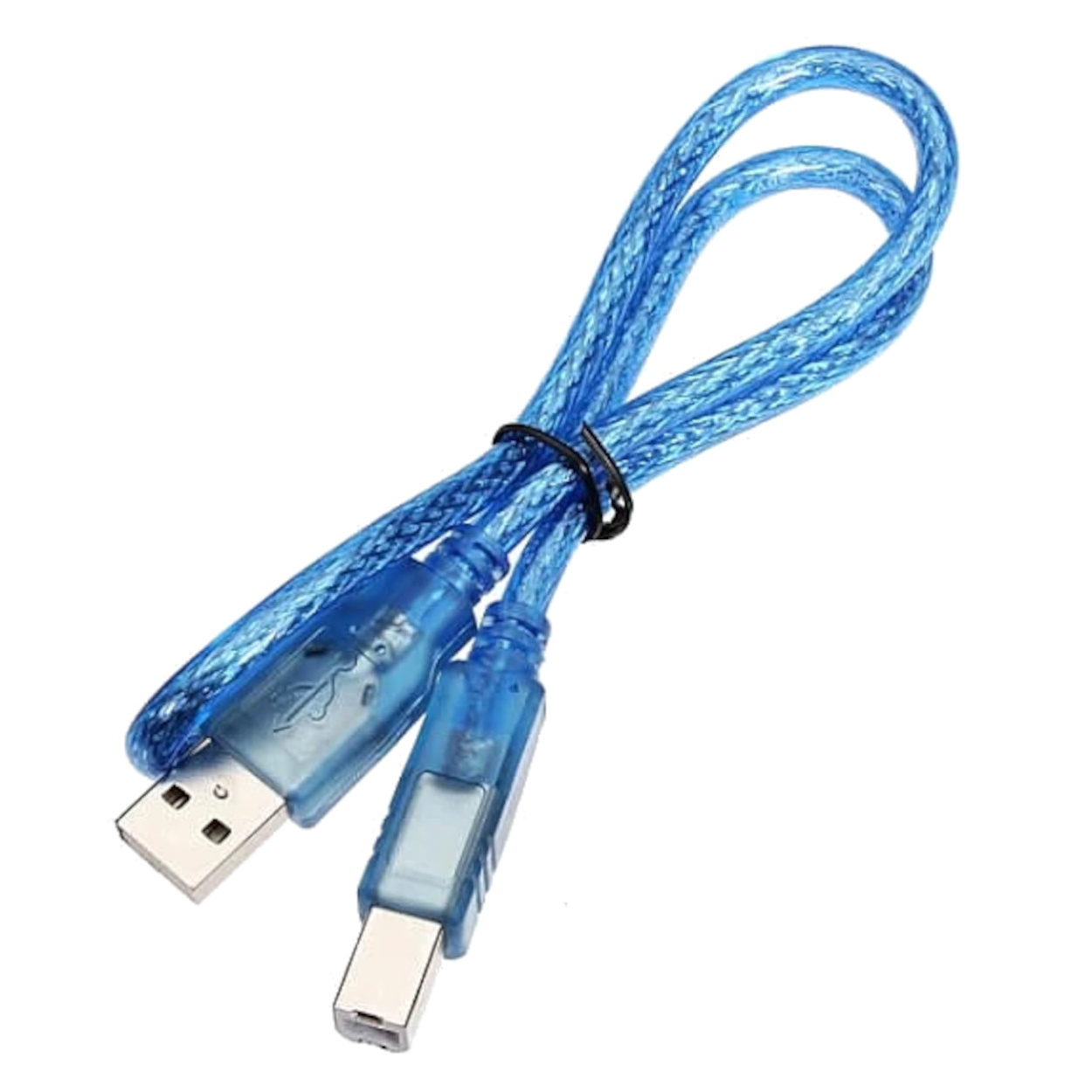

USB 2.0 Type-A to Type-B Cable - 300mm Translucent Blue for Arduino UNO & Mega

Specifications

• Connector 1: USB 2.0 Type-A (Male)

• Connector 2: USB 2.0 Type-B (Male)

• Length: 300mm (30cm / ~12 inches)

• Color: Translucent Blue

• Standard: USB 2.0 (Backward compatible with USB 1.1)

• Data Transfer Rate: Up to 480 Mbps

• Construction: Molded connectors with integrated strain relief

Key Applications and Projects

• Microcontroller Programming: The primary data and power link between your PC's Arduino IDE and an Arduino UNO or Mega 2560 board.

• 3D Printer Control (OctoPrint): Connecting a 3D printer's mainboard to a Raspberry Pi mounted to the printer frame for wireless web control.

• Desktop MIDI Controllers: Linking compact USB audio interfaces, MIDI keyboards, or CNC controller boxes directly to a nearby laptop.

Unlock New Capabilities (Project Evolution)

• The Dedicated OctoPrint Hub: Don't print from SD cards anymore! Evolve your 3D printer. Mount a Raspberry Pi directly to the aluminum extrusions of your 3D printer. Because this cable is only 30cm long, you can connect the Pi directly to the printer's mainboard without a long wire drooping down and getting caught in the moving Y-axis bed. Install OctoPrint on the Pi, and you now have a flawless, wireless, short-run data connection to control your printer from your phone!

Package Includes:

• 1 x USB 2.0 Type-A to Type-B Male Cable (300mm / Translucent Blue)

FREQUENTLY ASKED QUESTIONS (FAQ)

1. What types of connectors are on this cable? One end is a flat USB Type-A Male, and the other is a square-ish USB Type-B Male.

2. What is this cable most commonly used for in electronics? It is the standard programming and power cable for Arduino UNO and Arduino Mega development boards.

3. How long is the cable? It is 300 millimeters long (30 centimeters, or roughly 11.8 inches).

4. Can this cable transfer data, or is it power only? It is a fully pinned-out USB 2.0 cable, meaning it handles both high-speed data transfer and 5V power delivery simultaneously.

5. Can I use this for a standard paper printer or scanner? Yes, if your desktop printer has a female USB-B port. However, because it is only 30cm long, the printer must be located right next to the computer.

6. Will this work with an Arduino Nano, Micro, or Leonardo? No. Those smaller boards typically use Mini-USB or Micro-USB ports. This cable only fits the large, square Type-B port found on the UNO and Mega.

7. Is this a USB 2.0 or USB 3.0 cable? This is a USB 2.0 cable (speeds up to 480 Mbps). USB 3.0 Type-B ports have an extra "notch" on top and are shaped differently.

8. What color is the cable? It is a translucent blue, allowing you to see the silver braided shielding inside the wire.

9. Do I need special drivers to use this cable? No, it is a standard passive USB cable. It is purely plug-and-play on Windows, Mac, and Linux.

10. What does "Male to Male" mean? It means both ends of the cable have exposed plugs (pins inside a metal shell) that are designed to be inserted into female sockets.

11. Is the cable shielded? Yes. The metallic braiding visible through the blue jacket acts as an electromagnetic shield to prevent data corruption.

12. Why is the cable so short? It is designed specifically for desktop prototyping, keeping your workspace neat and preventing long cords from tangling in your components.

13. Will this work for audio equipment like a MIDI keyboard? Yes, many synthesizers, digital pianos, and audio interfaces use USB Type-B ports and work perfectly with this cable.

14. Can I connect two computers together with this? No. You should never attempt to connect two "Host" devices (like two laptops) together via USB, as it can cause electrical damage.

15. Does the transparent blue casing light up? No, there are no LEDs inside the cable. It is just translucent plastic.

16. Are the connectors gold-plated? No, they utilize standard nickel-plated shells with standard internal contacts.

17. Can it handle 2 Amps of current? Yes, it can safely pass standard USB 2.0 current limits (usually up to 2A depending on the power supply) to power your projects.

18. Will this work with a Raspberry Pi? Yes, you can plug the flat Type-A end into your Raspberry Pi's USB port, and the Type-B end into a device like a 3D printer or Arduino.

19. Is the wire casing flexible? Yes, the PVC jacket is highly flexible, making it easy to route around a crowded workbench.

20. Can I use a USB extension cable with this? Absolutely. If 300mm is too short for a specific setup, you can plug the Type-A end into a standard USB-A extension cord.
