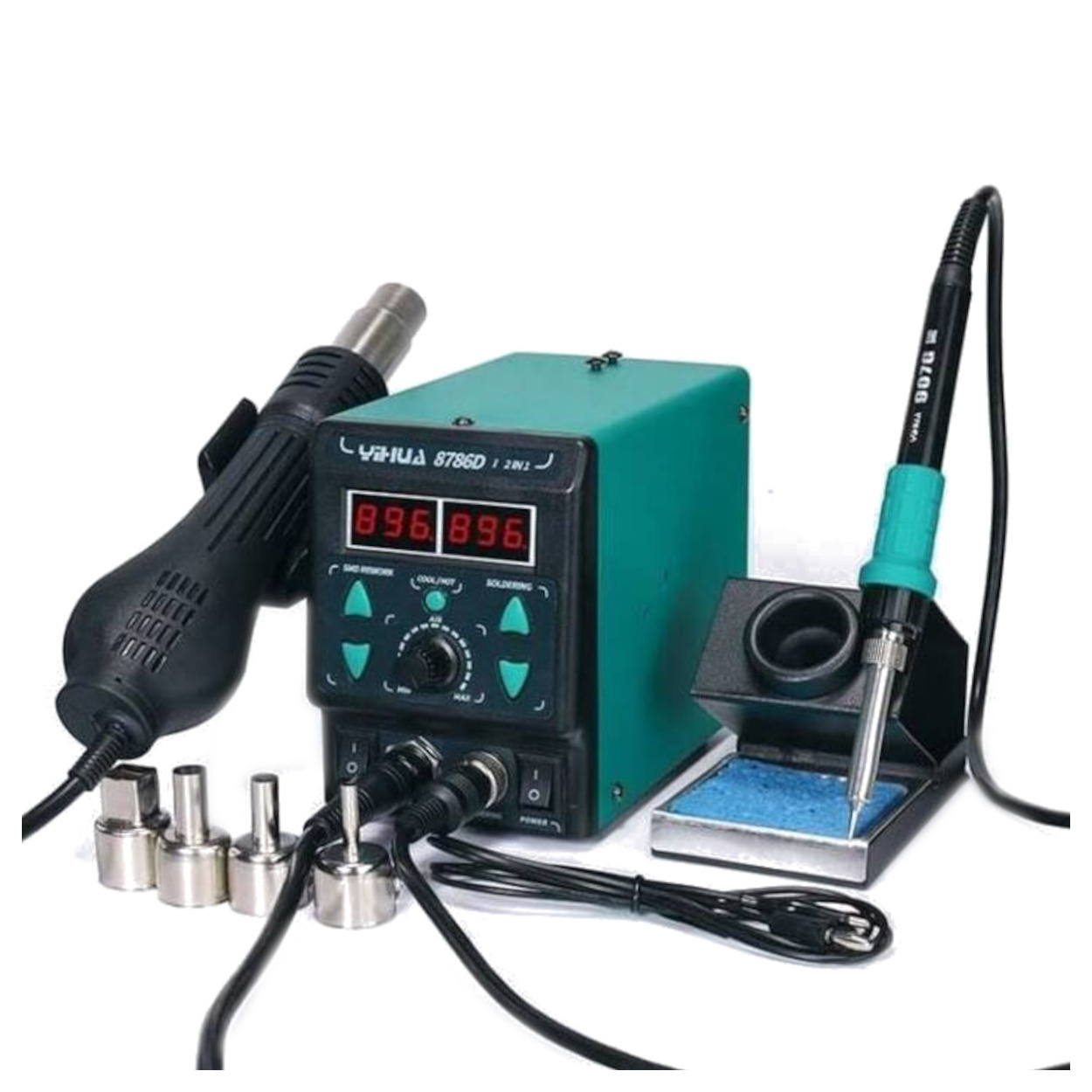

YIHUA 8786D I 2-in-1 Smart Hot Air Gun Soldering Iron Rework Station

Features

• A dual system with advanced design: This product combines a soldering station and a hot air rework station to provide a dual display system and dual power switch and other advanced software functions, automatic cooling, and automatic constant temperature, to achieve a variety of purposes.
• Intelligent temperature control: Through the high-end precision PID program, the actual temperature can be monitored and corrected at high speed, and the temperature compensation can be performed quickly to provide the accuracy required by your project. The LED digital readout can freely adjust the soldering iron temperature to switch between "°C/°F".
• One-key conversion of air gun automatic/manual mode; MANUAL air gun is put back on the handle frame and still maintains the current working state, AUTO air gun is put back on the handle frame and automatically cools down to 100 ℃ for standby.
• Eddy current brushless fan, brushless vortex soft air outlet 120L/min, ceramic skeleton air gun heating core, long life, fast heating.
• Built with a compact size to save precious desk space while integrating a soldering station with a hot air rework station.
• Configurable functions include sleep mode, auto/manual/cool air hot air modes, digital temperature calibration, and °C-°F conversion.

Applications :

• Production lines for electronic products, suitable for desoldering of small solder joints, and components, Repair industry for mobile phones, assembling of SMD components requiring the highest precision

Package Includes:

• 1 x YIHUA 8786D I Unit
• 1 x YIHUA 907 G 45W Soldering Iron Handle
• 1 x R208A Hot Air Gun Handle
• 1 x Soldering Iron Handle Holder
• 1 x Hot Air Gun Handle Holder
• 4 x Nozzle(Round *3,Square*1)
• 1 x Power Cord

Specifications:

• Product: Soldering Station

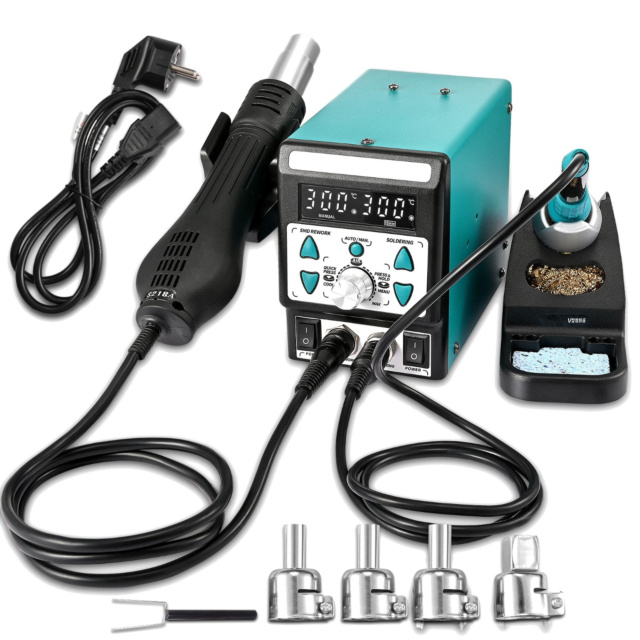

• Model: YIHUA 899D-II

• Operating Voltage: AC 220V±10% 50Hz

• Rated Power:≤750W

• Display: Digital Display

• Noise Level:≤45dB

• Work Environment:0~40°C

• Dimension(L*W*H): 148*99*134mm ±5mm

• Weight:2.8kg

• Hot air gun:

  • Model: R208A
  • Output Power: 650W

  • Airflow Type:  Brushless fan

  • Airflow:≤120L/min

  • Temperature Range:100°C~480°C

  • Temperature Stability:±2°C

  • Wire Length:≥100cm

  • Heater: Ceramics Core

• Soldering iron:

  • Model: YIHUA 907 G

  • Output Power: 45W

  • Temperature Range:200°C~480°C

  • Temperature Stability:±1°C

  • Output Voltage:24V AC

  • Wire Length:≥100cm

  • Heater: Common metal Core
