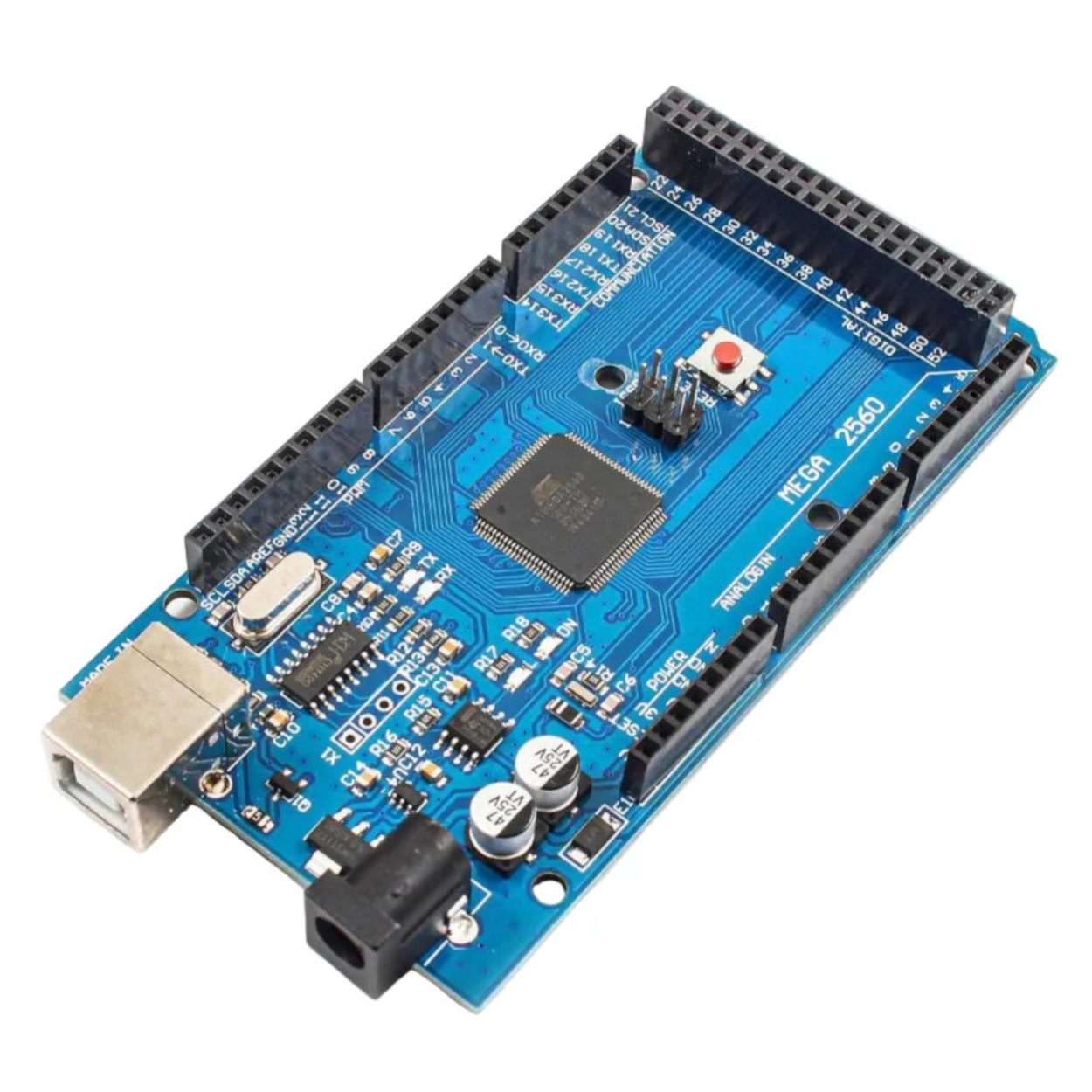

MEGA 2560 R3 Version 340G Development Board Compatible with Arduino

Specifications:

• Microcontroller: ATmega2560
• USB-TTL Converter: CH340G (Requires CH340 drivers)
• Operating Voltage: 5V
• Input Voltage (recommended): 7-12V
• Digital I/O Pins: 54 (of which 15 provide PWM output)
• Analog Input Pins: 16
• DC Current per I/O Pin: 40 mA
• Flash Memory: 256 KB (8 KB used by bootloader)
• SRAM: 8 KB
• EEPROM: 4 KB
• Clock Speed: 16 MHz

Key Applications

• 3D Printing: The primary brain for RAMPS 1.4/1.6 based DIY 3D printers (Ender-3 style upgrades).

• CNC Control: Manage multiple stepper motors (X, Y, Z, and dual extruders) simultaneously.

• Home Automation Hubs: Large-scale sensor arrays where 16 analog inputs are necessary.

• Complex Robotics: Inverse kinematics for hexapods or multi-jointed robotic arms.

Project Evolution

• Past Projects (Prerequisites): If you've mastered the basic Arduino Uno but find yourself constantly using breadboard expanders or running out of "Global Variables" space, you are ready for the Mega.

• Feature Upgrade: Switching to the Mega 2560 unlocks 4 hardware serial ports (UARTs). This means you can talk to a GPS module, a GSM shield, and a Nextion display all at once without the instability of SoftwareSerial.

• Effort/Requirements: Intermediate. Familiarity with the Arduino IDE is required. You will need to install the CH340 driver (available in our resources) for the board to be recognized by your PC.

Virtual Technician & Wiring

• ⚠️ Safety Warning: Do not exceed 12V on the DC Barrel Jack. While it can technically handle up to 20V, the regulator will dissipate excessive heat and may fail.

Pin Mapping:

• I2C: SDA (Pin 20),
• SCL (Pin 21)SPI: MOSI (51), MISO (50), SCK (52), SS (53)
• UART: TX0/RX0 (USB), TX1/RX1 (18/19), TX2/RX2 (16/17), TX3/RX3 (14/15)

Package Includes:

1 x MEGA 2560 R3 Version 340G Development Board Compatible with Arduino

Frequently Asked Questions (FAQ)

1. Does this work with the standard Arduino IDE?
   Yes, select "Arduino Mega or Mega 2560" under the Tools > Board menu.
2. Why isn't my computer detecting the board?
   This version uses the CH340G chip. You must install the CH340 drivers for it to appear as a COM port.
3. Can I power this via the USB port?
   Yes, for low-power logic. For motors, use the DC Barrel jack.
4. Is this compatible with Arduino Uno Shields?
   Most shields are compatible, but check the SPI and I2C pin locations as they differ from the Uno.
5. What is the maximum current the 5V pin can provide? Approximately 800mA when powered via DC jack, but we recommend staying under 500mA.
6. Does it come with a USB cable?
   No, this SKU is for the board only. (See Cross-Sells for cable).
7. Can I use this for 3D Printers?
   Yes, it is the standard board for RAMPS 1.4/1.5/1.6 shields.
8. How many PWM pins are available?
   There are 15 dedicated PWM pins.
9. What is the bootloader used?
   It comes pre-burned with the standard 'stk500v2' bootloader.
10. Can I use 3.3V sensors?
    The I/O logic is 5V. Use a logic level shifter for 3.3V sensors to prevent damage.
11. How much flash memory is available for my code?
    Approx 248 KB after the bootloader.
12. Are the headers pre-soldered?
    Yes, the board comes fully assembled as shown in the images.
13. Can I use this for industrial applications?
    It is great for prototyping; for deployment, ensure proper enclosure and noise filtering.
14. Is there a reset button?
    Yes, there is a physical tactile reset button on the board.
15. Does it support interrupts?
    Yes, it has 6 external interrupts available.
16. Is this an original Arduino board?
    This is a high-quality compatible version using the same ATmega2560 silicon.

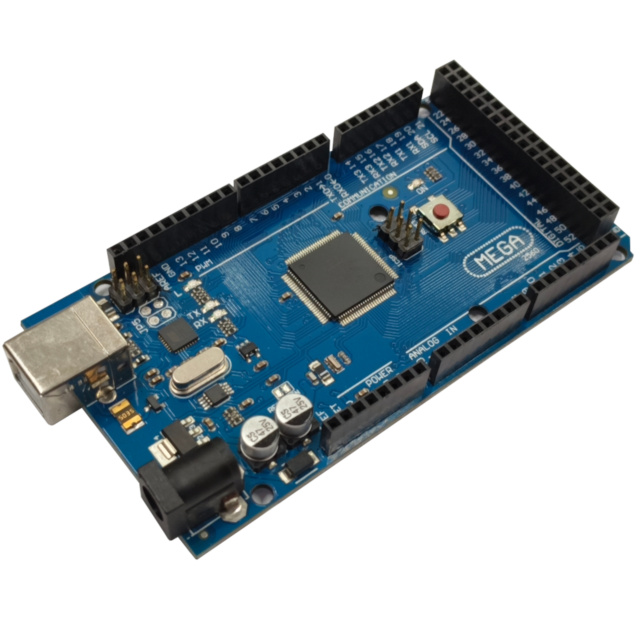

17. What is the difference between this and the 16U2 version? Functionally they are the same; the only difference is the USB-to-Serial chip used.
18. Can I power it with a 9V battery?
    Yes, via the DC jack, though a 9V battery has limited capacity for motors.
19. What size is the DC Jack?
    5.5mm x 2.1mm (Center Positive).
20. Can I program this using Python?
    Yes, via Firmata or by flashing MicroPython/CircuitPython firmware.
