| Bulk Pricing | ||
|---|---|---|
| QTY | Unit Price(Inlc. GST) | |
| 2+ | ₹12,739.02 ₹ 10795.78 + 1943.24 GST | |
| 5+ | ₹12,609.03 ₹ 10685.62 + 1923.41 GST | |
| 10+ | ₹12,479.04 ₹ 10575.46 + 1903.58 GST | |
| 20+ | ₹12,219.06 ₹ 10355.14 + 1863.93 GST | |
Master SMD repair with the Yihua 862BD+. This 2-in-1 station features dual LED displays, a 120L/min brushless hot air gun, a 60W soldering iron, and advanced functions like auto/manual air modes and an adjustable iron sleep timer.
GY-91 10DOF MPU9250 and BMP280 IMU Accelerometer Gyro Barometer Sensor Module ₹549.00
Digital Multimeter Mastech MAS830 Series AC Voltage Range 200mV to 700V ₹1,599.00
YF-DN40 1.5" Water Flow Sensor Fluid Flowmeter Meter Hall Effect 5-150 Litresmin 1.5 Inch ₹2,099.00
Digital LED Tachometer RPM Speed Meter - 4-Digit Green Display with Hall Proximity Sensor ₹1,499.00
Digital Multimeter M3900 ₹1,999.00 Dual-Function Precision Control The Yihua 862BD+ eliminates the need for cluttered workbenches by combining a high-performance hot air gun and a precision soldering iron into a single, compact chassis. The front panel features two independent LED digital displays, allowing you to monitor and adjust the temperatures for the hot air and the soldering iron simultaneously. You can easily toggle the display mode between Celsius and Fahrenheit to suit your personal preference. The system also utilizes intelligent temperature correction technology to ensure the actual tip and air temperatures match your set parameters flawlessly.

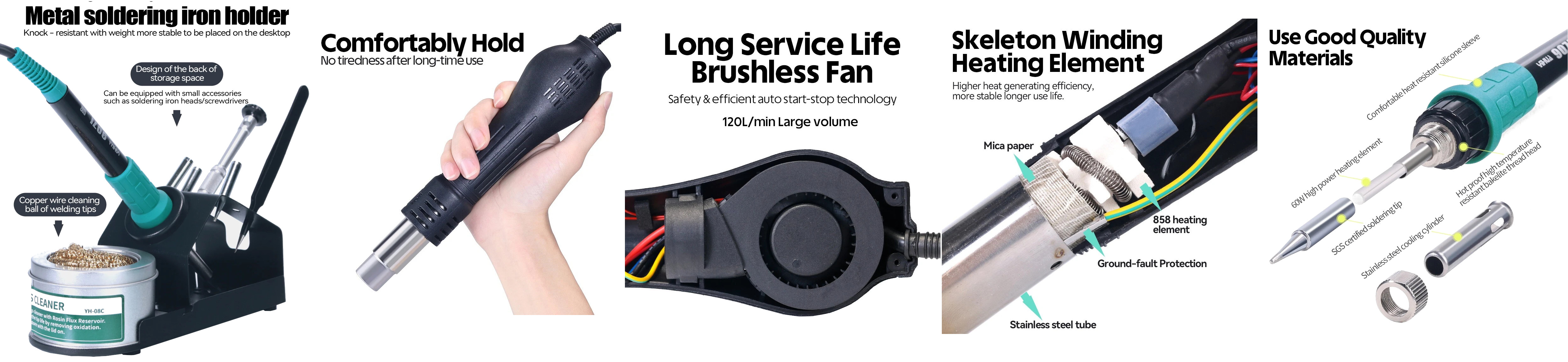

Intelligent Hot Air Gun The hot air handle is designed for comfortable, fatigue-free holding during extended repair sessions. It utilizes a long-service-life brushless fan capable of delivering a massive 120L/min air volume. Inside the handle, a skeleton-wound heating element wrapped in mica paper ensures high heat-generating efficiency and includes ground-fault protection for safety. The air gun features an Auto/Manual toggle switch. In "Auto" mode, the heat gun automatically cools down and enters a standby state when placed in its bracket, dramatically extending the life of the heating element and saving energy.
Premium 60W Soldering Iron The included 907I soldering iron is built using high-quality materials, featuring a comfortable heat-resistant silicone sleeve and a 60W high-power heating element. It utilizes a stainless steel cooling cylinder and a heat-proof bakelite thread head to ensure safe, stable operation. To further extend the life of your iron tips, the station features an adjustable "Iron Sleep" energy-saving mode. You can program the iron to drop its temperature and sleep after 0 to 99 minutes of inactivity.
Comprehensive Accessory Bundle Unlike barebones stations, this kit includes everything you need to start repairing immediately. It comes with a heavy metal soldering iron holder equipped with a brass copper-wire cleaning ball and rosin reservoir to keep your tips perfectly tinned without causing thermal shock. You also receive 4 hot air nozzles of varying sizes, 5 assorted soldering iron tips, a desoldering pump, precision tweezers, a roll of high-purity solder wire, and a specialized IC extractor tool.
Specifications
Model: Yihua 862BD+
Input Voltage: 220V-240V AC, 50Hz (EU Plug)
Total Power Consumption: ~750W
Display Type: Dual LED Digital Displays
Temperature Display Modes: Celsius (°C) / Fahrenheit (°F) Toggle
Hot Air Fan Type: Brushless Fan
Maximum Airflow: 120L/min
Hot Air Modes: Automatic / Manual
Soldering Iron Power: 60W
Soldering Iron Sleep Timer: Adjustable 0 to 99 minutes
ESD Safe: Yes (Marked on chassis)
Key Applications and Projects
Smartphone Motherboard Repair: Using the hot air gun and the fine nozzles to safely reflow and replace delicate surface-mount ICs and charging ports.
Custom PCB Assembly: Utilizing the 60W iron to solder through-hole components and headers onto custom-printed circuit boards.
Drone ESC and Motor Wiring: Applying high, stable heat with the soldering iron to secure thick AWG silicone wires to power distribution boards.
Unlock New Capabilities (Project Evolution) The Ultimate Console Modding Setup: Are you looking to install custom modchips into retro gaming consoles? Evolve your skills! Standard soldering irons struggle with the microscopic pitch of SMD chips. By utilizing the Yihua 862BD+, you can apply solder paste, use the hot air gun on a low airflow setting to perfectly reflow the chip into place, and then use the included precision iron tips and tweezers to clean up any solder bridges. You have just leveled up your workbench to professional-grade hardware modification!

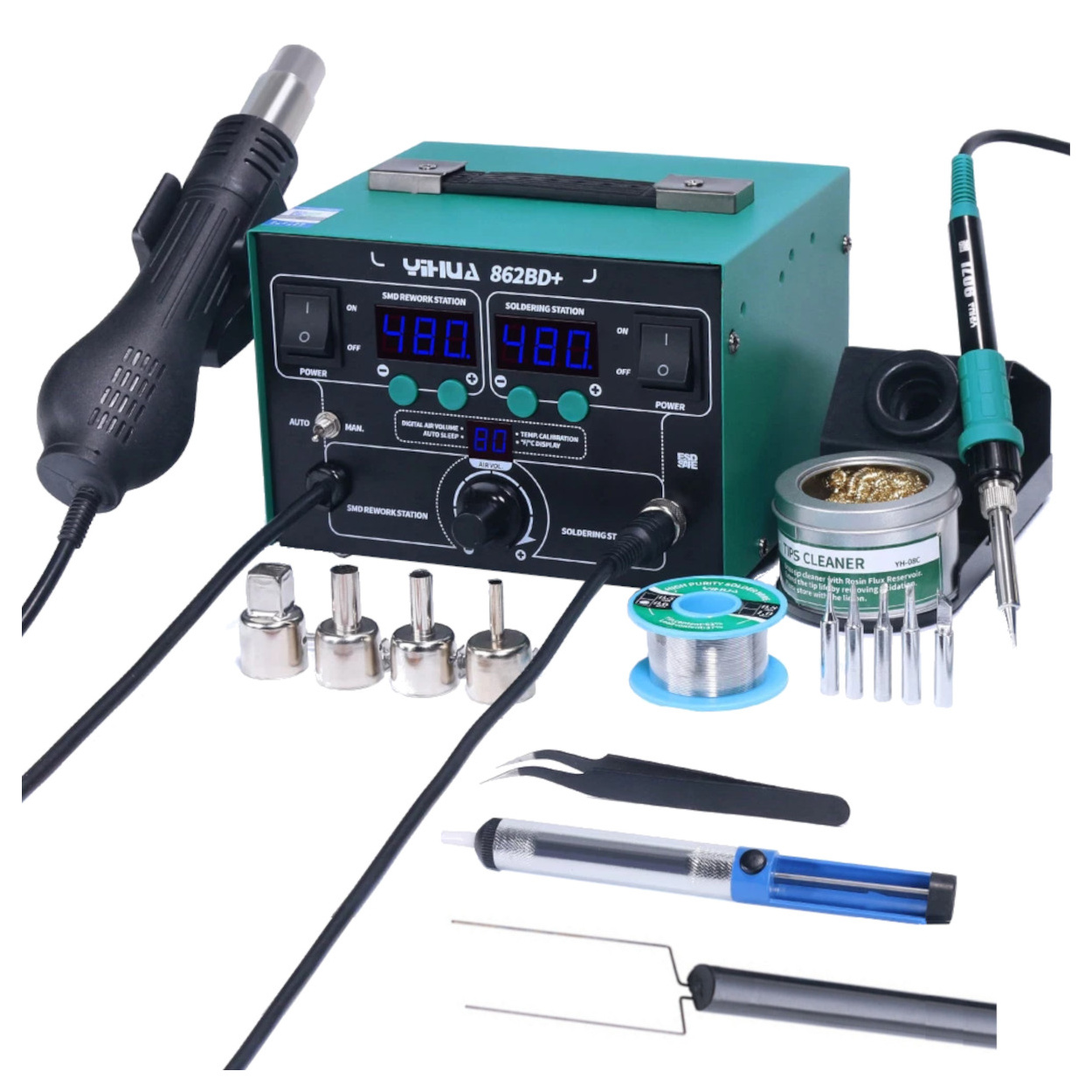

1 x Yihua 862BD+ Main Rework Station Unit
1 x Hot Air Gun (Hardwired to station)
1 x 907I 60W Soldering Iron
1 x Metal Soldering Iron Holder
1 x YH-08C Tip Cleaner (Brass wool with rosin reservoir)
4 x Hot Air Nozzles (Assorted sizes)
5 x Soldering Iron Tips (Assorted shapes)
1 x Desoldering Pump (Solder Sucker)
1 x Precision Tweezers
1 x Roll of High-Purity Solder Wire
1 x IC Extractor Tool
1 x EU Power Cord

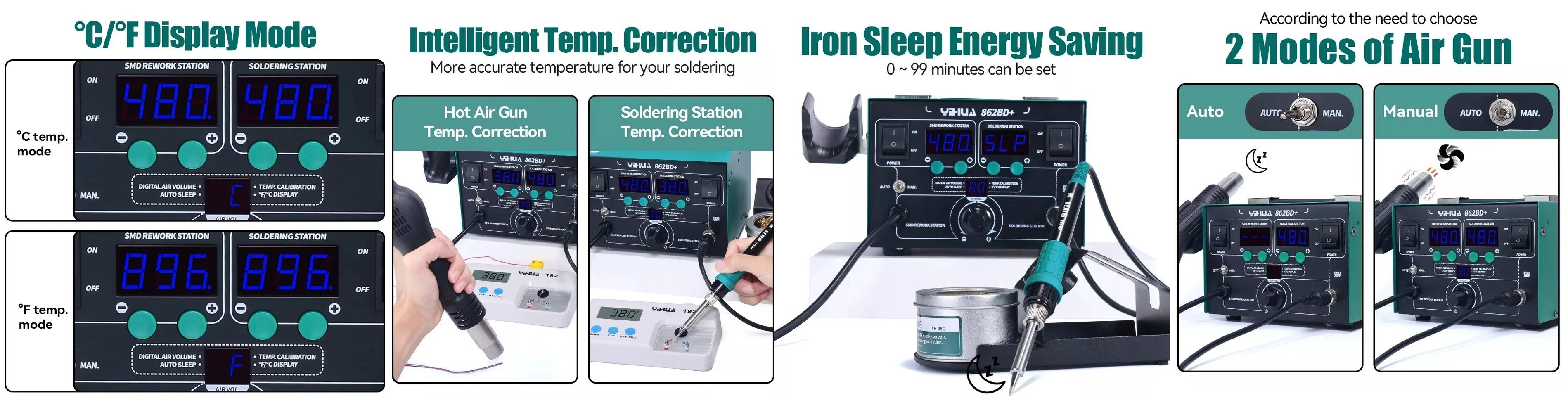

1. What is the difference between Auto and Manual mode for the hot air gun? In Auto mode, the hot air gun will automatically cool down and shut off the airflow when you place the handle back into its bracket. In Manual mode, the hot air gun continues to blow hot air even when placed in the bracket, which is useful for continuous, rapid use.
2. Can I use the hot air gun and the soldering iron at the same time? Yes, the station features independent power switches and digital displays for both the SMD rework station (hot air) and the soldering station, allowing simultaneous operation.
3. What does the sleep function do for the soldering iron? The sleep function drops the iron's temperature after a period of inactivity. This prevents the soldering iron tip from oxidizing and burning out prematurely, saving energy and extending the life of your consumables.
4. How do I adjust the soldering iron sleep timer? The sleep timer can be programmed between 0 and 99 minutes using the digital interface on the front panel.
5. Does the station display temperature in Fahrenheit or Celsius? It supports both! The station features a °C/°F display mode toggle, allowing you to choose your preferred unit of measurement.
6. What is the maximum airflow of the hot air gun? The hot air gun is equipped with a high-efficiency brushless fan that delivers a maximum large volume airflow of 120L/min.
7. What type of fan is inside the hot air handle? It utilizes a long service life brushless fan featuring safety and efficient auto start-stop technology.
8. What is the power output of the soldering iron? The included 907I soldering iron utilizes a 60W high-power heating element.
9. Does the package include different hot air nozzles? Yes, the package includes 4 different stainless steel hot air nozzles of varying diameters and shapes to suit different sizes of SMD components.
10. Are extra soldering iron tips included? Yes, the kit comes with an assortment of 5 different soldering iron tips (such as conical, chisel, and knife edges) to handle various soldering tasks.
11. What is the brass wire sponge used for? The included YH-08C tip cleaner features a copper wire cleaning ball. Plunging your hot iron tip into the brass wool safely removes excess solder and oxidation without causing the rapid temperature drop associated with wet cellulose sponges.
12. Is the hot air gun heating element safe and reliable? Yes, it features a skeleton winding heating element wrapped in mica paper for higher heat-generating efficiency and includes ground-fault protection for safety.
13. Is the hot air gun handle comfortable to hold? The handle is ergonomically designed for a comfortable hold, preventing tiredness after long-time use.
14. What plug type does this model use? This specific model comes equipped with a 220V-240V AC European (EU) standard power plug.
15. Is this station safe for ESD-sensitive components? Yes, the front panel of the chassis is clearly marked "ESD SAFE," indicating it is designed to prevent electrostatic discharge that could damage sensitive microchips.
16. Does this unit have temperature calibration? Yes, the station features an "Intelligent Temp. Correction" function for both the hot air gun and the soldering station, ensuring highly accurate temperatures for precision work.
17. What is the small metal tool with two prongs used for? That tool is an IC extractor. After you have melted the solder holding a microchip to the board using the hot air gun, you use the extractor to safely grip and lift the hot chip away from the PCB.
18. What materials are used in the soldering iron handle? The soldering iron is built with a comfortable heat-resistant silicone sleeve, a heat-proof high-temperature resistant bakelite thread head, and a stainless steel cooling cylinder.
19. How do I adjust the airflow speed of the hot air gun? Airflow is controlled via the large rotary knob located in the center of the front panel, marked "AIR VOL.".
20. Can I detach the hot air gun from the main unit? No, unlike the soldering iron which plugs in via a circular connector, the thick cable for the hot air gun is hardwired directly into the main chassis.
