5-LED Helping Hand Soldering Station - 2.5X/7.5X/10X Magnifier & Iron Stand

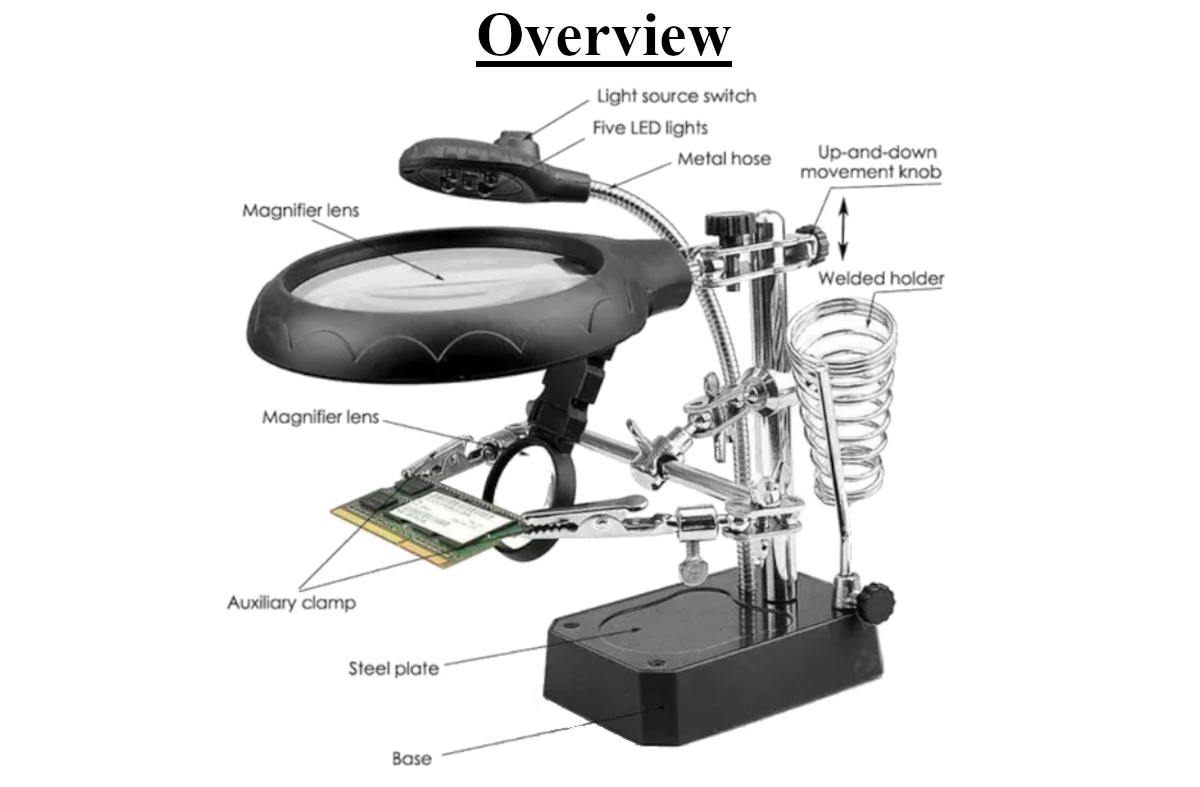

Specifications

• Primary Magnification: 2.5X (90mm Lens Diameter)

• Auxiliary Magnification: 7.5X (34mm Lens Diameter)

• Auxiliary Magnification: 10X (34mm Lens Diameter)

• Illumination Source: 5x Bright White LEDs

• Lighting Adjustment: Flexible Metal Gooseneck Hose

• Clamping Mechanism: 2x Fully Articulated Alligator Clips

• Soldering Iron Stand: Integrated Coiled Spring Holder

• Power Input (AC): Standard Wall Adapter (Included)

• Power Input (DC): 3x AA Batteries (Not included)

• Base Construction: Weighted Plastic with Recessed Steel Plate Tray

Key Applications and Projects

• Drone / UAV Assembly: Holding flight controllers and ESCs securely while soldering thick 12AWG battery wires.

• Micro-Electronics Repair: Utilizing the 10X auxiliary lens to inspect and repair damaged traces or replace tiny SMD resistors on a smartphone motherboard.

• Jewelry & Watch Crafting: Providing a stable, illuminated, and magnified work area for painting miniatures, threading tiny beads, or adjusting watch mechanisms.

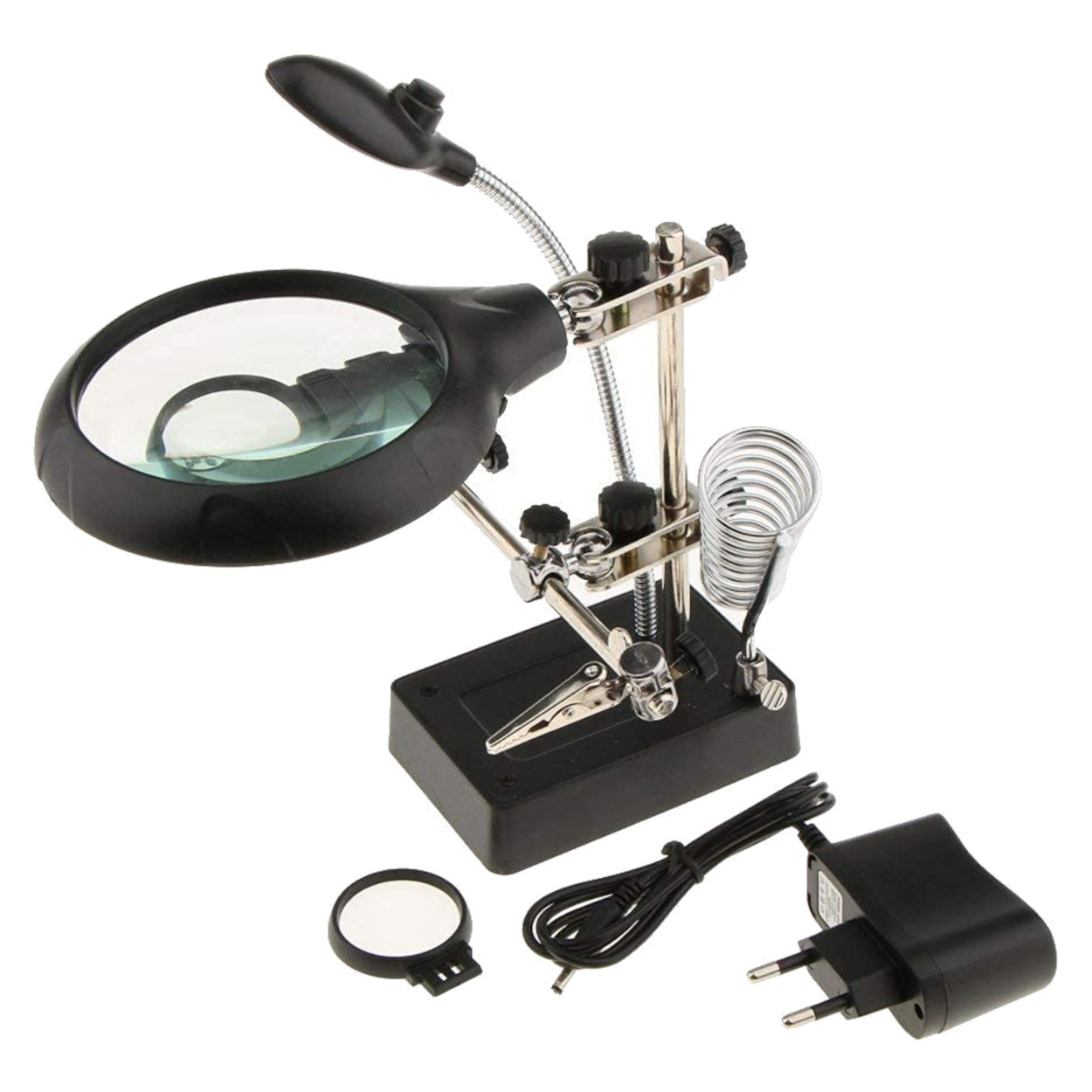

PACKAGE INCLUDED

• 1 x Weighted Base with Main Pillar and Alligator Clip Assembly

• 1 x Primary 2.5X Magnifying Glass (90mm)

• 1 x Auxiliary 7.5X Magnifier Lens (34mm)

• 1 x Auxiliary 10X Magnifier Lens (34mm)

• 1 x Coiled Soldering Iron Holder

• 1 x Flexible 5-LED Gooseneck Lamp

• 1 x AC Power Adapter Plug

• 1 x User Instruction Sheet

FREQUENTLY ASKED QUESTIONS (FAQ)

1. What is the primary purpose of this tool? This tool acts as a "third hand" to securely hold small objects like circuit boards or wires in mid-air, while simultaneously providing magnification and lighting so you have both hands free to solder.

2. What are the three different magnification levels? The main large lens is 2.5X magnification. The kit also includes two smaller, interchangeable auxiliary lenses that offer 7.5X and 10X magnification for extremely detailed work.

3. How do I use the smaller 7.5X and 10X lenses? The smaller auxiliary lenses are designed to snap into a secondary mounting bracket located just beneath the main 2.5X lens, allowing you to combine them or use them independently.

4. Can I use the 7.5X and 10X lenses at the exact same time? No. There is only one mounting slot for the auxiliary lenses. You must choose either the 7.5X or the 10X lens to snap into the holder depending on the level of detail you need.

5. How is the LED light powered? The box is marked "AC/DC Interchangeable." You can power the LEDs using the included AC wall plug adapter, or for cordless portability, you can insert 3x AA batteries into the battery compartment located in the base.

6. Does the package include an AC wall adapter? Yes, a standard AC power adapter is included in the box so you can plug it directly into a wall outlet without needing batteries.

7. Are batteries included in the package? No, if you choose to use the DC battery function for portability, you will need to provide your own AA batteries.

8. How many LEDs are inside the light head? The light head contains a cluster of 5 bright white LEDs to provide smooth, shadow-free illumination over your workspace.

9. Is the LED light adjustable? Yes, the light head is mounted on a flexible metal gooseneck (hose), allowing you to bend and twist the light to shine from almost any angle.

10. What is the coiled metal spring for? That is a specialized, heat-resistant holster designed to hold a hot soldering iron safely when you are not actively holding it.

11. Will the soldering iron stand fit any soldering iron? It fits the vast majority of standard, pencil-style hobbyist soldering irons (like a TS100, Pinecil, or generic 60W irons). It will not fit large industrial soldering guns with pistol grips.

12. Are the alligator clips adjustable? Yes. The arms holding the alligator clips have multiple points of articulation with thumb screws. You can adjust their height, width, and rotation in 360 degrees.

13. Will the metal alligator clips scratch delicate circuit boards? The teeth on bare alligator clips can sometimes scratch delicate traces. A common professional tip is to slide a small piece of heat-shrink tubing over the teeth of the clips and shrink it down, creating a soft, non-marring rubber grip.

14. Is the base heavy enough to prevent the tool from tipping over? Yes. The black base is specifically weighted to counter-balance the weight of a resting soldering iron and the extended magnifying glass, ensuring it stays firmly planted on your desk.

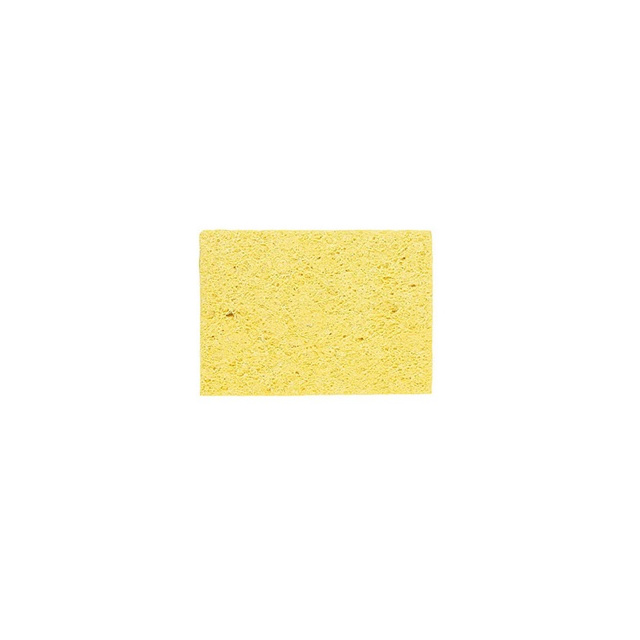

15. What is the recessed rectangular area on the base used for? The base features a recessed tray with a steel plate. This is ideal for holding a damp cellulose cleaning sponge for your soldering iron tip, or for safely containing small screws and loose components so they don't roll off your desk.

16. How do I assemble the unit out of the box? The main pillar and base come attached. You simply need to slide the magnifying glass arm and the coiled soldering iron holder onto the main vertical pillar and tighten the black thumb screws to lock them in place.

17. Are the magnifying lenses made of glass or plastic? To keep the tool from becoming dangerously top-heavy and tipping over, the magnifying lenses are typically molded from high-clarity optical acrylic/plastic.

18. Can the entire magnifying arm be adjusted up and down? Yes. The entire magnifying assembly is attached to the vertical pillar with a movement knob. You can slide the whole mechanism higher or lower to adjust the focal distance.

19. Can I use this for things other than soldering? Absolutely. It is highly popular among jewelers, watchmakers, miniature painters, and craft hobbyists who need a stable holding tool with built-in magnification.

20. Is the LED light bright enough for working in a dimly lit room? Yes, the 5-LED cluster is designed to provide intense, localized task lighting. While you should generally work in a well-lit room for safety, the LEDs are bright enough to clearly illuminate the specific components you are working on, even if ambient room lighting is poor.
