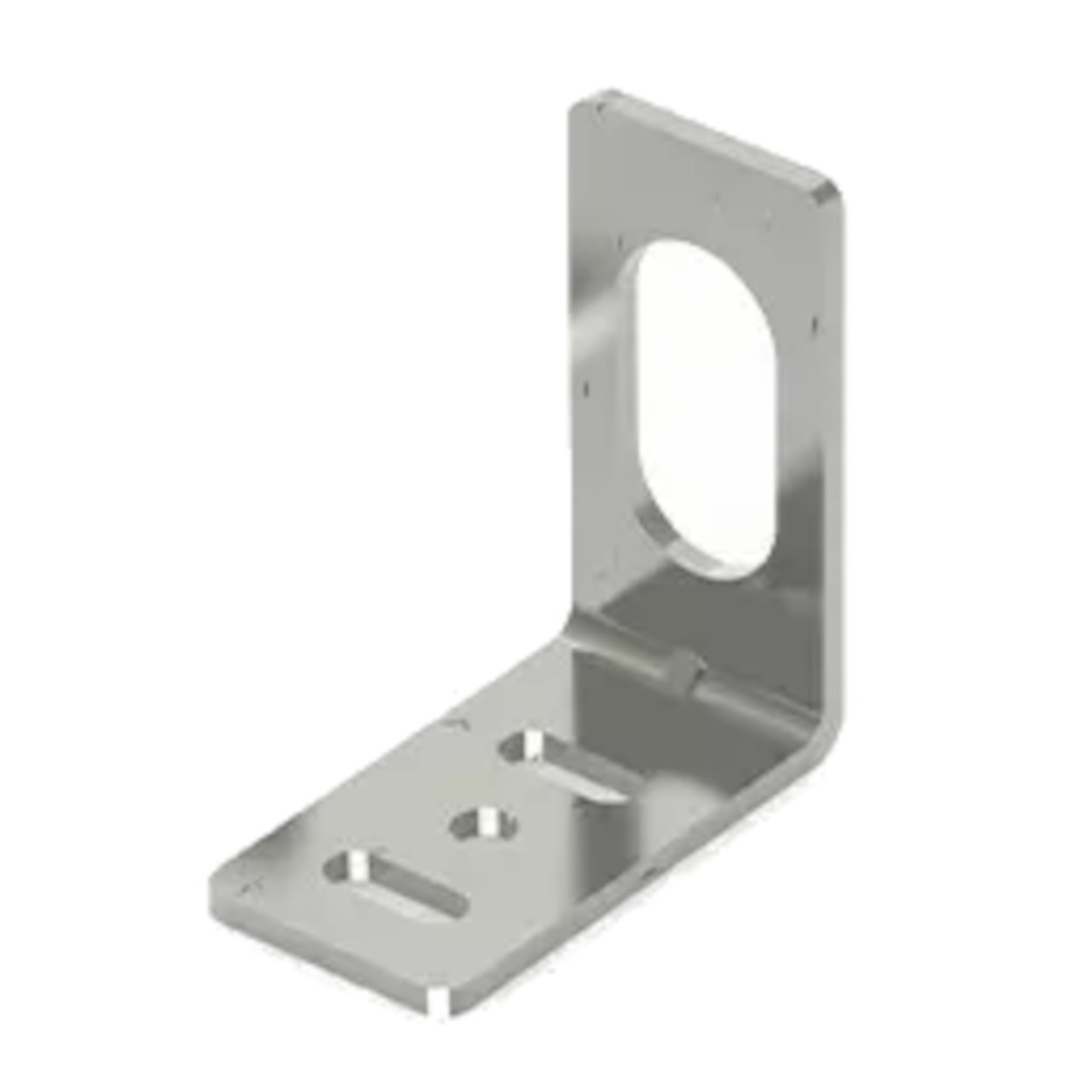

M12 L-Type Proximity Sensor Mounting Bracket - Adjustable Metal Holder

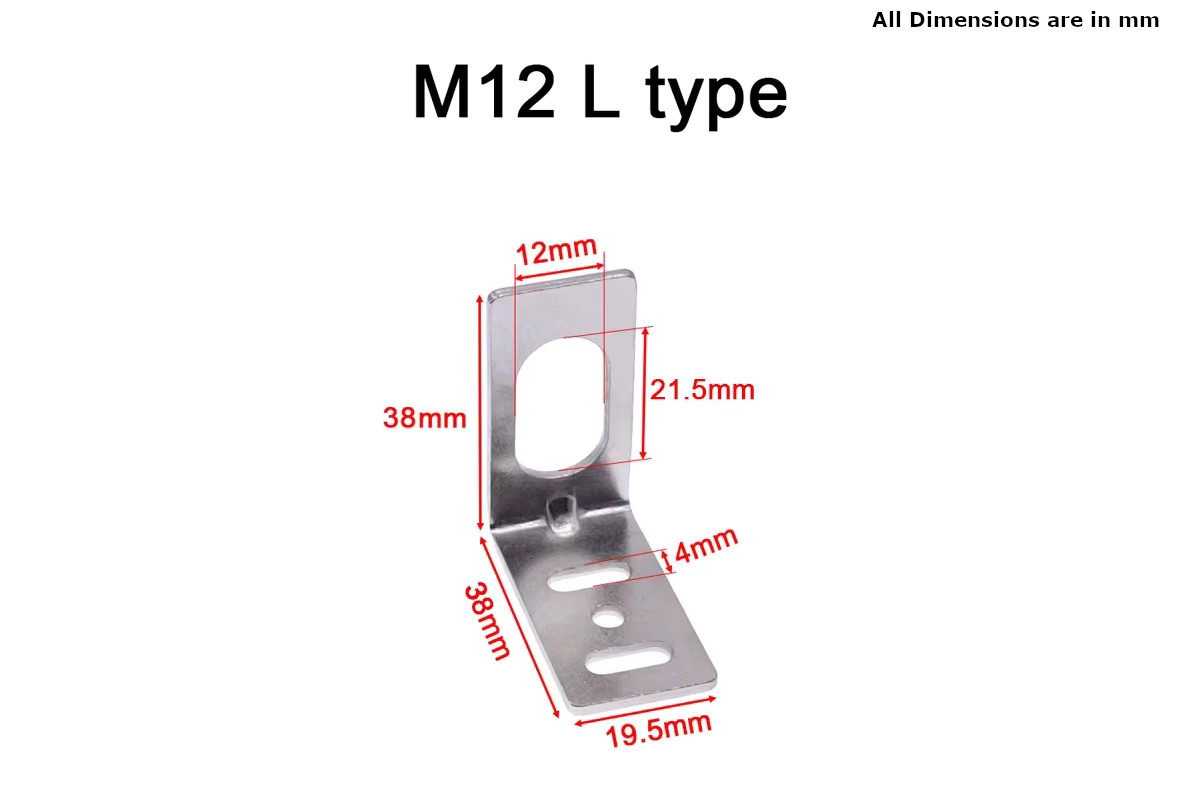

Specifications

• Compatible Sensor Size: M12 (12mm Threaded Barrel)

• Bracket Type: L-Shaped (90 Degrees)

• Material: Plated Alloy Steel

• Overall Height: 38mm

• Overall Base Length: 38mm

• Bracket Width: 19.5mm

• Vertical Sensor Slot Width: 12mm

• Vertical Sensor Slot Length: 21.5mm

• Base Mounting Slots Width: 4mm (Ideal for M3 or M4 screws)

• Material Thickness: ~1.5mm

Key Applications and Projects

• Custom CNC Limit Switches: Mounting M12 inductive sensors to the ends of your X, Y, and Z axes to serve as highly accurate, non-contact homing switches.

• 3D Printer Bed Leveling: Providing a rigid, heat-resistant mount for an M12 inductive or capacitive auto-bed-leveling (ABL) probe right next to your hotend.

• Factory Conveyor Automation: Positioning photoelectric sensors along a conveyor belt to count boxes or trigger a sorting gate when an item breaks the infrared beam.

Unlock New Capabilities (Project Evolution) The Automated Filament Spool Winder: Building a machine to recycle old 3D prints into fresh filament? You need precise tension control. Use this bracket to mount an M12 analog proximity sensor pointing at a mechanical tension arm. As the tension arm moves closer or further away from the sensor, the sensor reads the distance and dynamically speeds up or slows down the winding motor. The sliding slots on this bracket allow you to perfectly calibrate the sensor's resting "zero" point without having to rewrite your microcontroller code!

Package Includes:

• 1 x M12 L-Type Proximity Switch Sensor Metal Bracket

FREQUENTLY ASKED QUESTIONS (FAQ)

1. Will this bracket fit an M8 sensor? No. The vertical slot is 12mm wide. An M8 (8mm diameter) sensor will simply fall right through the hole. You must use an M8-specific bracket for smaller sensors.

2. Will this bracket fit an M18 sensor? No. An M18 sensor is 18mm in diameter and is too large to fit through the 12mm slot on this bracket.

3. What does "M12" mean? M12 refers to the metric thread specification of the sensor's outer barrel. It means the sensor has a diameter of exactly 12 millimeters.

4. How do I secure the sensor to this bracket? M12 sensors universally come with two thin locking nuts. You thread one nut onto the sensor, push the sensor through the bracket's slot, and then thread the second nut onto the other side, pinching the metal bracket tightly between the two nuts.

5. How much vertical adjustment does the slot allow? The vertical slot is 21.5mm long, granting you nearly 10mm of sliding travel up or down to fine-tune your sensor height.

6. What size screws are needed to mount the base? The slots on the base plate are 4mm wide. This makes them perfectly sized for standard M3 or M4 machine screws and T-nuts.

7. Can I mount this to standard 2020 aluminum extrusion? Yes. By using two M4 screws and M4 T-nuts, you can easily secure the base of this bracket directly into the channels of a standard 2020 V-slot or T-slot aluminum extrusion.

8. Is the bracket made of aluminum or steel? These brackets are typically stamped from zinc-plated or nickel-plated steel to provide high rigidity and magnetic shielding, rather than softer aluminum.

9. Can I easily bend the bracket to change the angle? It is heavily discouraged. The bracket is stamped to hold a precise 90-degree angle. Bending it may cause the metal to fatigue or warp the sliding slots.

10. Is the metal rust-proof? The metal is plated (usually with zinc or nickel) to resist standard atmospheric oxidation and rust, making it excellent for factory and workshop environments.

11. Will this warp inside a heated 3D printer enclosure? No. Unlike 3D-printed plastic mounts (like PLA or PETG) which will droop and warp in a hot enclosure, this solid metal bracket is completely immune to ambient printer temperatures.

12. Can I mount it upside down? Yes. The bracket is structurally symmetrical in its load-bearing capability. You can hang it from a top deck or mount it pointing downwards.

13. Does it come with mounting screws? No, this listing is for the bare metal bracket only. You must provide your own M3/M4 base screws and the M12 sensor.

14. What is the total footprint of the base? The base measures 38mm in length and 19.5mm in width.

15. Is this bracket electrically conductive? Yes. Because it is made of bare/plated metal, it is conductive. This is actually highly beneficial in industrial settings as it helps ground the metal chassis of the sensor to the machine frame, reducing electrical noise.

16. Why are there two slots and a hole on the base? The two parallel slots allow you to slide the bracket forward and backward before tightening down two screws for "anti-twist" stability. The center hole gives you the option to mount it with a single larger bolt if needed.

17. What type of sensors work with this? Any sensor with an M12 threaded body. This includes Inductive sensors (metal detecting), Capacitive sensors (liquid/plastic detecting), Photoelectric sensors (infrared optical), and ultrasonic sensors.

18. Can I use this for a mechanical limit switch? Only if the limit switch has an M12 threaded cylindrical body. Standard rectangular microswitches will not mount to this bracket.

19. How thick is the metal? The bracket is stamped from sheet metal approximately 1.5mm to 2.0mm thick, providing excellent rigidity for lightweight sensors.

20. Will the sensor's field of view be blocked by the bracket? No. Because the sensor protrudes straight through the 12mm slot, the sensing face (the colored plastic tip of the sensor) extends entirely past the metal, ensuring an unobstructed sensing field.
