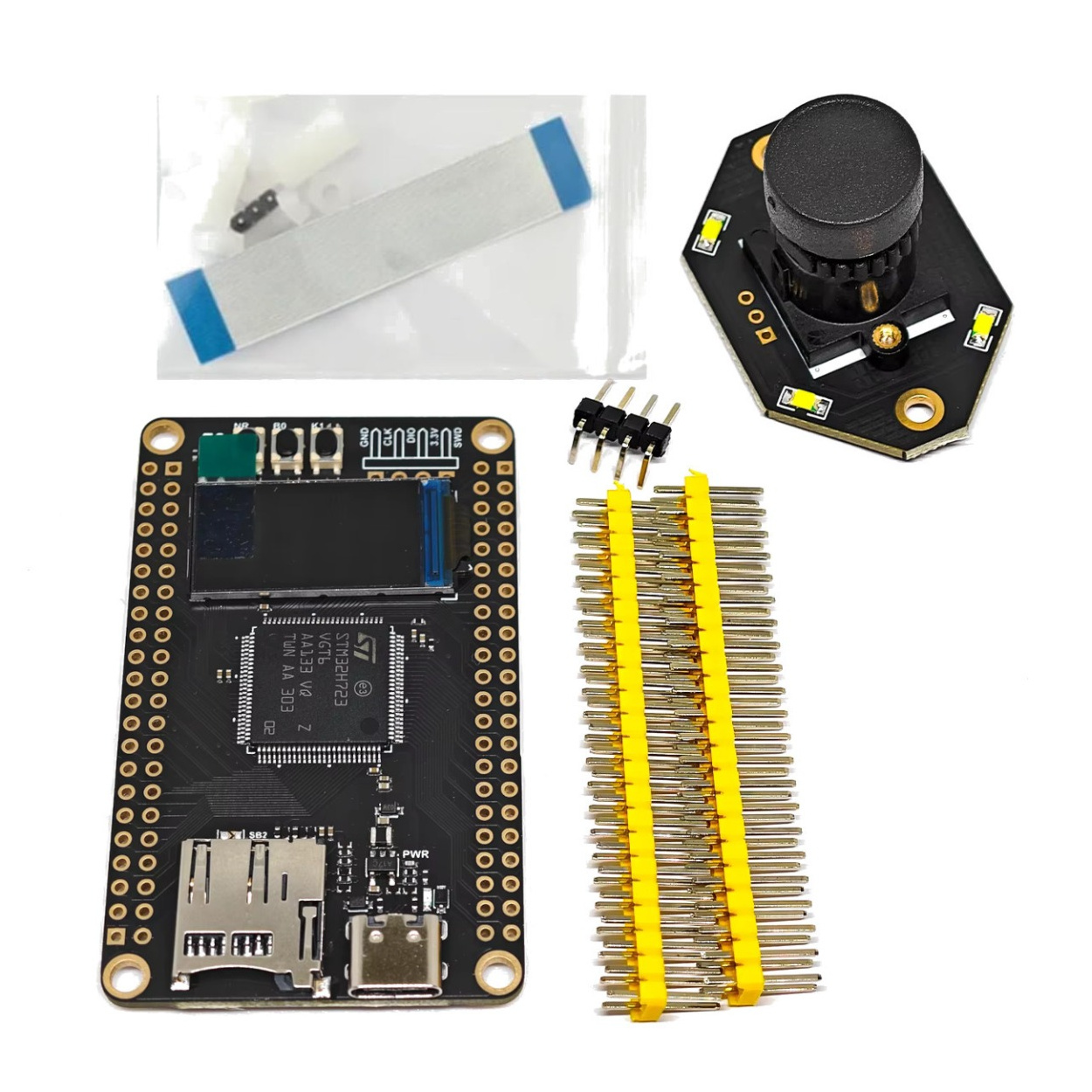

This STM32H743 Core board is a compact development board with an STM32H723VGT6 microcontroller. It features a variety of peripherals, including a user LED and button, a 0.96"display, an OV7725 M12 camera, and external SPI and QuadSPI NOR flash memory.

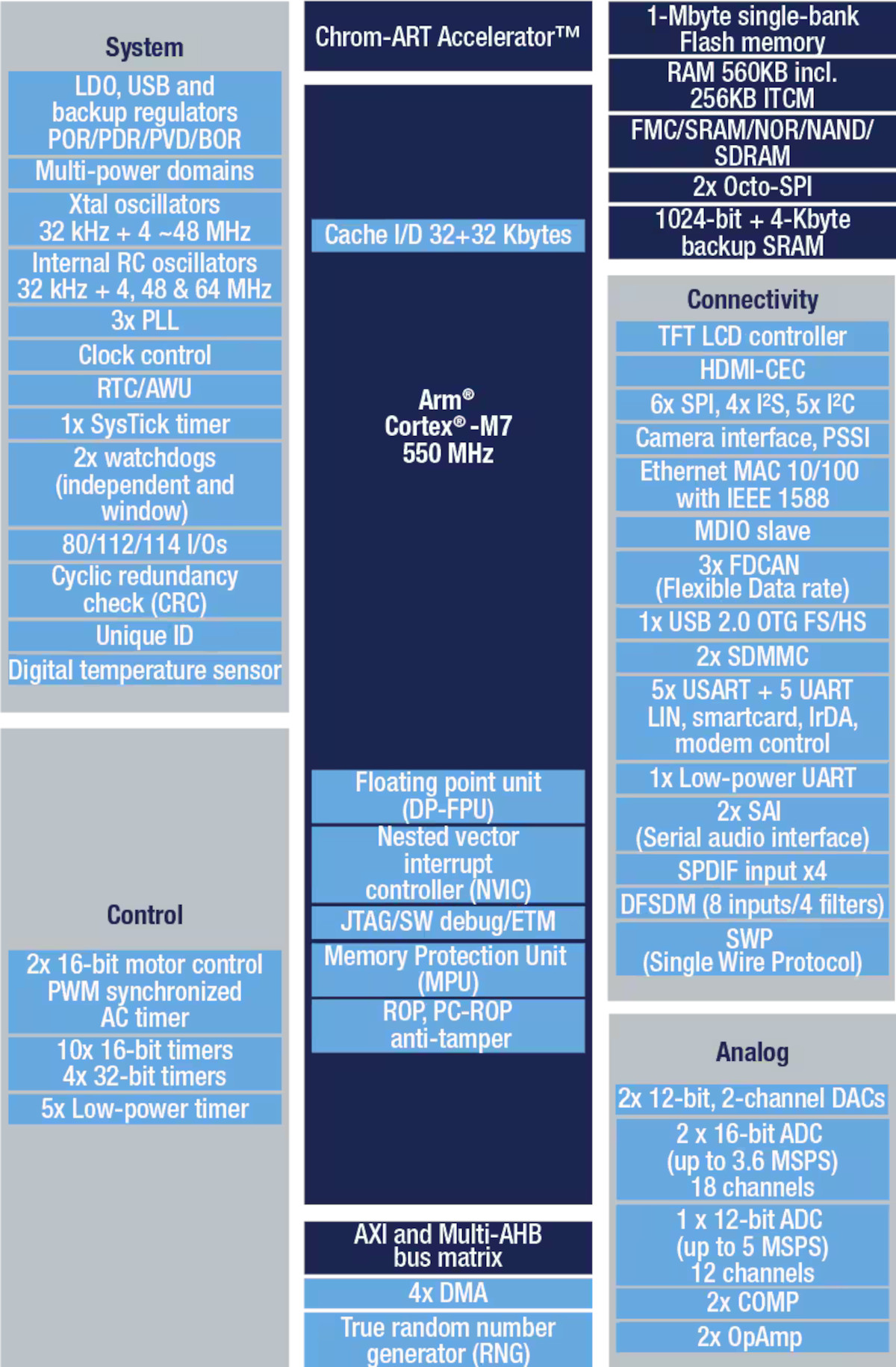

STM32H723 devices are based on the high-performance Arm® Cortex®-M7 32-bit RISC core operating up to 550 MHz. The Cortex® -M7 core features a floating-point unit (FPU) which supports Arm® double-precision (IEEE 754 compliant) and single-precision data-processing instructions and data types. The Cortex-M7 core includes 32 Kbytes of instruction cache and 32 Kbytes of data cache. STM32H723 devices support a full set of DSP instructions and a memory protection unit (MPU) to enhance application security.
STM32H723 devices incorporate high-speed embedded memories with up to 1 Mbyte of flash memory, up to 564 Kbytes of RAM (including 192 Kbytes that can be shared between ITCM and AXI, plus 64 Kbytes exclusively ITCM, plus 128 Kbytes exclusively AXI, 128 Kbyte DTCM, 48 Kbytes AHB and 4 Kbytes of backup RAM), as well as an extensive range of enhanced I/Os and peripherals connected to APB buses, AHB buses, 2x32-bit multi-AHB bus matrix and a multilayer AXI interconnect supporting internal and external memory access. To improve application robustness, all memories feature error code correction (one error correction, two error detections).
The devices embed peripherals allowing mathematical/arithmetic function acceleration (CORDIC coprocessor for trigonometric functions and FMAC unit for filter functions). All the devices offer three ADCs, two DACs, two operational amplifiers, two ultra-low-power comparators, a low-power RTC, four general-purpose 32-bit timers, 12 general-purpose 16-bit timers including two PWM timers for motor control, five low-power timers, a true random number generator (RNG). The devices support four digital filters for external sigma-delta modulators (DFSDM). They also feature standard and advanced communication interfaces.
Further details on the STM32H7 MCU series can be found on the STM32H7 Series.
Use this development board to evaluate this microcontroller and get familiar with it. Great for rapid prototyping and testing. Nice platform to test code before getting a customized PCB for your product.
Links:
Specifications:
Graphics:
USB Interface: Type C
Features:
Up to 35 communication peripherals
Low-power consumption
Debug mode:
SWD and JTAG interfaces
2-Kbyte embedded trace buffer
Applications:
Package Includes:
1 x WeAct Studio STM32H723VGT6 Development Core Board With 0.96" TFT Screen OV7725 M12 camera
