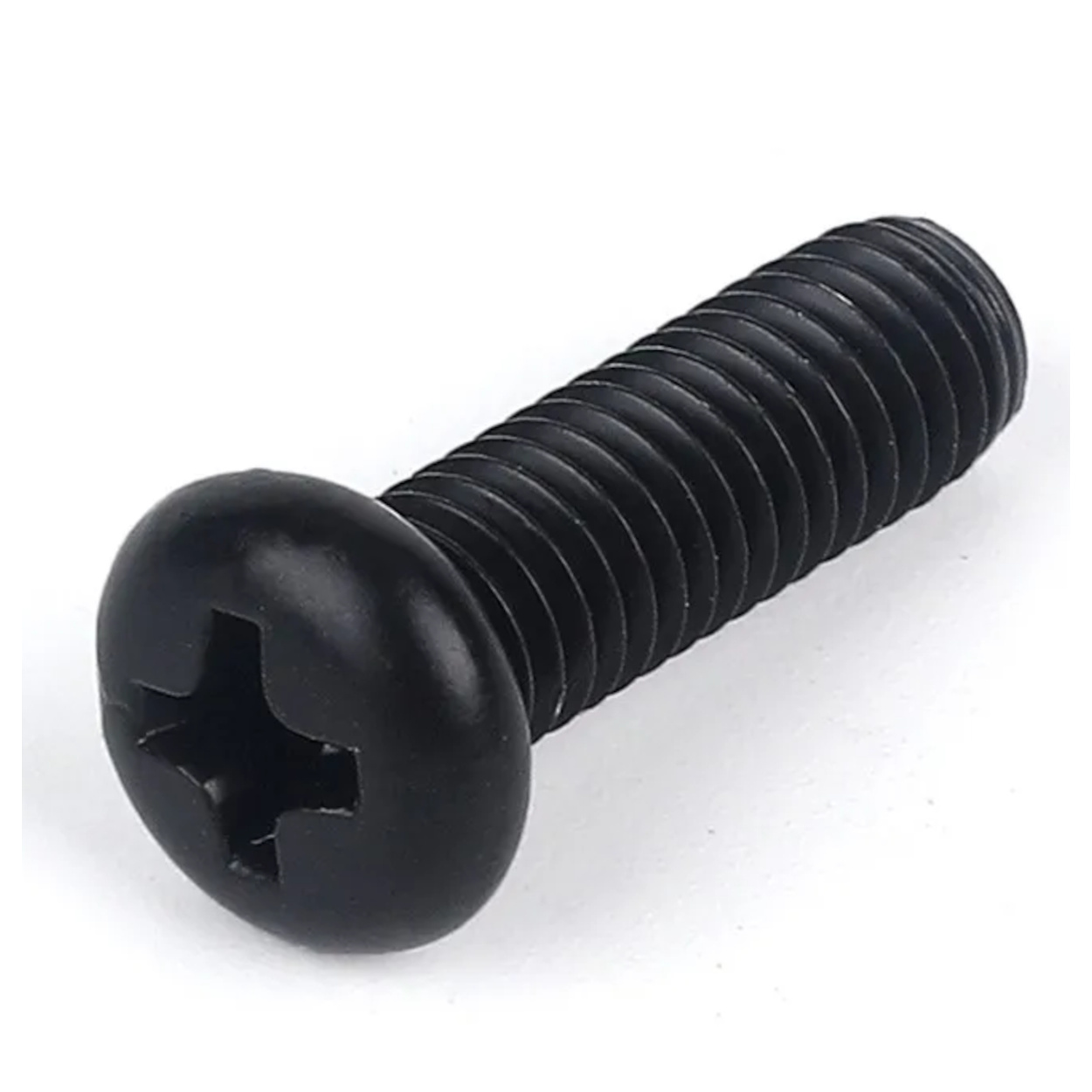

M3 x 6mm Black Nylon Pan Head Phillips Screw

Specifications:

• Thread Size: M3 (3mm Metric)
• Thread Pitch: 5.5mm (Standard)
• Screw Length: 6mm (Measured from under the head)
• Head Type: Pan Head
• Drive Type: Phillips (Cross Recess)
• Material: Nylon
• Color: Jet Black
• Width Across Flats: 5.5mm
• Height/Thickness: 2.4mm

Key Applications:

•  Drone & Quadcopter Builds: Ideal for securing flight controllers and ESCs to carbon fiber frames without adding weight.

• PCB Mounting: Perfect for stacking boards where metal standoffs or screws might cause electrical shorts.

• Marine Electronics: Being plastic, these will never rust or corrode in humid or salt-water environments.

• Enclosure Assembly: Provides a clean, aesthetic finish for black 3D-printed or acrylic project boxes.

Project Evolution

• Past Projects (Prerequisites): If you’ve previously used standard M3 metal bolts and struggled with weight or feared short circuits on your ESP32 or Arduino boards, this is your next step.
• Feature Upgrade: Switching to Nylon fasteners unlocks the ability to mount components in tighter spaces where insulation is a primary concern. It also reduces the overall "swing weight" in robotics and UAVs.
• Effort/Requirements: Beginner Level. All you need is a standard Phillips head screwdriver. Note: Do not over-tighten; nylon is durable but can be stripped if using power tools at high torque.

Virtual Technician & Wiring

• Safety Warning: These are non-structural fasteners. Do not use them for heavy load-bearing applications or high-heat environments (above 85°C).
• Installation: Simply align your PCB holes, insert the screw, and secure with an M3 Nylon nut on the reverse side. No washers are required for most plastic-on-plastic interfaces.

1 X M3 x 6mm Black Nylon Pan Head Phillips Screw

Frequently Asked Questions (FAQ)

1. Are these screws conductive?
   No, they are made of Nylon and are completely non-conductive.
2. Can I use these with metal M3 nuts?
   Yes, the thread pitch is standard M3 and compatible with metal nuts.
3. Will the black color fade over time?
   No, the nylon is pigmented black throughout, so it won't chip or fade.
4. Are they waterproof?
   Yes, nylon is highly resistant to water and will not rust.
5. What is the head diameter?
   The pan head diameter for M3 is typically ~5.5mm.
6. Can I use these for outdoor projects?
   Yes, though prolonged UV exposure over years may eventually embrittle nylon.
7. What screwdriver do I need?
   A standard #1 or #2 Phillips head screwdriver.
8. Can I cut these to a shorter length?
   Yes, nylon can be easily trimmed with side cutters or a hobby knife.
9. Are these stronger than white nylon screws?
   They share the same material properties (Nylon) as standard white variants.
10. Do they melt during soldering?
    Nylon has a high melting point (~260°C), but direct contact with a soldering iron will melt them.
11. Are they RoHS compliant?
    Yes, our nylon hardware is RoHS compliant.
12. What is the thread pitch?
    Standard M3 metric pitch (0.5mm).
13. Can I use them in a vacuum?
    Yes, nylon is often used in low-vacuum applications as it does not outgas significantly.
14. Will they snap if I tighten them too much?
    Yes, nylon has lower shear strength than steel; hand-tightening is recommended.
15. Are these compatible with Raspberry Pi mounting holes?
    Yes, Raspberry Pi uses M2.5 or M3 holes depending on the version/case.
16. How much does one screw weigh?
    Less than 0.1 grams.
17. Can these be used as insulators?
    Yes, they are frequently used as insulating bushings.
18. Are they resistant to oil?
    Yes, Nylon has good resistance to oils and grease.
19. What is the "Pan Head" benefit?
    It provides a flat bearing surface and a low profile.
20. Can I use these in a 3D printed part?
    Yes, they are perfect for threading into printed plastic or using with nuts.
