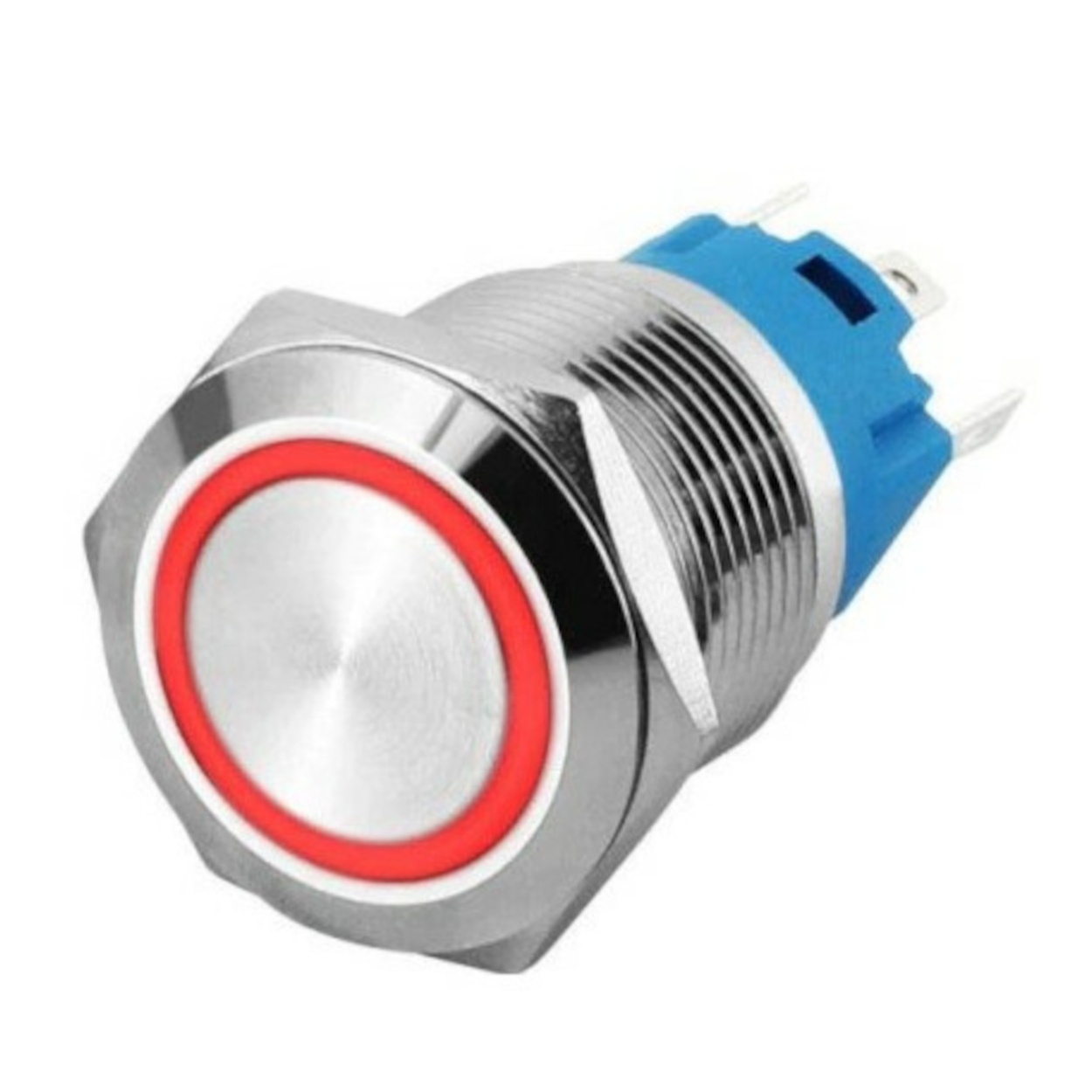

22mm ProMax PPS22006RRM Metal Push Button Switch Waterproof Momentary Red
These are Industrial Grade high-quality switches in metal body. Panel Mount offers easy installation in Enclosures and Cabinets. These switches offer a premium feel after installation. Also come with internal indication light to indicate status.
This Momentary Metal Pushbutton is a perfect choice if you are in need of a heavy-duty push-button. These metal push buttons are very tough, small, panel-mount latching switches with an illuminated Red LED Ring symbol. It is an SPST with 22mm threading. This button is perfect for basic On/Off functions. The overall length (including leads) is 1.5" and has small solder lugs for connection. These Momentary buttons are rated up to 3A and 250VAC while the LED is rated for 5V.
Note: We can carefully manufacture this switch with the best quality contacts, springs, and metal cases. This is not a low-cost switch with false output ratings. Use only ProMax Industrial grade switches for the best quality and life.
The Indication LED has its own 2 Pins, it can be turned on by 5V Power and can be controlled independently from the switch. If you are controlling a 5V Load through the switch, you can connect the output of the switch to the LED pins and light up the LED only when the switch is on. The LED light can also be turned on from a 5V Signal from a Microcontroller, PLC, etc.
This is SPST Single pole switch with C, NO, and NC terminals. This allows you to control up to 1 device or load wires independently. If you use an SPST switch for input power or battery power input you can switch live power wire using this switch for power isolation when the switch is off.
- Brand: ProMax
- Model: PPS22006RRM-11F
- Panel Mount Industrial Switches with Inbuilt Indication
- Switch Thread Size: 22mm
- No of Poles: 1 Pole. (C, NO, and NC Terminals)
- Pin Termination: Crimp Style
- Switch Max. Load Rating: 250V 3A AC
- Switch Operation MTBF: 50,000 cycles
- LED Life: 50,000 working hours
- LED Type: Red with Ring Symbol
- LED Operating Voltage: 5V
- Stainless Steel Body
- IP65 Waterproof Rating
- Tamper Resistant
- Momentary Type Operation
- Red LED Ring Symbol.
- These switches can replace most generic switches to offer a premium look and feel after panel mount installation
- Can be used as a main power control switch for On/Off applications
- Can be used in medical and consumer products for main power control
- Generic Settings or UI Input Switch
- Great for electromagnetic starters, motor starters, etc
- Relay Control Switch
- Horn Button Switch
- PC Power Switch or any circuit controls
1x 22mm ProMax PPS22006RRM-11F Metal Push Button Switch Waterproof Momentary
