FRC IDC Ribbon Cable Crimping Tool - 240mm Alloy Steel with Alignment Die

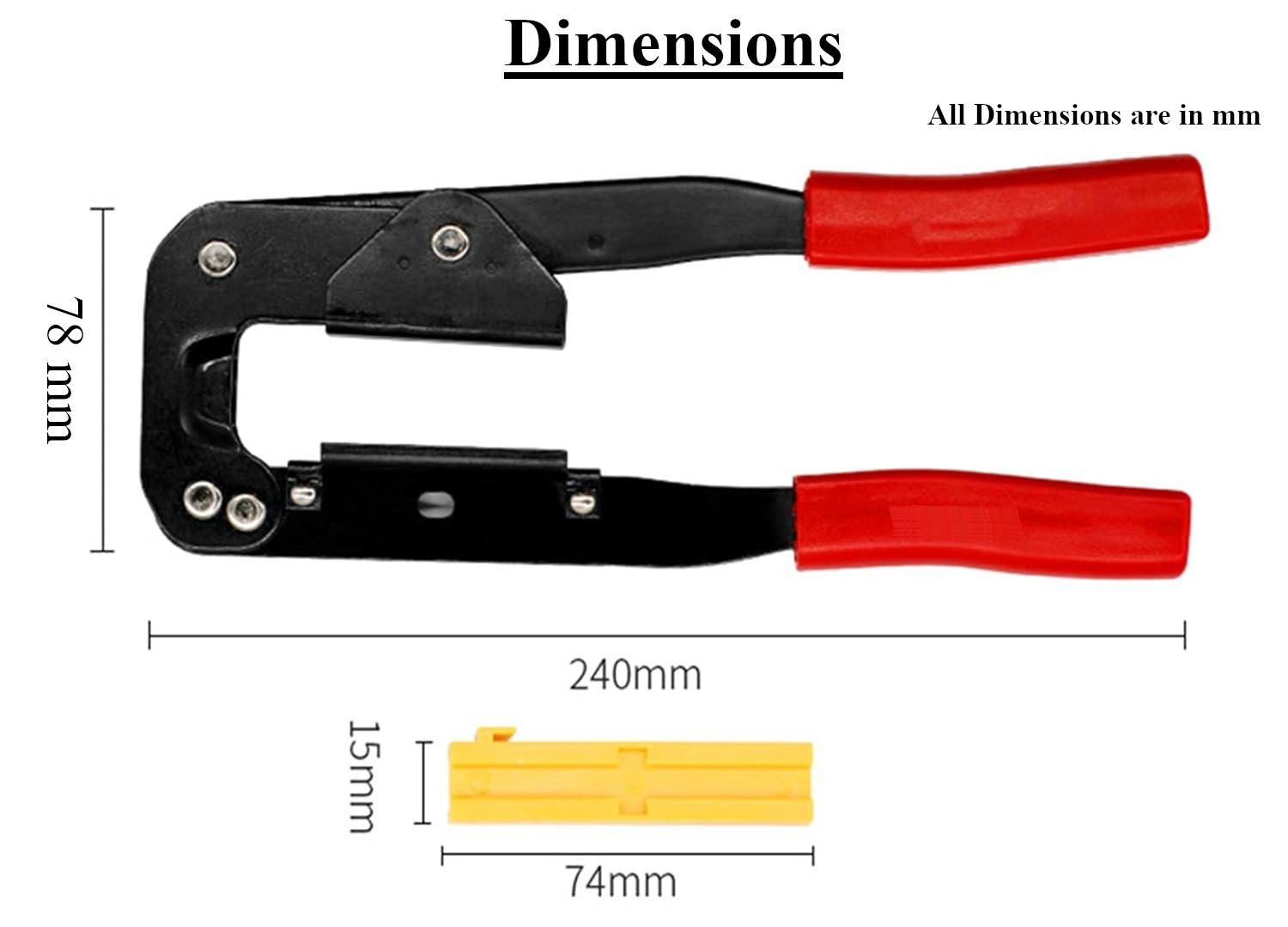

Specifications

• Tool Type: IDC / FRC Flat Ribbon Cable Crimper

• Overall Length: 240mm

• Max Jaw Depth: 78mm

• Alignment Die Length: 74mm

• Alignment Die Width: 15mm

• Frame Material: High-Strength Alloy Steel

• Handle Material: Soft Anti-Slip Rubber

• Die Material: Plastic

Key Applications and Projects

• 3D Printer Wiring: Building custom 10-pin (2x5) LCD screen cables for RAMPS or Creality 3D printer motherboards.

• Retro Computing: Crafting custom-length 40-pin IDE hard drive cables or floppy drive ribbons for vintage PC restorations.

• LED Matrix Panels: Creating daisy-chain data cables (HUB75 connectors) for giant outdoor RGB LED video walls.

Unlock New Capabilities (Project Evolution)

• The Prototyping Master: Stop buying pre-made jumper wires that are always too long or too short for your project! Evolve your workbench. Buy a spool of 10-wire ribbon cable, a bag of 10-pin IDC female connectors, and this crimping tool. You can now measure, cut, and press-fit exact-length data cables for your Arduino and Raspberry Pi sensor arrays in less than 30 seconds. Your enclosures will look cleaner, have better airflow, and suffer from zero loose-wire disconnects!

Package Includes:

• 1 x FRC IDC Crimping Tool (240mm, Alloy Steel)

• 1 x Yellow Plastic Replaceable Alignment Die

FREQUENTLY ASKED QUESTIONS (FAQ)

1. What does IDC stand for? IDC stands for Insulation-Displacement Connector. It is a type of connector that pierces the wire's insulation to make contact, rather than requiring the wire to be stripped first.

2. What does FRC stand for? FRC stands for Flat Ribbon Cable, which is the type of multi-wire cable used with IDC connectors.

3. How do I use this tool? Slide the ribbon cable into your plastic IDC connector, place the connector assembly onto the yellow die in the jaws of the tool, and firmly squeeze the red handles together until the connector clicks shut.

4. What is the yellow plastic piece for? It is a replaceable alignment die. It holds the connector perfectly straight and flat so it doesn't slip out of the jaws while you are applying heavy pressure.

5. Can I use the tool without the yellow die attached? Yes, the die slides off completely. However, using it is highly recommended to prevent crushing connectors unevenly.

6. Will this tool cut or strip the wire? No, this is strictly a pressing/crimping tool. You will need a separate pair of scissors or flush cutters to cut the ribbon cable to length.

7. Do I need to strip the ribbon cable before crimping? No. The metal teeth inside the IDC connector are designed to slice right through the grey plastic insulation to touch the copper wire automatically.

8. Can I just use regular pliers to close an IDC connector? It is highly discouraged. Regular pliers close at an angle (like a clam shell). This pinches one side of the connector before the other, usually shattering the brittle plastic. This tool presses the connector perfectly parallel.

9. What is the maximum width of a connector this tool can handle? The tool's jaw and the yellow die are roughly 74mm to 78mm long, which comfortably accommodates massive 40-pin and 50-pin IDE ribbon connectors.

10. Is this tool ratcheting? No, it is a direct-action manual press. You squeeze it closed, and when you release your grip, you manually open the jaws.

11. Can it crimp Dupont or JST-XH connectors? No. Dupont and JST connectors require a specialized "roll crimp" tool for individual bare wires. This tool is exclusively for flat IDC ribbon connectors.

12. Will this work for standard 10-pin Arduino ISP cables? Yes, it is perfect for building the 2x5 (10-pin) AVR ISP programming cables used heavily in Arduino projects.

13. What is the tool made of? The main body is forged from high-quality alloy steel for maximum durability and strength.

14. Are the handles comfortable to grip? Yes, they are coated in a thick, soft red rubber that provides a comfortable, ergonomic, and non-slip grip.

15. How long is the tool? From the tip of the jaw to the end of the red handles, it measures 240mm (about 9.4 inches).

16. How do I know if I have crimped the connector successfully? A standard IDC connector has a top locking bar. When you squeeze the tool, you will usually hear and feel a distinct "snap" as the locking bar clips down flush into the sides of the connector body.

17. What happens if I squeeze the tool too hard? The metal jaws of the tool are designed to bottom out against each other. Once fully closed, you cannot crush the standard connector any further.

18. Can the yellow die be replaced if I lose it? Yes, the tool features a "Replaceable Die" system. It simply slides onto a metal rail on the lower jaw.

19. Can I use this for repairing old 40-pin computer hard drive cables? Yes, this tool is the exact piece of equipment required to attach new connectors to classic 40-pin IDE ribbon cables for retro PC builds.

20. Is the tool heavy? Because it is made of solid alloy steel, it has a substantial, premium weight to it, allowing it to apply massive force without the handles bending.
