ACEBOTT QD003 AI Vision Expansion Kit for QD001 Smart Car (K210 Edge AI Chip)

Specifications

• Core Processor: K210 RISC-V Dual Core 64-bit with FPU.

• AI Capabilities: Convolutional Neural Network (CNN) Hardware Accelerator (KPU).

• Camera Sensor: OV2640 (2 Megapixel).

• Resolution: QVGA (320x240) for AI processing / UXGA up to 1600x1200 for stills.

• Mounting: Custom acrylic bracket compatible with ACEBOTT QD001 Chassis.

• Interface: Connects to ESP32 Shield via dedicated 4-pin interface.

• Framework: Supports MicroPython (for advanced users) and ACEBOTT Graphical Block Coding.

• Compatibility: Strictly for Smart Robot Car Kit (QD001). (Not a standalone product).

Project Evolution

• Prerequisite: This is an expansion pack. You MUST own the ACEBOTT QD001 Smart Car to use this. It draws power and locomotion from the main car.

• The Upgrade: This bridges the gap between "Remote Control Toy" and "Self-Driving Car." You will learn concepts used in actual Tesla autopilots (Computer Vision, Object Detection).

• Effort Level: Advanced. While assembly is easy, understanding AI training and vision logic requires patience. Probots™ Tech-Bridge resources are available to help you navigate the learning curve.

Virtual Technician & Wiring Guide

• ⚠️ Lens Protection: The camera lens is sensitive. We use Probots™ Secure-Transit packaging, but please avoid touching the glass lens directly with oily fingers.

• Connection Port: The AI Camera module connects to the specific I2C/Serial port on the ACEBOTT Shield. Check the label carefully (VCC to VCC, GND to GND).

• Lighting Matters: AI Vision relies on light. For best performance, use this kit in a well-lit room. Dark environments will cause recognition failures.

Helpful Tutorials & Resources

• Code & Instructions

Package Includes:

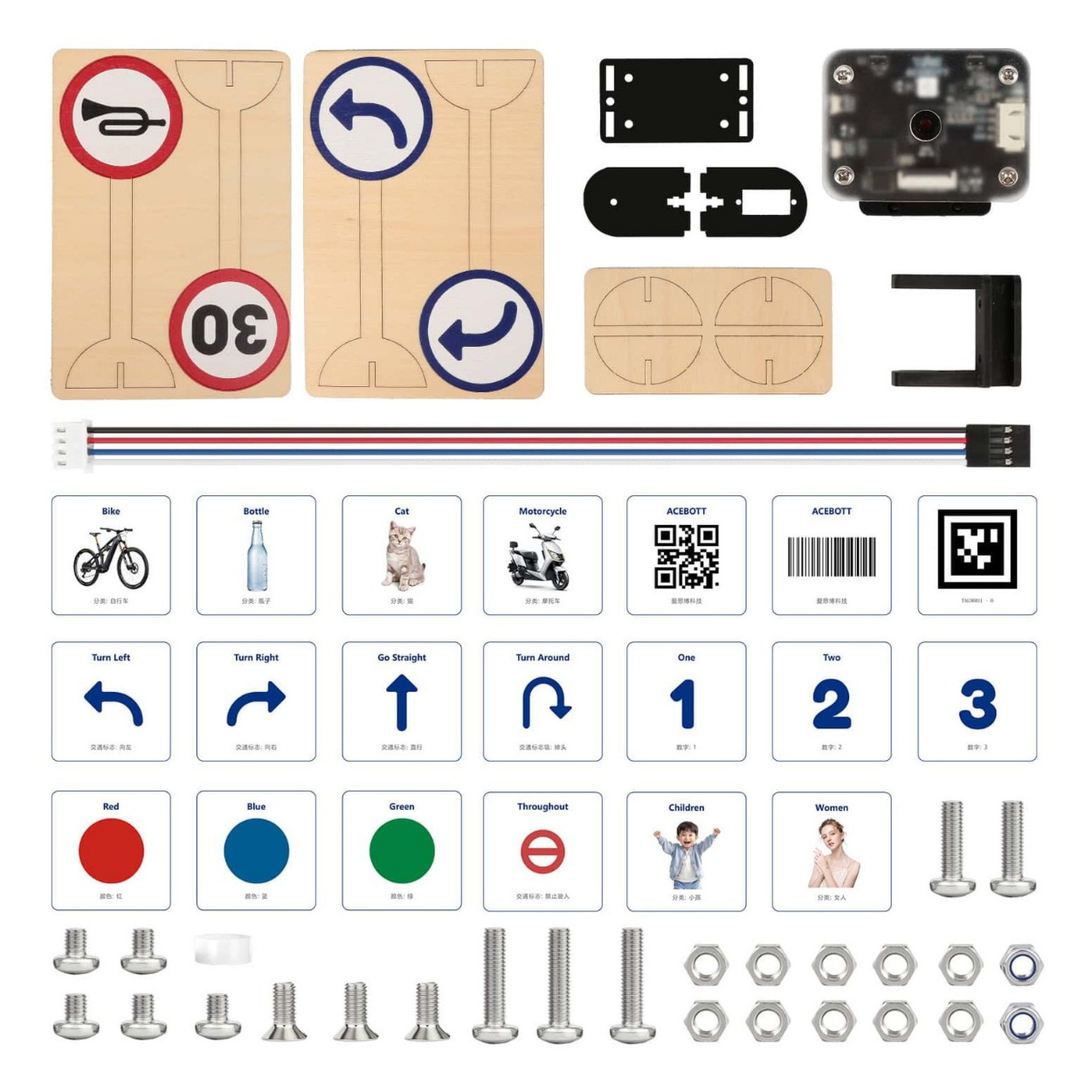

• 1 x ACEBOTT QD007 Robot Arm Pack Smart Car Expansion DIY Kit

Frequently Asked Questions (FAQ)

• Does this kit work alone? No, it is strictly an expansion for the QD001 Smart Car.
• Do I need a Raspberry Pi? No, the K210 chip handles all the AI processing onboard.
• Does it need Wi-Fi to recognize faces? No, it uses "Edge Computing," processing everything locally on the chip.
• Can I train my own models? Yes, you can train custom object models (e.g., to recognize your specific toy) using online tools and upload them to the SD card.
• Is an SD card included? A small capacity testing card is often included, but we recommend a 16GB Class 10 card for storing large models.
• What programming language does it use? It supports MakeCode-style block coding (easy) and MicroPython (text-based).
• Can it see in the dark? No, it is a standard optical camera. It requires ambient light.
• Does it record video? It processes video for AI, but it is not designed to be an "Action Camera" for recording long HD movies.
• How fast is the recognition? For basic objects, it runs at approx. 15-20 Frames Per Second (FPS).
• Can it recognize text (OCR)? Basic number recognition (like speed limits) is supported, but not full paragraph reading.
• Is the screen touch-enabled? No, the LCD is for display output only.
• How difficult is the assembly? It mounts with just a few screws. The physical assembly takes <10 minutes.
• Does it drain the battery fast? Yes, video processing consumes more power. Expect 20-30% shorter battery life on your car.
• Can I use it with Arduino Uno? The K210 module communicates via Serial, so theoretically yes, but libraries are optimized for the ESP32 on the QD001.
• What happens if I unplug the camera while on? Avoid this. It can corrupt the SD card filesystem. Always power down first.
• Is the lens focus adjustable? Yes, you can manually twist the lens ring gently to focus on near or far objects.
• Does it include the "Road Map"? Most kits include a printed paper track/map for the traffic sign simulation.
• Can I stream video to my phone? The primary function is onboard processing, but low-res streaming is possible via the ESP32's Wi-Fi.
• Is this suitable for beginners? It is best for students who have already mastered the basics of the QD001 car.
• Why is the screen upside down? Depending on mounting, you may need to add a "flip screen" command in your code setup.
