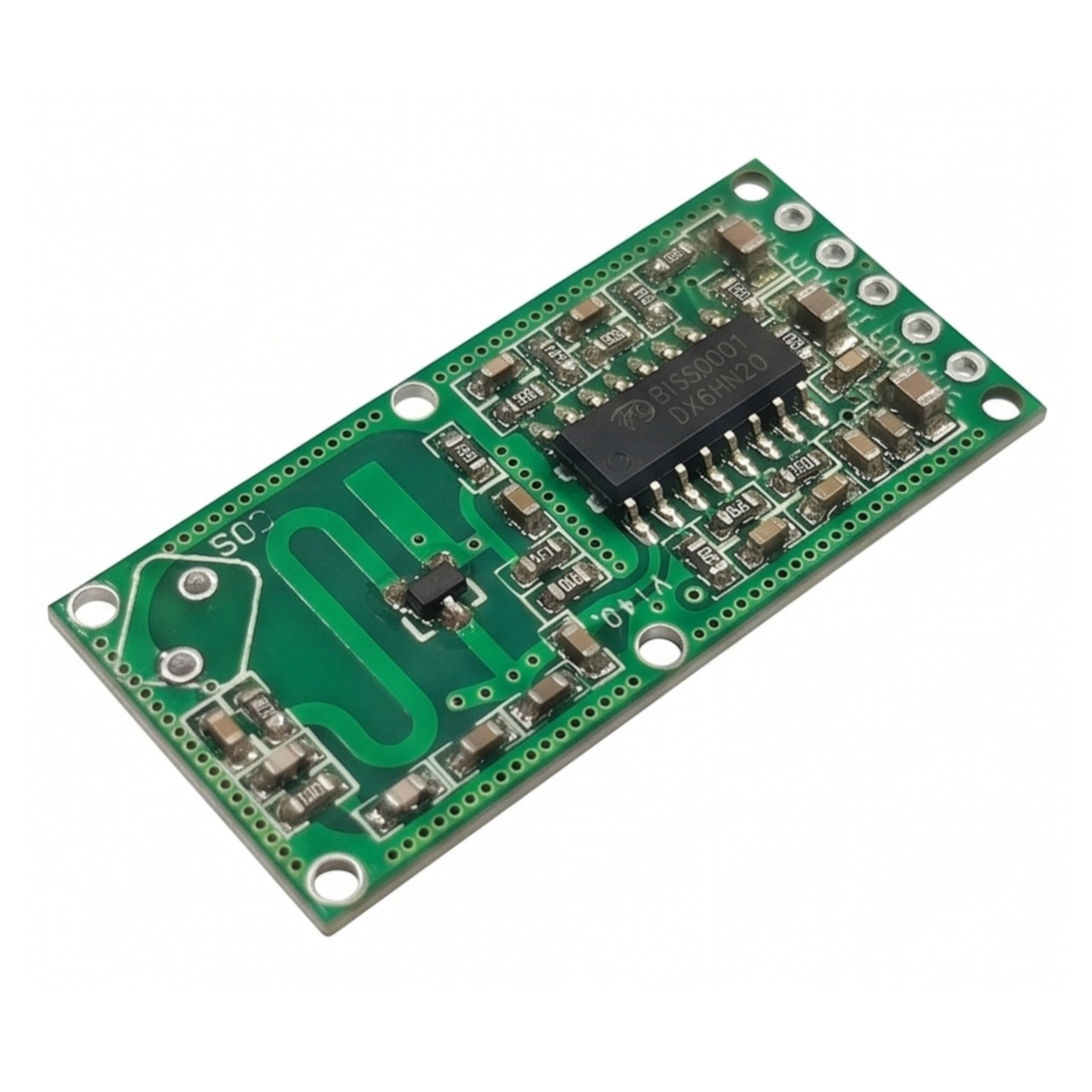

RCWL-0516 Microwave Radar Motion Sensor Module Doppler Radar Body Detector

Specifications:

• Operating Voltage Range: 4.0V to 28.0V DC
• Operating Current: 2.8mA (typical), 3.0mA (maximum)
• Detection Distance Range: 5 meters to 9 meters
• Transmitting Power: 20mW (typical), 30mW (maximum)
• Output Signal Level: Digital TTL High (3.3V) / Low (0V)
• Default Output Delay Time: 2 seconds (fixed, customizable via onboard resistor adjustments)
• Operating Frequency: ~3.18 GHz
• Detection Angle: 360-degree omnidirectional (complete spherical coverage without blind spots)
• Enclosure Penetration: Detects movement through glass, plastic, drywall, and thin wooden panels
• Light Sensor Support: Features integrated solder pads for mounting an optional CDS photoresistor
• Operating Temperature Range: -20°C to +80°C
• Core Processing IC: RCWL-9196 dedicated signal processing chip
  Module
• Dimensions: 35mm × 17mm

Unlock New Capabilities

Past Projects
If you have already experimented with traditional passive infrared (PIR) sensors like the HC-SR501, or have built simple tracking nodes using ultrasonic distance modules, you understand how a microcontroller monitors input pins for high or low binary states. This means you possess the baseline coding knowledge required to step away from fragile line-of-sight sensors and transition to advanced high-frequency microwave tracking systems.

Feature Upgrade
This RCWL-0516 microwave radar sensor unlocks hidden security nodes, weatherproof outdoor motion trackers, smart home automated light switches, and human presence detectors that work invisibly behind false ceilings or drywall. By utilizing 3.18 GHz Doppler radar waves, you can design projects where the tracking hardware is hidden entirely inside a completely sealed, waterproof plastic housing—making your system completely immune to outdoor dust, heavy moisture, or vandalism.

Effort Level & Minimum Hardware

• Microcontroller development platform (Arduino Uno, ESP32, or Raspberry Pi Pico) — mandatory to read the digital state changes of the module and handle automation loops.

• 3× Jumper wires (Female-to-Male or Female-to-Female) — required to establish clean electrical signal runs between the module and your master board.

• Stable 5V DC power source — necessary to provide low-ripple current to the high-frequency transmitter circuit.

Virtual Technician & Wiring Guide
⚠️ Electrical & Safety Warnings:

• Power Supply Ripple Interference: High-frequency microwave oscillators are highly sensitive to voltage ripples. If your power supply is noisy, the module can enter a self-triggering loop where it stays permanently stuck HIGH; always prioritize a stable, well-regulated power rail.
• Metal Isolation Hazard: Microwave radar waves cannot penetrate metal. Never mount this module inside an iron, aluminum, or steel enclosure, and ensure there are no large metal objects or PCB ground planes within 1 centimeter of the antenna side of the board, as they will completely block the detection field.
• Component Placement Clearance: Do not mount two RCWL-0516 modules within 1 meter of each other. Because they emit matching microwave frequencies, placing them too close together will cause mutual RF interference and generate constant false triggers.

Wiring — RCWL-0516 Radar Sensor to Arduino Uno:


Package Includes :

1 X RCWL-0516 Microwave Radar Motion Sensor Module Doppler Radar Body Detector

Frequently Asked Questions

1. Is the RCWL-0516 Microwave Radar Sensor compatible with an Arduino Uno?
   Yes, this sensor module is fully compatible with the Arduino Uno because its digital OUT pin outputs a standard 3.3V TTL high signal that can be safely registered by any 5V digital input pin.
2. Can I use the RCWL-0516 Radar Sensor directly with a 3.3V board like the ESP32?
   Yes, it interfaces safely with the ESP32. While the module's main VIN rail prefers 5V for optimal transmission consistency, its native 3.3V logic level on the OUT line will not damage sensitive 3.3V GPIO inputs.
3. Can I run this microwave radar module on a Raspberry Pi using MicroPython?
   Yes, you can read the high and low states of the sensor directly within MicroPython on a Raspberry Pi Pico or standard Raspberry Pi board using the core machine.Pin digital input framework.
4. Can I position multiple RCWL-0516 sensors in close proximity within a single room?
   No, you should avoid placing multiple modules within 1 meter of each other. Because they emit matching 3.18 GHz frequencies, close proximity causes cross-talk radio frequency interference, leading to constant false triggers.
5. What is the minimum input supply voltage required by the RCWL-0516?
   The onboard voltage regulator accepts a wide input supply range spanning from 4V to 28V DC, allowing it to adapt to standard 5V rails, 9V batteries, or 12V industrial power loops.
6. Can I power this sensor module directly from a 3.3V power rail?
   No, you cannot run this module off a raw 3.3V rail. The onboard low-drop regulator needs a minimum threshold input of 4.0V to stabilize power to the high-frequency oscillator loop and avoid system lockups.
7. How much current does the RCWL-0516 draw during continuous tracking?
   The module is highly energy-efficient, drawing a minimal operating current of under 3mA (typically 2.8mA), making it well-suited for low-power long-term battery observation systems.
8. What is the primary performance advantage of this radar sensor over a PIR sensor like the HC-SR501?
   Unlike PIR hardware which requires an open line-of-sight to capture thermal shifts, this radar module uses 360-degree microwave penetration to easily sense movement through glass, acrylic, plastic enclosures, and drywall surfaces.
9. Can this microwave sensor detect movement through iron or steel doors?
   No, microwave signals are completely blocked and reflected by metal surfaces. Placing the module inside an iron or aluminum box will shield the microstrip patch antenna grid and blind the sensor entirely.
10. Why does my RCWL-0516 sensor stay constantly stuck in a HIGH output state?
    A stuck-HIGH state is almost always caused by power supply ripple noise or placement near metal objects. Power the module from a clean battery or add a decoupling capacitor across VIN and GND to isolate supply ripple.
11. How do I reduce the tracking range if the sensor is picking up movement through walls?
    You can reduce the sensitivity distance by soldering a custom SMD resistor onto the rear pads labeled R-GN. Lowering the resistance value gradually drops the detection radius down from 9 meters to roughly 5 meters.
12. How can I change the default output trigger delay time from 2 seconds to something longer?
    You can increase the output trigger window by soldering an external capacitor onto the rear pads labeled C-TM. Refer to the RCWL-9196 timing chart to match capacitor values to your desired delay duration.
13. What is the purpose of the dedicated 3V3 pin on the header array?
    The 3V3 terminal is a regulated output channel coming from the onboard power chip. It can supply up to 100mA of clean current to run tiny external circuits, but it should never be used as a power input.
14. What is the purpose of the open solder pads marked CDS on the back of the board?
    The CDS pads let you add an optional light-dependent photoresistor. Once soldered into place, it automatically turns off the sensor's OUT pin during bright daylight to preserve system energy.
15. Does this module require a specialized library to run inside the Arduino IDE environment?
    No dedicated software libraries are required. The module acts as a standard binary trigger tool, allowing you to easily read its high or low pulses using the built-in digitalRead() command.
16. Why does the sensor register a trigger when there is absolutely no human presence in the room?
    Microwave sensors are highly sensitive to physical oscillations. Vibrating window glass, moving water lines inside plastic pipes, or cooling fans spinning inside enclosures within the 9-meter field can activate the module.
17. Is there a directional blind spot on the module where motion cannot be registered?
    No, this module provides true 360-degree omnidirectional spherical coverage. It captures movement uniformly across all planes, whether it is mounted flat, vertically, or inverted behind a ceiling panel.
18. Does Probots provide bulk sourcing quantities of this module for commercial security contracts?
    Yes, our Bangalore engineering and logistics hub manages corporate inventory requirements, wholesale supply streams, and institutional processing. Please coordinate bulk quotes through our enterpise panel.
19. Is the RCWL-0516 Microwave Radar Sensor distributed by Probots a genuine verified part?
    Yes, every module we distribute is sourced directly through vetted Tier-1 factory lines to ensure proper RCWL-9196 processing layout standards, protecting your automated systems from marketplace rejects.
20. Does Probots offer post-purchase hardware support if my module fails to calibrate?
    Yes, all hardware purchases include complete access to our localized Bangalore technical helpdesk, where our field engineers are ready to assist with wiring diagnostics, power filtering advice, and calibration troubleshooting.
