Read Article →This Smart Display Module is based on the ESP32-S3-WROOM-1 development board. It features a 4-inch LCD touch capacitive display with a panel mount design and three relay outputs of 220V signal drive to control the three independent loads.
USB Mic for Raspberry Pi Plug and Play Desktop Microphone ₹269.00
SMD Electret Microphone ₹49.00

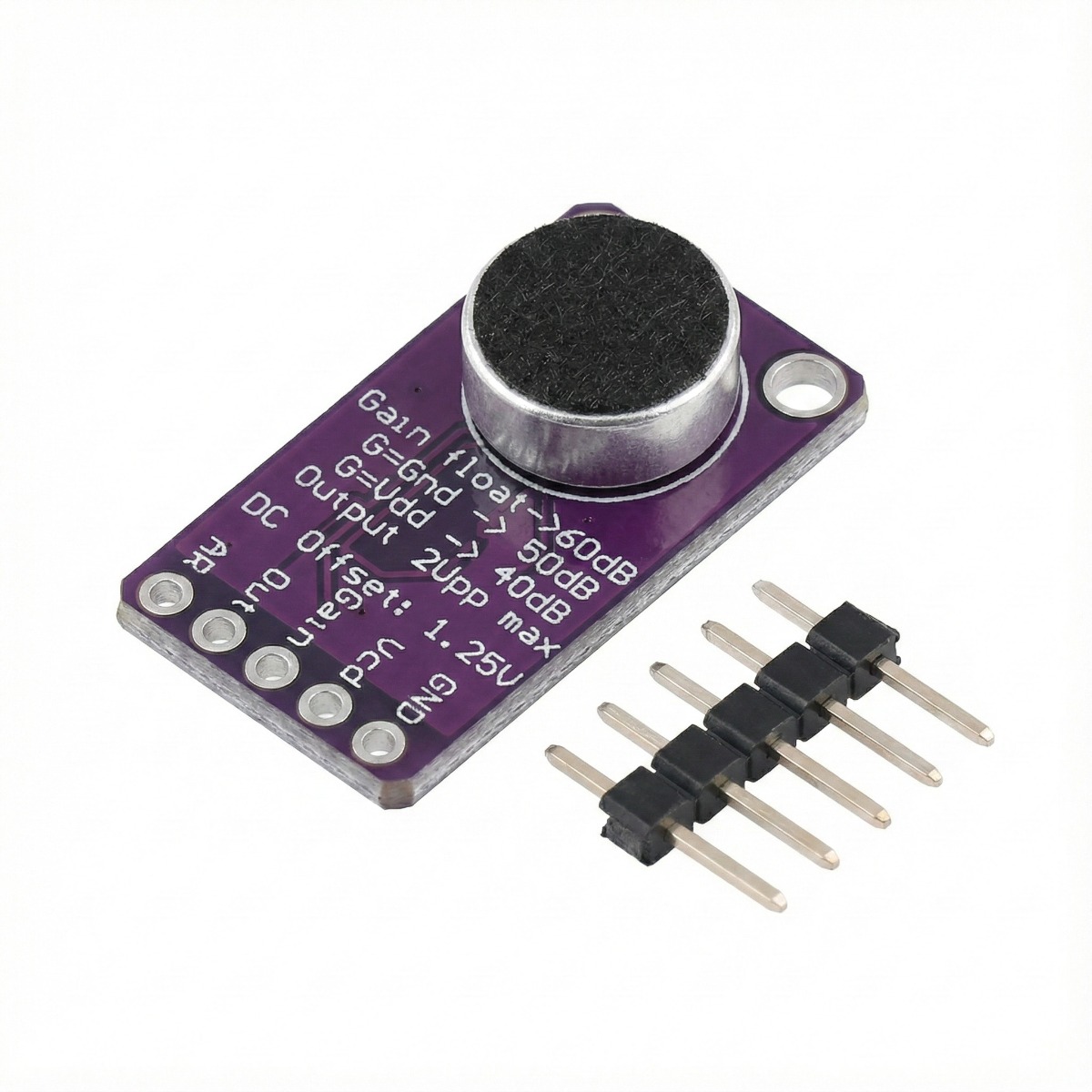

MAX9814 High-Performance Electret Microphone Amplifier Module Auto Gain Control & Low Noise Preamp ₹249.00
Voice Recorder & Playback Module With Onboard Microphone Speaker ISD1820 ₹299.00

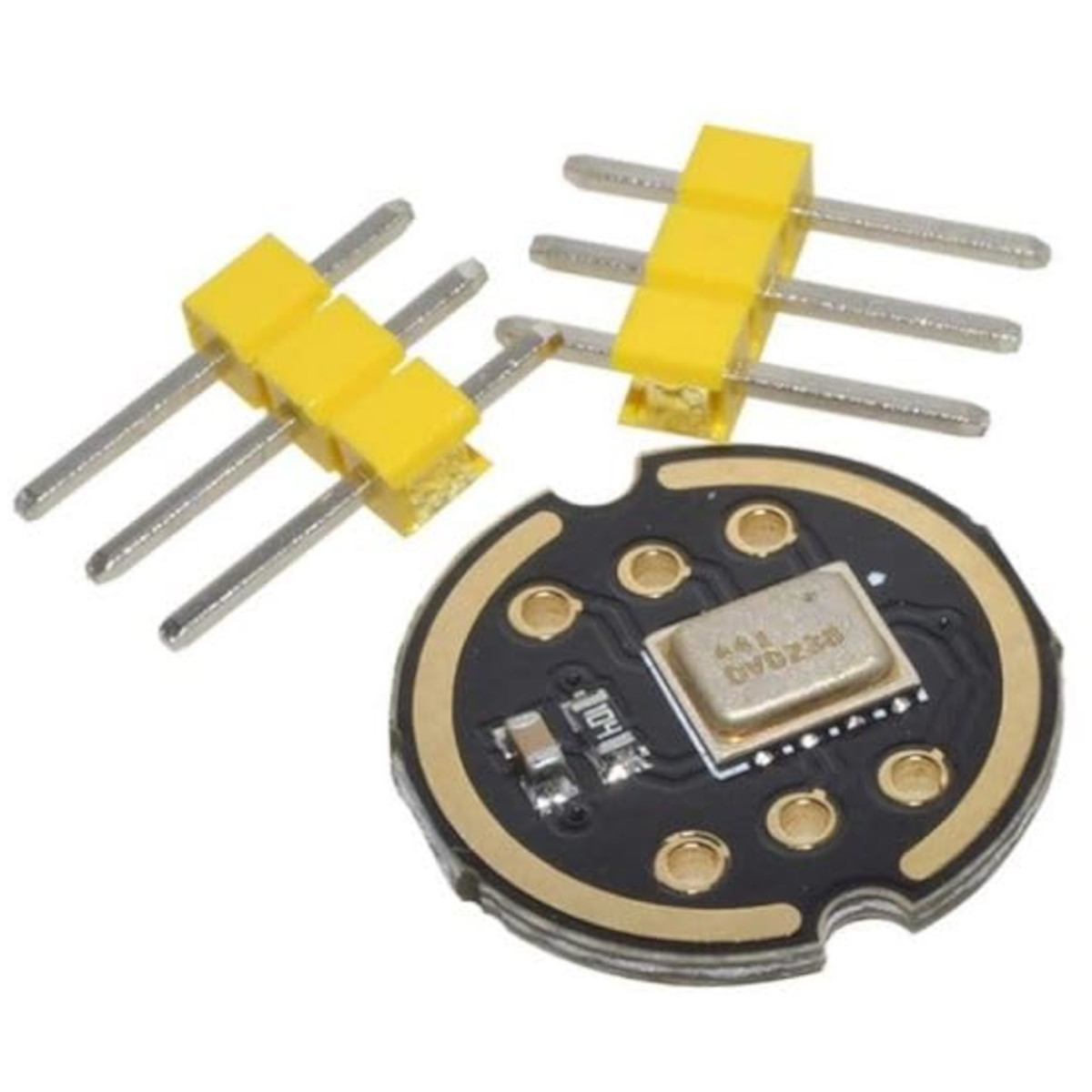

INMP441 MEMS Microphone Module - High Precision I2S Digital Output ₹429.00 ESP32-S3 Smart Display Module is a microcontroller development board with 2.4GHz WiFi and BLE 5 support, integrates 16MB Flash and 8MB PSRAM, and features onboard 4inch capacitive touch screen that can smoothly run GUI programs such as LVGL, combined with various peripheral interfaces to quickly develop the Human–machine interface(HMI) of ESP32-S3, three relay output of 220V signal drive to control the three independent loads and panel mount design suitable for scenarios such as smart control panel, home gateway, intelligent interactive panel, industrial control, and smart lighting control.
This smart display module uses the ESP32-S3-WROOM-1 module as the main control. It features a 480*480 display resolution and capacitive touch. The module includes an LCD display screen, a backlight control circuit, a touch screen control circuit, a reserve TF card interface, and an IO port interface. This module supports development in Arduino IDE, ESP IDE, Micropython, and Mixly.

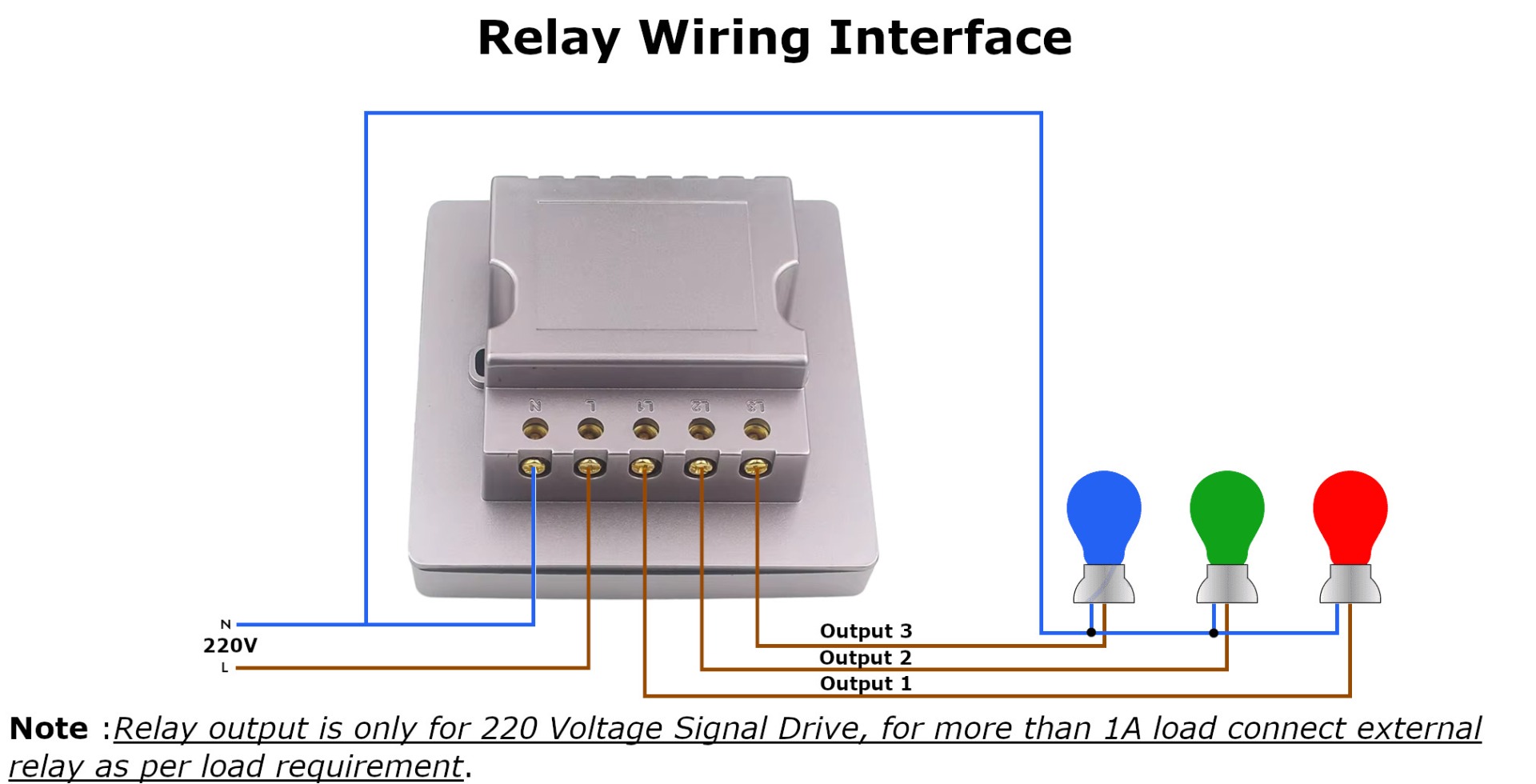

Note: The relay output is only for a 220-volt Signal Drive. For more than 1A of load, connect an external relay as per the load requirement.
Downloads and Links:
Features:
ESP32-S3-WROOM-1 Development Board
4inch color screen LCD, support 16 BIT RGB 65K color display
480*480 resolution with capacitive touch with excellent display performance, 160° Wide Viewing Angle
It comes with a sample program installed and can be plugged in
With TF card slot for easy expansion storage
Supports secondary development
Three relay outputs of 220V signal drive to control the three independent loads.
Panel Mount design
Applications:
Package Includes:
Specifications:




| Technical Details |
|
|---|---|
| Display Technology | TFT / IPS LCD (Full Color) |
| Touch Capability | Capacitive Touch (Multi-touch, Glass) |
| Communication Interface | I2C / SPI |
| Smart / Integrated Ecosystem | ESP32 Built-in (IoT Display) |
| Screen Size (Diagonal) | Medium (3.5 - 5.0 Inch) |
