ZL Bracket Kit for 280kg (600lbs) Electromagnetic Lock - Aluminum In-Swing Mount

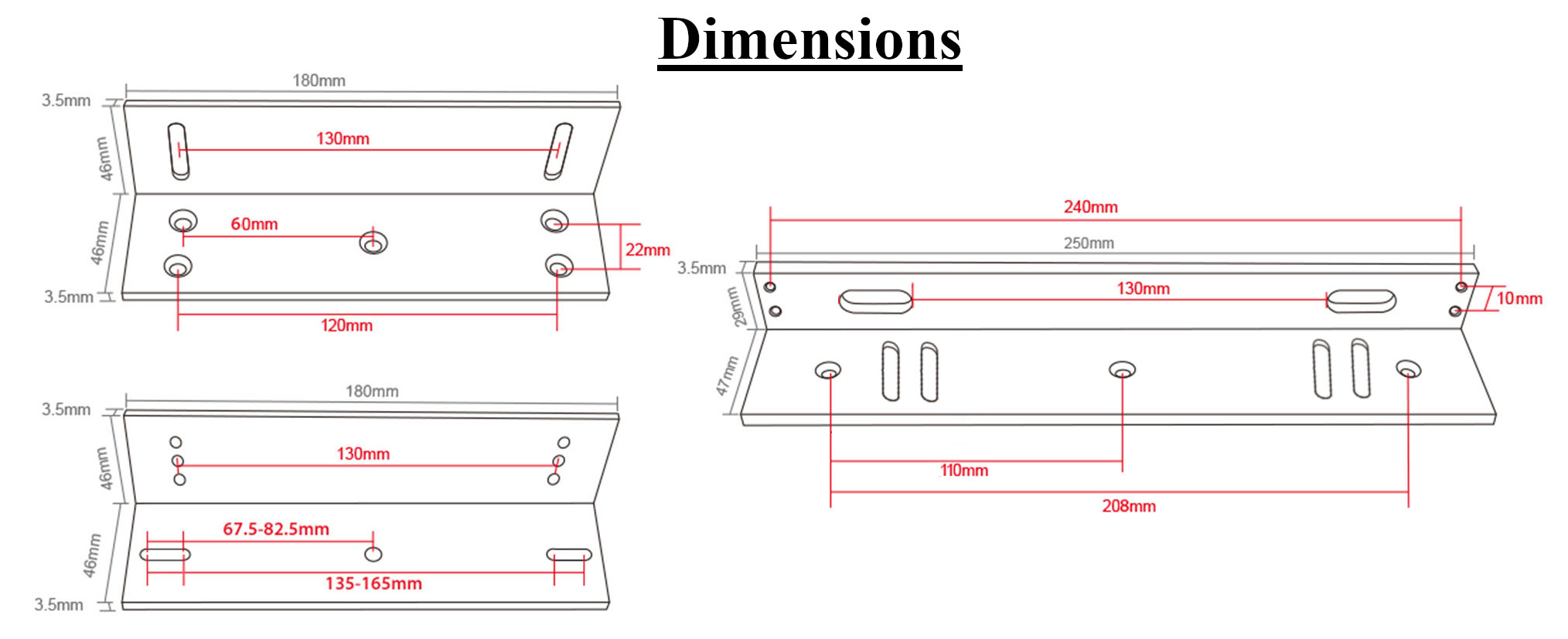

Specifications

• Compatibility: 280kg (600lbs) Series Door Electromagnetic Locks

• Door Opening Direction: In-Swing Only (Doors opening towards the magnet side)

• Material: High-Strength Aluminium Alloy

• Finish: Sandblast Silver (Anodised)

• Kit Contents:

  • 1 x "L" Brackets

  • 1 x "Z" Bracket Sets

Why Do I Need This? (The Logic)

• Standard Install: Maglocks are designed for "Out-Swing" doors (Push to exit). The magnet sits on the frame, and the plate sits on the door.

• The Problem: On an "In-Swing" door (Pull to exit), the door leaf moves away from the frame header. There is nowhere to mount the plate.

• The Solution: The L-Bracket hangs the magnet down from the frame. The Z-Bracket reaches around the top of the door to hold the armature plate facing the magnet.



Virtual Technician: Installation Guide ⚠️

• Double Check Lock Size: This bracket is sized for 280kg (600lb) locks only. It is too small for 500kg locks and too big for 180kg locks. Check your lock dimensions before buying.

• Alignment is Key: Install the L-brackets first. Then, assemble the Z-brackets loosely. Close the doors and adjust the Z-brackets until the armature plates sit perfectly flush against the magnet faces. Tighten all screws only after confirming alignment.

• Drilling Required: You will need to drill into your door frame and door leaf to install these brackets.

Accessories

• Included:

  • 1 x L-Bracket

  • 1 x Z-Bracket Assembly

  • Mounting Screws & Bolts

• Required (Sold Separately):

  • 280kg Electromagnetic Lock

  • Drill & Screwdriver

Frequently Asked Questions (FAQ)

1. Will this fit my 180kg lock?

   • No. The hole spacing and dimensions are specific to the standard 280kg (600lb) lock body.

2. Do I need this if my door opens outwards?

   • No! If your door pushes out (away from the magnet), you do not need ZL brackets. You can mount the lock directly.

3. What material is it?

   • Anodised Aluminium. It is rust-resistant and matches the silver finish of the lock.

4. Can I use this on glass doors?

   • No. For frameless glass doors, you need a U-Bracket. ZL brackets require screws to be drilled into the door (Wood/Metal).

5. Is it adjustable?

   • Yes, the Z-bracket has slots that allow you to adjust the depth/distance of the armature plate.

6. Can I paint these brackets?

   • Yes, you can spray paint them to match your door color (e.g., Bronze or White).

7. How heavy are the brackets?

   • The complete set is over 1kg, so ensure your frame is strong enough.

8. Does it come with the lock?

   • No, this is only the brackets. The Electromagnetic Lock is sold separately.

9. Are instructions included?

   • Usually, a diagram is included on the box. It is a puzzle-like assembly, so look at product photos for guidance.

10. Will it work on a sliding door?

    • Technically yes, but custom fabrication might be needed. ZL brackets are primarily for swinging doors.

11. What tools do I need?

    • Drill, Drill bits (for metal/wood), and a screwdriver/Allen key set.

12. Why is it called Z & L?

    • The frame mount looks like an "L". The door mount, when assembled, forms a "Z" shape.

13. Can I use this outdoors?

    • Aluminum won't rust, but ensure your lock itself is waterproof if used on an outdoor gate.

14. Is it compatible with all brands?

    • It fits 95% of generic "280kg" locks (LockIT, eSSL, ZKTeco, Generic).

15. How thick can the door be?

    • The Z-bracket is adjustable to fit almost any standard door thickness (35mm - 55mm).

16. Can I use this for a fire door?

    • Yes, as long as the installation complies with your local fire regulations.

17. Does it weaken the holding force?

    • No, as long as it is aligned correctly.

18. What if my door frame is very narrow?

    • The L-bracket helps with narrow frames by providing a wider mounting surface for the magnet.
