ZL Bracket Kit for 180kg (350lbs) Electromagnetic Lock - Aluminum In-Swing Mount

Specifications

• Compatibility: 180kg (350lbs) Series Electromagnetic Locks

• Door Configuration: Single Door

• Door Opening Direction: In-Swing Only (Door opens towards the magnet)

• Material: Aluminium Alloy

• Finish: Sandblast Silver (Anodised)

• Kit Contents:

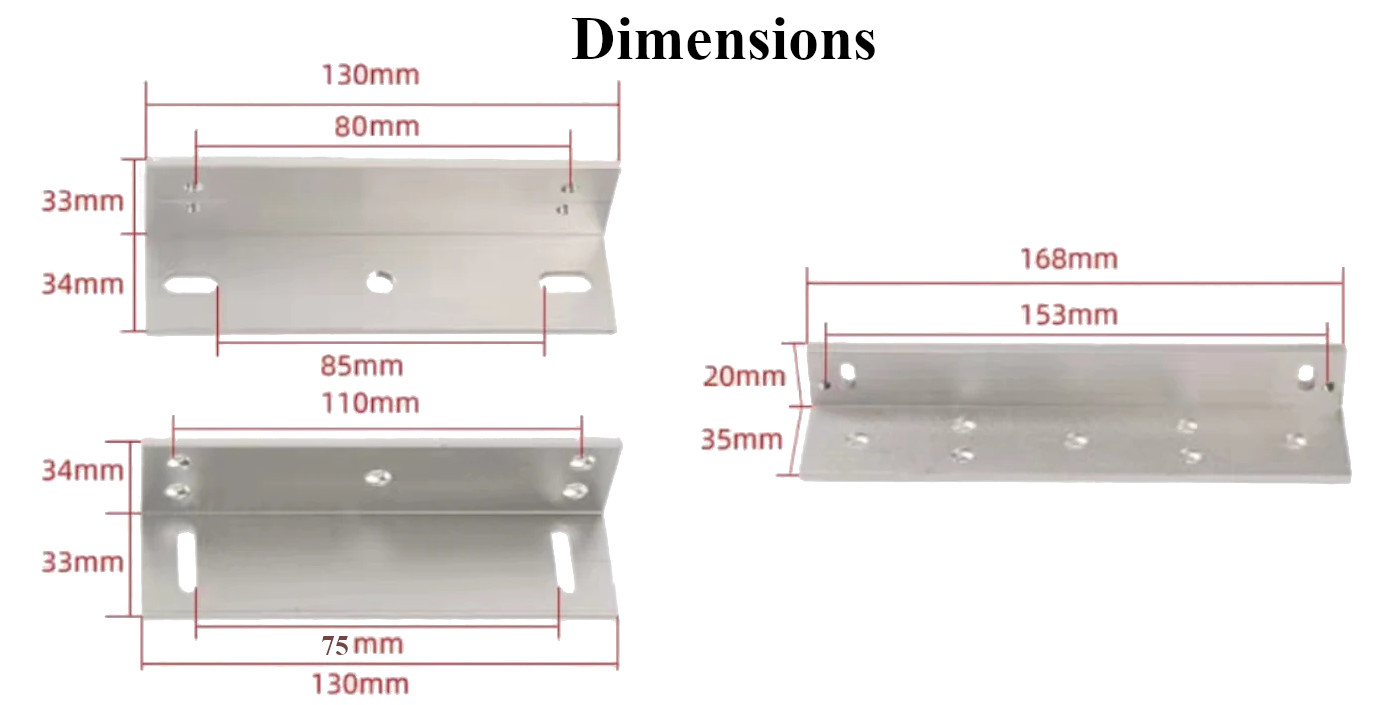

  • 1 x "L" Bracket (For Lock Body)

  • 1 x "Z" Bracket Set (For Armature Plate)

  • Mounting Screws

• Weight: Approx. 0.45 kg

Virtual Technician: Installation Guide ⚠️

• Identify Your Door: Stand on the inside (secure side). If you PULL the door to open it, you NEED this bracket. If you PUSH the door, you do NOT need it.

• Assembly: The "Z" bracket comes as separate plates. You must bolt them together to form the Z-shape. This adjustable design lets you change the bracket length to match your specific door thickness.

• Drilling: Installation requires drilling into the door frame and door leaf. Measure twice, drill once!

Accessories

• Included: Z-Bracket (2 parts), L-Bracket (1 part), Screw Kit.

• Required (Sold Separately):

  • 180kg Electromagnetic Lock

  • Drill & Screwdriver

Frequently Asked Questions (FAQ)

1. Will this fit a 280kg (600lb) lock?

   • NO. It is too small. The screw holes will not line up. You need the "280ZL" bracket for that.

2. Does this include the lock?

   • No, this is only the aluminium brackets. The magnetic lock is sold separately.

3. Can I use this on a wooden door?

   • Yes, it works perfectly on wooden and metal doors.

4. Do I need this for an Out-Swing door?

   • No. For out-swing doors, the lock mounts directly to the frame.

5. Is it adjustable?

   • Yes, the Z-bracket section is adjustable to accommodate different door thicknesses.

6. Can I use this on a glass door?

   • No. Glass doors require "U-Brackets". This requires drilling screws into the door.

7. What material is it?

   • Anodised Aluminium (Silver finish).

8. Is it waterproof?

   • The aluminium won't rust, but the screws might if exposed to direct rain.

9. Can I paint it?

   • Yes, you can spray paint it to match your door frame.

10. How do I know if I have a 180kg lock?

    • Measure the lock body. A 180kg lock is typically approx 170mm long. A 280kg lock is approx 250mm long.

11. Does it come with instructions?

    • Usually a diagram on the box. Refer to the product photos for assembly logic.

12. Is it strong enough?

    • Yes, it is designed to withstand the 180kg force rating of the lock.

13. Can I use it for a double door?

    • Yes, but you will need to buy Two of these kits (one for each door leaf).

14. What tools are needed?

    • Drill, Phillips screwdriver, and an Allen key (usually included with the lock).

15. Does it work on sliding doors?

    • Not typically. ZL brackets are for swinging doors.

16. Is the L-bracket sold separately?

    • This is sold as a complete ZL kit.

17. Why is the Z-bracket in 3 pieces?

    • To allow for adjustment and compact packaging. You bolt them together during install.

18. Can I mount it sideways?

    • Maglocks should always be mounted on the top header for best security, but technically the bracket works in any orientation.

19. Will it rust?

    • Aluminum is naturally corrosion-resistant.

20. Is this compatible with LockIT / eSSL brands?

    • Yes, as long as they are the standard "180kg" size format.
