Aluminum Z-Axis Motor Mount Upgrade - Rigid Bracket for Ender 3 V2 / Pro / CR-10

Specifications

• Material: Aluminium Alloy (Anodised Black)

• Motor Compatibility: NEMA 17 (Standard 42mm Stepper Motors)

• Frame Compatibility: 2040 V-Slot Aluminium Extrusion

• Mounting Hardware: Included (T-Nuts and Screws)

• Thickness: 4mm (Heavy Duty)

• Fitment Models:

  • Creality Ender 3 / 3 Pro / 3 V2 / 3 Neo

  • Creality CR-10 / CR-10S

  • Voxelab Aquila

  • Anycubic Vyper (Check hole spacing)

Key Applications

• Fixing Z-Banding: Replaces a bent or cracked plastic stock mount.

• High-Temperature Printing: Aluminium acts as a heatsink, helping to dissipate heat from the Z-motor during long prints.

• Dual Z-Axis Upgrade: Essential if you are adding a second lead screw to your printer.

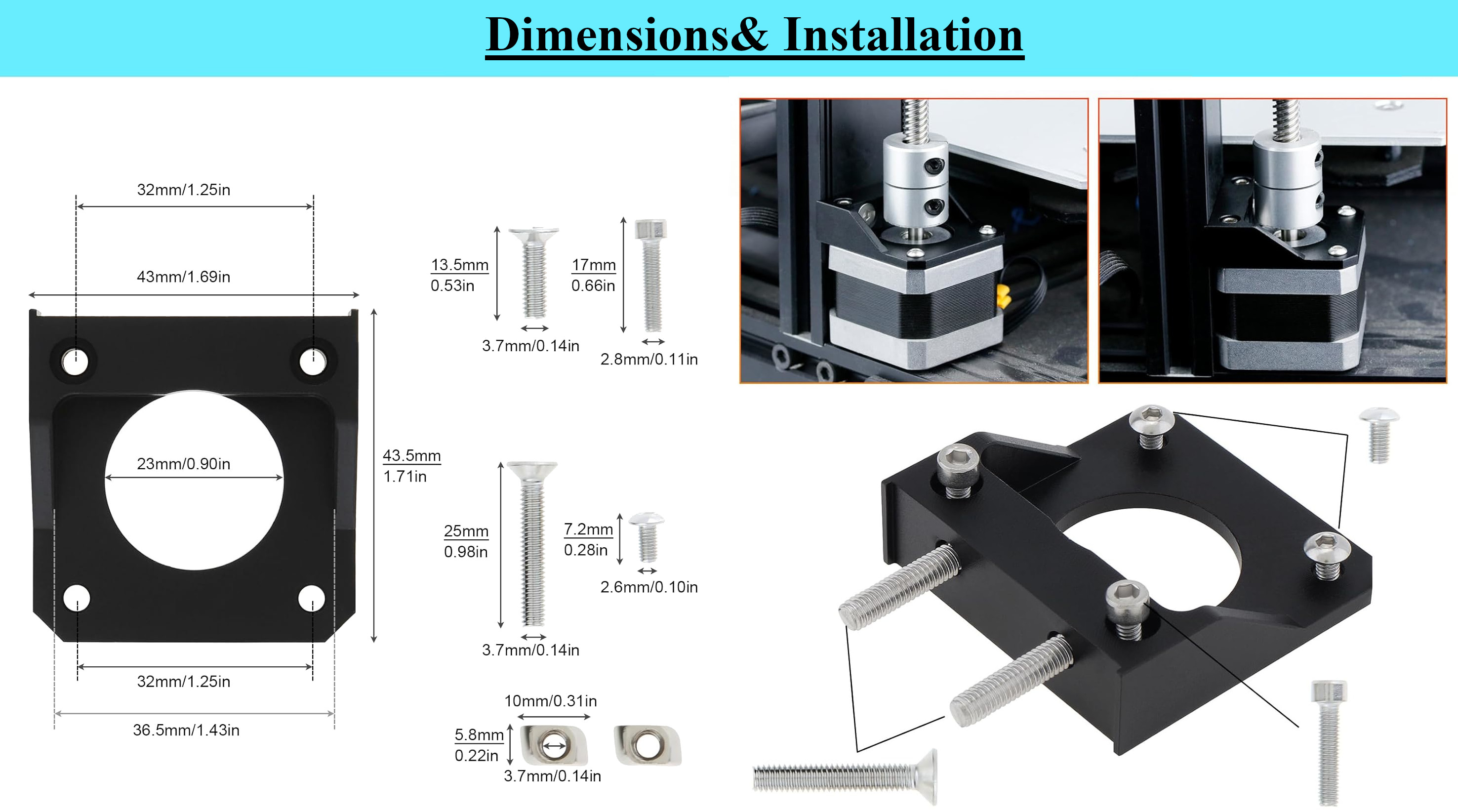

Virtual Technician: Installation Guide ⚠️

1. Remove Old Mount: Unplug the printer. Remove the Z-rod. Unscrew the two T-nuts holding the old plastic mount to the vertical frame.

2. Transfer Motor: Remove the motor from the old plastic mount and screw it onto this new Metal Mount using the included M3 screws.

3. Align Before Tightening: Mount the assembly loosely to the frame. Re-insert the Lead Screw. Move the X-gantry up and down by hand.

   • Pro Tip: Adjust the position of the metal bracket left/right until the lead screw drops straight into the coupler without you having to "force" it.

4. Tighten: Once aligned, tighten the frame screws firmly.

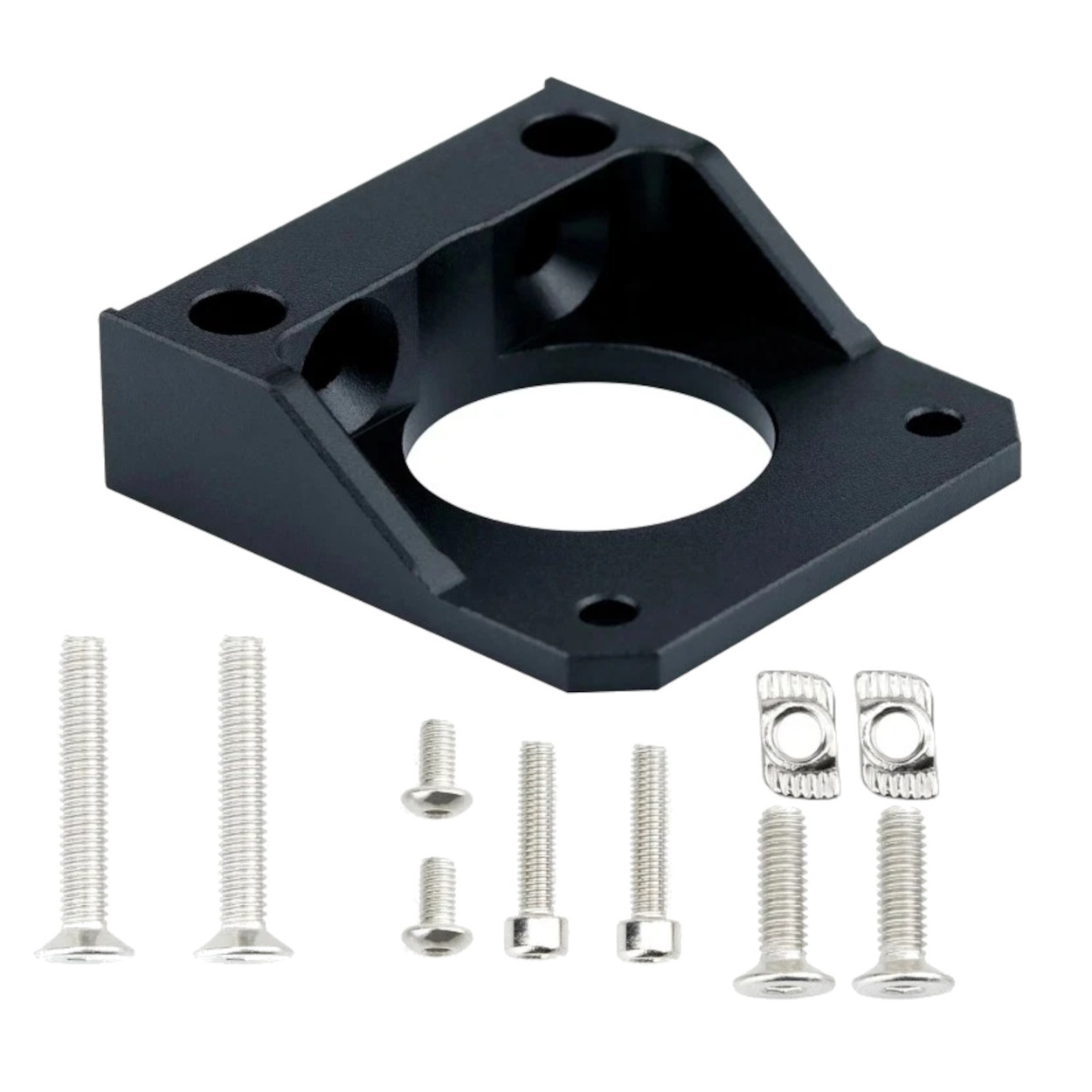

Accessories

• Included:

  • 1 x Aluminium Motor Bracket

  • 2 x M4/M5 Screws + T-Nuts (for mounting to frame)

  • 2 x M3 Screws (for mounting motor to bracket)

• Required (Sold Separately):

  • Allen Keys (usually included with your printer)

Frequently Asked Questions (FAQ)

1. Why should I replace the plastic one?

   • Plastic flexes under load and heat. Metal is rigid, ensuring your Z-axis stays straight permanently.

2. Will this fit the Ender 3 V2?

   • Yes, it is a direct drop-in replacement for the Ender 3 V2.

3. Does it come with screws?

   • Yes, it includes the screws and T-nuts needed to mount it to the aluminium profile.

4. Do I need to re-level my bed after installing?

   • Yes. Since you are moving the Z-motor slightly, your Z-limit switch trigger point might change. Always re-level after mechanical work.

5. Does this fix "Elephant's Foot"?

   • Not directly, but it helps. Elephant's foot is usually bed temperature-related, but binding the Z-axis can make it worse.

6. Can I use this for the Y-axis motor?

   • No. This bracket is shaped specifically for the Z-axis (vertical) extrusion. Y-axis mounts are different.

7. Is it compatible with NEMA 23 motors?

   • No, the hole spacing is for standard NEMA 17 (42mm) motors.

8. Will it fit the CR-10?

   • Yes, most CR-10 series printers use the same Z-mount design.

9. Does it act as a heatsink?

   • Yes! Aluminium conducts heat away from the motor face, keeping your stepper cooler than plastic would.

10. Why are the holes slotted?

    • To allow for "Fine Tuning." Not all frames are perfectly square. The slots let you slide the motor to match your lead screw's natural position.

11. Do I need longer screws?

    • No, the included screws are the correct length.

12. Is it difficult to install?

    • No, it takes about 10-15 minutes.

13. Will it work with a Dual Z-Axis kit?

    • Yes, most Dual Z kits actually include a bracket like this. If yours broke, this is a perfect replacement.

14. Does it fit the Ender 3 S1?

    • The S1 has a slightly different frame setup. Please check your specific mounting holes visually before buying.

15. What if my T-nuts aren't locking?

    • Ensure the T-nut is vertical inside the slot before tightening. Sometimes they need a little poke with an Allen key to rotate 90 degrees.

16. Can I paint it?

    • It is anodised black, but yes, you can spray paint it if you want a custom colour.

17. Is the bearing included?

    • No, this is just the Motor Mount. The bearing block for the top of the rod is a different part.

18. Does it fit the Ender 5?

    • No, the Ender 5 Z-axis is totally different.

19. Will this fit the Voxelab Aquila?

    • Yes, the Aquila is an Ender 3 V2 clone and uses the same mounting.

20. Is the material steel or aluminium?

    • It is an aluminium alloy (lightweight and rigid).
