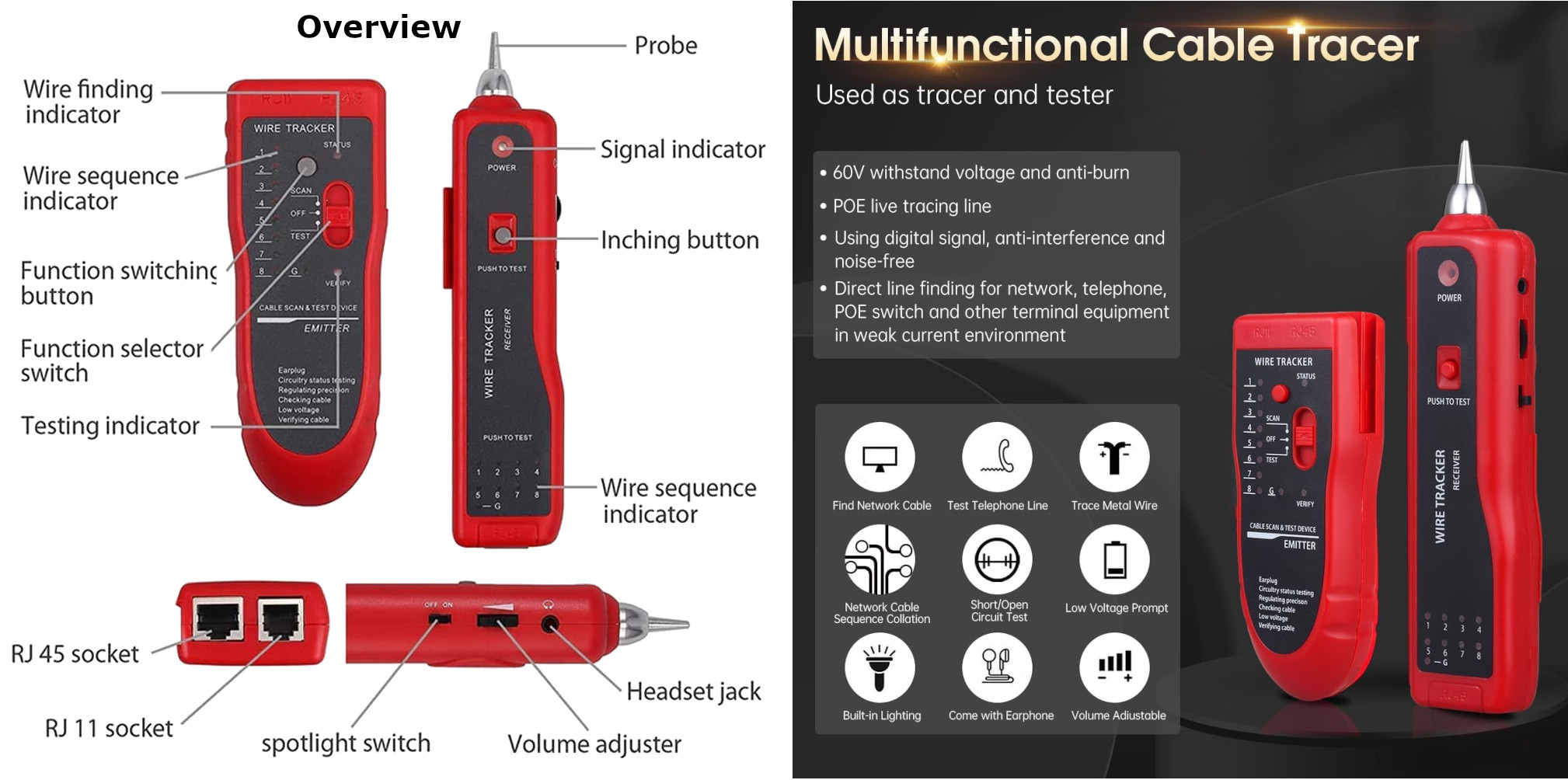

AR-868 LAN Network Ethernet Cable Tester Wire Tracker RJ11 RJ45 Cat5 Cat6 Telephone line

Specifications:

• Product: LAN Network Ethernet Cable Tester Wire Tracker
• Model: AR-868
• Measurement Type: ‎Ohmmeter
• Power supply : 2 x DC 9V battery (Not Included)

      Max operating current :

• emitter <=10mA
• Receiver: <=30mA

• Signal transmission format: Multi-frequency impulse
• Signal output electric status: 8Vp-p
• Testable Port: RJ11 RJ45
• Testable Wire: Twisted Pair, Video Cable, Telephone Line, Ordinary Metal Wire, etc.
• Audio signal: single audio and dual audio
• Distance of signal transmission: 300M
• Material: ABS plastic
• Colour: Red
• Dimensions(LxWxH): ‎235x150x50mm
• Weight‎: 410 Grams

Features:

• Automatic and efficient scanning of missing lines, random lines, open circuits and short circuits
• Low power consumption protection power switch
• Tracing cables or wires, diagnosing breakpoints
• Receive audio signal on cable or wire (telephone line)
• Identify the status of the working phone line (clear ringing, busy)
• Send single or double alternating tones to the subject cable or wire
• Anti-burning, anti-interference, strong signal

Applications:

• Telecommunication network, line engineering and routine maintenance
  Computer network line engineering
• Other metal wire wiring and maintenance work
• This instrument is suitable for RJ11, RJ45, and other metal wires can be found through the transmitter.

​Packages include:

• 1 x Emitter
• 1 x Receiver
• 1 x Earphone
• 1 x Cable with Two Alligator Clips
• 1 x RJ11 Adapter Cable
• 1 x RJ45 Adapter Cable
• 1 x User Manual
• 1 x Pouch

Frequently Asked Questions (FAQ)

• Can I use the AR-868 on a live network switch?
  No. You must disconnect the cable from the switch. PoE voltage (48V) will damage the emitter.
• Does this tester verify cable length?
  No, this is a wire tracker and continuity tester. It does not measure cable length (TDR function).
• Can it find a break in a wire inside a wall?
  Yes. The tone will stop or drop significantly at the point where the wire is broken.
• Why is the sound from the probe very noisy?
  You might be near AC power lines or fluorescent lights. Use the volume dial to reduce sensitivity or use the included headphones.
• Does it work with Shielded (STP) Ethernet cables?
  Yes, but the shield blocks the tone signal. You must clip the red alligator clip to the shield (drain wire) itself to trace it.
• Can I use this to trace automotive wiring?
  Yes, as long as the circuit is not powered. Disconnect the car battery first.
• What batteries does the AR-868 use?
  It requires two standard 9V (6F22) batteries—one for the transmitter and one for the receiver.
• Will this work on Cat7 cables?
  Yes, it works on Cat5, Cat5e, Cat6, and Cat7 for continuity. For tracing, shielding may reduce signal strength (see Q5).
• Can it detect a short circuit?
  Yes. In "TEST" mode, two LEDs lighting up simultaneously indicates a short between those pins.
• How deep in the wall can it detect a wire?
  Typically 1-3 inches. It works best on drywall/wood. Metal conduits or concrete will block the signal.
• Do I need to strip the wire insulation to trace it?
  No. The probe is inductive and detects the signal through the plastic insulation.
• What does the "SCAN" button do?
  It sends a tone signal down the wire. You use the probe to find this sound at the other end.
• What does the "TEST" button do?
  It runs a cycle to check pin-to-pin continuity (1 through 8) to verify crimps.
• Can I use this to test telephone lines?
  Yes, use the RJ11 adapter. It can also detect line status (ringing/busy) if connected properly (advanced feature).
• Is the probe tip replaceable?
  No, the inductive tip is fixed. Handle with care to avoid snapping it.
• Why are the LEDs not lighting up in Test mode?
  Check if the battery is dead. Also, ensure the switch is fully in "TEST" mode, not "SCAN".
• Can I use it to find a specific wire in a bundle?
  Yes. The wire carrying the tone will be the loudest. Separate the wires slightly to pinpoint the exact one.
• Does it come with a carrying case?
  Yes, the AR-868 typically comes with a zippered pouch to hold the tools and adapters.
• What is the maximum distance for tracing?
  The tone can travel up to 3km on a continuous wire, but audio detection depends on the environment.
• Is this waterproof?
  No. Keep the device dry and away from moisture.
