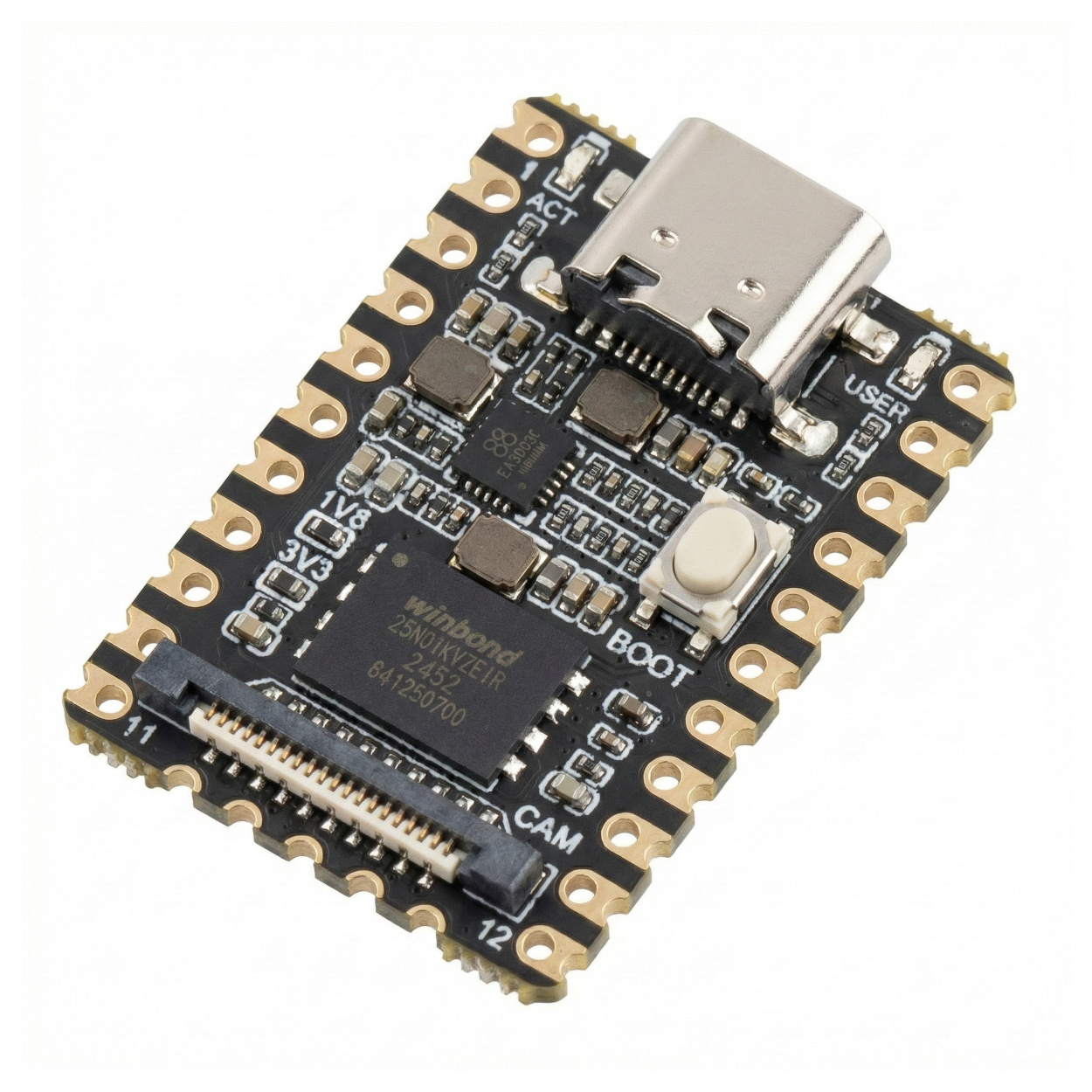

Luckfox Pico Mini-B RV1103 Linux Micro Development Board - RISC-V/ARM Cortex-A7 AI Camera Board

Specifications:

• SoC: Rockchip RV1103 (Vision SoC)

• CPU: ARM Cortex-A7 @ 1.2GHz + RISC-V MCU

• NPU (AI Accelerator): 0.5 TOPS (Supports int4/int8/int16)

• ISP (Image Processor): 4M @ 30fps (Great for camera interfacing)

• Memory (RAM): 64MB DDR2 (Integrated into SoC)

• Storage: 128MB SPI NAND Flash (Mini-B Variant Exclusive)

• Camera Interface: MIPI CSI (2-lane)

• Networking: None onboard (USB-Ethernet/WiFi supported via expansion)

• USB: USB 2.0 Host/Device

• GPIO: 22 GPIO pins (PWM, I2C, UART, SPI support)

• Power Input: 5V via USB-C

Buying Guide
Tutotials

Applications:

• Smart Vision Systems: Build your own low-cost IP camera, smart doorbell, or baby monitor. The onboard ISP allows you to stream video or capture high-quality images directly to the NAND flash when motion is detected.
• Visual Robotics: Upgrade your robot from simple IR sensors to true Computer Vision. Use the Luckfox Pico Mini-B to process camera feeds for lane keeping, obstacle avoidance, or visual SLAM in compact rover projects.

• Industrial IoT Gateways: Leverage the dual-core architecture. Use the low-power RISC-V MCU for real-time sensor monitoring (vibration, temperature) while the Cortex-A7 Linux core handles data logging, encryption, and network communication.

• Biometric Access Control: Create DIY security systems using face detection algorithms to trigger relays or locks, utilizing the compact form factor to hide the board inside standard enclosures.

Project Evolution:

Where you might be starting: You've likely mastered the ESP32-CAM or Arduino but found the frame rates too low for real-time video processing, or struggled with the lack of a proper OS environment.

What this product unlocks: The Luckfox Pico Mini-B allows you to graduate to Embedded Linux. You can now run optimized C/C++ or Python scripts on a full Linux kernel.

• Run Real-time Object Detection: Utilize the 0.5 TOPS NPU to run models like YOLO fast enough for robotics navigation.
• Smart IP Camera: Build a custom security camera that processes video locally before sending alerts.
• Industrial IoT Gateway: Use the RISC-V core for low-power sensor monitoring while the Linux core handles data processing.

Effort Level: Intermediate to Advanced

• Prerequisites: Familiarity with Linux terminal commands and SSH is highly recommended. You will need a USB-C cable for power/data.

Virtual Technician & Safety Guide ⚠️

• Probots™ Logic-Safe : Be aware! The GPIO pins on this board utilize 3.3V Logic. connecting 5V sensors directly will damage the SoC. Use a logic level converter for 5V components.

• Booting Up: The board comes pre-flashed, but for development, you will connect it via USB-C. It appears as a network interface (RNDIS) on your PC for SSH access.

• Camera Choice: This board specifically supports the SC3336 camera module via the CSI port. Standard Raspberry Pi cameras may not be directly plug-and-play without driver modifications.

Package Includes:

1 X Luckfox Pico Mini-B RV1103 Linux Micro Development Board

Frequently Asked Questions (Technical FAQs)

1. Does the Luckfox Pico Mini-B come with WiFi or Bluetooth?
   No, this specific board does not have onboard WiFi/BT. You must use USB dongles if wireless is required.
2. What is the difference between Mini-A and Mini-B?
   The Mini-A has no onboard Flash (requires SD card). The Mini-B (this product) has 128MB SPI NAND Flash.
3. Can I run Python on this board?
   Yes, the Linux build supports Python 3, though C++ is recommended for heavy NPU tasks.
4. How do I power the board?
   Power is supplied via the USB Type-C port (5V).
5. Which OS does it run?
   It runs a build of Buildroot Linux optimized for the RV1103.
6. Is the RAM expandable?
   No, the 64MB DDR2 RAM is integrated inside the Rockchip RV1103 SIP and cannot be upgraded.
7. Can it run Ubuntu?
   A full Ubuntu Desktop is too heavy for 64MB RAM. It uses a lightweight Embedded Linux.
8. Does it support HDMI output?
   No, this is a headless board. There is no HDMI or display interface other than SPI screens.
9. How do I access the terminal?
   Connect via USB-C to a PC and use SSH (ADB is also supported).
10. What camera sensors are compatible?
    It natively supports SC3336 3MP cameras via the MIPI CSI connector.
11. Does it have an SD card slot?
    Yes, it has a microSD card slot for additional storage or booting alternate images.
12. Can I use the NPU with TensorFlow Lite?
    Yes, Rockchip provides the RKNN toolkit to convert TFLite/ONNX models to run on the NPU.
13. What is the boot time?
    Because of the lightweight Linux, it boots very quickly, typically under 5 seconds.
14. Are the GPIO pins Raspberry Pi compatible?
    Physically, the spacing is standard 2.54mm, but the pinout mapping is different. Check the datasheet.
15. Does it support PWM?
    Yes, it has hardware PWM channels suitable for motor control or LED dimming.
16. How do I flash the OS?
    You use the Rockchip SocToolKit via USB. We provide the download link in the resources.
17. Is a heatsink required?
    For heavy NPU usage or video encoding, a small heatsink on the main chip is recommended.
18. Can I use this for audio processing?
    Yes, but it requires an external I2S microphone or USB audio adapter.
19. What is the "RISC-V MCU" used for?
    It is a low-power core that can handle fast interrupts or wake-up tasks while the main Linux core sleeps.
20. Is the USB port OTG capable?
    Yes, the USB-C port supports USB OTG (Host/Device switching).
