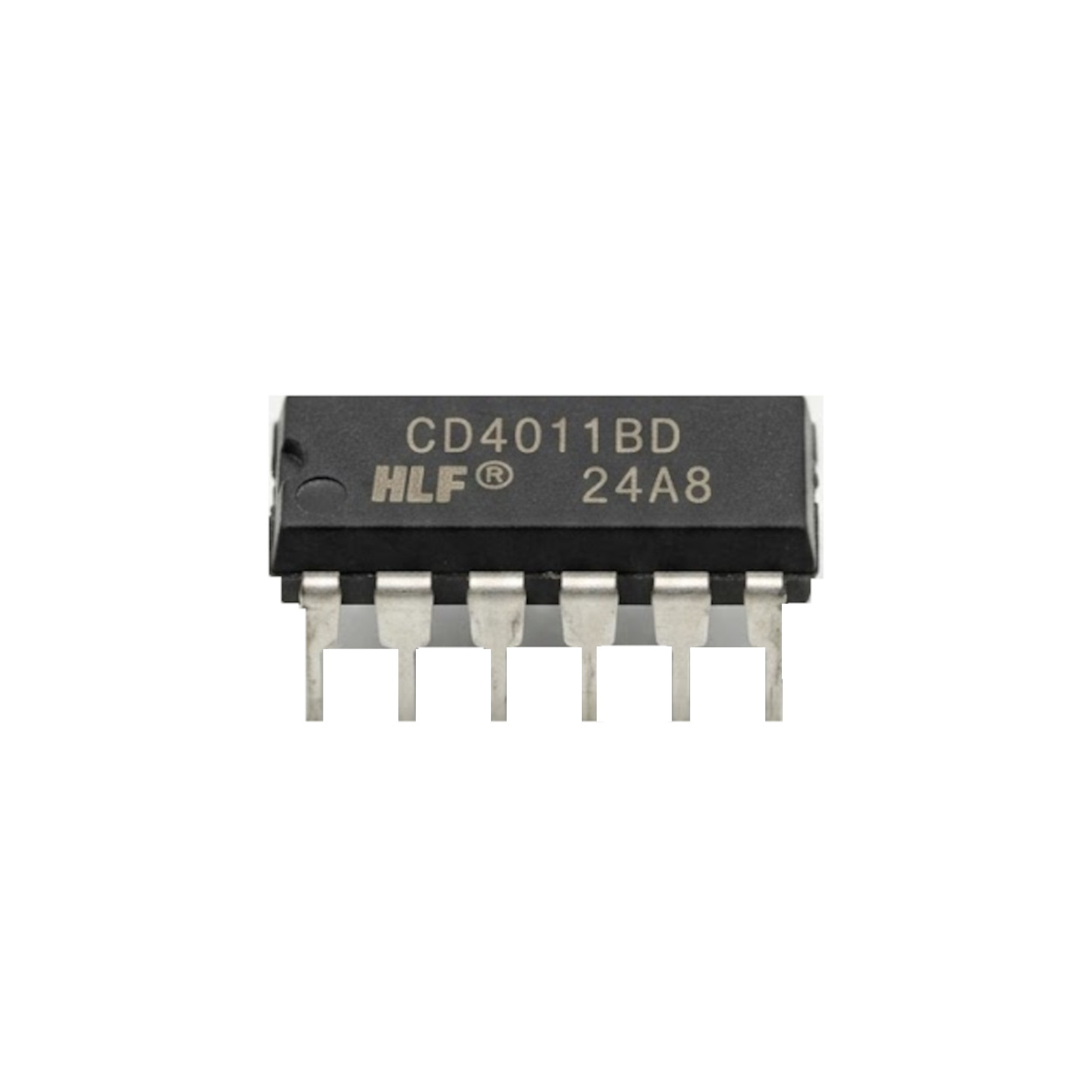

CD4011 Quad 2-Input NAND Gate IC DIP-14 Package

₹35.00 Rs. 29.66 + 5.34 GST
Features:- Propagation delay time = 60 ns (typ.) at CL = 50 pF, VDD = 10 V Buffered inputs and outputs Standardized symmetrical output characteristics Maximum input current of 1 µA at 18 V over-full package temperature range; 100 nA at 18 V and 25°C 100% tested for quiescent current at 20 V 5-V, 10-V, and 15-V parametric ratings Noise margin (over full package temperature range: 1 V at VDD = 5 V 2 V at VDD = 10 V 2.5 at VDD = 15 V Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of "B" Series CMOS Devices".
In stock. 1-7 Day Delivery in India.
SKU
PRO2926
Specifications:- Parameter Specification Part number CD4011B Technology Family CD4000 VCC (Min) (V) 3 VCC (Max) (V) 18 Channels (#) 4 Inputs per channel 2 IOL (Max) (mA) 6.8 IOH (Max) (mA) -6.8 Input type Standard CMOS Output type Push-Pull Features Standard Speed (tpd > 50ns) Rating See Data Sheet Data rate (Max) (Mbps) 8 Operating temperature range (C) -55 to 125
