| Bulk Pricing | ||
|---|---|---|
| QTY | Unit Price(Inlc. GST) | |
| 2+ | ₹6,859.02 ₹ 5812.73 + 1046.29 GST | |
| 4+ | ₹6,789.03 ₹ 5753.42 + 1035.62 GST | |
| 6+ | ₹6,719.04 ₹ 5694.1 + 1024.94 GST | |
| 10+ | ₹6,649.05 ₹ 5634.79 + 1014.26 GST | |
Deploy neural networks at the edge! The Sipeed MAIX Bit Kit features a 64-bit dual-core RISC-V K210 processor with a dedicated NPU. This complete bundle includes a 2.4-inch QVGA LCD and a 4mm HD camera.
UNO R3 Compatible Development Board - ATmega328P DIP Version with 16U2 USB ₹499.00
Mega 2560 R3 Development Board with ATmega16U2 USB Compatible with Arduino ₹1,499.00
ESP32-WROOM-32 NodeMCU 38-Pin Development Board ₹499.00
Sipeed Tang Nano 1K Minimalist FPGA Development Board (Gowin GW1NZ-1) ₹1,499.00
MSP-EXP430FR2433 - Texas Instruments LaunchPad Development Kit ₹2,499.00 High-Performance AI Processing The MAIX Bit integrates the powerful Kendryte K210, a dual-core 64-bit RISC-V processor running at a nominal 400MHz. It features a dedicated Neural Processing Unit (NPU) capable of delivering up to 400 GOPS of peak performance, making it highly optimized for edge machine learning inference. With 8MB of on-chip SRAM and 16MB of external Flash memory, the board easily handles complex, quantized deep learning models like TinyYOLO and MobileNet without breaking a sweat.
Complete Multimedia Kit This bundle provides everything you need to start experimenting with machine vision and hearing out of the box. It includes a 2.4-inch QVGA TFT LCD screen (320x240 resolution) that connects directly to the board's 24-pin 8-bit MCU LCD interface. Also included is an M12 camera module equipped with a 4mm HD lens and a 650nm infrared cut filter, seamlessly attaching via the 24-pin DVP connector. For auditory applications and voice recognition, the board features a built-in MEMS microphone paired with an onboard Audio Processor (APU).
Breadboard Friendly and Easy to Program Measuring a highly compact 53.3mm x 25.4mm (1x2 inches), the MAIX Bit is perfectly sized for breadboard prototyping and SMT placement. It features an onboard CH340 USB-to-UART bridge and an auto-download circuit, allowing you to flash code directly via the USB Type-C port without an external programmer. Power is efficiently regulated by an integrated 3-Ch DC-DC converter. Programming is dramatically simplified thanks to MaixPy, a MicroPython firmware implementation optimized for the K210 that allows for rapid AI prototyping without needing to write low-level C/C++ code.
Specifications
Processor: Kendryte K210 Dual-Core 64-bit RISC-V @ 400MHz
AI Accelerator: KPU (Neural Network Processor) up to 400 GOPS
Memory: 8MB SRAM / 16MB Flash
Camera: M12 4mm HD lens with 650nm IR cut filter (OV2640 compatible)
Display: 2.4-inch QVGA TFT LCD (320x240)
Audio: Onboard MEMS Microphone
Programming Port: USB Type-C (CH340 USB-to-UART)
Storage: MicroSD (TF) Card Slot
Dimensions: 53.3mm x 25.4mm
Downloads:
Key Applications and Projects
Smart Surveillance: Deploy real-time face detection and person tracking using the camera and LCD display without relying on cloud connectivity.
Industrial IoT Monitoring: Implement predictive maintenance and acoustic anomaly detection using the onboard MEMS microphone.
Object Recognition: Run TinyYOLO models to classify and locate specific objects in real-time right at the edge.
Unlock New Capabilities (Project Evolution) The AI-Powered Smart Doorbell: Stop relying on expensive, subscription-based cloud services for your smart home! Using the MAIX Bit kit, you can mount the M12 camera outside your door and the 2.4-inch LCD inside. By writing a simple MicroPython script using the MaixPy environment, you can deploy a local facial recognition model. The K210 will scan visitors' faces in real-time, matching them against a database of known family members stored on the MicroSD card. If a recognized face is detected, the board can trigger a GPIO pin to unlock the door—all processed entirely offline to ensure your absolute privacy!

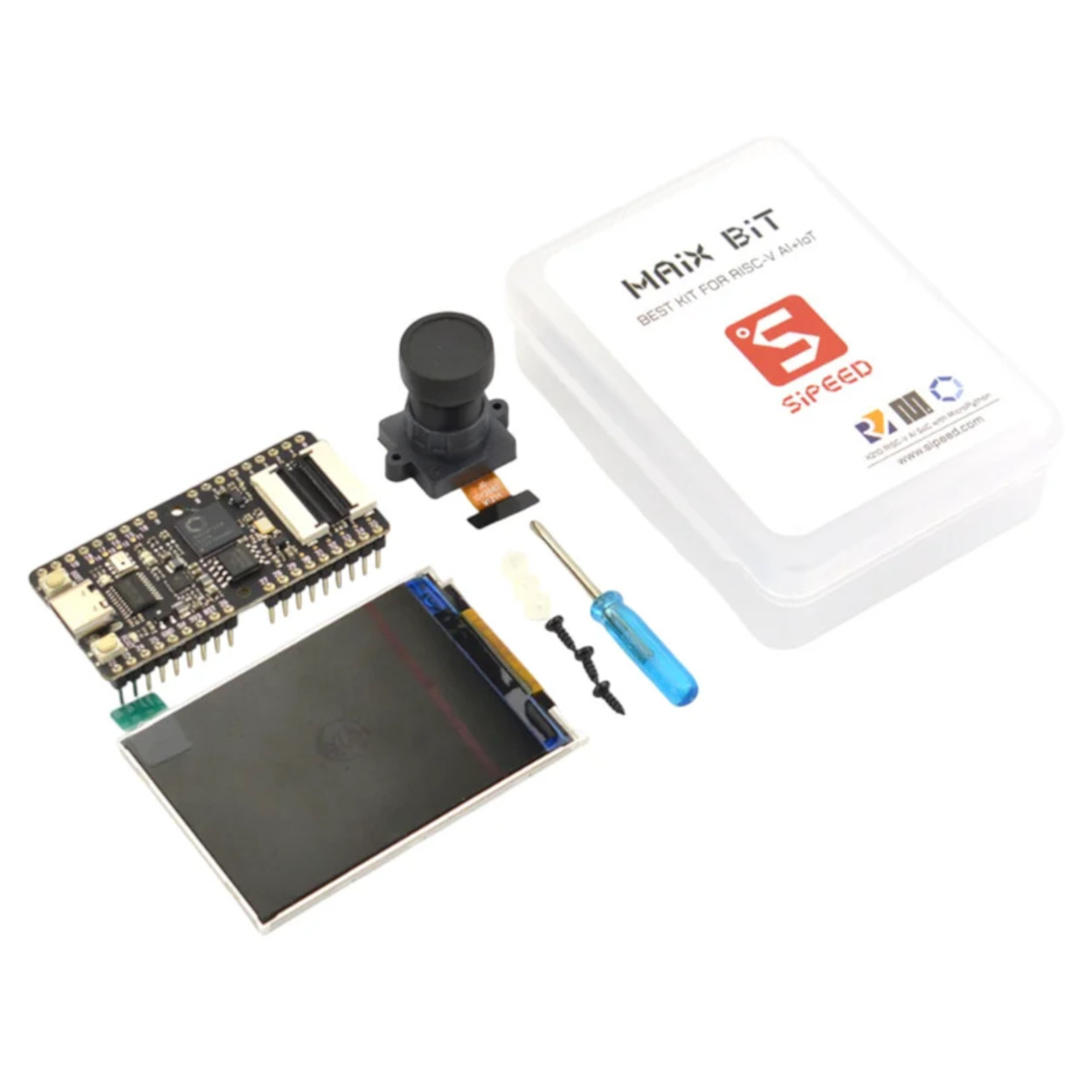

1 x Sipeed MAIX Bit AI Development Board
1 x M12 Camera Module (with FPC ribbon)
1 x 2.4-inch QVGA LCD Display (with FPC ribbon)
1 x Mini Screwdriver and Mounting Screws
1 x Protective Plastic Storage Box
1. What is the main processor on the MAIX Bit? The board is powered by the Kendryte K210, a dual-core 64-bit RISC-V processor.
2. What makes this board good for Artificial Intelligence? It features a dedicated Neural Processing Unit (KPU) capable of 400 GOPS peak performance, designed specifically for hardware-accelerated AI inference.
3. What is the clock speed of the processor? The standard operating frequency is 400MHz, though it can be overclocked to 600MHz or 800MHz depending on the application.
4. How much memory does the board have? The K210 chip includes 8MB of on-chip SRAM, and the board features 16MB of external Flash memory.
5. Is a camera included in this kit? Yes, this specific kit includes an M12 camera equipped with a 4mm HD lens and a 650nm infrared cut filter.
6. What kind of display comes with the package? The kit includes a 2.4-inch TFT LCD screen with a QVGA resolution of 320x240.
7. Does the board support audio input? Yes, it features an onboard MEMS microphone, and the K210 includes a dedicated Audio Processor (APU).
8. How is the board powered? It is powered via the onboard USB Type-C port using a standard 4.8V - 5.2V external power supply (typically via USB).
9. Do I need an external programmer to flash code? No, the board integrates a CH340 USB-to-UART chip and an auto-download circuit for direct flashing over the USB Type-C cable.
10. What programming languages can I use? You can program it using MicroPython via MaixPy, or use the Arduino IDE and FreeRTOS C/C++ SDKs.
11. What is the purpose of the MicroSD (TF) card slot? The slot allows you to expand storage up to 128GB for large machine learning models, datasets, and multimedia resources.
12. Is the board compatible with standard breadboards? Yes, measuring 53.3 x 25.4mm (1x2 inches), it is designed to be completely breadboard-friendly with standard 2.54mm pitch headers.
13. Can the GPIO pins be remapped? Yes, the K210 features an FPIOA (Field Programmable IO Array) that allows you to map internal functions dynamically to the physical GPIO pins.
14. Does the board have built-in WiFi or Bluetooth? No, the standard K210 chip and MAIX Bit board do not have built-in wireless capabilities.
15. What AI frameworks are supported? It supports models imported from TensorFlow Lite, Keras, Darknet, and Caffe.
16. What kind of models can run on the NPU? It is highly optimized for quantized convolutional neural networks like YOLOv3, TinyYOLOv2, and MobileNet-v1.
17. How does the camera connect to the board? The camera uses a flexible flat cable (FPC) that connects to a dedicated 24-pin DVP connector on the top of the board.
18. What do the two onboard buttons do? The board features an RST button to physically reset the hardware, and a USR (BOOT) button for user input or bootloader mode.

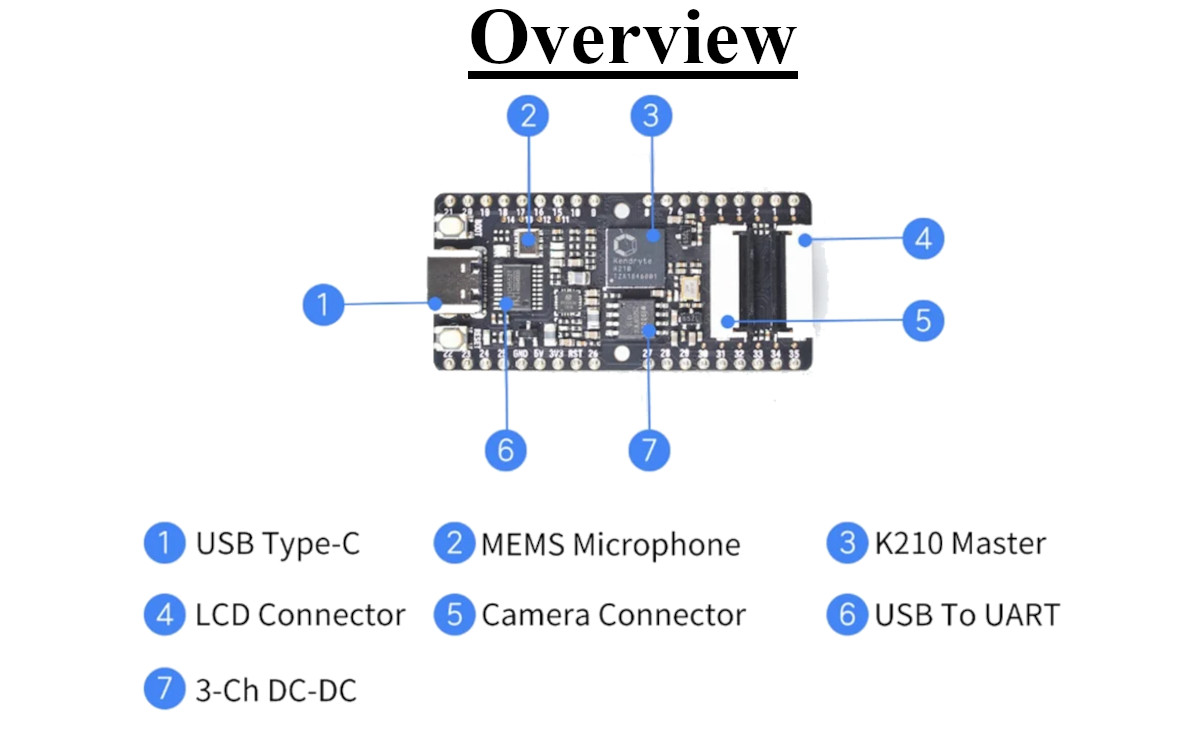

19. What is the purpose of the onboard 3-Ch DC-DC component? This component reliably steps down the 5V USB input into the specific 3.3V and lower core voltages required by the K210 processor and its peripherals.
20. Does it support facial recognition? Yes, the hardware acceleration allows for real-time face detection and recognition directly on the edge at high frame rates.
