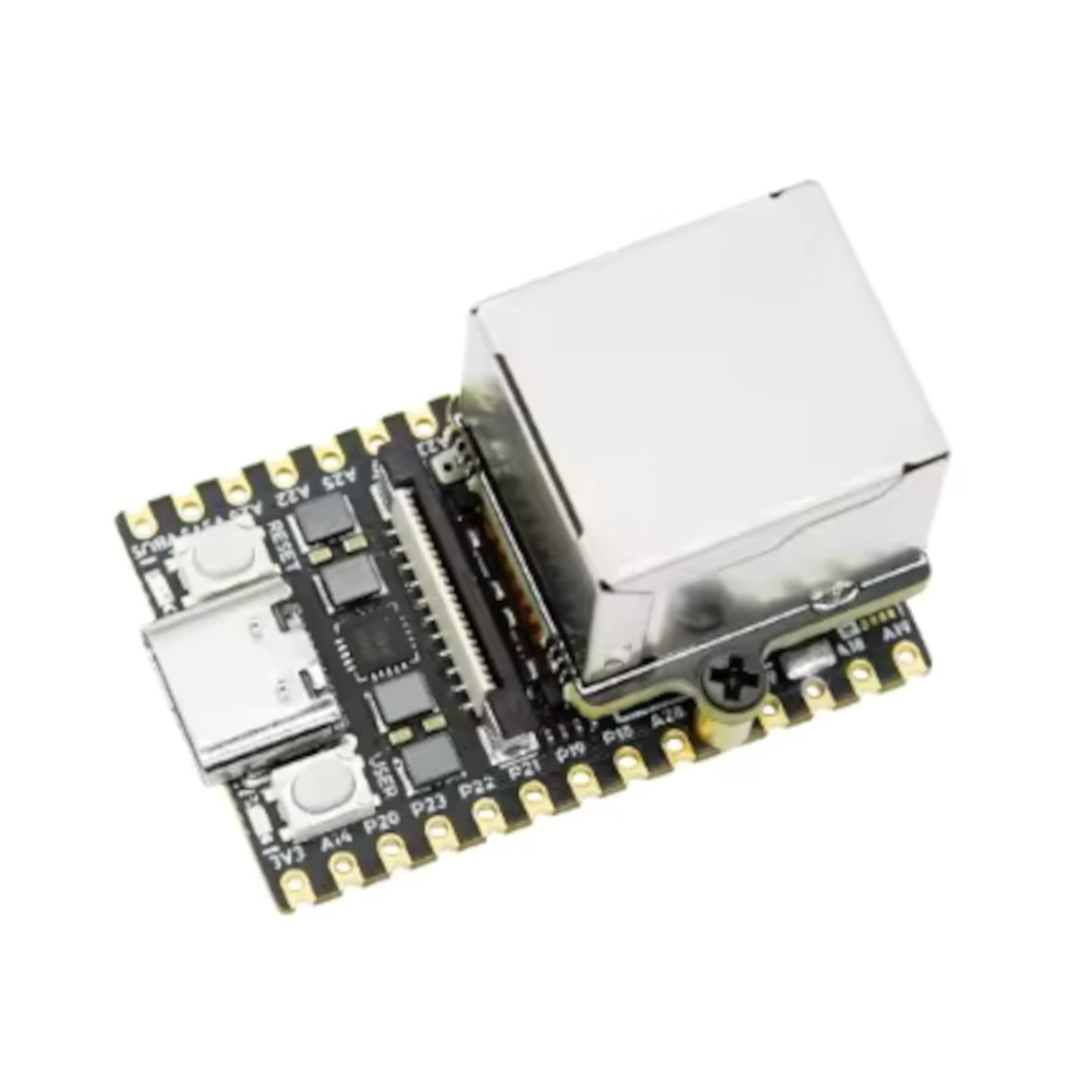

Master IoT connectivity with dual architectures! The LicheeRV Nano WE features the SG2002 SoC (selectable RISC-V C906 / ARM A53), onboard WiFi 6, and a pluggable 100M Ethernet module in a compact castellated design.
Dual-Architecture SG2002 Powerhouse The LicheeRV Nano WE refuses to lock you into a single architecture. Powered by the SG2002 System-on-Chip (SoC), this board features a physical hardware switch located on the back. This switch allows developers to seamlessly select between a RISC-V C906 core or an ARM Cortex-A53 core prior to boot. This flexibility makes it the ultimate platform for cross-architecture software testing and benchmarking.

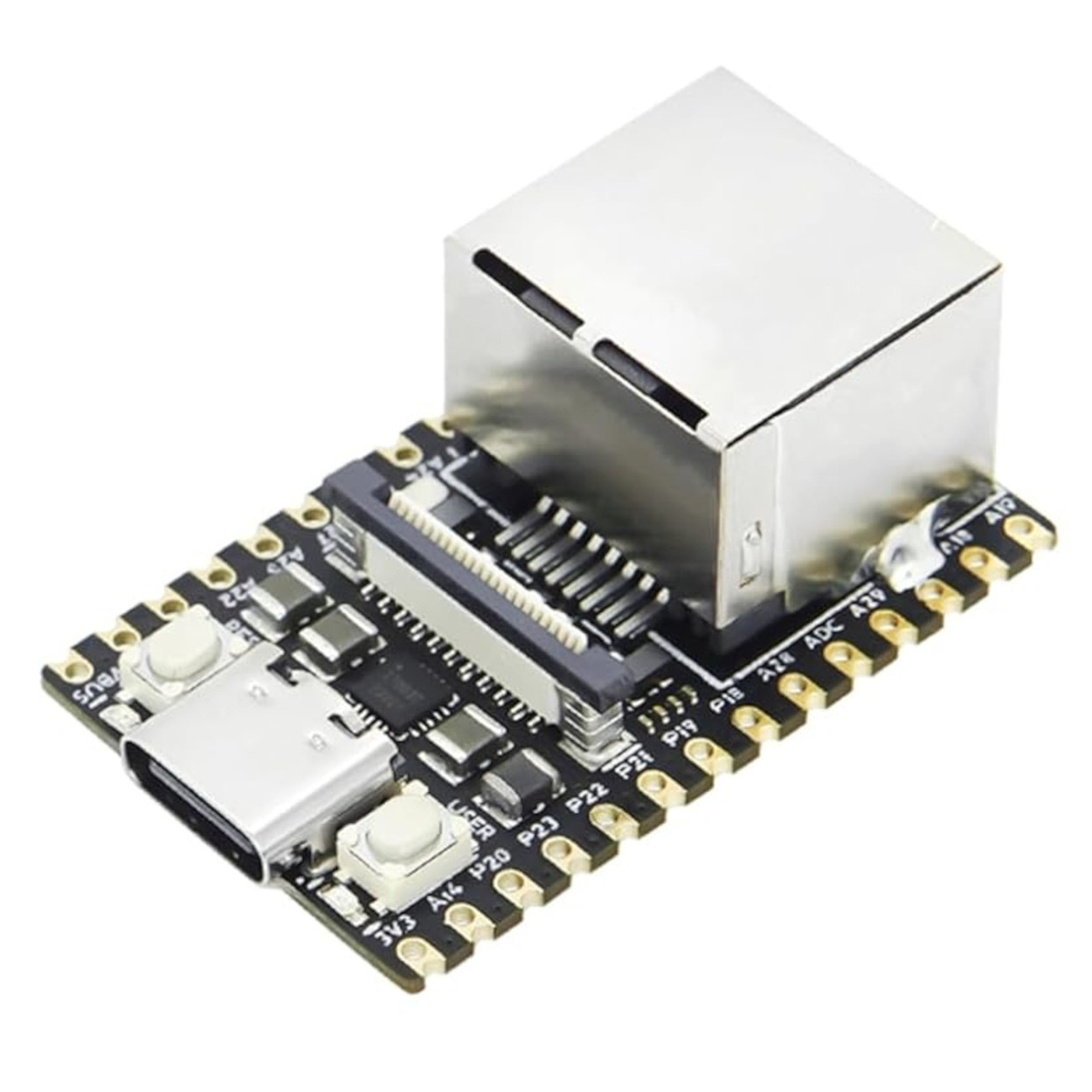

Ultimate Network Connectivity (WiFi + Ethernet) This "WE" edition solves the connectivity challenge for tiny IoT devices. The main board is equipped with an onboard WiFi6-8800D module for high-speed wireless networking. To ensure maximum range, an external Airgain N2425D flex antenna is included. For rock-solid wired connections, the kit includes a pluggable 100M/10M Ethernet (RJ45) expansion module. This module attaches seamlessly over the top of the main board using the provided hardware and FPC cable.

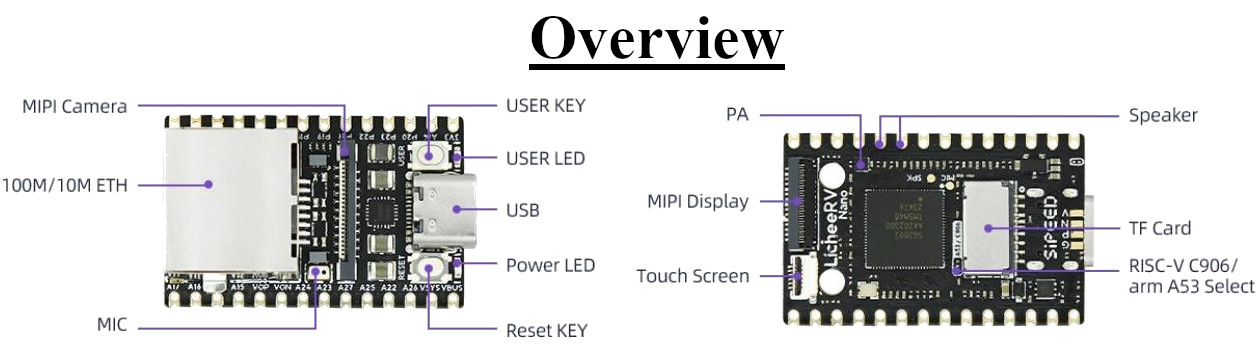

Rich Multimedia & Versatile Expandability Despite its tiny 35.56 mm by 22.86 mm footprint, the LicheeRV Nano WE is fully equipped for modern multimedia. It features dedicated FPC connectors for a MIPI Camera, a MIPI Display, and a Touch Screen. The board also includes an onboard MIC and solder pads for a Speaker/PA output. For general electronics interfacing, the board features castellated mounting holes with a standard 2.54 mm pitch. The comprehensive pinout breaks out multiple UART, PWM, SPI, IIC, and SDIO channels, all utilizing a safe 3.3V logic level.
Specifications
SoC: SG2002
Core Architecture: Selectable RISC-V C906 or ARM Cortex-A53
Dimensions: 35.56 mm x 22.86 mm
Wireless: Onboard WiFi6-8800D with external Airgain N2425D antenna
Wired Network: Pluggable 100M/10M Ethernet Module (RJ45)
Storage: TF (MicroSD) Card Slot
Video/Display: MIPI Camera, MIPI Display, Touch Screen
USB Interface: USB Type-C
GPIO Logic Voltage: 3.3V (GPIOA, GPIOB, GPIOP)
Key Applications and Projects
Tiny IoT Gateways: Utilizing both the Ethernet and WiFi interfaces to bridge local wireless sensor data to a hardwired network backbone.
Machine Vision Nodes: Leveraging the MIPI camera interface to run lightweight facial recognition models at the edge, sending alerts via WiFi.
Cross-Platform Firmware Development: Using the hardware toggle switch to write and benchmark RTOS networking stacks on both ARM and RISC-V architectures seamlessly.
Unlock New Capabilities (Project Evolution) The Ultra-Compact Edge Router: Standard development boards with dual network interfaces are often bulky and expensive. By utilizing the LicheeRV Nano WE's integrated WiFi 6 and the pluggable 100M Ethernet module, you can build a custom, pocket-sized edge router. Surface-mount the board to a custom PCB using the 2.54mm pitch castellations, configure the Linux networking stack to route traffic between the RJ45 port and a wireless access point, and you have a tiny, highly secure travel router or dedicated IoT firewall!
1x Sipeed LicheeRV Nano WE Main Board
1x Pluggable Ethernet (RJ45) Module
1x Airgain N2425D WiFi Antenna
1x FPC Ribbon Cable
2x Brass Stand-offs and 2x Mounting Screws
1x Mini Screwdriver
2x 15-Pin Male Header Strips
1. What SoC is at the heart of this board? The board is powered by the SG2002 System-on-Chip.
2. Is this a RISC-V or an ARM development board? It is both, allowing you to select between a RISC-V C906 core and an ARM A53 core using a physical hardware switch.
3. What kind of WiFi does this specific model have? The main board features an integrated WiFi6-8800D module for high-speed wireless connectivity.
4. Is a WiFi antenna included? Yes, the kit includes an external Airgain N2425D flex antenna that attaches to the board.
5. How is the Ethernet connection added? Ethernet is provided via a separate, pluggable module with an RJ45 jack that mounts over the main board.
6. What are the network speeds for the Ethernet module? The Ethernet module supports 100M/10M network speeds.
7. Does the kit include the tools to mount the Ethernet module? Yes, the package includes the necessary FPC cable, brass stand-offs, mounting screws, and a mini screwdriver for assembly.

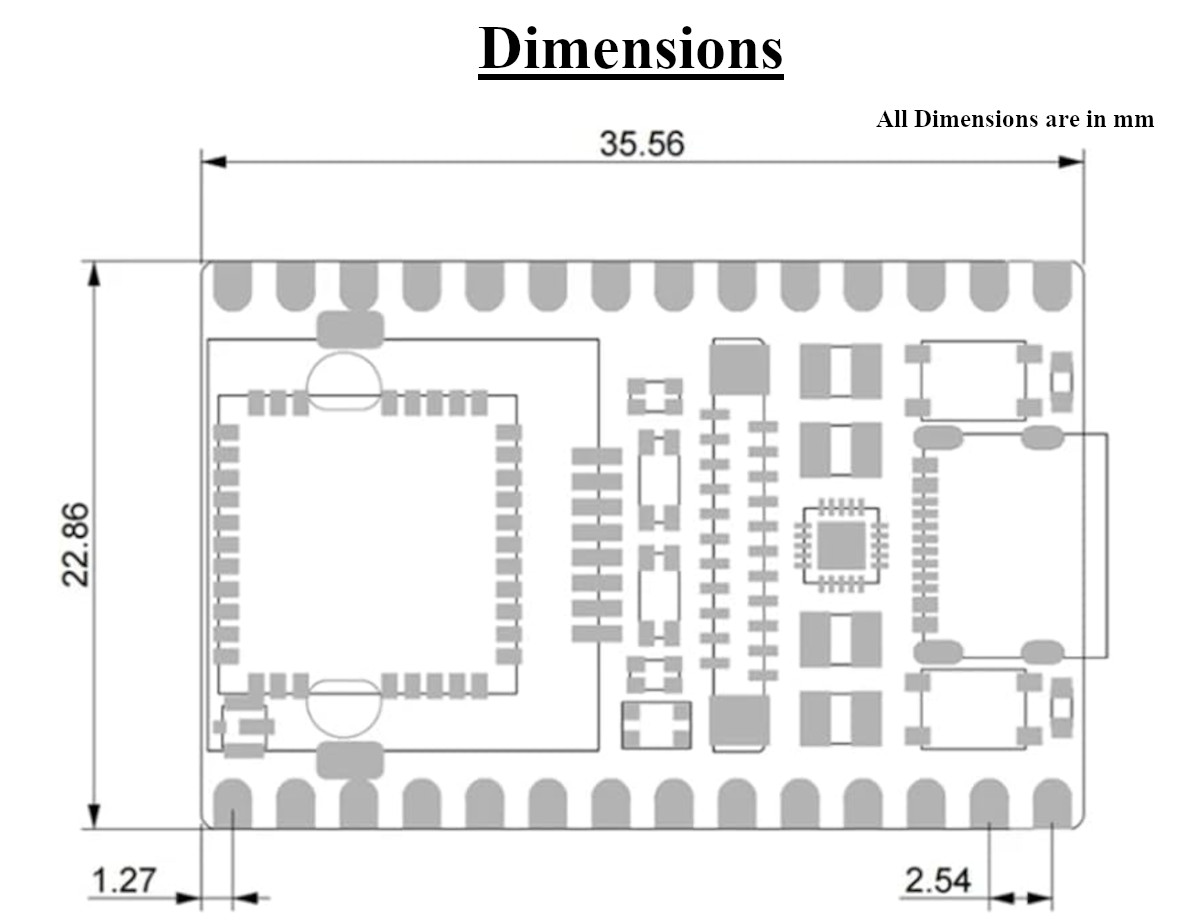

8. What are the exact dimensions of the main board? The main board is extremely compact, measuring exactly 35.56 mm in width and 22.86 mm in height.
9. Is the pin spacing standard for breadboards? Yes, the castellated edge pins feature a standard 2.54 mm pitch.
10. How far from the edge are the castellated pins centered? The distance from the left and right edges of the PCB to the center of the first castellated pin is 1.27 mm.
11. Does the package include header pins? Yes, the kit comes with two rows of male header pins for breadboard prototyping.
12. Can I connect a camera directly to this board? Yes, the board features a dedicated MIPI Camera connector.
13. Can I add a screen to the LicheeRV Nano WE? Yes, the back of the board includes a MIPI Display connector and a separate Touch Screen connector.
14. How do I boot an operating system? The board includes a TF (MicroSD) Card slot on the back for loading your operating system and storing data.
15. What kind of USB connection does it use? It features a modern USB Type-C port on the front edge for power and data.
16. Does the board have any onboard audio capabilities? Yes, it features an onboard MIC and solder pads for a Speaker/PA output.

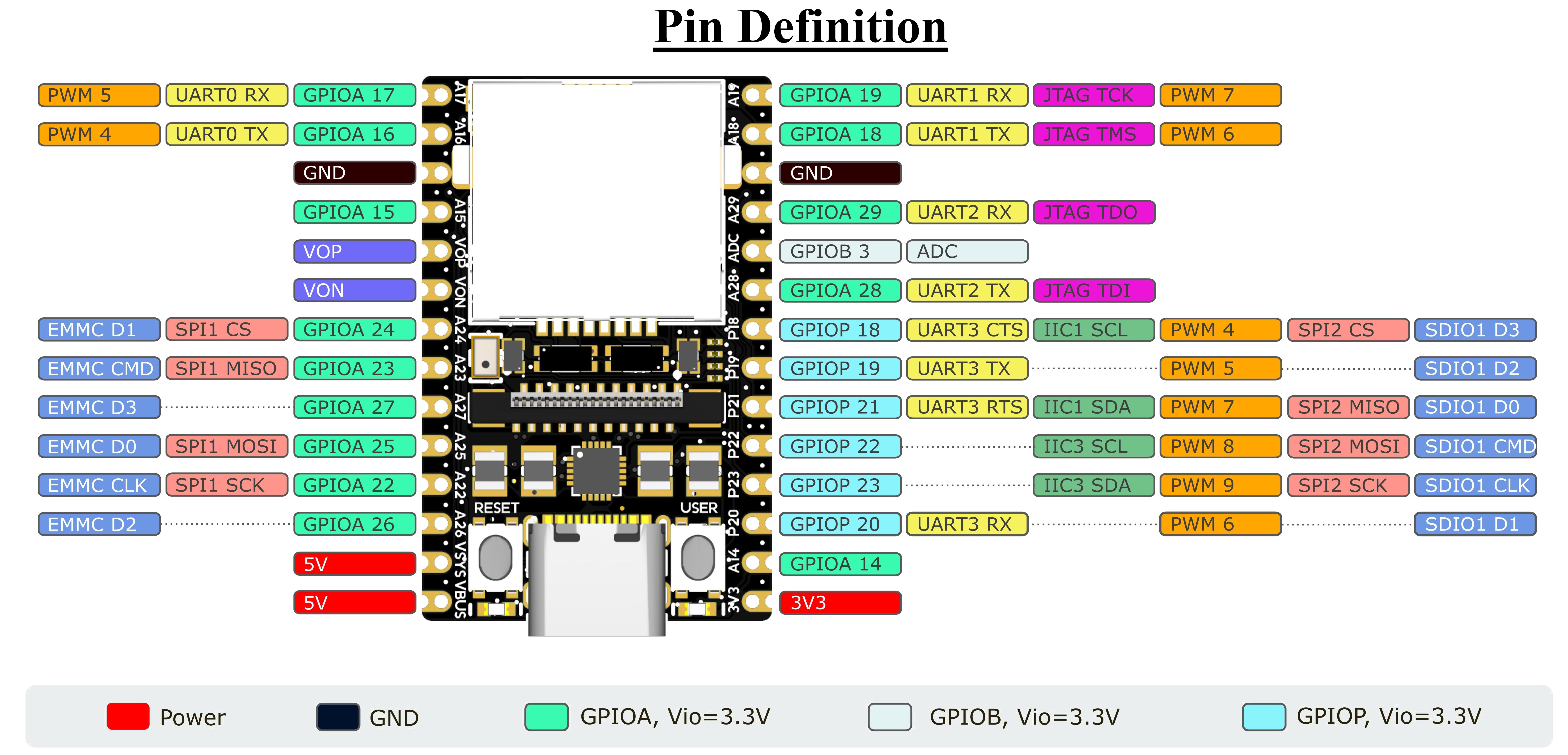

17. What is the logic voltage for the GPIO pins? The GPIO pins (GPIOA, GPIOB, and GPIOP) operate at a logic level of 3.3V (Vio=3.3V).
18. How many UART interfaces are available? The pinout exposes up to four UART interfaces: UART0, UART1, UART2, and UART3.
19. Are there any physical buttons on the board? Yes, the front of the board has two tactile buttons: a Reset KEY and a USER KEY.
20. Does the pinout support SPI and IIC communication? Yes, the pin definitions clearly show support for SPI (SPI1, SPI2) and IIC (IIC1, IIC3) interfaces.
