YG-1502DD Adjustable Digital Regulator DC Power Supply

Specifications

• Input Voltage: AC 220V ±10% 50Hz (110V versions optional).

• Output Voltage: 0V – 15V DC (Continuously Adjustable).

• Output Current: 0 – 2A (Adjustable current limit).

• Preset Voltages: 1.5V, 3.6V, 4.8V, 6.0V, 7.2V.

• Protection: Short-circuit over-current protection with Automatic Recovery.

• Recovery Time: ≤100ms.

• Ripple and Noise: ≤1mVrms (Typical).

• Display Precision: 0.1V for Voltage, 0.1A (or 1mA depending on range) for Current.

Key Applications & Projects

• Mobile Phone Repair: Specifically designed for troubleshooting smartphones, detecting RF signals, and boosting batteries.

• Electronics Prototyping: Providing stable power to low-voltage circuits and development boards.

• Battery Charging: Safe charging of small lithium-ion batteries with controlled current limits.

Unlock New Capabilities (Project Evolution)

• Feature Upgrade: The YG-1502DD includes an intelligent RF signal detector (in some batch variants) that can detect GSM, CDMA, and PHS mobile phone signals, aiding in communication repair diagnostics.

• Effort Level: Professional. The interface is intuitive, but a precise setting of voltage and current limits is required to avoid damaging sensitive ICs.

ACCESSORIES / PACKAGE INCLUDED

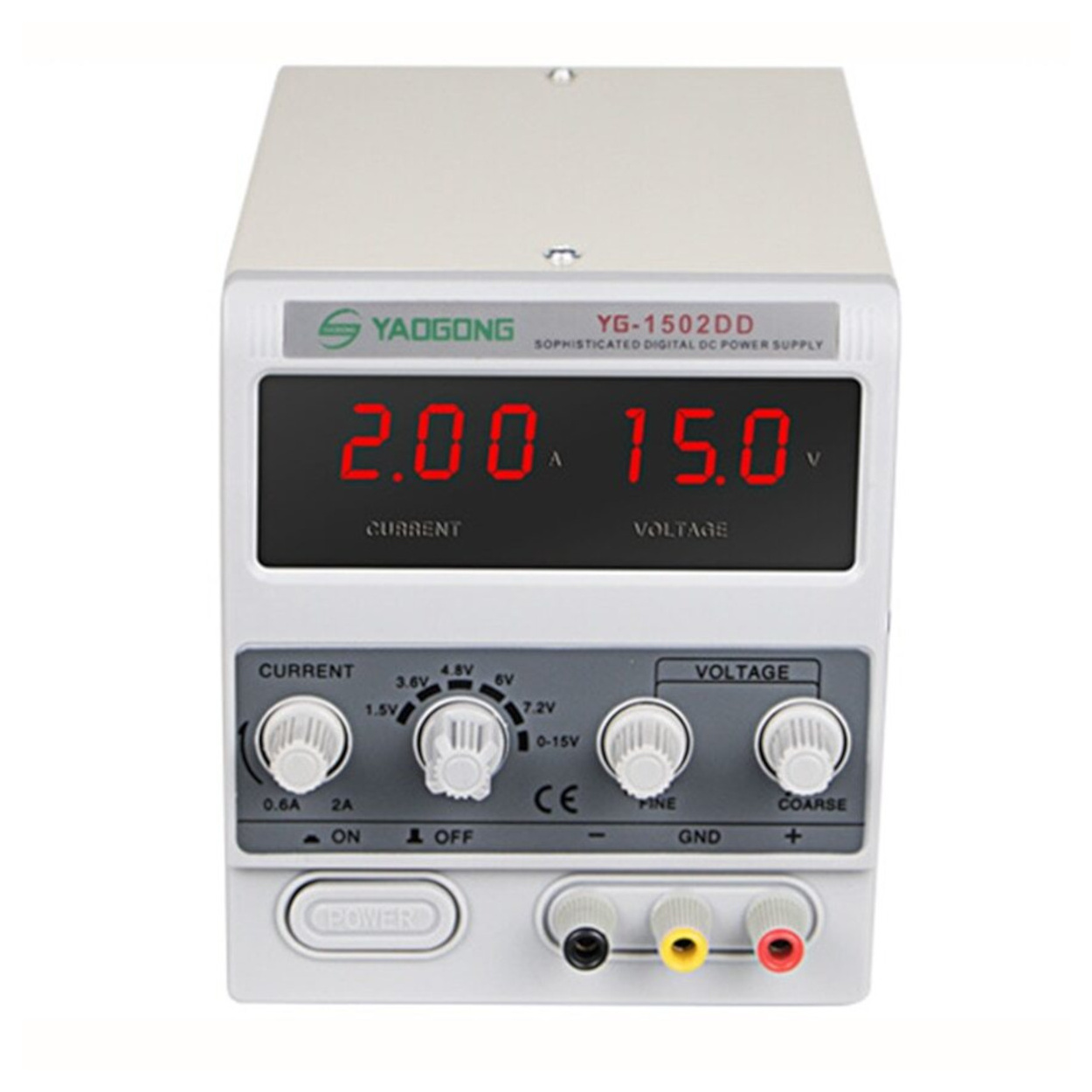

• 1 x YAOGONG YG-1502DD Power Supply Host

• 1 x AC Power Input Cable

• 1 x Multi-functional DC Output Test Lead Set (with alligator clips and probes)

• 1 x User Manual

FREQUENTLY ASKED QUESTIONS (FAQ)

1. What is the "Direct Output" gear for? It allows you to quickly switch to common voltages used in mobile repair, such as 3.6V or 4.8V, without manually turning the fine-tuning knobs.

2. Does it have a cooling fan? Yes, it features an intelligent cooling system to dissipate heat during high-load operations.

3. What happens during a short circuit? The protection circuit engages immediately to prevent damage. Most models feature Automatic Recovery, which restores power once the short is removed.

4. Can I charge a dead mobile battery with this? Yes, it is ideal for battery boosting, but you must carefully set the voltage and current according to the battery specifications to avoid damage.

5. Is this suitable for 110V or 220V? Most units are 220V, but they are often selectable or available as 110V versions. Check the rear label before powering on.

6. What is the "Coarse" vs "Fine" knob? The Coarse knob makes large voltage changes, while the Fine knob allows for small, precision adjustments of 0.1V.

7. Can it be used for continuous heavy load? It is recommended to keep the utilization rate below 60% for long-term reliability.

8. What is the maximum current output? The standard YG-1502DD is rated for a maximum of 2A.

9. Can I test GSM signals with this? Yes, it includes a signal strength indicator that can detect transmissions from mobile devices during testing.

10. How do I replace the fuse? The fuse is located in a dedicated compartment near the AC input. Always disconnect power before replacing.

11. Is the display LCD or LED? This model features bright digital LED displays for easy reading in dark workshop environments.

12. Can I use it to power a small motor? Yes, as long as the motor's startup and running current do not exceed the 2A limit.

13. Is it grounded? Yes, the front panel includes a dedicated yellow GND (Grounding) terminal.

14. What is the voltage accuracy? It typically has a display accuracy of 0.1V.

15. Does it support Constant Current (CC) mode? Yes, it allows for current limiting (CC) adjustment, especially useful when powering up a board for the first time.

16. How portable is the unit? It weighs approximately 1.6kg and has compact dimensions, making it easy to move around a workbench.

17. Can I use it for laptop repair? It is mostly suited for smaller devices; high-end laptops may require a 19V-20V / 5A+ supply.

18. Are the test leads included? Yes, a standard package includes output test cables.

19. What is the input frequency? It operates on standard 50Hz/60Hz AC power.
