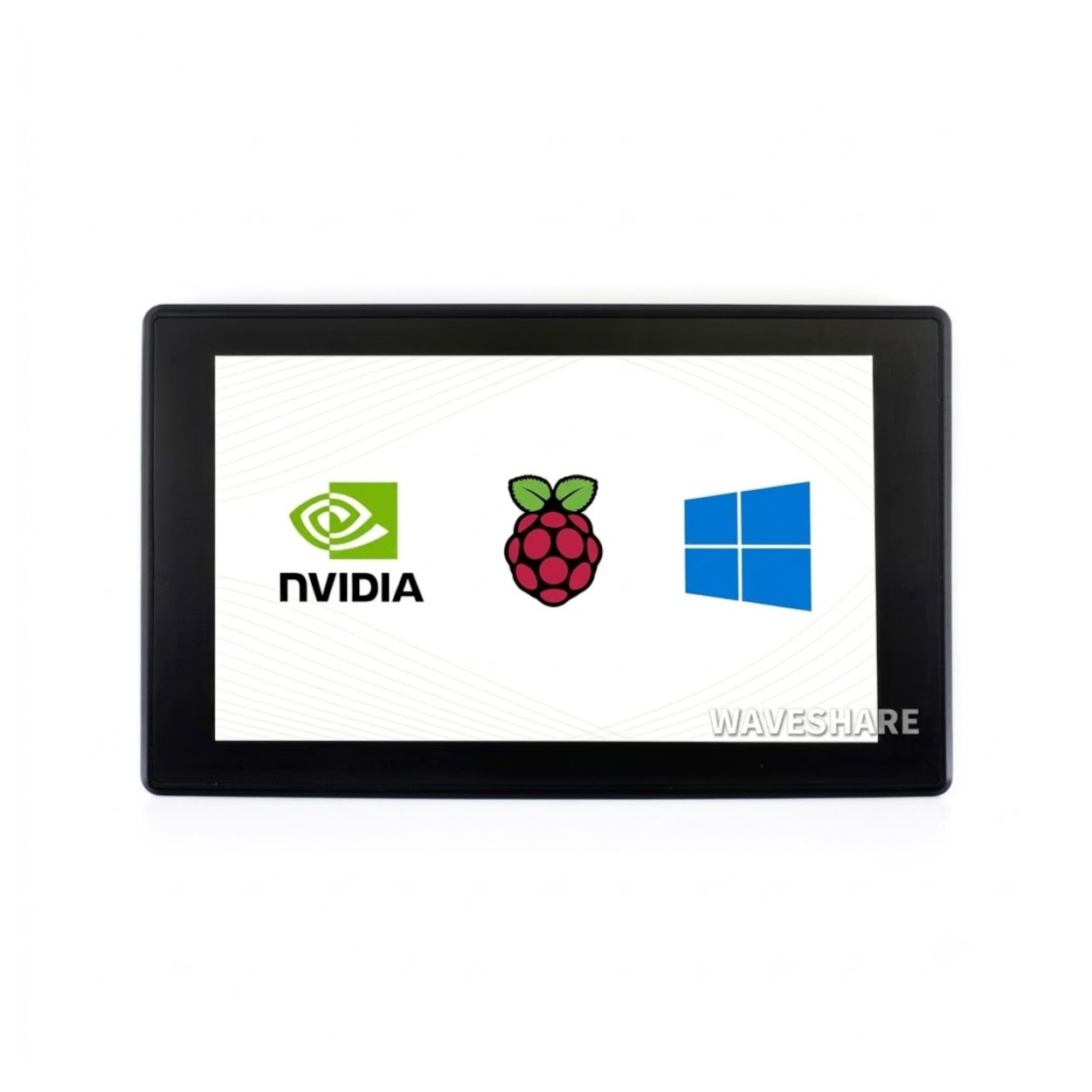

Waveshare 7 Inch Capacitive HDMI LCD Display (H) with Case 1024x600

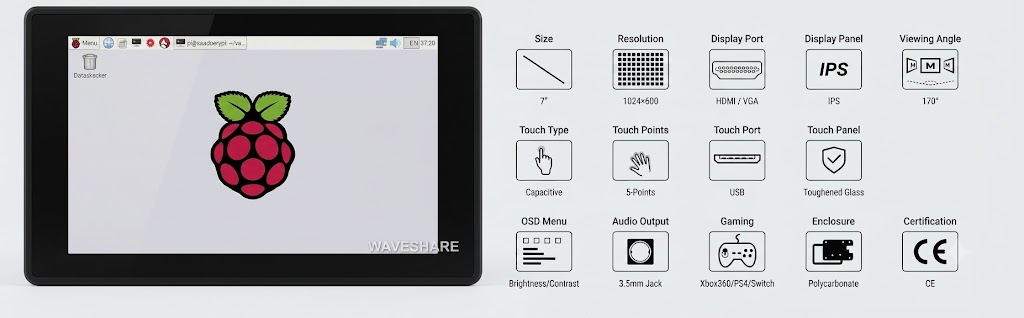

Specifications

• Display Size: 7.0 inches
• Hardware Resolution: 1024 × 600 pixels (Configurable via software up to 1920x1080)
• Panel Type: IPS (In-Plane Switching) for wide 170° viewing angles
• Touch Interface: USB Capacitive Touch (Up to 5-point multi-touch, OS dependent)
• Display Interface: Standard HDMI
• Audio Support: 3.5mm audio jack for HDMI audio extraction
• Power Requirement: 5V via Micro-USB (Typically draws ~500mA at full brightness)

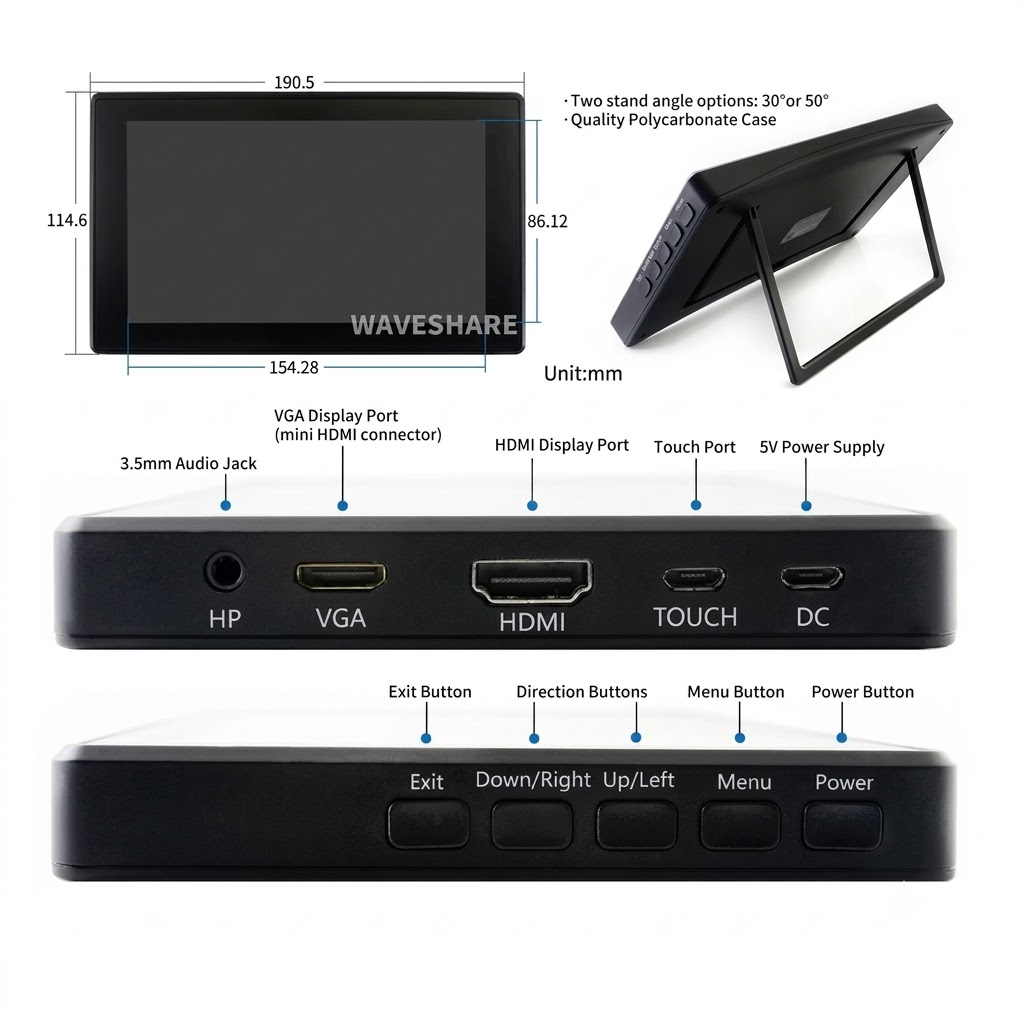

• Enclosure: High-quality black polycarbonate case with bottom stand pieces
• OS Compatibility: Raspbian, Ubuntu, Kali, Retropie, Windows 11/10/8.1/8/7 (Driver free)

Applications

• Industrial HMI (Human-Machine Interface): Build durable touch control panels for CNC machines or 3D printers (Klipper/OctoPrint).
• Smart Home Dashboards: Create a sleek, wall-mountable Home Assistant control center.
• SBC Workstations: A perfect secondary or primary monitor for Raspberry Pi 4/5 or NVIDIA Jetson Nano development.
• Retro Gaming: Ideal for building portable or tabletop RetroPie arcade setups.

Unlock New Capabilities

• The Past Project: You've likely used small 3.5" or 5" GPIO-based SPI displays. They are notoriously slow, require custom drivers that break with OS updates, and lack a protective housing.
• The Feature Upgrade: Upgrading to the Waveshare 7" HDMI (H) unlocks driver-free high-speed video (ideal for smooth UI and gaming) and responsive, smartphone-like capacitive touch over USB. The included case instantly elevates your project from a "breadboard prototype" to a finished appliance.
• Effort Level: Beginner. Simply connect the HDMI for video and USB for touch/power. Edit the config.txt on a Raspberry Pi to set the exact resolution, and you are ready to go.

Package Includes:

• 1 x 7inch HDMI LCD (H) (with case)
• 1 x HDMI cable
• 1 x HDMI to Micro HDMI Adapter
• 1 x USB type A plug to micro B plug cable
• 1 x Quick start sheet

Frequently Asked Questions (Technical FAQs)

• Does this display require special drivers on a Raspberry Pi?
  No, it is driver-free for Raspbian/Raspberry Pi OS. You only need to modify the config.txt to set the correct 1024x600 resolution.
• Will this work with the Raspberry Pi 4 and Pi 5?
  Yes. The package includes a Micro-HDMI to HDMI adapter specifically for the Pi 4 and Pi 5.
• How is the touch data transmitted?
  Touch data is transmitted via the included Micro-USB to USB-A cable connected to your host device.
• Can I use this with a standard Windows PC?
  Yes, it is plug-and-play with Windows 11/10/8/7, registering as a standard external monitor and generic USB touch input device.
• Does the case support VESA mounting?
  No, the included polycarbonate case does not have standard VESA mounting holes; it is designed for desktop use with the included stand.
• Can the display audio be routed through the 3.5mm jack?
  Yes, if your host device sends audio over HDMI, it can be extracted and played through headphones or active speakers connected to the 3.5mm jack.
• Why is my screen showing a black border or looking stretched?
  This means the host OS is not outputting native 1024x600. Ensure you have applied the hdmi_cvt settings in your Pi's config.txt.
• Can I power the display independently of the host PC?
  Yes, you can use a separate 5V USB wall adapter to power the display if your host computer's USB ports cannot provide enough current.
• How many touch points does the screen support?
  It supports up to 5-point capacitive multi-touch, though actual multi-touch support depends on the host operating system (Windows and some Linux distros support it natively).
• Is the screen viewable in direct sunlight?
  While the IPS panel is bright, it is not specifically rated for high-brightness outdoor/sunlight readable applications.
• How do I assemble the case?
  The case consists of a bottom plate and a top bezel. You sandwich the display between them using the provided screws and standoffs.
• Does the touch screen need calibration?
  Generally, no. Capacitive touchscreens are factory calibrated. If touch is inaccurate on Windows, use the built-in Tablet PC Settings to calibrate.
• Is there a way to adjust the backlight brightness?
  The (H) version typically does not have physical buttons for backlight adjustment. It runs at a fixed brightness, but it can be turned off via software commands in Linux.
