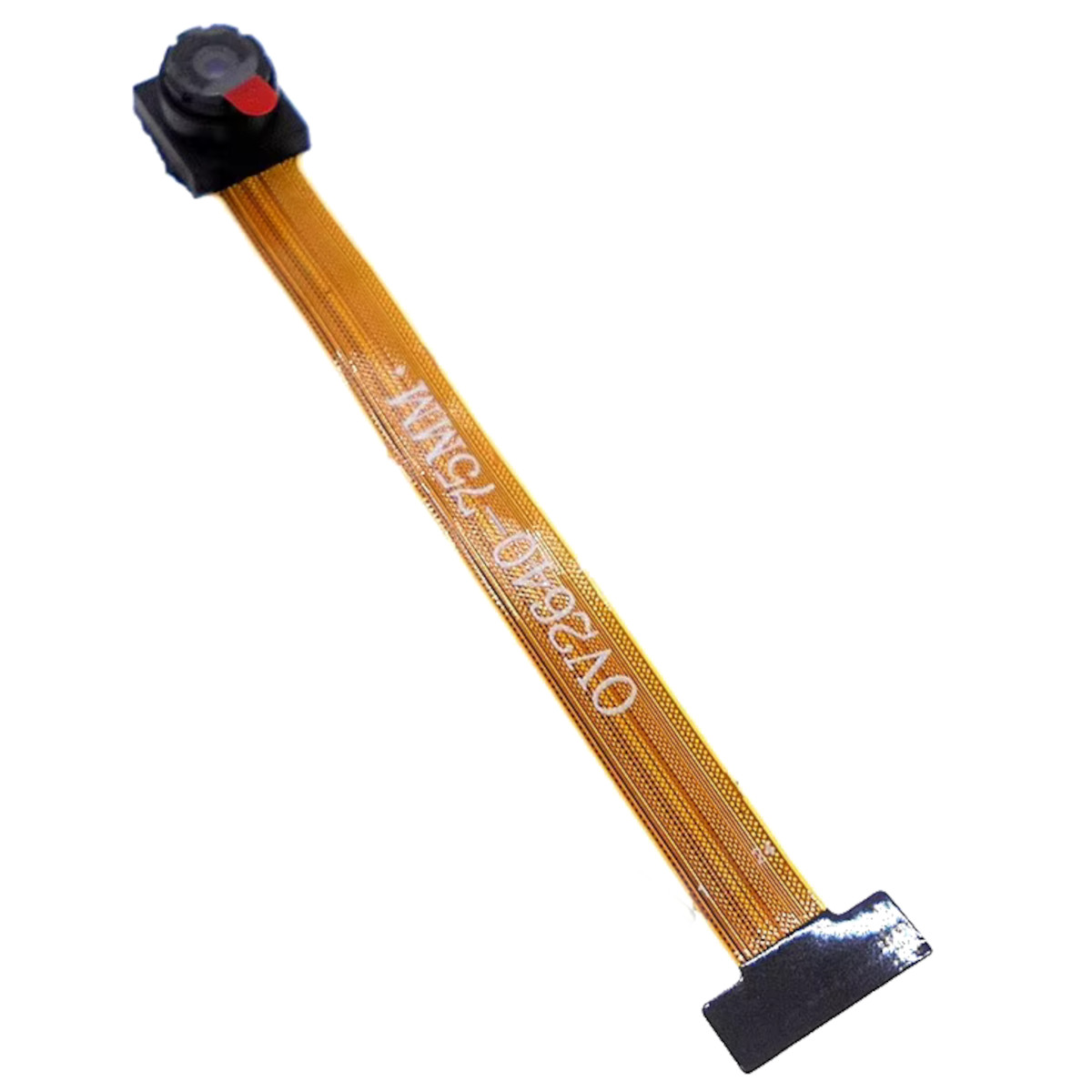

OV2640 2 MP Night Vision Camera Module (7.5cm, 160 Degree, 24pin )

₹499.00 Rs. 422.88 + 76.12 GST
Availability: Out of stock
SKU
PRO2232

Description:

All image processing functions including gamma curve, white balance, contrast, chroma, etc. can be programmed via the SCCB interface. Image Sensors use unique sensor technology to improve image quality and reduce sharp and stable color images by reducing or eliminating optical or electronic defects such as fixed pattern noise, smearing, and floating.

All image processing functions including gamma curve, white balance, contrast, chroma, etc. can be programmed via the SCCB interface. Image Sensors use unique sensor technology to improve image quality and reduce sharp and stable color images by reducing or eliminating optical or electronic defects such as fixed pattern noise, smearing, and floating.

Specifications:

  • Output support for Raw RGB, RGB (RGB565/555), GRB422, YUV (422/420) and YCbCr (4:2:2) formats

  • Supports image sizes: UXGA, SXGA, SVGA, and any size scaling down from SXGA to 40x30

  • Image quality controls including color saturation, gamma, sharpness (edge enhancement), lens correction, white pixel canceling, noise-canceling, and 50/60 Hz luminance detection

  • Automatic image control functions including Automatic Exposure Control (AEC), Automatic Gain Control (AGC), Automatic White Balance (AWB), Automatic Band Filter (ABF), and Automatic Black-Level Calibration (ABLC)

  • 160 Degree Viewing angle
  • Night Vision Camera
  • High sensitivity for low-light operation

  • Low operating voltage for embedded portable apps

  • Standard SCCB interface

  • Line optical black level output capability

  • Video or snapshot operation

  • Zooming, panning, and windowing functions

  • Internal/external frame synchronization

  • Variable frame rate control

  • Supports LED and flash strobe mode

  • Supports scaling

  • Supports compression

  • Embedded microcontroller

Application:

  • Cellular and Camera Phones

  • Toys

  • PC Multimedia

  • Digital Still Cameras

Package Includes:

  • 1 x OV2640 2 mp camera module (7.5cm, 68 Degree, 24pin )
