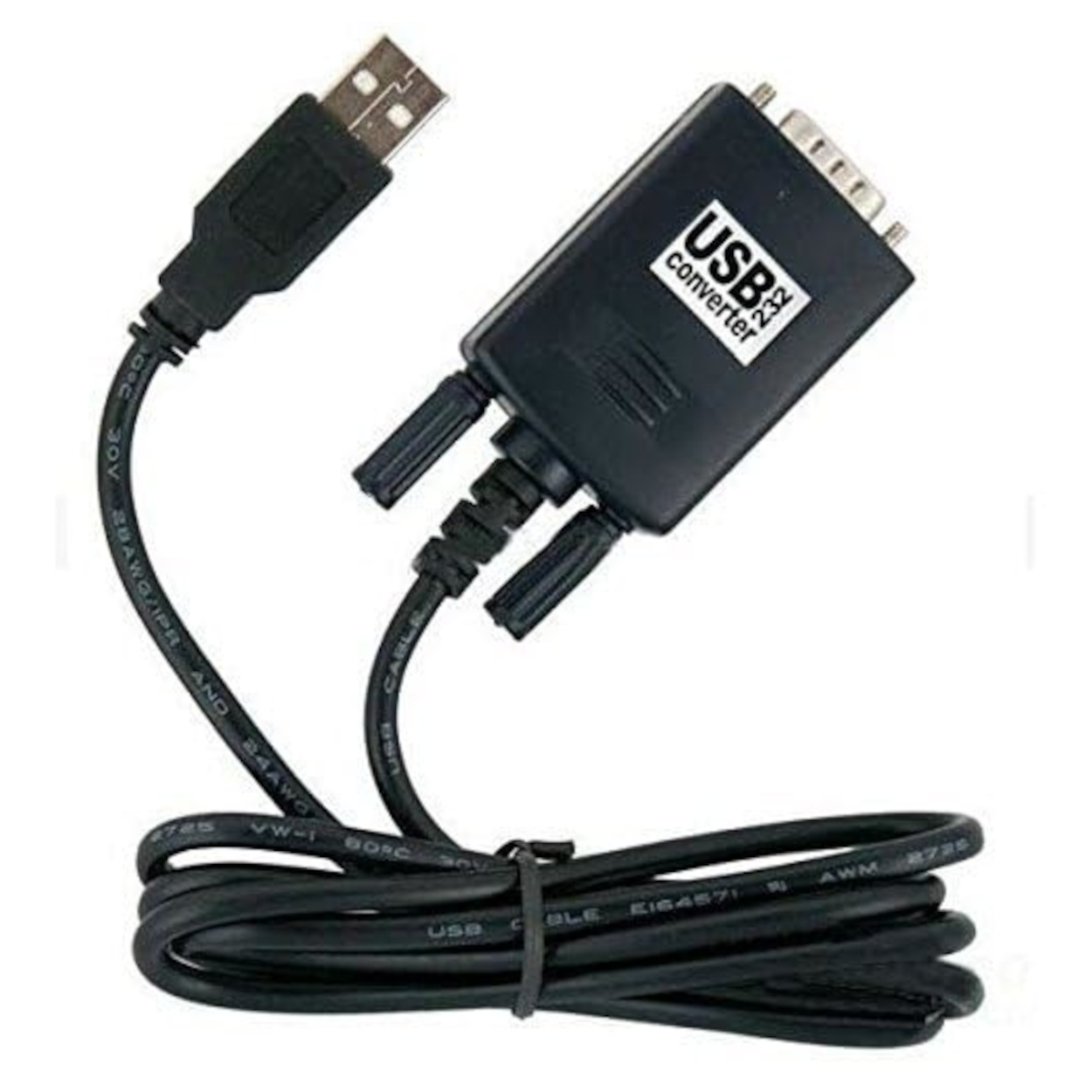

USB to RS232 Serial DB9 Converter Cable

Specifications:

• Host Interface: USB 2.0 Type-A Standard (Backward compatible with USB 1.1)

• Device Interface: RS232 Standard DB9 Male Connector

• Supported Baud Rates: 300 bps to 115200 bps

• Data Bits Supported: 5, 6, 7, 8

• Stop Bits Supported: 1, 2

• Parity Handled: Odd, Even, Mark, Space, None

• Flow Control Protocols: Hardware RTS/CTS, Software XON/XOFF

• Cable Length: 1 Meter

• Operating Voltage: 5V DC via USB Bus

• Logic Level Swing: True RS232 Levels (+/- 9V nominal)

• Driver OS Compatibility: Windows 11, 10, 8, 7, Linux, macOS

Key Applications

• Industrial Automation: Interfacing with Programmable Logic Controllers (PLCs), CNC milling machinery, and SCADA systems.
  Network Administration: Establishing direct console access to enterprise routers, switches, and hardware firewalls.

• Lab Instrumentation: Extracting data logs from legacy digital oscilloscopes, multimeters, balance scales, and telemetry gear.

• Popular Project Ideas: Building a standalone PC-to-PLC tracking terminal, configuring a classic telescope mount via modern astronomy software, or logging sensor data profiles directly into database scripts from legacy environmental meters.

Project Evolution

If you have previously mastered basic TTL-level communications using standard 5V or 3.3V UART tools (like basic CP2102 or FTDI breadboard sticks), moving to this standard RS232 layout unlocks true industrial interoperability. Standard microcontrollers handle low-voltage logic, whereas this cable safely converts those sequences into high-voltage swing RS232 signals required by enterprise equipment. This project evolution demands an Intermediate experience level; you must understand stop-bit configurations, parity definitions, and terminal console routing setups.

Virtual Technician & Wiring

???? CRITICAL VOLTAGE WARNING: This adapter generates authentic RS232 voltage levels (up to +/-9V logic swings). Do NOT bridge the pins of the DB9 side directly to raw 3.3V or 5V GPIO ports on microcontrollers like an ESP32, Arduino, or Raspberry Pi without an intermediary RS232-to-TTL shift transceiver. Doing so will permanently destroy your development board.

RS232 DB9 Male Pin Mappings

• Pin 1: DCD (Data Carrier Detect) - Input

• Pin 2: RXD (Receive Data) - Input to Host PC

• Pin 3: TXD (Transmit Data) - Output from Host PC

• Pin 4: DTR (Data Terminal Ready) - Output

• Pin 5: GND (Signal Ground) - Reference Point

• Pin 6: DSR (Data Set Ready) - Input

• Pin 7: RTS (Request to Send) - Output

• Pin 8: CTS (Clear to Send) - Input

• Pin 9: RI (Ring Indicator) - Input

Package Includes:

1 x USB to RS232 Serial DB9 Converter Cable

Frequently Asked Questions (FAQ)

1. Does this cable output 5V TTL or actual RS232 voltages?
   It outputs authentic RS232 logic level signals (+/-9V swing), not standard 5V or 3.3V TTL signals.
2. Where can I download the driver software for Windows 11? Windows 11 usually updates the CH340 WHQL driver automatically upon connection; alternatively, download it via our verified driver link listed above.
3. Can I use this cable to upload sketches directly to an Arduino Pro Mini?
   No, because the Pro Mini requires TTL levels; interfacing this cable directly to it without a level shifter will burn out the chip.
4. Is this converter cable base-configured as a Null Modem or Straight-Through?
   It features a standard Straight-Through DB9 Male structural pinout.
5. How can I identify which COM port has been assigned to the device?
   Open Device Manager on Windows, and expand the "Ports (COM & LPT)" tree to identify the assigned active number.
6. What should I do if Device Manager displays a yellow exclamation mark next to the device?
   Download and reinstall the official CH340 setup executable explicitly using administrator rights.
7. Does this unit support hardware flow control mechanisms?
   Yes, it completely routes and maps the RTS and CTS hardware lines for full handshake protocols.
8. Can I change the COM port index number manually if my legacy application demands COM1?
   Yes, enter Device Manager, right-click the item, choose Properties -> Port Settings -> Advanced, and modify the assigned value.
9. What is the default current draw of this adapter cable from the USB hub?
   It functions purely as a low-power accessory, pulling less than 30mA during active operational frames.
10. Does it support macOS Sequoia and later editions?
    Yes, it functions natively on modern macOS versions using Apple's integrated USB-Serial driver subsystem.
11. Can this cable handle long continuous telemetry transfers at 115200 baud?
    Yes, the underlying CH340 design architecture provides internal data packet buffering to prevent framing issues at higher speeds.
12. Why am I receiving garbled characters in my serial monitor display?
    Ensure your application's Baud Rate, Parity bits, Stop bits, and Data bits strictly match the target hardware device configuration.
13. Is the DB9 connector on the cable assembly a male or female layout?
    The cable is terminated with a standard 9-Pin Male connector block.
14. Is there galvanic insulation built into this cable line?
    No, this is a standard utility converter; for environments prone to extreme ground loops, look at our isolated converter family.
15. Does this item support the RS485 differential communication standard?
    No, this cable handles the RS232 point-to-point communication standard exclusively.
16. What is the total functional length of this cable device?
    The integrated layout measures exactly 1 meter from tip to tip.
17. Can I run this item reliably on a Raspberry Pi Linux environment?
    Yes, the Linux kernel includes built-in driver layers for the CH340 subsystem out-of-the-box.
18. Does it preserve its assigned COM port index number when disconnected and re-plugged?
    Yes, as long as it is re-inserted into the exact same physical USB hub socket on the host PC.
19. Can I control individual pin output cycles directly using Python scripts?
    Yes, by importing the pySerial library toolset, you can manipulate pins like RTS and DTR programmatically.
20. Is the outer insulation housing rated for extreme temperature environments?
    The industrial PVC skin accommodates a flexible operating standard window from -10°C up to 60°C.
