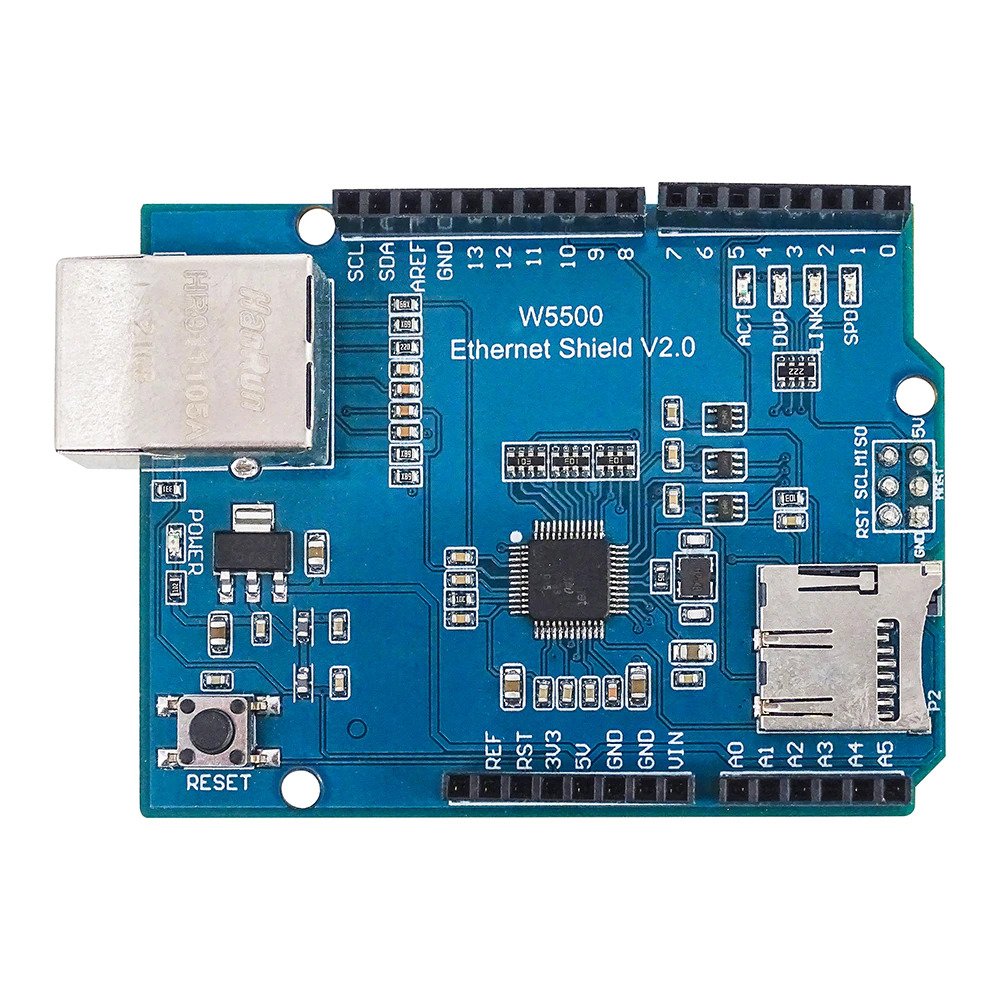

Ethernet Shield for Arduino UNO MEGA W5500 upgraded W5100 for IoT ₹639.00
2.4 Inch With touch Screen TFT Display Shield for Arduino UNO 240x320 ₹549.00

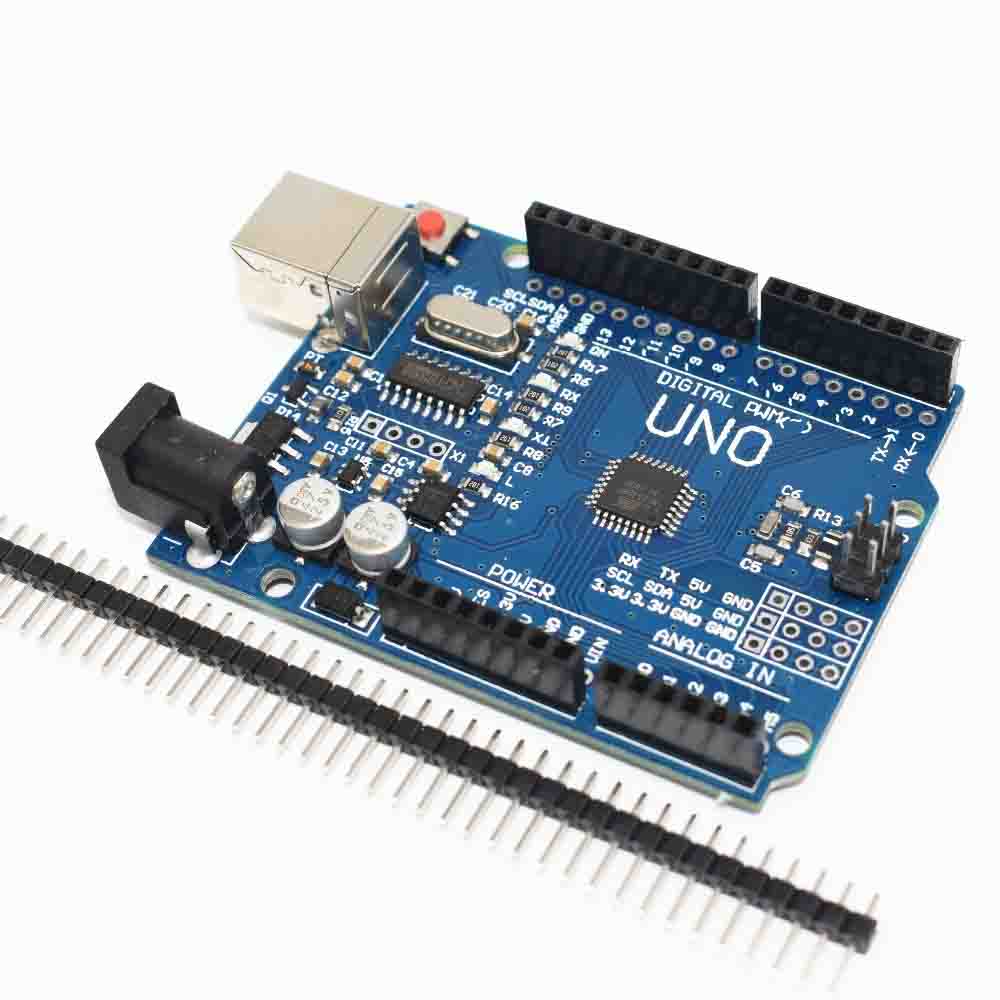

Uno R3 CH340G ATmega328p Development Board Compatible with Arduino SMD ₹399.00

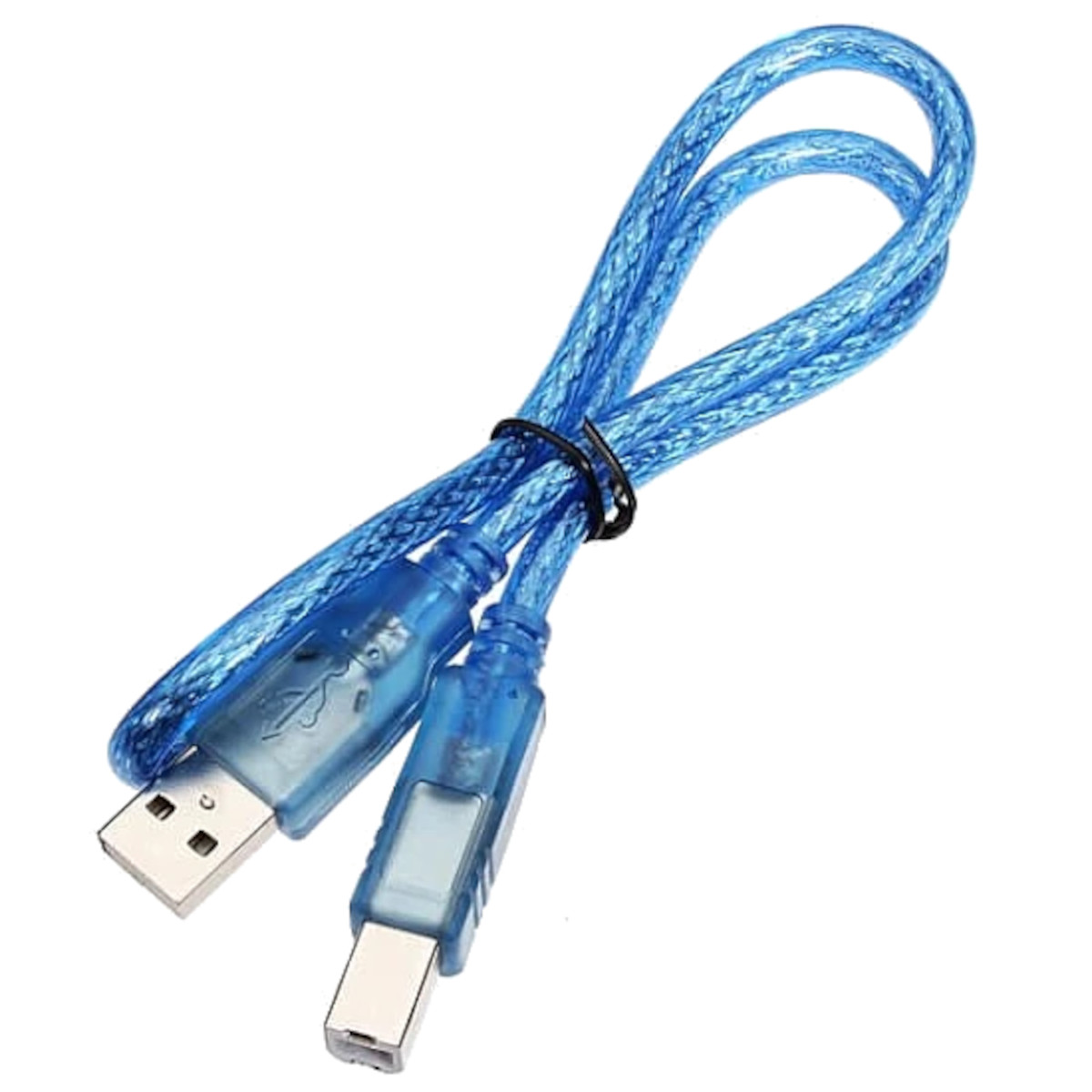

USB 2.0 Type-A to Type-B Cable - 300mm Translucent Blue for Arduino UNO & Mega ₹45.00 Description:

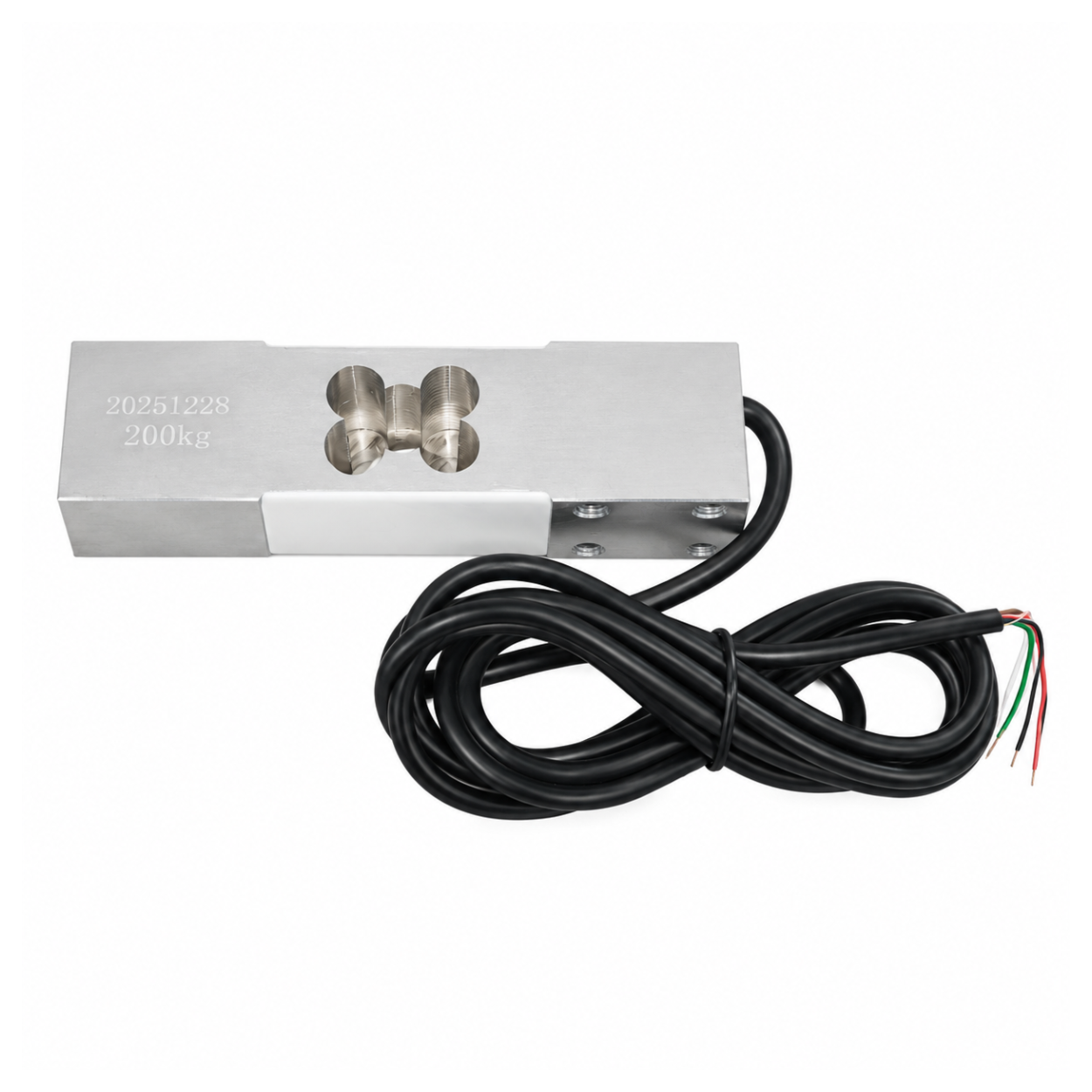

This straight bar load cell (sometimes called a strain gauge) can translate up to 200kg of pressure (force) into an electrical signal. Each load cell is able to measure the electrical resistance that changes in response to and is proportional to, the strain (e.g. pressure or force) applied to the bar. With this gauge, you will be able to tell just how heavy an object is, if an object’s weight changes over time, or if you simply need to sense the presence of an object by measuring strain or load applied to a surface.
Each straight bar load cell is made from an aluminum alloy and is capable of reading a capacity of 200kg. These load cells have four strain gauges that are hooked up in a Wheatstone bridge formation. The color code on the wiring is as follows: red = E+, green = O+, black = E-, and white = O-. Additionally, these load cells offer an IP65 protection rating and feature through holes for mounting purposes.
Use this sensor using our HX711 Breakout Board to amplify its signal and connect it directly to an Arduino/Raspberry pi or any other general-purpose microcontroller.
Applications :
Specifications :
* Product Images are shown for illustrative purposes only and may differ from the actual product.


| Technical Details |
|
|---|
