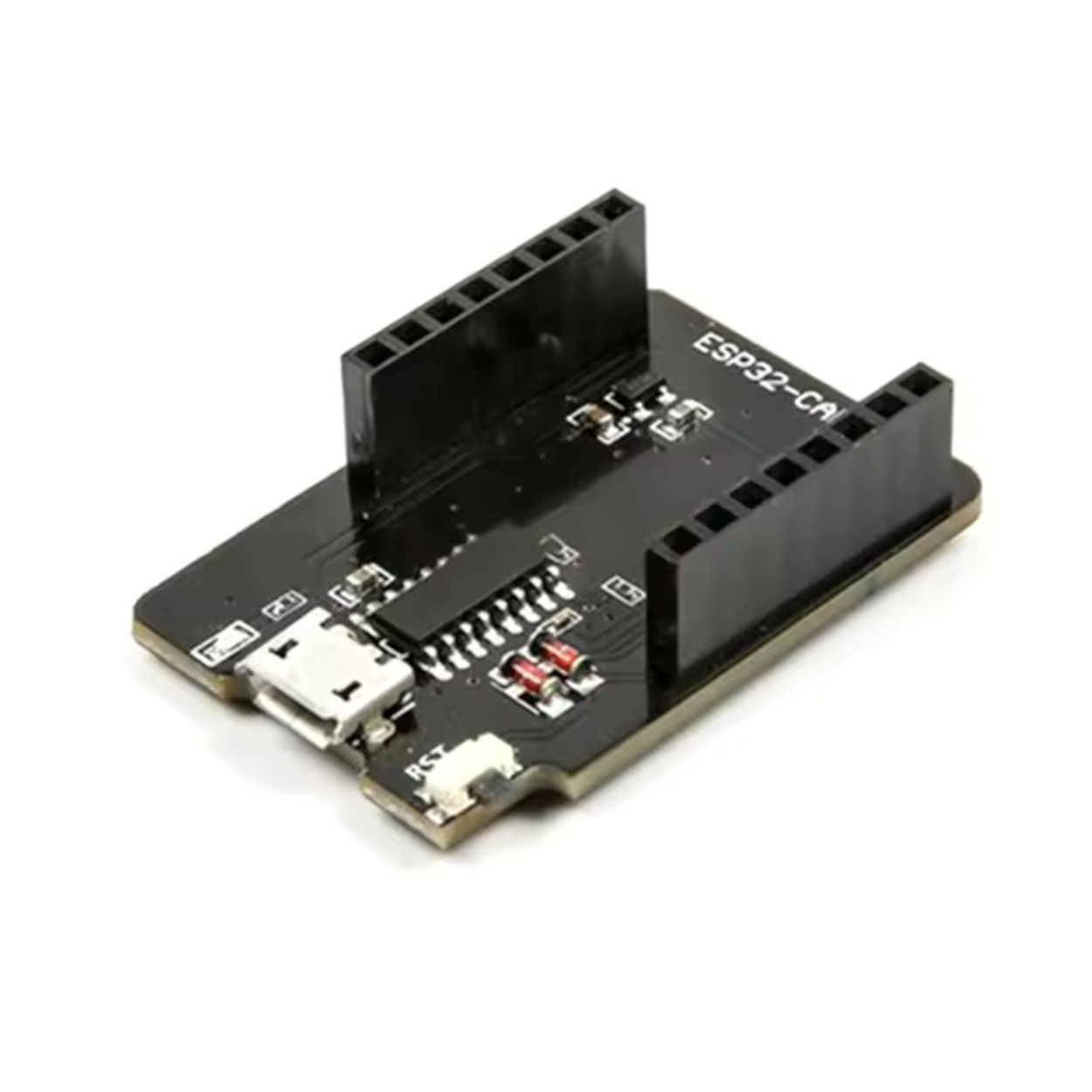

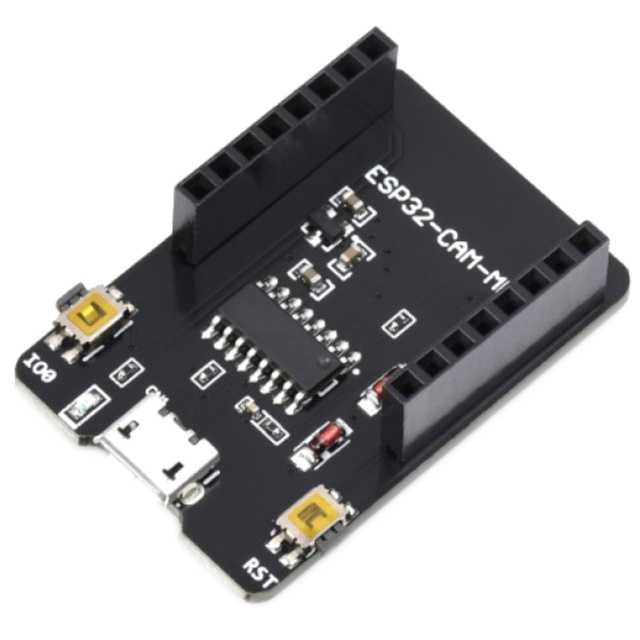

ESP32 S-CAM-MB Micro USB Programmer Shield (Type A) - CH340 Serial Downloader

Specifications

• Compatibility: Designed specifically for ESP32 S-CAM (AI-Thinker Model).
• Interface: Micro USB (Power & Data).
• Driver Chip: CH340G USB-to-Serial Converter.
• Input Voltage: 5V via USB.
• Onboard Logic: Auto-download circuit (manages GPIO0 and RST).
• Buttons: 1 x Reset Button (Note: This specific revision relies on auto-boot logic and does not include a physical Boot/IO0 button).
• Dimensions: 40mm x 27mm.
• Mounting: Female headers pre-soldered to accept ESP32-CAM.
• Current Handling: Capable of supplying sufficient current for WiFi + Camera bursts.

Applications

• Rapid Prototyping: Flash code to your camera module in seconds, not minutes.
• Web Server Cam: Quickly iterate on video streaming web server sketches.
• Time-Lapse Photography: Power the unit easily via a USB power bank for portable projects.
• Face Recognition Systems: Debug serial output easily via the USB port during complex processing tasks.
• Home Automation Nodes: Use it as a permanent power/programming base for Home Assistant nodes.

Project Evolution

• Prerequisites: You likely started with a bare ESP32-CAM and a generic FTDI Module, struggling with "Failed to connect" errors and messy breadboard wiring.
• Feature Upgrade: This shield acts as a Probots™ Tech-Bridge, converting the raw module into a USB-native device. It unlocks "One-Click Uploading" from the Arduino IDE, freeing you to focus on code rather than troubleshooting loose wires.
• Effort Level: Beginner Friendly. No soldering required—just plug the camera module into the shield.

Virtual Technician: Wiring & Safety

• Installation: Align the antenna connector of your ESP32-CAM with the same end as the USB port on the shield. The pins are keyed, but forcing them backwards can damage the regulator.
• Driver Setup: You will need to install the CH340G Drivers on your computer.
• Auto-Boot Note: This board is designed with an auto-program circuit. When you click "Upload" in Arduino IDE, the circuit uses the DTR/RTS lines to pull IO0 low and reset the board automatically. No physical Boot button is needed.
• Power Warning: Ensure your USB cable is a high-quality data cable. Thin charging-only cables will not work for programming and may cause brownouts during WiFi usage.


Package Includes:

• 1 x ESP32-CAM-MB Micro USB Programmer Shield (Type A) - CH340 Serial Downloader

Frequently Asked Questions (FAQ)

• Does this shield work with the standard AI-Thinker ESP32 S-CAM?
  Yes, it is specifically designed for the AI-Thinker ESP32-CAM footprint.
• Do I need to press a button to upload code?
  No, this "Type A" shield features an auto-download circuit that handles the boot mode automatically.
• Why is my computer not recognizing the device?
  Check that you are using a Data USB cable, not a Charge-only cable. Also, ensure CH340 drivers are installed.
• Does this board include the camera module?
  No, this is the programmer shield only. The ESP32 S-CAM module is sold separately.
• Can I power the ESP32 S-CAM through this shield?
  Yes, the Micro USB port provides stable 5V power to the attached module.
• Does it support the Arduino IDE Serial Monitor?
  Yes, it acts as a full USB-to-Serial bridge, allowing you to view debug logs at any baud rate.
• Is this compatible with MacOS?
  Yes, provided you install the correct CH340 drivers for your macOS version.
• Why does this board not have a BOOT button?
  This revision uses transistor logic to trigger the boot mode via software signals, making a physical button redundant for uploading.
• Can I use this shield to power the camera for long-term projects?
  Absolutely. It is a reliable power supply interface, much safer than loose jumper wires.
• What is the baud rate for uploading?
  We recommend using 115200 or 921600. High speeds work reliably due to the short PCB traces.
• Does it block any pins on the ESP32-CAM?
  It utilizes the bottom headers. While it doesn't break out all pins to new headers, you can still access top-side pads if necessary.
• Will this work with ESP-Home?
  Yes, it makes flashing ESP-Home firmware to the camera module significantly easier.
• Is there a reset button on the board?
  Yes, a physical Reset (RST) button is included to restart your code manually.
• Does it support 3.3V logic?
  The USB supplies 5V, which is regulated by the ESP32-CAM module itself. Data lines are 3.3V compatible.
• Can I use this with other ESP32 boards?
  Only if they match the exact pinout of the ESP32-CAM (27mm width, specific GND/VCC placement).
• Why do I get "Brownout Detector was triggered"?
  This usually indicates your USB port or cable cannot supply enough current. Try a different USB port or shorter cable.
• Does the shield overheat?
  The shield itself does not, but the ESP32 S-CAM module can get warm. The shield allows for decent airflow.
• Is soldering required?
  No, it is a plug-and-play socket solution.
• What USB connector type does it use?
  It uses a standard Micro-USB connector.
• Can I use this to program an ESP32-CAM-S?
  If the ESP32-CAM-S shares the same footprint as the AI-Thinker model, yes.
