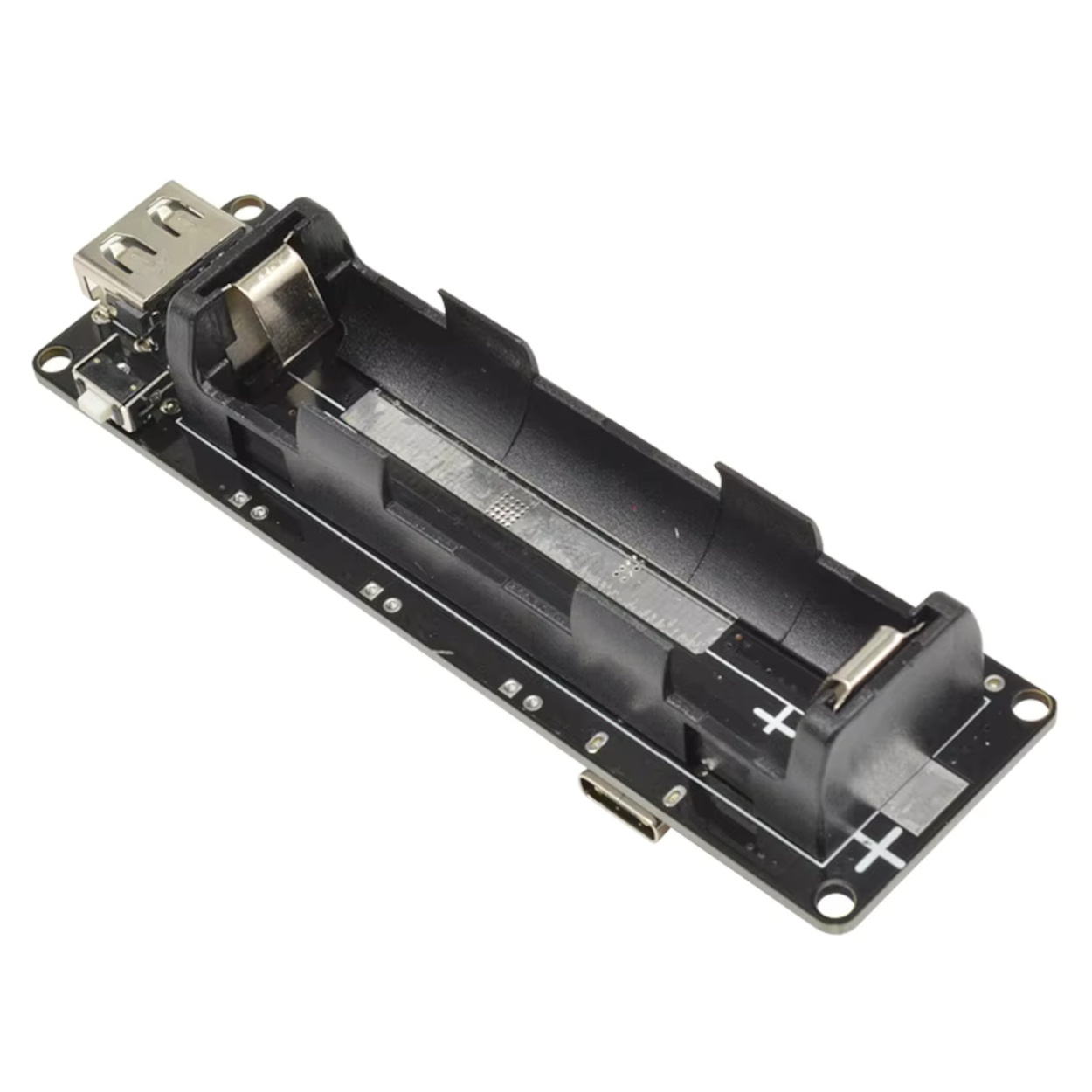

18650 Lithium Battery Holder Shield Module Micro USB Type-C

Rating:
92%
Holders & Bags
β‚Ή299.00 β‚Ή 253.39 + 45.61 GST
In stock
SKU
PRO2444

1-3 Days Express Shipping in India Available

Deliver to
Contact us for Higher Quantities
Pickup today at Nagarbhavi

This 18650 Battery Holder is a Shield that comes with a built-in battery charging module as well as an I2C battery monitoring system for the Raspberry Pi or other DIY kits.

This 18650 Lithium Battery Shield is a versatile power solution designed to enhance the functionality of your DIY projects. This battery shield is not just a power source; it's a smart power management system that ensures your devices are always charged and ready for action with a built-in battery charging module as well as an I2C battery monitoring system for the Raspberry Pi. If you want to convert your project into a portable solution then this is a solution for you this board comes with a 18650 Li-ion Battery holder and a charging module for the battery this board can supply a maximum of up to 2A current to the Raspberry Pi via its output terminals which is more than enough for the normal operation of the raspberry pi. With its Micro USB port & Type-C input ports and Type-A USB  output, you can easily connect and power your devices, whether it's a robot kit for Raspberry Pi or other DIY kits.
The shield's robust design is engineered to deliver reliable power to your devices with output of three 3V output ports and three 5V output ports, you have the flexibility to power multiple devices simultaneously. It features a 0.5A current charging capability, ensuring that your 18650 battery or any other compatible battery is charged efficiently and the LED indicators provide real-time status updates, letting you know when your battery is fully charged or still in the process of charging. The shield's compact size makes it an ideal addition to any project without taking up too much space. Despite this, the shield's compatibility with a wide range of devices makes it a valuable addition to any DIY enthusiast's toolkit.

Important Note Regarding the Onboard Slide Switch (Low-Load Operation)

Depending on the production batch, your module may feature a small slide switch near the USB output port. This switch acts as an Operating Mode Selector to control how the module handles low-current devices:

  • Continuous Output Mode (Always-ON): Sliding the switch toward the onboard SMD resistor (labeled '680') bypasses the internal sleep timer. Both the 5V and 3V outputs will remain continuously active indefinitely. This position is required if you are powering low-current devices (under 50 mA) such as sensors, or microcontrollers like an Arduino or ESP32 in deep-sleep mode.

  • Auto-Sleep Mode (Energy Saving): Sliding the switch to the opposite direction enables power-saving mode. If the connected load draws very little or no current (typically below 45 to 60 mA), the module will automatically shut off the 5V and 3V outputs after approximately 30 to 40 seconds to conserve battery life.

(Please note: The presence and exact placement of this toggle switch may vary slightly from batch to batch based on manufacturer stock).

Note:

  • Improper insertion of a battery can cause irreversible damage to the charging integrated circuit (IC). Double-check the polarity (+/-) and never force the battery. Incorrect insertion can lead to serious damage and safety hazards.

Features:

  • I2C Battery Monitoring
  • Micro USB, Type-A and Type-C ports
  • Built-in Li-ion Battery Charging
  • Three 3V output ports and Three 5V output ports
  • Can Supply up to 2A Output Current
  • Supports Charging Current of 0.5A
  • 1 Switch control USB output
  • LED indication for Battery Status(Green means full, Red means charging)
  • Built-in battery protection against overcharge and over-discharge

Package Includes:1 x 18650 Lithium Battery Holder Shield Module Micro USB Type-C

Specifications:

  • Product:18650 Lithium Battery Holder Shield
  • Battery protection: Overcharge & Over-discharge
  • Input Port: Micro USB/Type-C
  • Output Port: Type-A USB
  • Charging Current:0.5A
  • Input Voltage:5 -8V
  • Input Voltage and Current:
    • 3V & 1A
    • 5V & 2A
  • Dimensions(LxW): 98x29mm
