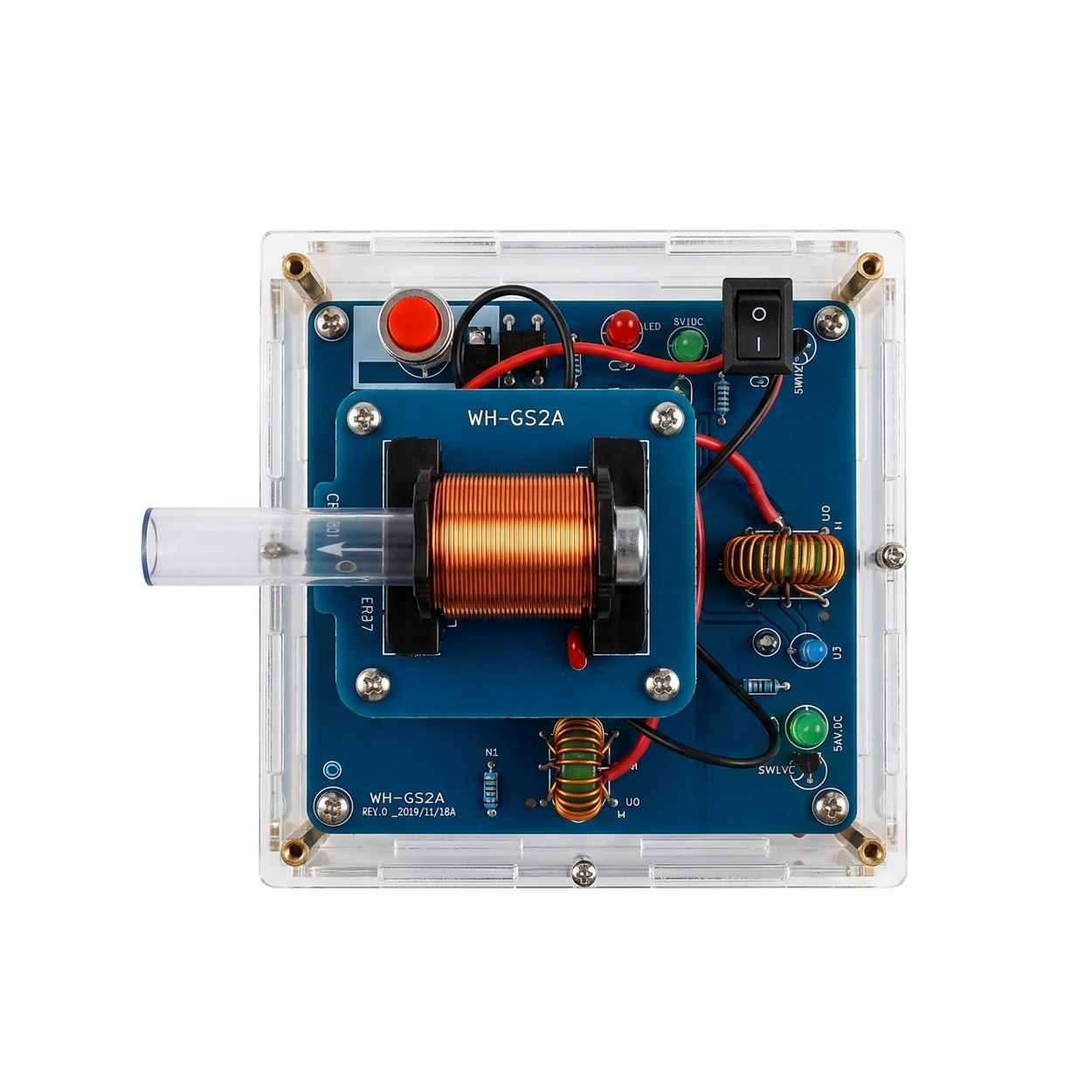

DIY High-Voltage Coilgun Kit (Includes Enclosure)

Specifications

• Operating Voltage (Input): 3V DC (via 2× AA Batteries)
• Operating Principle: Electromagnetic induction / Lorentz force
• Internal Output Voltage: ~400V DC (High-Voltage Boost Circuit) [Estimated]
• Energy Storage: High-capacity electrolytic capacitor
• Assembly Type: Through-hole soldering required (DIY Kit)
• Enclosure Material: Laser-cut transparent acrylic
• Ammunition: 5× cylindrical metal slugs (Included)
• Trigger Mechanism: Manual push-button discharge

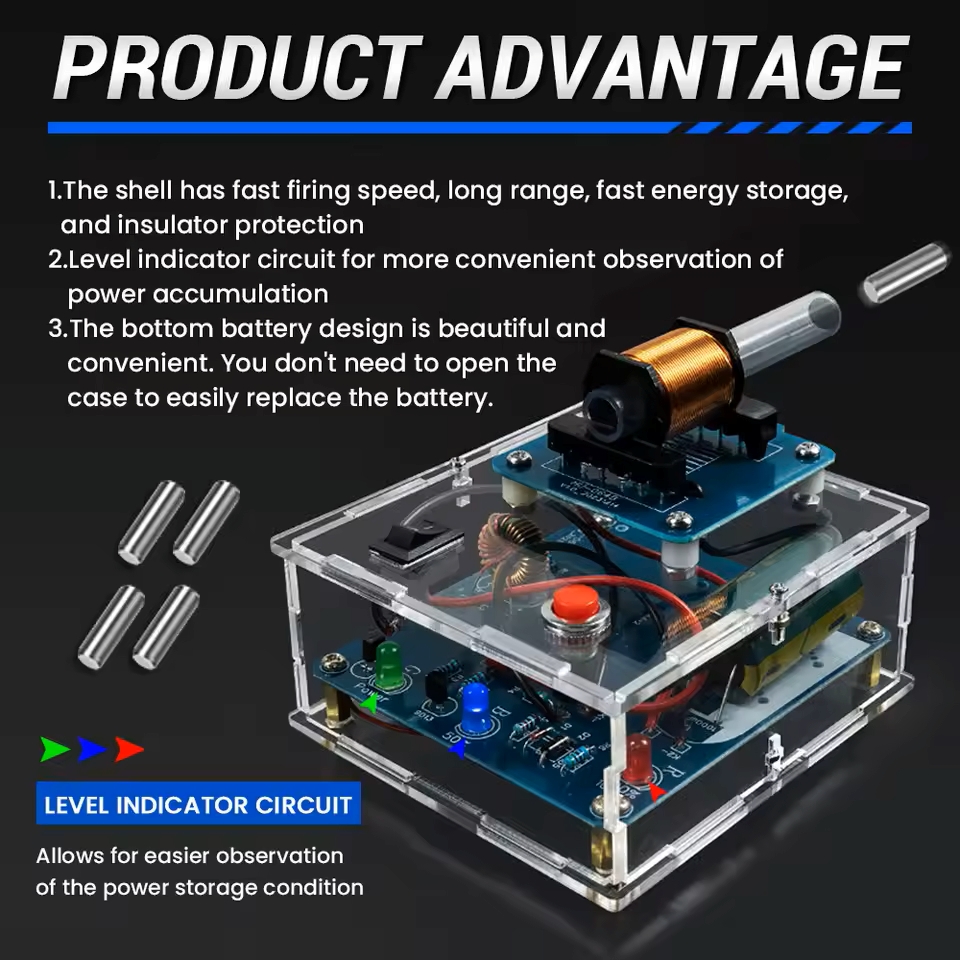

• Status Indication: Multi-color LED charge indicators

Minimum hardware

• 2× AA Batteries  to supply the 3V DC input required by the voltage step-up circuit. (Do not use 3.7V Li-ion cells as they may overload the initial stage).
• Soldering Iron & Solder  to permanently assemble the through-hole components (resistors, diodes, capacitor) onto the provided PCB.
• Flush Cutters  to neatly trim the component legs after soldering, preventing accidental high-voltage shorts on the bottom of the board.

Safety Warnings

• High Voltage Hazard: The large electrolytic capacitor stores charge at several hundred volts. Never touch the capacitor leads or the coil terminals while the circuit is powered or charged.
• Capacitor Polarity: The high-voltage capacitor is strictly polarized. Installing it backward will cause a catastrophic failure or explosion. Always align the negative stripe on the capacitor with the shaded region on the PCB footprint.
• Diode Orientation: Ensure the bands on the diodes match the PCB silkscreen; incorrect placement will prevent the boost circuit from charging the capacitor.
  Projectile Safety: Never aim the assembled coilgun at people, animals, or fragile objects.

Accessories Included in the Box

• 1× Custom PCB (Main Board)
• 1× High-Voltage Electrolytic Capacitor
• 1× Pre-wound Copper Electromagnetic Coil
• 1× 2-Slot AA Battery Holder with Leads
• 1× Set of Laser-cut Transparent Acrylic Enclosure Panels
• 5× Cylindrical Metal Projectiles
• 1× Component Pack (Resistors, Diodes, LEDs, Transistors)
• 1× Hardware Pack (Switches, Screws, Nuts, Brass Standoffs)
• Include Gide For Set Up

Frequently Asked Questions

• Is this coilgun kit compatible with Arduino or microcontroller triggers?
  Out of the box, this is an analog circuit triggered manually, but advanced users can replace the push-button with a high-voltage thyristor or relay controlled by a microcontroller.
• Can I use different projectiles with this kit?
  You can, but they must be strictly ferromagnetic (like iron or steel) and fit loosely inside the plastic coil tube to minimize friction during launch.
• Are the included acrylic enclosure pieces compatible with other DIY kits?
  No, the laser-cut acrylic enclosure is custom-designed specifically to mount this exact PCB, capacitor, and battery holder.
• Can I use a single 3.7V Li-ion cell instead of two AA batteries?
  It is heavily discouraged, as the higher initial voltage and massive discharge current of lithium cells can overheat and destroy the boost converter transistors.
• What voltage does this coilgun kit require to operate?
  The primary input requires exactly 3V DC, provided safely by the included 2× AA battery holder.

• How high does the internal capacitor voltage get?
  The step-up boost circuit charges the electrolytic capacitor to roughly 400V DC, which is why safe handling procedures are mandatory.

• How long does it take for the capacitor to fully charge?
  Depending on the freshness of your AA batteries, it typically takes between 15 to 30 seconds for the LED to indicate a full charge.
• Does orientation matter when soldering the pre-wound coil?
  No, the coil has no specific polarity for the two wire ends, but you must scrape off the protective enamel coating before soldering to ensure an electrical connection.

• How do I know which way to install the high-voltage capacitor?
  The capacitor has a prominent stripe with minus (-) symbols down one side, which must align with the shaded or marked negative footprint on the PCB silkscreen.

• Do the included diodes have a specific polarity for the boost circuit?
  Yes, you must match the silver or black band on the physical diode body with the corresponding line marked on the PCB diode symbol.
• Why is the LED indicator not lighting up when I insert the batteries?
  This usually means the batteries are dead, inserted backwards, or one of the primary power transistors was soldered in the reverse orientation.

• Why does the capacitor fail to charge to a high voltage?
  The most common cause is a reversed diode in the boost circuit or a cold solder joint preventing current flow into the capacitor bank.

• Why does the projectile not shoot very far when the trigger is pressed?
  Ensure the projectile is positioned slightly behind the exact center of the coil before firing, otherwise the magnetic field will pull it backwards instead of forwards.

• What should I do if my trigger button gets stuck or sparks?
  High voltage can occasionally cause the mechanical switch contacts to fuse; disconnect the batteries immediately and replace the tactile switch if it fails to spring back.
