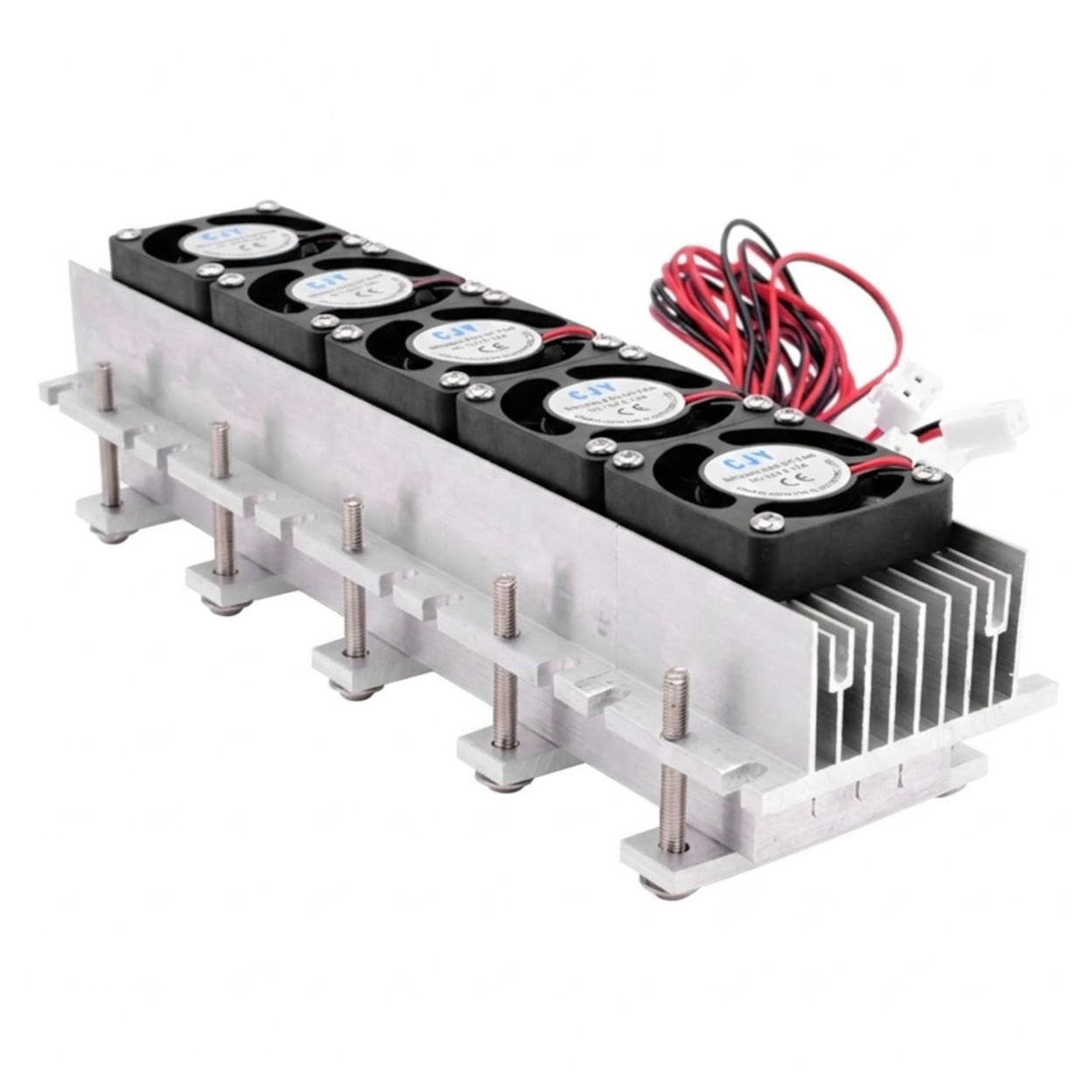

Powerful 300W DIY refrigeration kit featuring five TEC1-12706 Peltiers, a hot-side water block, and a high-efficiency 5-fan heatsink for active cold-side air cooling.
High-capacity hybrid cooling for demanding industrial and DIY projects. The 300W Thermoelectric Peltier Cooler Kit is engineered for makers who require maximum refrigeration efficiency by combining liquid and air cooling technologies. This robust system is built around five high-performance TEC1-12706 Peltier modules sandwiched between a dedicated water block and an expansive aluminum heatsink.
Advanced Hybrid Thermal Management This kit utilizes a dual-exchange design to maximize the temperature differential. The hot side utilizes a high-conductivity water block, which, when connected to a pump and external radiator, provides superior heat extraction compared to air cooling alone. The cold side features a massive industrial aluminum heatsink equipped with five high-speed brushless DC fans, ensuring the cold air is distributed effectively across your target enclosure.
Note:
Cooling Type: Hybrid Thermoelectric (Liquid hot-side / Air cold-side)
Operating Voltage: 12V DC
Total Rated Power: 300W
Peltier Modules: 5 x TEC1-12706
Fans: 5 x 12V High-Speed Brushless DC Fans
Construction: High-grade industrial aluminium heatsink and liquid water block
Wiring: Pre-wired Red (+) and Black (-) leads for simplified parallel connection
Custom Mini-Refrigeration: Building large-scale desktop coolers or portable pharmaceutical containers requiring liquid heat dissipation.
High-Power Electronic Cooling: Managing thermal loads for multi-core CPUs, high-wattage laser arrays, or industrial LED systems.
Aquarium/Terrarium Regulation: Using the liquid block to cool water systems while the fans manage ambient air in large enclosures.
Unlock New Capabilities (Project Evolution)
Precision Control Upgrade: Pair this hybrid kit with a digital thermostat controller to maintain an exact target temperature for sensitive chemical or biological samples.
Efficiency Upgrade: Combine the water block with an automotive-grade radiator to significantly increase the heat-carrying capacity of the hot side, resulting in lower cold-side temperatures.
Package Includes:
1 x 5-Fan Heatsink Air Cooling Assembly
5 x TEC1-12706 Peltier Modules (Pre-installed)
1 x Industrial Grade Liquid Water Block (Hot Side Integrated)
5 x High-Performance 12V DC Fans (Pre-mounted)
Full Structural Mounting Hardware (Screws, Spacers, and Clamps)
???? What Else Do You Need to Make This Work? (Not Included):
Water Circulation: [12V DC Water Pump] + Silicone Tubing
Heat Exhaust: [120mm / 240mm PC Radiator] with cooling fans
Power: Heavy-duty [12V 30A / 40A SMPS Power Supply]

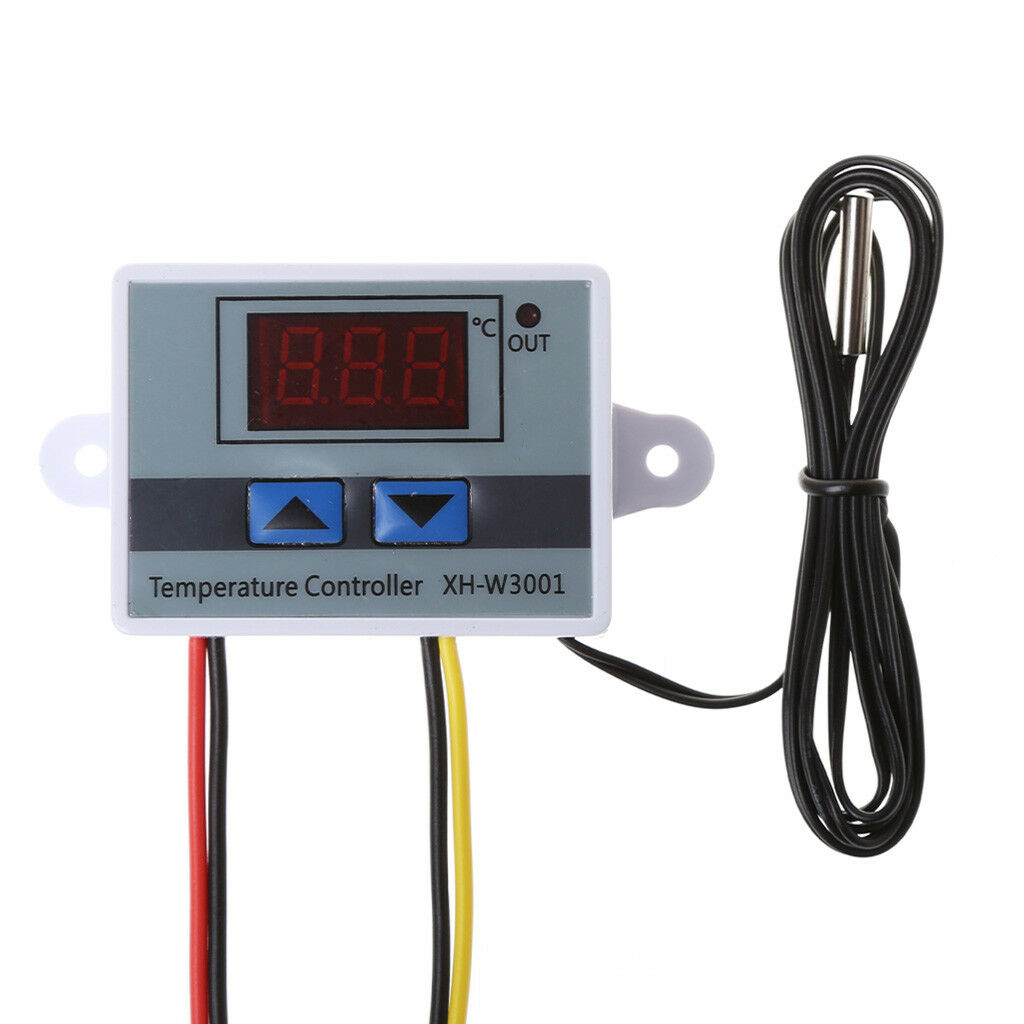

Control: Temperature Controller to manage the freezing point.
What power supply do I need for this 300W kit? You require a heavy-duty 12V DC power supply rated for at least 30A to 40A to handle the current draw of five Peltiers and fans.
Does the water block require a pump? Yes, to cool the hot side effectively, you must connect the water block to a water pump and a radiator system.
Why is liquid cooling used on the hot side? Liquid is more efficient at removing high heat loads than air, allowing the Peltier modules to reach lower temperatures on the cold side.
Can I run the fans and Peltiers on separate power sources? Yes, the fans and modules can be wired separately if you wish to control fan speeds independently.
Is thermal paste included? Yes, Its applied and assembled.
How cold can the air-cooling side get? Depending on your radiator efficiency and ambient temperature, the air-side heatsink can drop well below freezing.
What happens if I don't use water on the hot side? Without water flow, the hot side will rapidly overheat and potentially burn out the Peltier modules.
Is this kit pre-assembled? The fans and heatsink are typically pre-mounted; however, plumbing for the water block is required.
Can I use this for a 24V system? No, the TEC1-12706 modules and fans in this kit are specifically designed for 12V DC operation.
What is the purpose of the 5 fans? They blow air across the cold-side heatsink to distribute refrigerated air throughout your project box.
How loud are the fans? They sound similar to a high-end desktop PC; about 30-40dB total when all five are running.
Will condensation form on the heatsink? Yes, if the temperature drops below the dew point, ice or water will form; use insulation to manage runoff.
What is the total current draw? Approximately 25A to 30A at peak performance.
Is it waterproof? The water block is sealed for liquid, but the fans and electrical connections are not waterproof.
Can I use this to cool a CPU? While possible, it is more commonly used for cooling entire small chambers or enclosures.
How thick is the aluminum heatsink? It is a high-mass industrial extrusion designed for high thermal inertia.
Can I use this for a DIY beer dispenser? Yes, this hybrid kit is powerful enough to maintain serving temperatures for small beverage containers.
What gauge wire should I use for power? Due to the high current (30A+), use at least 10AWG or 12AWG wire for the main power trunk.
Can the fans be PWM controlled? Standard kits include 2-wire DC fans; you would need a DC speed controller to vary the airflow.
Is this suitable for beginners? It requires some plumbing and high-power electrical knowledge, so it is best for intermediate to advanced makers.
| Operating Voltage: | 12 V |
|---|---|
| Max Current: | 30 A |
| Cooling Medium: | Air |
| Heat Extraction: | Liquid (Water Block) |
| Peltier Module Type: | Thermoelectric Cooler (TEC) |
| Voltage | NA |
