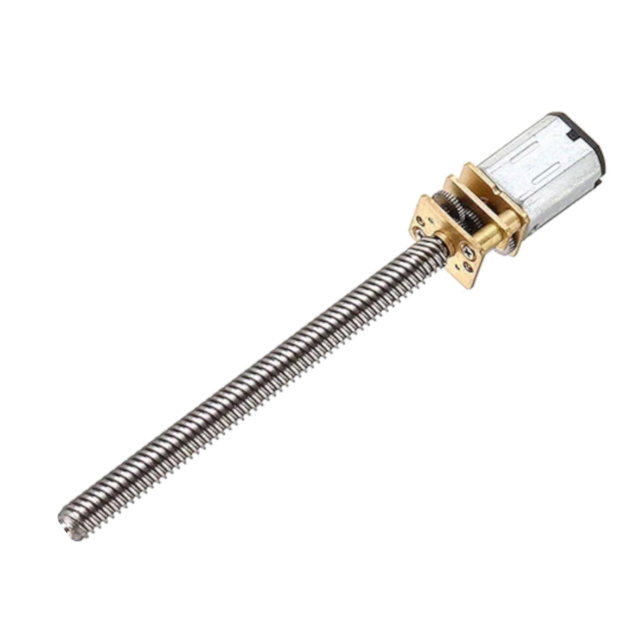

Read Article →This is Micro DC Geared motor with Screw Lead Shaft. You can add a screw nut to the shaft and generate linear motion. Great for building slides, linear motions, mechanical presses, etc
This linear motor is useful for generating linear motion. It comes with an M4 100mm long lead screw. You can add a nut to the lead screw and use it to generate linear motion. The nut will move linearly as the dc motor rotates. The DC Motor is geared and rotates at 300 RPM.
The Motor works on 6V. The complete mechanism is plug-and-play and the overall size is small. This motor is great for generating linear motion in tight spaces.
Just connect this DC Motor through a Hbridge to your Arduino, Raspberry Pi, or any other controller. And you can start generating linear movement. Suitable for building linear guides, linear movement, robot arms and gripers, locks, mechanical actuators, end grippers, etc.
Features:
Specifications:
Typical Application:
Robotics, Electric door lock, Medical equipment, Electric valve, Camera
Package included:
1 x 300RPM 6V Linear Actuator N20 Micro Metal Gear Motor DC Motor with M4 Screw 100mm Lead Shaft
| Technical Details | Probots Linear Actuator N20 M4 100mm Lead Screw Dimensions
|
|---|---|
| DC Motor Series | N20 Micro |
| Max Operating Voltage | 3V - 6V |
| Gearbox Type | Linear Lead Screw |
| Speed (RPM) Range | Medium Speed (100 - 500 RPM) |
| Shaft Type | Threaded M4 |
