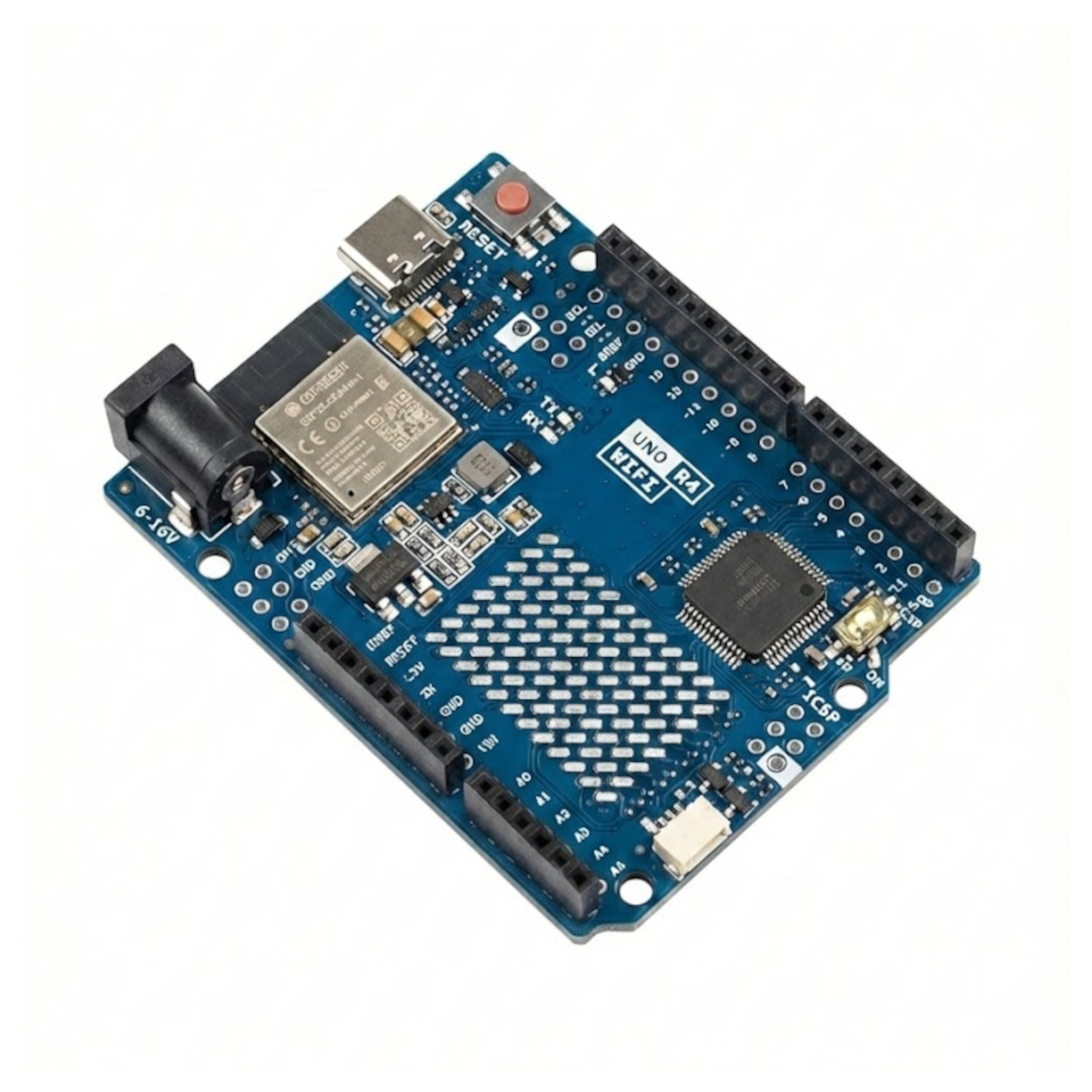

UNO R4 WiFi Development Board

Specifications

• Main Processor: Renesas RA4M1 (Arm Cortex®-M4) @ 48 MHz
• Connectivity Module: ESP32-S3-MINI-1 (WiFi 802.11 b/g/n + Bluetooth® LE)
• Operating Voltage: 5V (GPIO) / 3.3V (ESP32 Internal)
• Input Voltage (VIN): 6-24V (Greatly improved over the R3's 7-12V limit)
• Memory: 256 kB Flash, 32 kB SRAM
• On-Board Display: 12x8 Red LED Matrix (96 individual LEDs)

      Expansion Ports:

• Qwiic (I2C): Plug-and-play connection for sensors (no soldering).
• USB-C: Modern programming and power port.

• Special Features: Built-in RTC (Real Time Clock), DAC (12-bit), HID Support (emulate keyboard/mouse).
• Dimensions: Standard UNO Form Factor.

Applications

• IoT Dashboards: Stream sensor data directly to the Arduino Cloud or Blynk without external WiFi shields.
• Visual Projects: Use the 12x8 LED matrix to display scrolling text, battery levels, or game animations.
• Human Interface Devices (HID): Build custom macro keyboards or game controllers that plug into USB.
• Education & STEM: Perfect for classrooms moving from basic blinking LEDs to connected smart home projects.

Project Evolution

• The Prerequisites (Where you started) You likely started with a standard Arduino UNO R3, learning to blink LEDs and read basic analog sensors. You hit a wall when you wanted to connect to the internet or run complex animations that slowed down the 8-bit chip.
• The Upgrade (What this board unlocks) The UNO R4 WiFi unlocks Native IoT & Parallel Processing.

• The Shift: You can now run your main code on the Renesas chip while the ESP32 handles heavy network traffic in the background.
• The Gain: Display live stock prices or weather data on the LED matrix while simultaneously controlling motors—something the old UNO would crash trying to do.

      Effort & Requirements

• Effort Level: Intermediate (If you know Arduino, you know this).
• Minimum Hardware: Just the Board + USB-C Cable. (No external programmer needed).

Virtual Technician & Wiring Guide

• Power Warning: The DC Barrel Jack and VIN pin can now handle up to 24V, making it compatible with 12V or 24V industrial sensors and motors directly. However, the USB-C port is strictly 5V.
• Shield Compatibility: Most UNO R3 shields work perfectly. Note: If your shield uses the IOREF pin, it will correctly detect 5V.
• Matrix Usage: You do not need to wire the LED matrix; it is pre-wired internally. Use the Arduino_LED_Matrix library to control it.

Package includes:

• 1 x Arduino UNO R4 WiFi Development Board

Frequently Asked Questions (FAQ)

• Will my old UNO R3 shields work on the R4 WiFi?
  Yes, the R4 WiFi maintains the standard UNO form factor and 5V GPIO logic, ensuring backward compatibility with the vast majority of existing shields.
• Does the UNO R4 WiFi use a USB-B (Printer) cable like the R3?
  No, the port has been upgraded to USB-C. You will need a standard USB-C data cable for programming and power.
• What is the maximum voltage I can supply to the DC jack?
  The R4 WiFi features an improved power circuit that handles 6-24V, making it much safer for 12V and 24V industrial applications than the R3.
• Are the GPIO pins 3.3V or 5V logic?
  The main microcontroller (Renesas RA4M1) operates at 5V logic, so you do not need logic level shifters for standard 5V sensors.
• Does the board support 5GHz WiFi networks?
  No, the integrated ESP32-S3 module supports 2.4GHz WiFi (802.11 b/g/n) only, which provides better range for IoT devices.
• Do I need to install specific drivers for this board?
  Yes, you must install the "Arduino UNO R4 Boards" package via the Board Manager in the Arduino IDE to recognize the Renesas architecture.
• Can I program the ESP32-S3 module directly?
  Yes, the board supports a "bridge mode" that allows advanced users to reprogram the ESP32-S3 separately, though it comes pre-loaded with firmware to act as a radio for the main chip.
• How do I control the built-in 12x8 LED matrix?
  You can use the official Arduino_LED_Matrix library, which includes tools to create frames and animations easily.
• Is the code from my UNO R3 100% compatible?
  Most standard Arduino sketches work without changes. However, code using direct AVR register manipulation (assembly/timer interrupts) will need updates for the Renesas architecture.
• Does the UNO R4 WiFi support Bluetooth?
  Yes, the ESP32-S3 module provides Bluetooth® Low Energy (BLE) and Bluetooth 5 connectivity.
• Can this board act as a Keyboard or Mouse?
  Yes, the R4 supports native HID (Human Interface Device) over USB, allowing it to emulate keyboards, mice, and game controllers.
• Does it have a Real Time Clock (RTC)?
  Yes, the Renesas chip has a built-in RTC. To keep time when power is disconnected, you must connect a battery to the VRTC pin.
• What is the Qwiic connector used for?
  The Qwiic / Stemma QT connector allows you to plug in I2C sensors and OLED screens directly without soldering or using a breadboard.
• How much memory does the R4 have compared to the R3?
  The R4 is a massive upgrade with 256 kB Flash (vs 32 kB) and 32 kB SRAM (vs 2 kB), allowing for much larger and more complex programs.
• Does it have a true Analog Output (DAC)?
  Yes, unlike the simulated PWM of the R3, the R4 has a true 12-bit DAC on pin A0 for smooth analog signal generation.
• Can I use MicroPython on this board?
  While primarily designed for C++/Arduino IDE, the Renesas architecture has growing support for MicroPython and OpenMV.
• What happens if I accidentally short the pins?
  The R4 has a sophisticated power management circuit with overcurrent protection on the USB bus to reduce the risk of damage, but GPIO shorts can still harm the chip.
• Does the board have an external WiFi antenna connector?
  No, it uses a built-in PCB antenna on the ESP32 module, which is sufficient for most indoor applications.
• Why is there a heart icon on the back of the board?
  The "Love" pin is a fun easter egg on the R4 boards; technically, it connects to an unpopulated pad, but it symbolizes the open-source community spirit.
