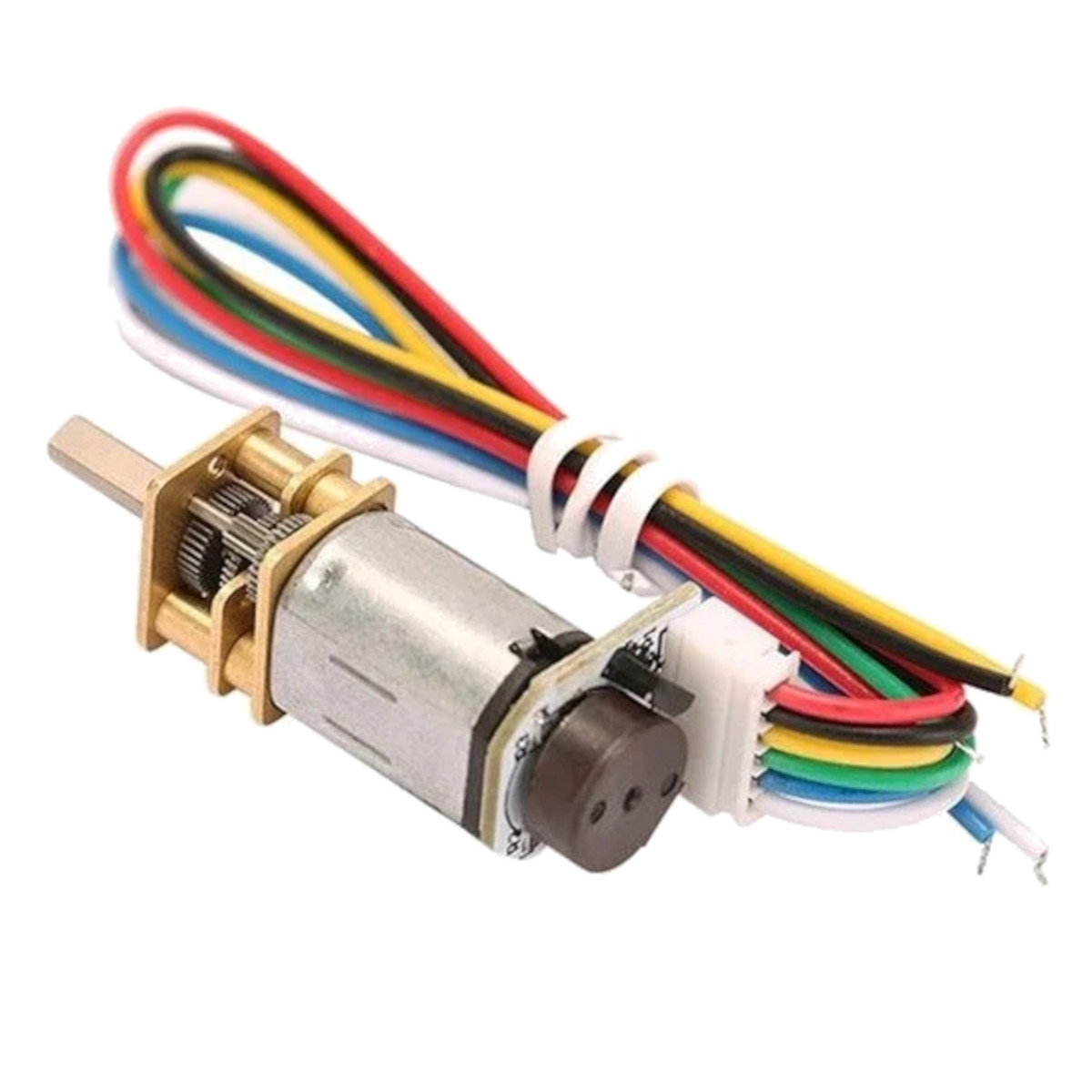

GA12-N20 6V 60RPM Micro DC Reducer Motor Encoder with Wire

This N20 6v 60 RPM Metal Gear Micro DC Encoder Motor with Precious Metal Brush is a lightweight high torque motor suitable for a variety of industrial, home appliances, and hobby applications as well. This motor is equipped with an all-metal gearbox assembly which provides amazing torque for this size of motor. Also, the brushes used in the motor provided by Robokits are precious metal brushes and not carbon brushes. This ensures a higher working life of the motor compared with the motor with carbon brushes.

As compared to other motors of this size either with metal or plastic gears, the N20 all-metal geared motor has a much higher torque-to-size ratio. The BO motor series 1 and series 2 and the center shaft 12 V motors available in the market are widely used for small industrial applications or robotic projects. However, when comparing the torque, sturdiness, reliability, and working life, the N20 motor beats all the other motors by a huge margin. The specifications mentioned below are a testament to the same.

The N20 motor is ideal for small IOT ( Industrial IoT) products like an electric lock, webcam pan tilt, and other similar actuator products which need good torque in limited space and in less weight. For the hobby segment products like robotic cars, micro mouse, electric boats,s and all small motor-related projects, where power consumption is a concern along with optimal pricing, the N20 all-metal gear motor is a perfect fit.

This N20 encoder motor can help to accurately control the position of the motor.

Motor Specifications:

• Model: GA12-N20-60
• Rated Voltage: 6V
• Revolving Speed: 60 RPM
• Rated Torque: 0.65 kg. cm
• Stall Torque: 2.6 kg. cm
• Rated Current: 0.04A
• Stall Current: 0.67A
• Total Length(LxWxH) : 41x12x10mm
• Gear Material: Full Metal
• Shaft Size : 3 x 9mm(D*L)
• Shaft Type : D Type
• Net Weight: ~10g

Encoder Specifications:

• Encoder Type: Quad
• PPR:7
• CPR:7x 4=28
• CPR at output shaft:7000

Encoder Pinout details:

• M2 (Red) – MOTOR TERMINAL(Motor +)
• M1 (White) – MOTOR TERMINAL (Motor -)
• C2 (Yellow) – ENCODER OUTPUT (A)
• C1 (Green) – ENCODER OUTPUT (A)
• VCC (Black) – SUPPLY OF ENCODER Vcc(5 V)
• GND (Blue) – Gnd

M1 & M2 – are the motor power terminals the positive and negative supply to this terminal will decide the direction of the rotation of the motor
C1 & C2 – this terminal are the output A & B of Encoder
VCC – is a 5V supply of encoder.
GND – is the system ground.

 Package Includes:

1 x GA12-N20 6V 60RPM Micro DC Reducer Motor Encoder with Wire
