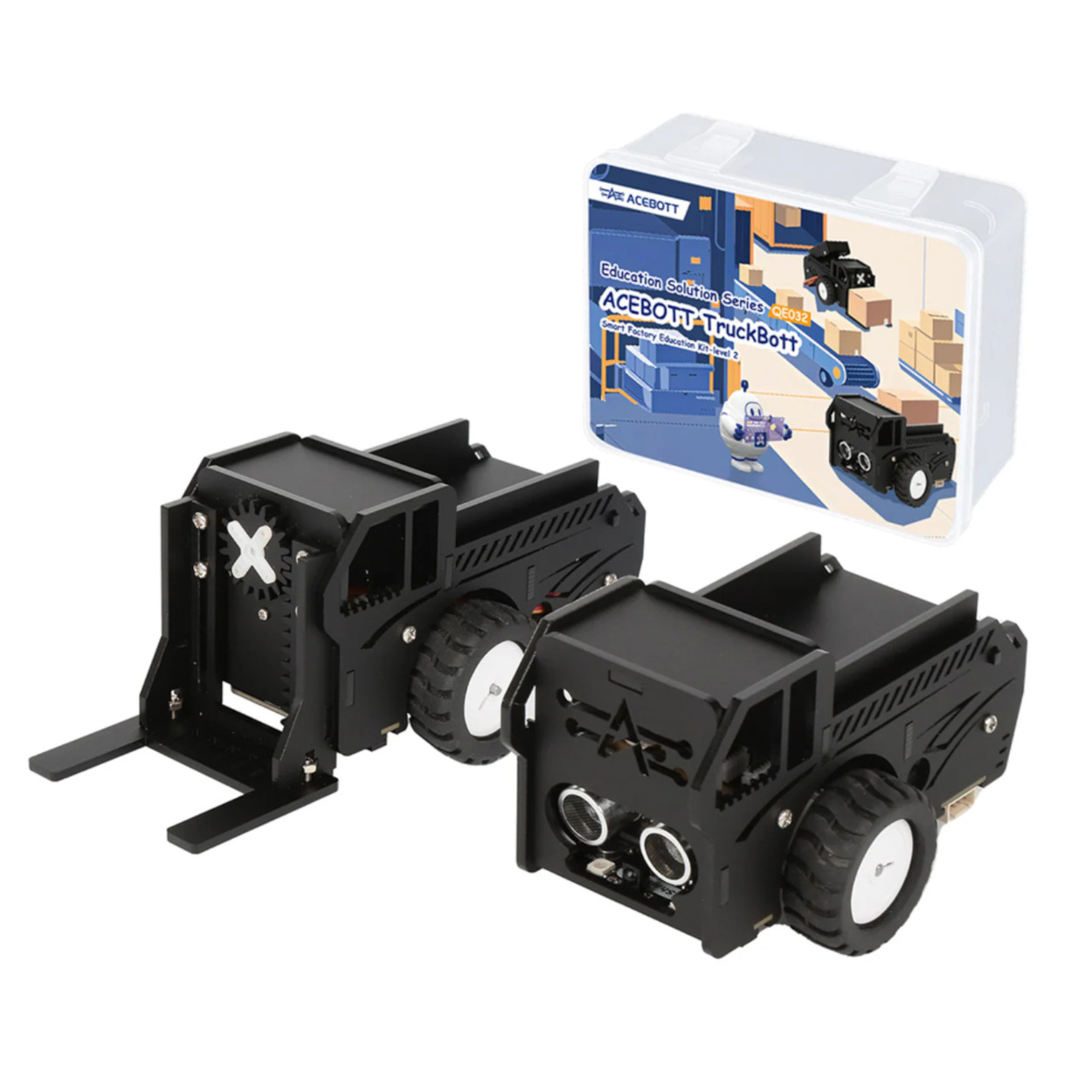

ACEBOTT TruckBott Smart Car Kit (ESP32-S3) – 2-in-1 Forklift & AGV Robot QE032

Specifications

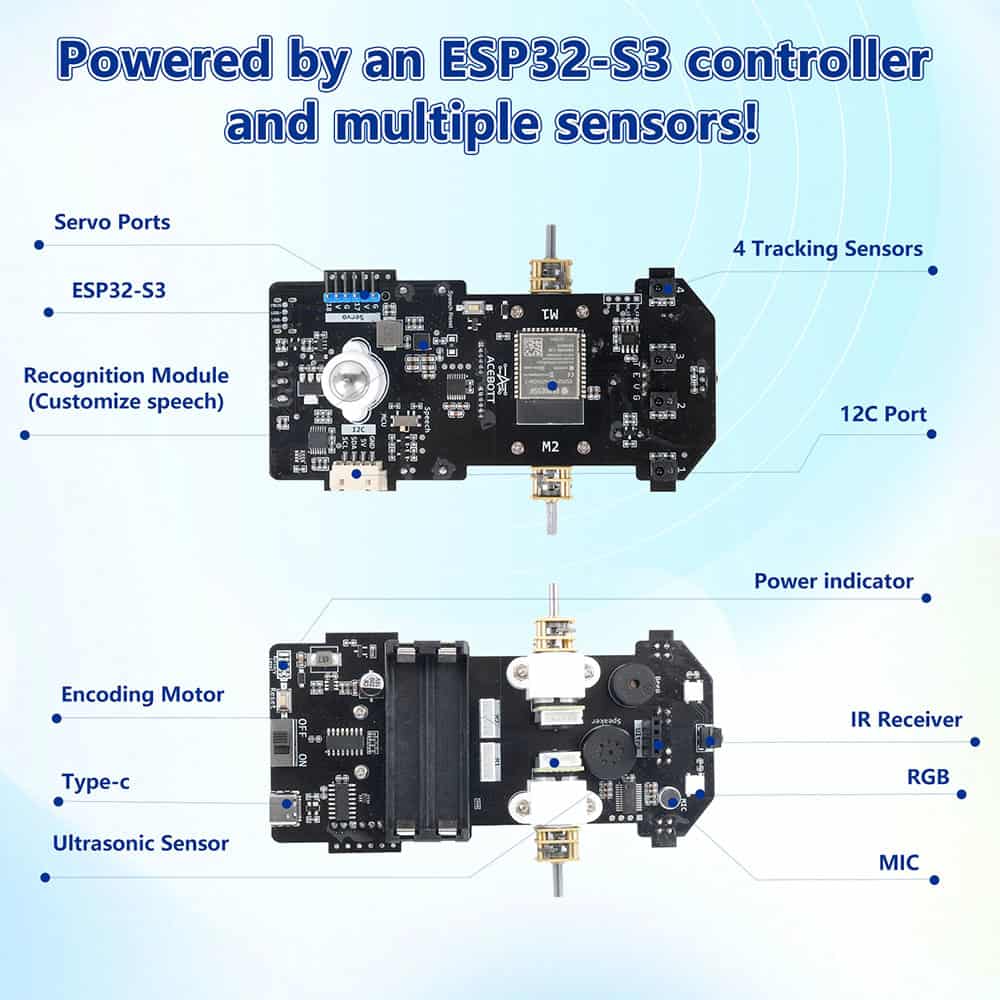

• Controller: ESP32-S3 WROOM (Dual-core, WiFi + BT 5.0).
• Input Voltage: 6V - 9V (Compatible with 2x 10440 Li-ion batteries).
• Motors: DC Gear Motors (Drive) + Servo Motors (Lift mechanism).
• Sensors: Ultrasonic Sensor, 3-Channel Line Tracking Module.
• Communication: WiFi, Bluetooth, IR Receiver.
• Material: PCB Chassis and Metal brackets for durability.
• Programming Port: USB-C (Modern standard).

Features

• Dual-Mode Architecture: Reconfigure the chassis between a Forklift (for lifting and stacking) and a Truck (for line-following transport).
• Brain Power (ESP32-S3): Unlike older Arduino Uno kits, the onboard ESP32-S3 offers native Wi-Fi and Bluetooth, enabling true IoT applications and app-based control.
• Smart Control: Drive it via the Bluetooth App, use the IR Remote, or implement Voice Control commands.
• Coding Ecosystem: Supports ACECode (Graphical/Block-based for beginners), Arduino IDE (C++), and MicroPython.
• Rich Sensor Suite: Includes Ultrasonic (obstacle avoidance), Line Tracking (path following), and ESP32-CAM support (camera often sold separately or upgradeable).

The Project Evolution

This product is designed to evolve with your skills.

• Prerequisites: If you have mastered a basic obstacle-avoiding car or blinked an LED on an Arduino, you are ready for this.
• The Upgrade: This kit unlocks Kinematics & IoT. You aren't just reading sensors; you are controlling a lifting arm mechanism while maintaining balance and communicating status over WiFi.
• Effort Level: Intermediate. Assembly requires patience (nuts and bolts). Coding can range from simple blocks to complex C++ algorithms.
• Next Steps: Once mastered, combine two TruckBotts to simulate a coordinated swarm warehouse!

Virtual Technician: Wiring & Safety

• Battery Alert: This kit typically requires 2x 10440 Li-ion batteries (Pointed top recommended). Note: Batteries are often NOT included in the box due to shipping regulations. Please check the "Cross Sell" section or your existing inventory.
• Polarity Check: The ESP32-S3 is 3.3V logic but the motors use higher voltage. Ensure you charge batteries fully. Low voltage can cause the WiFi to disconnect when motors engage.
• Assembly Tip: Do not overtighten the servo horn screws; the lifting mechanism needs to move smoothly.

Package Includes:

• 1x ACEBOTT QE032 TruckBott Smart Car Kit (ESP32-S3) – 2-in-1 Forklift & AGV Robot

Frequently Asked Questions (FAQ)

• Q1: Does the ACEBOTT QE032 kit include batteries?
  A1: Typically, no. You usually need to purchase two 10440  Li-ion batteries and a charger separately.
• Q2: Can I program this using the Arduino IDE?
  A2: Yes, the board is ESP32-S3 based. You must install the "ESP32 by Espressif" board manager in Arduino IDE to upload code.
• Q3: Is this kit suitable for a 10-year-old?
  A3: Yes, but with adult supervision. The mechanical assembly involves small screws, and the "ACECode" block programming is perfect for that age group.
• Q4: What is the maximum weight the forklift can lift?
  A4: The servo mechanism is designed for lightweight foam blocks or small boxes (approx. 50-100g). It is for simulation, not heavy industrial lifting.
• Q5: My TruckBott resets when I try to lift an object. Why?
  A5: This is a classic brownout. Your batteries are likely low or cannot supply enough current. Charge them fully or use high-drain batteries.
• Q6: Does it support Python programming?
  A6: Yes, the ESP32-S3 chip supports MicroPython and CircuitPython, making it a great tool for learning Python syntax.
• Q7: Can I control this robot with my iPhone?
  A7: Yes, ACEBOTT provides an app (iOS and Android) that connects via Bluetooth for remote control and voice commands.
• Q8: What is the difference between the Truck and Forklift modes?
  A8: The chassis is the same, but the front attachment changes. You install the servo arm for Forklift mode or a flat plate/sensor array for AGV mode.
• Q9: How long does the battery last on a full charge?
  A9: With 2200mAh 10440 batteries, you can expect 45-90 minutes of continuous runtime depending on motor usage.
• Q10: Does this kit come with a camera?
  A10: The QE032 standard kit typically does not include the camera module, but the board has an FPC connector to add an ESP32-CAM or compatible camera later.
• Q11: The wheels are spinning but the car isn't moving. What's wrong?
  A11: Check if the wheels are pressed firmly onto the motor shafts. Also, verify the floor surface isn't too slippery for the plastic tires.
• Q12: Can I add more sensors to this kit?
  A12: Yes, the ESP32-S3 board breaks out several GPIO pins (I2C, SPI, Analog) allowing you to add OLED screens, temperature sensors, or LEDs.
• Q13: Is soldering required to build this?
  A13: No, the kit is designed to be solder-free. Connections use JST plugs or screw terminals.
• Q14: How do I charge the batteries?
  A14: If the board has an onboard charging circuit, you plug in USB-C. However, for faster and safer charging, we recommend an external 10440 charger.
• Q15: Does it work with 5G WiFi?
  A15: No, the ESP32-S3 supports 2.4GHz WiFi only, which is standard for IoT devices.
• Q16: Can it follow a black line on a white background?
  A16: Yes, the 3-channel line tracking module is designed specifically for this logic. You may need to calibrate the potentiometers on the sensor.
