| QTY | Unit Price(Inlc. GST) | |
| 25+ | ₹440.02 ₹ 372.9 + 67.12 GST | |
| 50+ | ₹431.04 ₹ 365.29 + 65.75 GST | |
| 100+ | ₹413.08 ₹ 350.07 + 63.01 GST | |
These are industrial-grade high-quality switches in the metal body. Panel Mount offers easy installation in Enclosures and Cabinets. These switches offer a premium feel after installation. It also comes with an internal indication light to indicate status.

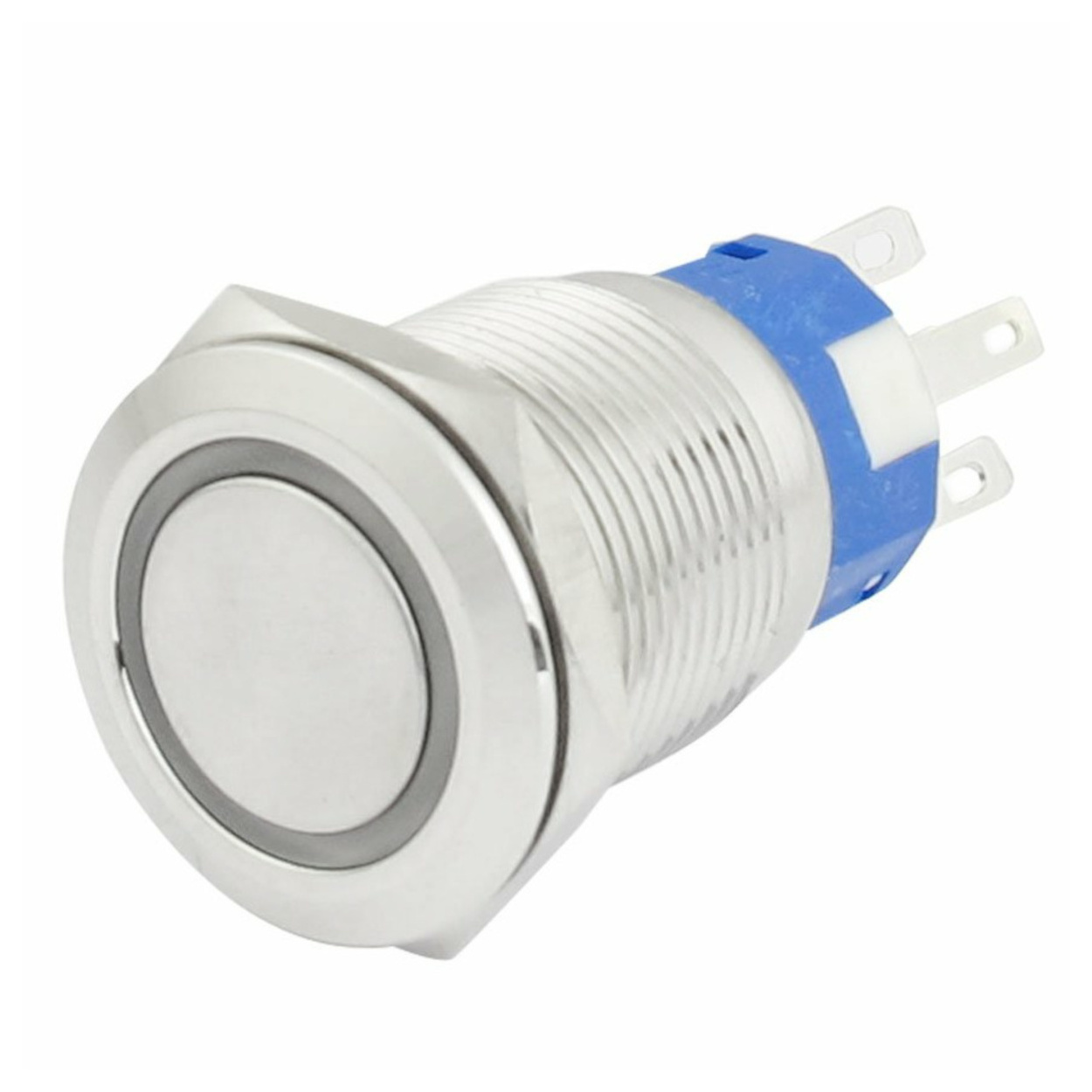

This Latching Metal Pushbutton is a perfect choice if you need a heavy-duty push-button. These metal push buttons are very tough, small, panel-mount latching switches with an illuminated Red, Green, and Blue LED Ring symbol. It is an SPST with 16mm threading. This button is perfect for basic On/Off functions. The overall length (including leads) is 1.5" and has small solder lugs for connection. These Latching buttons are rated up to 3A and 250VAC while the LED is rated for 220V.
Note: We can carefully manufacture this switch with the best quality contacts, springs, and metal cases. This is not a low-cost switch with false output ratings. Use only ProMax Industrial grade switches for the best quality and life.
The Indication LED has its own 2 Pins, it can be turned on by 220V Power and can be controlled independently from the switch. If you are controlling a 5V Load through the switch, you can connect the output of the switch to the LED pins and light up the LED only when the switch is on.
This is an SPST Single pole switch with C, NO, and NC terminals. This allows you to control up to 1 device or load wires independently. If you use an SPST switch for input power or battery power input you can switch live power wire using this switch for power isolation when the switch is off.
Features:
Package Includes:
1x 16mm ProMax PPS16220RGBRL Metal Push Button Switch Waterproof Latching Red Green Blue
Applications:
| Technical Details |
|
|---|---|
| Operation Type | Latching |
| Voltage | 240V AC |
| Switch Head Shape | Flat Head |
| Switch Poles | 1 Pole |
| Indication Color | RGB |
