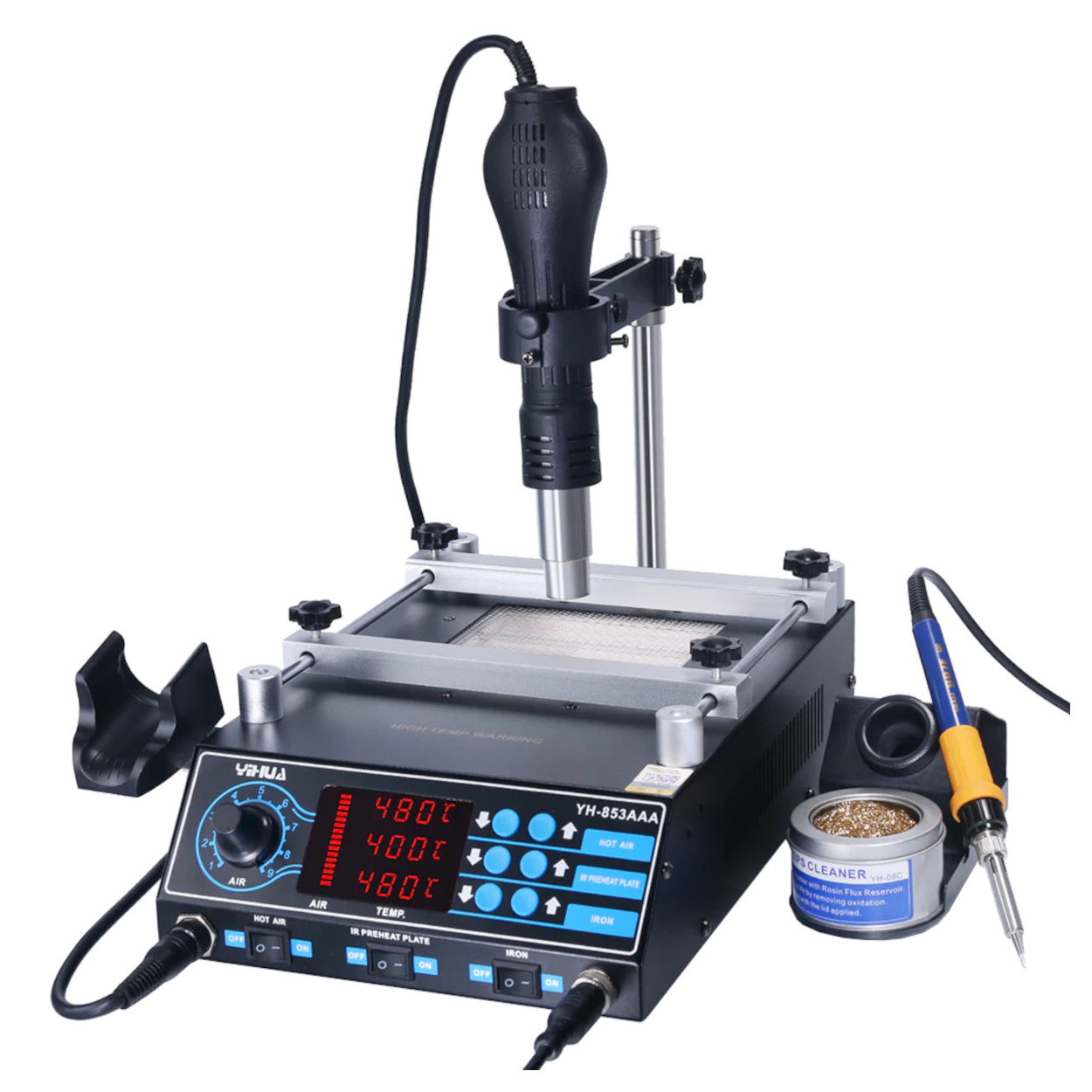

YIHUA 853AAA 3 in 1 SMD BGA Rework Soldering Station Hot Air Gun Plate

Specifications:

• Product: Soldering Station
• Model: YIHUA 853AAA 3 in 1
• Rated Voltage: AC 220V±10% 50Hz
• Rated Power: 1270W
• Working Environment: 0℃ to 40℃ with relative humidity <80%
• Dimensions: 320×220×100mm (L x W x H)
• Weight: Approximately 6.5 kg

      Hot Air Gun Parameters:

• Output Power: 650W to 720W
• Temperature Range: 100℃ to 480℃
• Airflow Type: Brushless fan soft wind
• Air Flow: ≤120L/min (max)
• Temperature Stability: ±1℃ (static)
• Heating Elements: Ceramic skeleton heater

      Soldering Iron Parameters:

• Output Power: 75W
• Temperature Range: 200℃ to 480℃
• Temperature Stability: ±1℃ (static)
• Heating Elements: Imported Heater / Hakko heater
• Tip Ground Impedance: <2Ω

      Pre-heating Platform Parameters:

• Output Power: 600W
• Pre-heating Area: 120×120mm
• Temperature Range: 50℃ to 400℃
• Temperature Stability: ±2℃ (static)
• Material: Glaze layer ceramic heating element

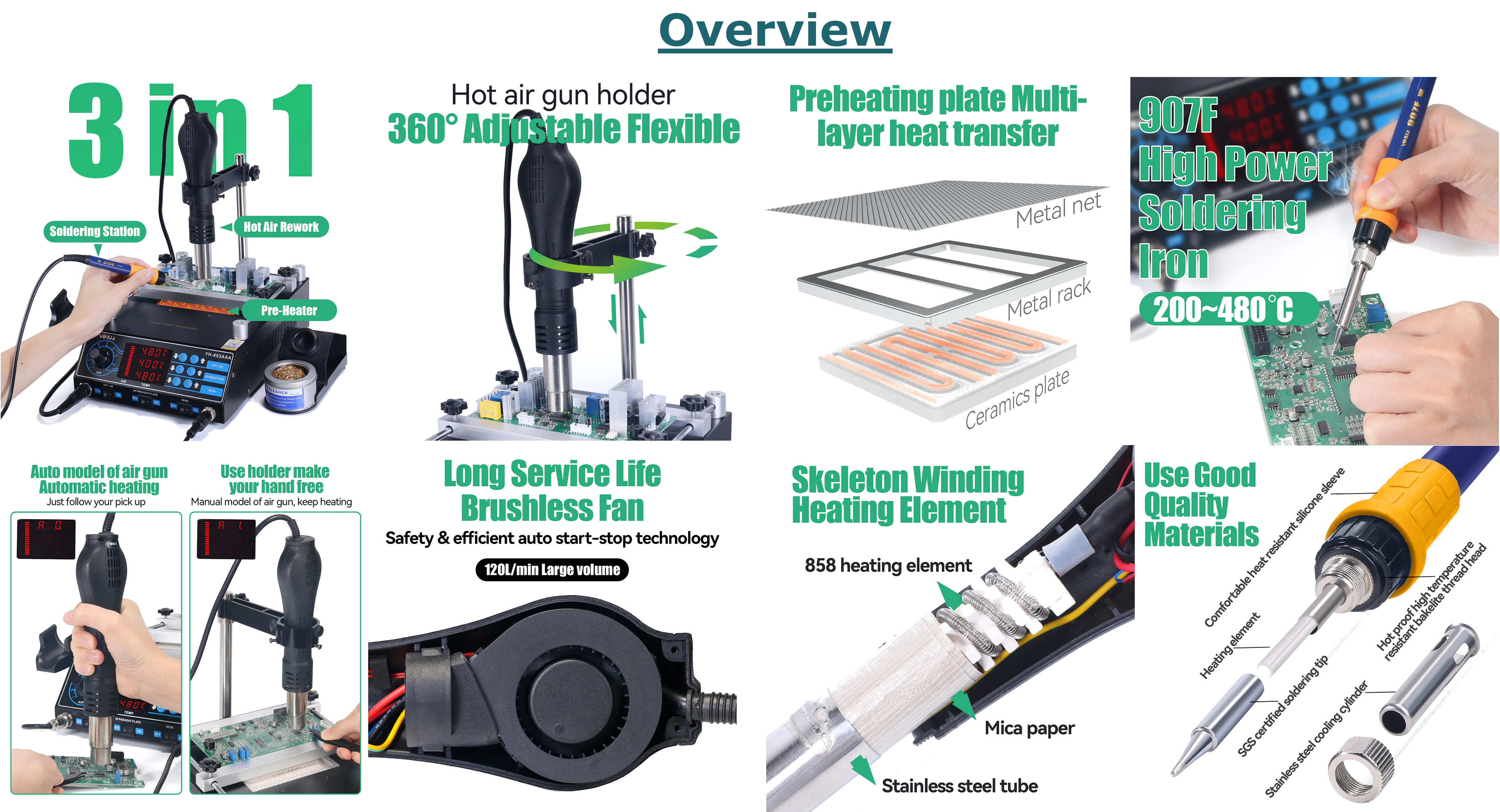

Features:

• 3-in-1 Integrated Design: Combines a hot air rework station, a soldering iron, and a pre-heating platform into a single, compact unit.

• PID Temperature Control: Utilises a PID programmable temperature control system for high-speed tracking, detection, and correction of temperature, ensuring excellent stability and accuracy.

• Intelligent Self-Detection: Features a smart system that detects and displays malfunctions like over-temperature, short circuits, or overloads.

• Anti-Static Design: The soldering iron has an anti-static design to protect sensitive components from electrostatic damage.

• Programmable Functions: The hot air gun and preheating station have programmable functions, allowing you to set specific temperatures, airflow, and operation times for different jobs.

• Temperature Correction: Includes a temperature correction function to compensate for environmental effects or the replacement of parts, with a correction range of ±50℃.

• Automatic & Manual Modes: The hot air gun offers both manual and automatic modes for flexible operation.

• Brushless Fan: The hot air gun uses a brushless fan for a powerful and long-lasting spiral airflow.

• Auto-Sleep Function: The soldering iron automatically enters a sleep mode after 10 minutes of inactivity to prevent tip oxidation and extend its lifespan.

• User-Friendly Interface: Features LED digital displays for each function, allowing for easy monitoring of temperature and settings.

Package Includes: 1 x YIHUA 853AAA 3 in 1 SMD BGA Rework Soldering Station

Applications:

• Widely used for soldering or de-soldering BGA, SOIC, QFP, PLCC style surface mount devices
• Also used for Heat Shrinking, drying, paint stripping, adhesive removal, defrosting, pre-heating glue, soldering, etc

Frequently Asked Questions (FAQ)

• What is the difference between 853AAA and 853AAA+?
  The "+" version typically adds storage memory channels and sometimes a nicer aluminum bezel, but the core heating performance of the 853AAA (this model) is identical for actual work.
• Can I use the preheater and hot air gun at the same time?
  Yes, that is the primary purpose of this machine—dual heating for reworking multilayer boards.
• Is this station ESD Safe?
  Yes, the soldering iron and chassis are grounded to prevent static discharge damaging sensitive chips.
• What is the maximum size PCB it can hold?
  The holders are adjustable; the effective heating area is 120x120mm, but you can mount larger boards (up to ~180mm width) using the sliding rails.
• Does it support sleep mode?
  Yes, the soldering iron enters sleep mode after 10 minutes of inactivity to save the tip.
• Can I replace the soldering iron tip?
  Yes, it uses standard 900M Series tips, which are widely available.
• Is the hot air fan in the handle or the base?
  It uses a brushless fan located in the handle, providing smooth spiral airflow via a flexible cord.
• What temperature should I set the preheater to?
  For leaded solder rework, 100°C-120°C is usually sufficient. For lead-free, 130°C-150°C is recommended.
• Can I use this for plastic welding?
  Yes, the hot air gun can be used for heat shrinking and plastic welding at lower temperatures.
• Does it come with a warranty?
  Yes, standard manufacturer warranty applies against manufacturing defects.
• How do I calibrate the temperature?
  The unit features a PID calibration mode (consult manual) to offset temperature if you measure a drift.
• Is the preheater infrared or ceramic?
  It uses a Far-Infrared Ceramic heating plate for uniform thermal distribution.
• Can it rework laptop motherboards?
  Yes, it is powerful enough for laptop logic boards, especially when used with the preheater.
• What is the warm-up time?
  The soldering iron heats up in <15 seconds; the preheater takes 1-2 minutes to reach stable soak temperature.
• Does it include flux?
  No, consumables like flux and paste must be purchased separately.
• Is the display in Celsius or Fahrenheit?
  It can be toggled, but defaults to Celsius.
• Can I use it without the preheater?
  Yes, each section (Iron, Air, Preheat) has its own independent power switch.
• What nozzle sizes are included?
  It typically comes with 4 standard round nozzles (5mm, 8mm, 10mm, 13mm).
• Does it work with lead-free solder?
  Yes, the 75W iron and high-temp air gun are fully capable of melting lead-free alloys.
• Is the preheater bracket removable?
  Yes, the PCB holder rails can be removed if you need to place a flat board directly over the plate (use caution).
