Soldering Iron Tip Set 900M Series

Quick Introduction A soldering station is only as good as its tip. Whether you are struggling with tiny SMD components or soldering thick power wires, having the right geometry at the end of your iron makes all the difference. This 900M Series Tip Set gives you the standard "Swiss Army Knife" selection of 5 tips, ensuring you always have the perfect tool for the job. Made with a solid copper core for rapid heat transfer and plated with iron/chrome for long life, these are the industry-standard replacement tips for Hakko 936-style irons.

Detailed Specifications

• Series Standard: 900M (The most common global standard).

• Inner Diameter: ~4.0mm (Fits over the ceramic heater).

• Outer Diameter: ~6.5mm.

• Core Material: Pure Oxygen-Free Copper (Fast heating).

• Plating: Iron (durability) + Chrome (solder barrier) + Pre-tinned Tip.

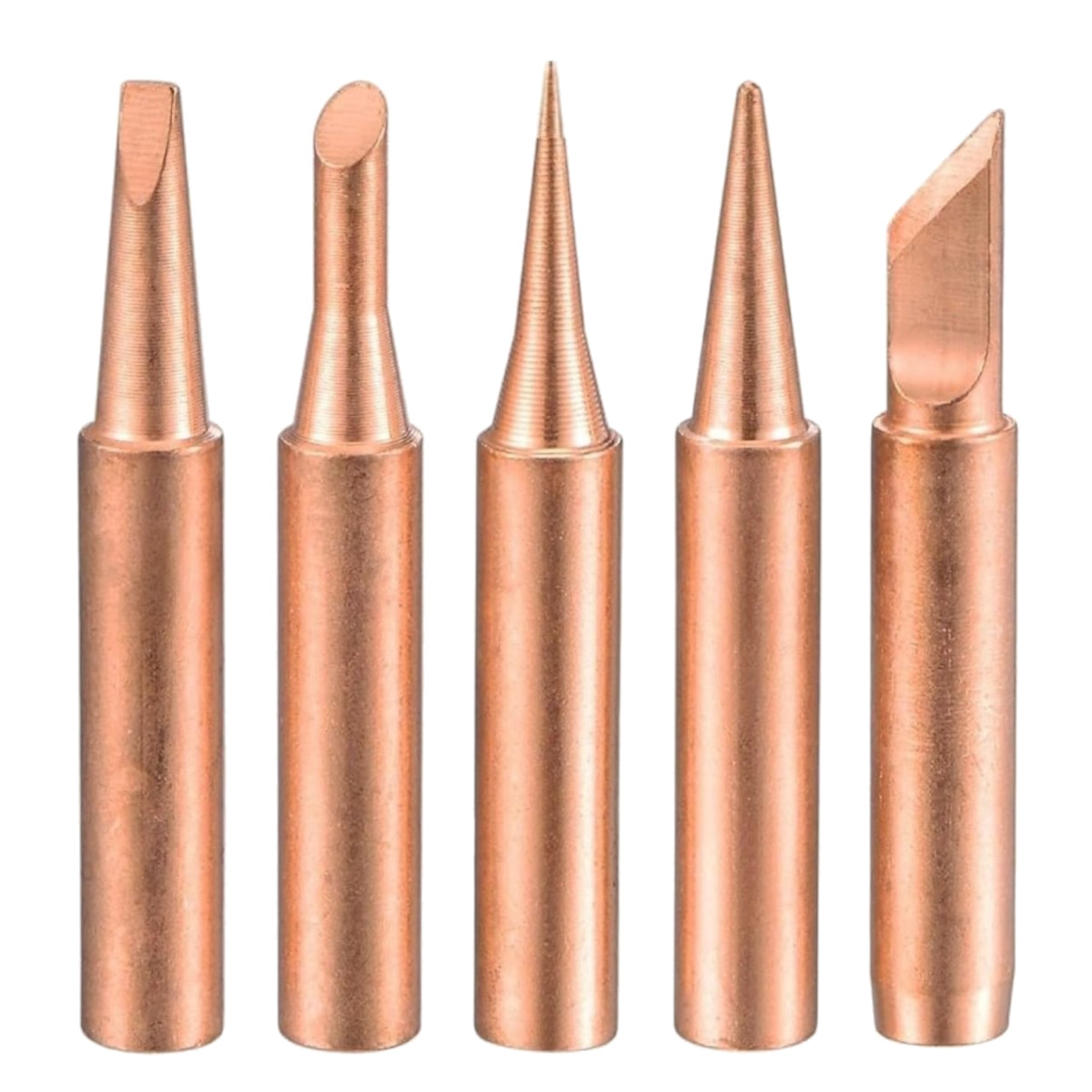

• Shapes Included:

  1. 900M-T-K (Knife): The ultimate drag-soldering and bridge-fixing tool.

  2. 900M-T-I (Needle): For extremely fine 0402/0603 SMD pads.

  3. 900M-T-B (Conical): General purpose rounded tip.

  4. 900M-T-2.4D (Chisel): Great for through-hole pins and wires.

  5. 900M-T-3C (Bevel): Excellent for dragging solder across rows of pins.

• Temperature Range: 200°C - 480°C.

Quality Advantage & Differentiation Why choose this set?

1. Full Spectrum Utility: Instead of buying just one shape, you get the specific tips needed for Drag Soldering (K/C), Point Soldering (I/B), and Heat Transfer (D).

2. High Thermal Mass (K-Tip): The included "Knife" tip is often sold separately as a premium tip. It holds immense heat, making it perfect for desoldering large grounds or soldering heavy connectors.

3. Universal Fit: Tested to fit perfectly on Probots stations, Yihua, WEP, Atten, and genuine/clone Hakko 936/937 handles.

Key Applications & Usage

• SMD Repair: Use the I-Tip for jumper wires and the K-Tip to remove IC bridges.

• Through-Hole Assembly: The Chisel (D) tip transfers heat efficiently to legs and pads simultaneously.

• Wire Tinning: The Bevel (C) tip holds a small pool of solder, perfect for dipping wire ends.

• Desoldering: The large surface area of the K-Tip works wonders with solder wick.

What's Included & Required

• Included: 5x Soldering Tips (Types I, B, K, 2.4D, 3C).

• Required: A 900M-compatible Soldering Station or Adjustable Iron.

The "Virtual Technician" Support Panel

• ⚠️ COMPATIBILITY CHECK:

  • Fits: Any iron with a ceramic heating element approx 3.8mm-4mm thick. (Hakko 936, 888D, Yihua 936/878/852, Atten, RadioShack).

  • Does NOT Fit: T12 Stations (where the tip includes the heater), C210/C245 (JBC style), or TS100/Pinecil smart irons.

• ⚠️ PREVENTING "BLACK TIP OF DEATH":

  • Never leave your iron on at 400°C+ without solder on the tip. The plating will oxidize black and repel solder.

  • Rule: Always leave a blob of fresh solder on the tip before turning the iron off. This seals the iron coating from oxygen.

  • Fix: If your tip is black, use "Tip Tinner" compound to restore it. Do not file it!

Call to Action (CTA) Stop struggling with that one worn-out tip. Add the 900M Tip Set to your cart and experience how much easier soldering is with the right shape!
