XGecu Pro T48 (TL866 3rd Gen) Universal Programmer - Full Kit with 42 Adapters & SOP8 Clip

Specifications

• MCU: 32-bit at 120MHz (High-speed processing)

• Main Socket: 40-Pin Industrial ZIF (Replaceable)

• ISP Interface: 16-Pin external header for In-System Programming

• Max VPP Voltage: Up to 25V (Crucial for writing to older EPROMs)

• Supported ICs: 31,000+ (NAND, eMMC, NOR, EEPROM, MCU, GAL, SRAM testing)

• Dimensions: 10.0cm x 6.5cm x 2.8cm

• Power Connection: Standard USB Type-B (No external power brick required)

Key Applications and Projects

• Laptop / PC Repair: Recovering "bricked" motherboards by using the SOP8 clip to directly re-flash the corrupted BIOS chip.

• Automotive Diagnostics: Reading and modifying immobilizer EEPROM data or instrument cluster mileages from car ECUs.

• Retro Computing & Arcade Repair: Programming legacy EPROMs (with 21V/25V programming voltages) to fix vintage arcade boards or classic consoles.

• IC Testing: Utilizing the software's built-in testing features to verify if standard 74/54 series TTL logic gates or SRAM chips are faulty.

Downloads and links:

• XGecu T48 Universal Programmer_Introduction Manual
• XGecu T48 Universal Programmer_User Guide
• XGecu T48 Universal Programmer_Device Support List
• XGecu T48 Universal Programmer_Software Link

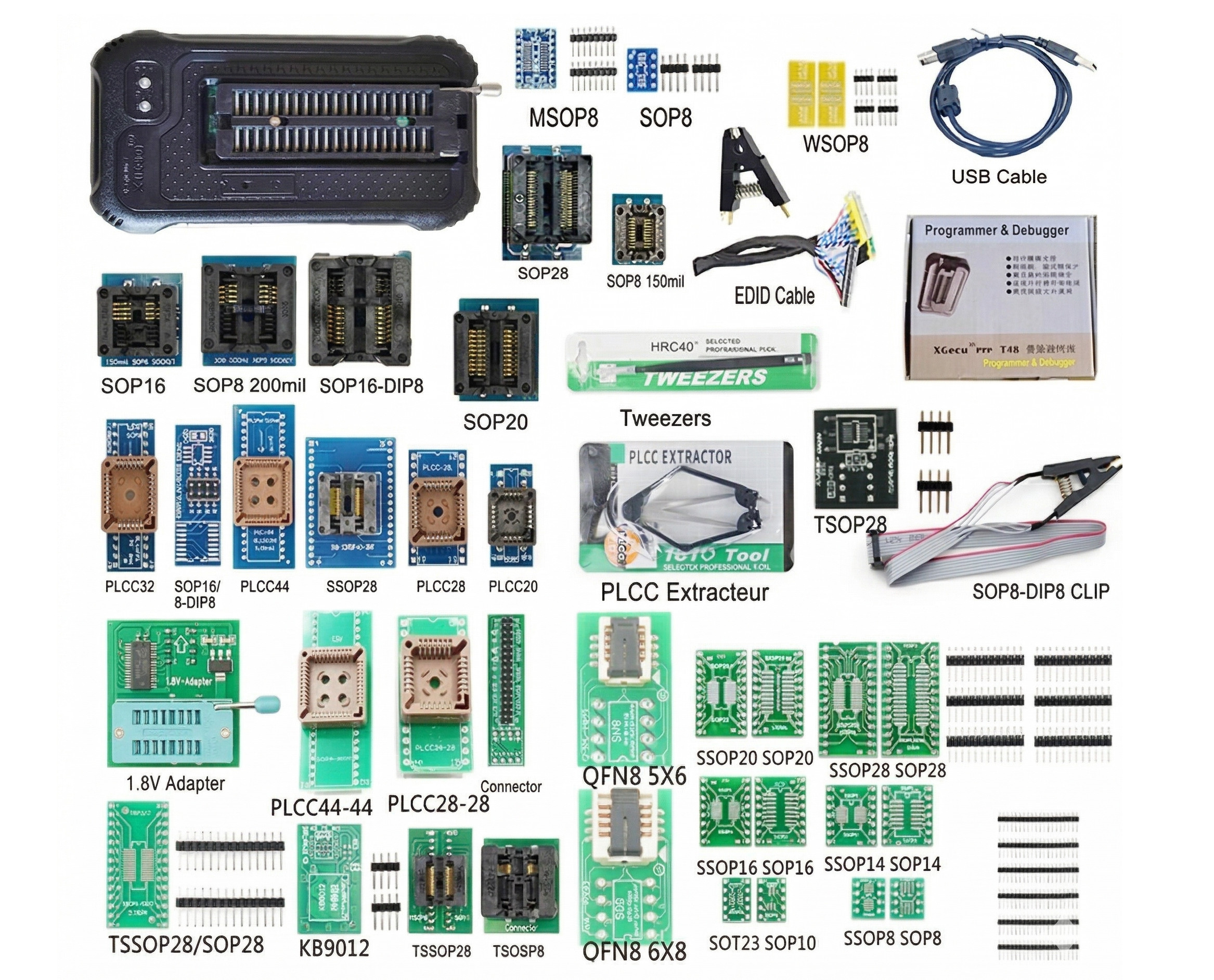

Package Includes:

• 1 x XGecu T48 Main Programmer Unit

• 1 x USB Type-B Communication Cable

• 1 x SOP8 / SOP16 In-Circuit Test Clip with Ribbon Cable

• 1 x PLCC IC Extractor Tool

• 1 x Anti-Static Tweezers

• 1 x LCD EDID Ribbon Cable

• Assorted Adapter Sockets & Routing Boards (42 Pieces Total) including SOP8 150mil/200mil, PLCC32/44, TSOP, QFN, 1.8V Adapter, etc.

FREQUENTLY ASKED QUESTIONS (FAQ)

1. What is the XGecu T48? It is the 3rd generation of the popular TL866 universal programmer, used for reading, erasing, writing, and verifying code on thousands of different microchips.

2. How is the T48 different from the older TL866II Plus? The T48 features a much faster 120MHz processor, supports up to 25V programming voltage (up from 18V), and has expanded support for high-capacity eMMC and NAND flash chips.

3. Does it require an external power supply? No. Despite supporting higher programming voltages, it draws all the necessary power directly through the standard USB cable connected to your PC.

4. What is the SOP8 test clip used for? The black clip allows you to attach to 8-pin SOP/SOIC chips (like BIOS chips) directly on the motherboard so you can read/write them without having to use a soldering iron.

5. Can I use my old TL866II Plus adapters on the T48? Simple, direct-pin adapters (like a standard PLCC32 to DIP32) will work. However, complex adapters with built-in logic for NAND or TSOP chips are specific to the T48 and are not backward compatible.

6. Does the software work on Mac or Linux? Officially, XGecu software is designed for Windows (Win 7/8/10/11). Mac and Linux users typically run it successfully through a Virtual Machine (like Parallels or VirtualBox).

7. How many chips does it support? The device currently supports over 31,000+ ICs, and the software is regularly updated by XGecu to add support for newer chips.

8. What is the 1.8V adapter board for? Standard programmers output 3.3V or 5V logic. Many modern motherboards and tablets use low-voltage 1.8V SPI flash chips. This adapter safely drops the voltage so you don't instantly destroy the chip.

9. What does the PLCC Extractor tool do? PLCC chips sit incredibly tight in their sockets. This spring-loaded tong tool safely hooks the corners of the chip to pull it straight out without bending the fragile pins.

10. Can I use this to fix a bricked PC motherboard? Yes, this is the primary tool used by repair technicians to re-flash corrupted UEFI/BIOS EEPROM chips.

11. Does it support automotive ECUs? Yes, it is heavily used in the automotive locksmith and tuning industries to read 8-pin EEPROMs (like the 93Cxx or 24Cxx series) from instrument clusters and immobilizers.

12. What are the physical dimensions of the programmer? The unit is very compact, measuring exactly 10.0cm long, 6.5cm wide, and 2.8cm thick.

13. What is the port on the side of the device? That is a 16-pin ISP (In-System Programming) header. It allows you to use jumper wires to program chips directly on a PCB if a specific programming header is provided by the board manufacturer.

14. What is the EDID cable used for? It connects directly to the ribbon port on laptop LCD screens, allowing you to read or rewrite the EDID chip (which tells the motherboard the screen's resolution and manufacturer data).

15. Why are there so many green circuit boards included? These are routing boards. They allow you to solder unique surface-mount chips directly to them, and then plug the pins into the T48's ZIF socket to read them.

16. Are the pins pre-soldered on the adapter boards? Many of the primary clamping sockets are fully assembled. Some of the raw green routing boards require you to solder the included pin headers onto them yourself.

17. Can it test standard logic gates? Yes, the software includes a massive database for testing 54/74F/LS/HC CMOS and TTL logic ICs to see if they are fully functional.

18. Where do I get the software? You must download the latest "Xgpro" software directly from the official XGecu manufacturer website.

19. How do I insert a chip into the main socket? Lift the silver metal lever on the ZIF socket, drop your chip (or adapter board) in, ensuring Pin 1 aligns with the diagram in the software, and press the lever down to lock the pins.

20. Is there built-in overcurrent protection? Yes, the T48 features multi-level overcurrent and overvoltage protection to prevent damaging the programmer or the host PC's USB port if you accidentally insert a chip backward.
