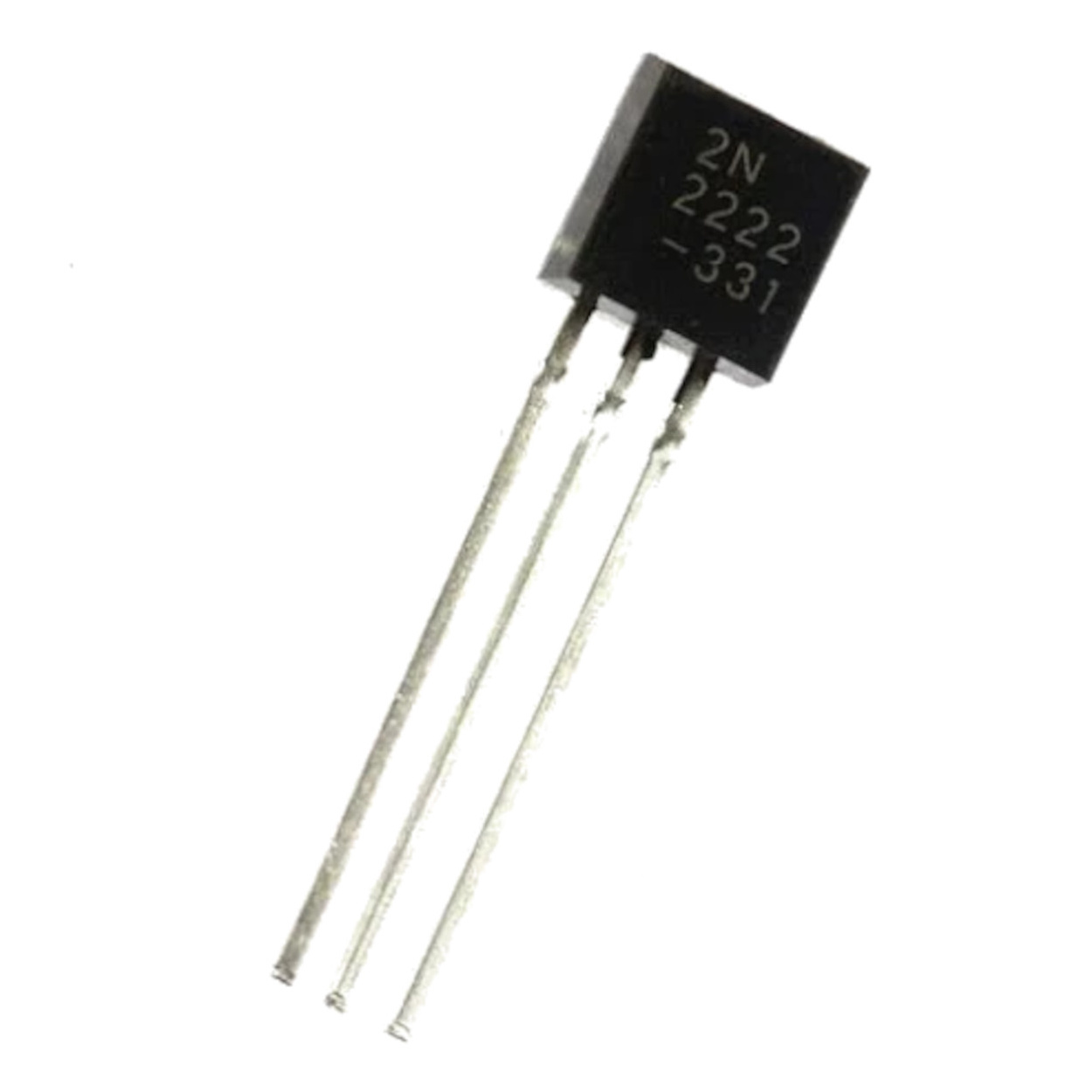

2N2222 NPN Transistor

Quick Introduction: Whether you are building a simple LED blinker or a complex logic circuit, the 2N2222 NPN Transistor is the industry-standard workhorse you need in your component drawer. These deliver reliable BJTs in the compact TO-92 plastic package, making them breadboard-friendly and easy to solder. Known for their ability to handle higher currents (up to 600mA) compared to the standard 2N3904, they are the go-to choice for driving loads that require a bit more punch.

Detailed Specifications

• Transistor Polarity: NPN (Negative-Positive-Negative).

• Package Type: TO-92 (Through-hole).

• Max Collector Current (Ic): 600mA (0.6A) - Handles more power than BC547!

• Max Collector-Emitter Voltage (Vceo): 40V.

• Max Power Dissipation: 625mW.

• DC Current Gain (hFE): 100 - 300 (Typical).

• Transition Frequency (fT): 300 MHz (High Speed).

• Operating Temperature: -55°C to +150°C.

Quality Advantage & Differentiation: Why choose 2N2222?

1. High Current Handling: Unlike the BC547 (100mA) or 2N3904 (200mA), the 2N2222 can switch up to 600mA, allowing it to directly drive small DC motors and multiple high-brightness LEDs.

2. Fast Switching: With a 300MHz transition frequency, it provides clean, sharp square waves for PWM (Pulse Width Modulation) and high-speed digital logic applications.

3. Breadboard Ready: Sturdy TO-92 leads fit securely into standard breadboards and perfboards without bending easily.

Key Applications & Usage

• Load Switching: Turn relays, solenoids, and DC fans on/off using low-power signals from an Arduino or ESP32.

• Signal Amplification: Boost weak audio signals in pre-amplifier circuits.

• Motor Control: Use in H-Bridges or PWM speed controllers for small hobby motors.

• Logic Gates: Build custom AND/OR/NOT gates for educational purposes.

What's Included & Required

• Included: 1X 2N2222 NPN Transistor

• Required: Base Resistor (typically 1kΩ - 10kΩ) to protect the transistor and microcontroller.

Helpful Tutorials & Resources

• Project Guide: How to use 2N2222 as a Switch - Beginner-friendly tutorial.

• Datasheet: 2N2222A Technical Data - Reference for exact electrical characteristics.

The "Virtual Technician" Support Panel

• ⚠️ THE PINOUT TRAP (E-B-C vs C-B-E):

  • Context: The "2N2222" comes in two common pinout variations depending on the manufacturer (often labelled P2N2222A vs PN2222A).

  • How to Identify:

    1. Hold the transistor with the flat face looking at you and pins pointing down.

    2. Standard 2N2222/PN2222: Pins are 1=Emitter, 2=Base, 3=Collector (E-B-C).

    3. Variant P2N2222: Pins are 1=Collector, 2=Base, 3=Emitter (C-B-E).

  • Technician Tip: Always check your specific batch with a multimeter (Diode Mode) or a component tester before soldering. If your circuit works but the transistor gets instantly hot, you likely have Emitter and Collector swapped!

• Usage Tips:

  • Base Resistor: NEVER connect the Base pin directly to a 5V/3.3V source. You must use a resistor (e.g., 1kΩ) to limit the current, or you will burn out the Base-Emitter junction instantly.

  • Flyback Diode: When driving inductive loads (motors, relays), always place a diode (like 1N4007) across the load to prevent voltage spikes from killing the transistor.
