Waterproof Inline Medium Blade Fuse Holder 10 AWG Wire Heavy Duty 40A Current Rating for Automotive Solar Robotics

Specifications

• Product Type: Inline Medium (ATC/ATO) Blade Fuse Holder
• Wire Gauge: 10 AWG Heavy-Duty Copper Wire
• Maximum Current Rating: 40A
• Operating Voltage Range: 12V – 32V DC
• Compatible Fuse Type: Standard / Medium Blade Fuses (ATC/ATO)
• Total Cable Length: 31.5 cm (12.4 inches) loop length [Measured]
• Housing Dimensions: 40.6 mm × 33.0 mm (1.6 inch × 1.3 inch)
• Fuse Pocket Width: 18.8 mm (0.74 inch)
• Ingress Protection Rating: IP67 Waterproof & Dustproof (with cap closed)
• Cap Material: Weather-resistant Molded Rubber with Tether
• Operating Temperature: -5°C to +40°C

Minimum hardware

• Medium (ATC/ATO) Blade Fuse (1A to 40A)  to set the current cut-off threshold for your specific load; without a fuse installed in the holder, the circuit remains completely open.
• Wire Strippers & Heavy-Duty Crimpers / Soldering Iron  to securely strip the 10 AWG wire leads and splice them into your main power harness.
• 12V–32V DC Power Source (e.g., Car Battery or LiFePO4 Pack)  to supply primary DC power to your downstream circuit.

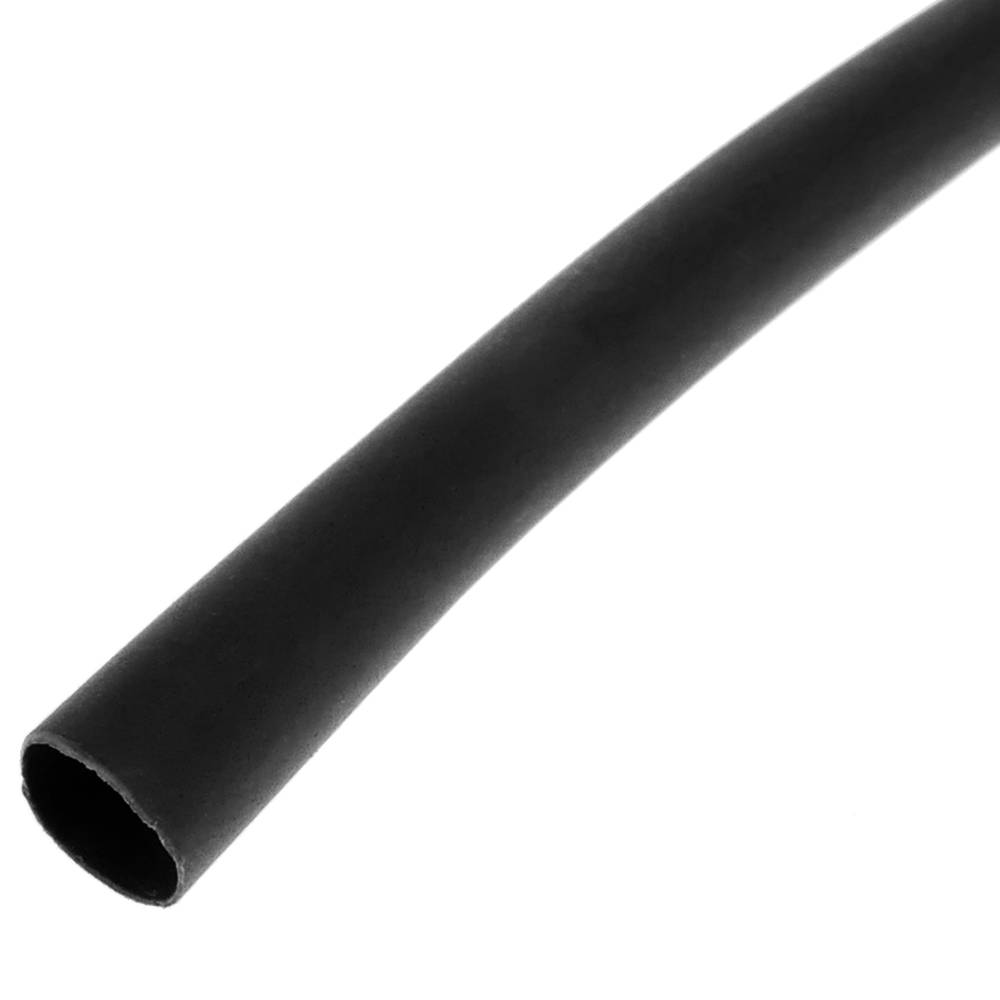

• Heat Shrink Tubing or Waterproof Butt Connectors  to ensure the wire splices maintain the same waterproof integrity as the fuse housing.

Safety Warnings

• High-Current DC Hazard: Always disconnect the main negative terminal of your battery bank before installing or splicing inline fuse holders into positive power leads.
• Fuse Rating Matching: Never insert a fuse rated higher than 40A or higher than the continuous ampacity rating of your thinnest downstream wire.
• Location Rule: Place this fuse holder as close to the positive (+) terminal of the battery or power source as possible (ideally within 18 inches / 45 cm) to protect the entire wire run against short-circuits.

Accessories Included in the Box

• 1× Waterproof Inline Medium Blade Fuse Holder with 10 AWG Wire Loop and Rubber Protective Cap

Frequently Asked Questions

• Is this waterproof fuse holder compatible with standard car fuses?
  Yes, this fuse holder is designed specifically for medium size standard blade fuses, also known as ATC or ATO blade fuses, which are standard in most automotive applications.
• Can I use mini or micro blade fuses in this holder?
  No, mini (ATM) or micro blade fuses are physically smaller and will not fit or make proper electrical contact inside this medium ATC/ATO housing.
• Does this fuse holder work with 24V or 32V DC systems?
  Yes, it is rated for low-voltage DC applications up to 32V DC, making it suitable for 12V, 24V, and 32V automotive, marine, and solar battery systems.
• Can I use this fuse holder for AC mains power circuits?
  No, this holder and standard automotive blade fuses are strictly rated for low-voltage DC applications up to 32V DC and must not be used on AC mains power.
• What is the maximum current rating for this inline fuse holder?
  This fuse holder features heavy-duty 10 AWG pure copper wiring rated to safely support continuous DC current loads up to 40A.

• Does this product come with a 40A fuse included in the package?
  No, this listing is for 1 piece of the waterproof fuse holder assembly; fuses are selected and purchased separately based on your specific circuit current requirement.

• Will using a smaller fuse (e.g., 10A or 20A) work in this 40A rated holder?
  Yes, you can safely insert any ATC/ATO blade fuse rated from 1A up to 40A depending on the current protection requirements of your downstream load.
• How do I connect this inline fuse holder into my power circuit?
  Cut the 10 AWG red wire loop at the desired point to create input and output leads, strip the insulation, and splice them inline with your positive (+) power cable.

• Where should this fuse holder be installed relative to the battery?
  Always install the inline fuse holder as close as physically possible to the positive (+) battery post or power supply source (typically within 18 inches) to protect the whole cable length.

• Do I need special tools to splice 10 AWG copper wire into my vehicle harness? We recommend using heavy-duty crimping pliers with heat-shrinkable butt splices or a high-wattage soldering iron with adhesive heat-shrink tubing for a secure, weatherproof connection.
• Why is no power passing through the fuse holder even though the fuse looks good?
  Check that the blade fuse is pressed fully down into the internal terminal clips and inspect your wire splices to ensure clean copper-to-copper contact without corrosion.

• What causes the plastic housing or rubber cap of the fuse holder to melt? Melting occurs if the continuous current exceeds 40A, if loose crimp splices create resistance heat, or if poor quality fuses fail to seat firmly in the internal metal contacts.

• Is the fuse holder completely submersible underwater?
  When the tight-fitting rubber cap is firmly closed, the unit provides IP67 dust and splash resistance, protecting against heavy rain and engine bay washes, though permanent continuous submersion is not recommended.
