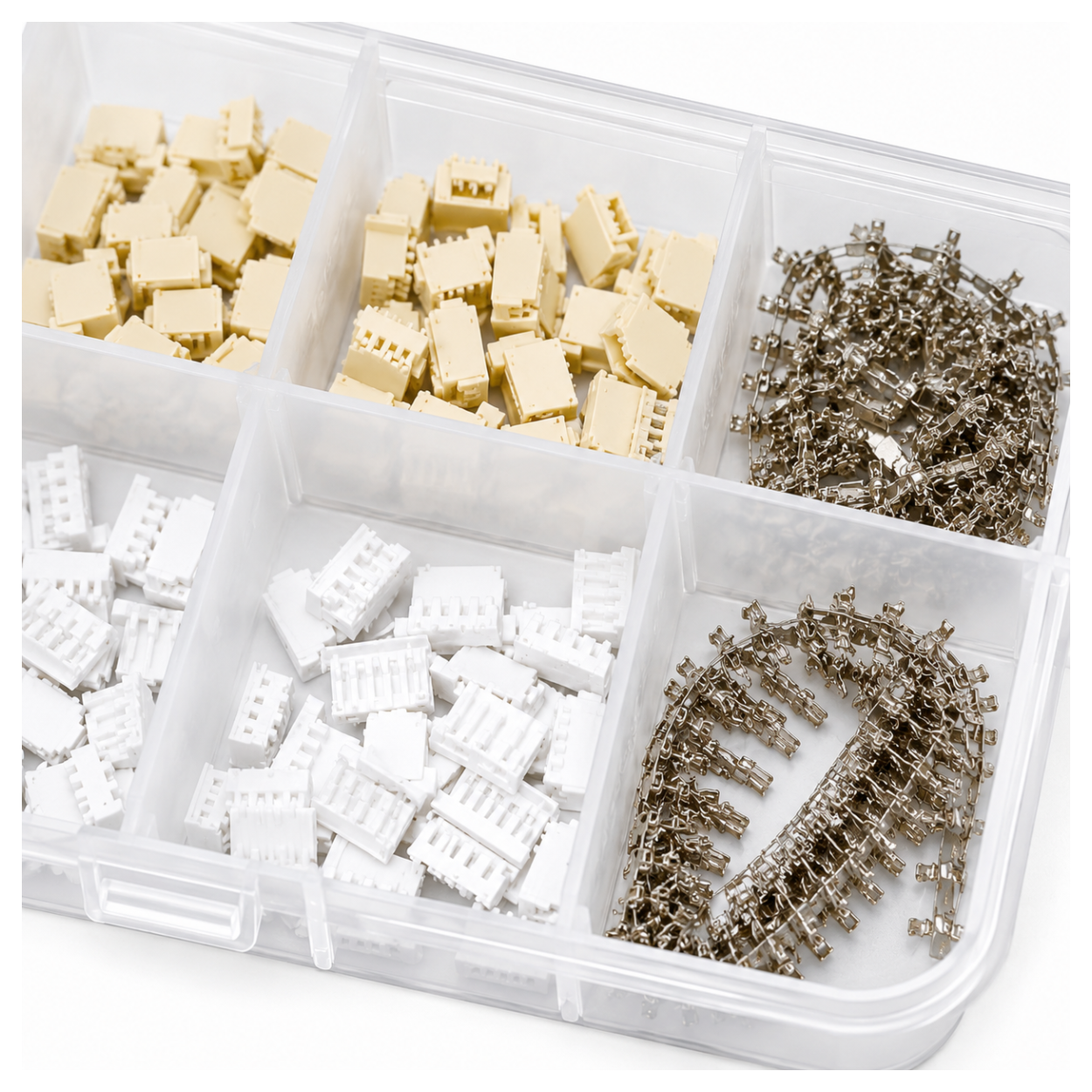

JST SH1.0mm Assorted Connector Kit 2-5 Pin Male Female Housings 200PCS with Crimp Pins

Specifications

• Connector Type: JST SH, 1.0mm pitch, crimp-style, disconnectable wire-to-board connector
• Kit Contents: 200 pieces total (2P/3P/4P/5P male headers, matching female shells, crimp terminals)
• Pitch: 1.0mm — the finest pitch in the entire JST connector lineup
• Current Rating: 1A
• Voltage Rating: 50V
• Contact Design: High-pressure contact with housing lance, optimized for smaller-diameter wires
• Rated Use Case: Low current, low voltage conditions
• Historical Note: SH was the world's first 1.0mm pitch crimp connector
• Housing Color: Cream/beige (male headers), White (female shells)
• Packaging: 10-compartment clear plastic storage box (5 columns × 2 rows)

Minimum hardware

• SH1.0-specific crimping tool  this is the finest die of any kit in this session; neither ZH1.5, PH2.0, nor XH2.54 tools will work correctly here
• Ultra-fine wire (32-34 AWG typical)  even finer than ZH1.5's wire gauge; standard hobbyist wire is often too thick
• Magnifying tool or loupe (strongly recommended, not optional)  at 1.0mm pitch, visual crimp verification is genuinely difficult without magnification
• Steady hands and good lighting  this is the most demanding hand-assembly task across the entire connector kit range built this session

Safety Warnings

• Crimp Tool Warning: Do NOT use a ZH1.5, PH2.0, or XH2.54 crimping tool on these SH1.0 terminals  every other tool in this session's lineup will damage rather than crimp these terminals
• Wire Gauge Warning: This is the tightest wire tolerance of any kit built this session verify wire gauge carefully before attempting a crimp
• Handling Warning: SH1.0 components are the smallest and most fragile in this entire connector kit family  work over a container or tray to avoid losing parts, and handle with fine-tip tweezers rather than fingers where possible

Accessories Included in the Box

• 2/3/4/5-Pin Male Headers (cream/beige housing)
• Matching 2/3/4/5-Pin Female Shells (white housing)
• Loose/strip crimp terminals
• 1× 10-Compartment Plastic Storage Box

Frequently Asked Questions

• Are these terminals compatible with standard JST SH connectors from other brands?
  Yes, SH1.0mm is a standard pitch and housing shape, compatible with genuine JST SH connectors and compatible clones.
• Will this work with my SPRacingF3 or OMNIBUS flight controller?
  Yes, SH1.0 is a common connector standard on many flight controllers including SPRacingF3, OMNIBUS F4, and F7  verify your specific board's pinout before building a custom cable.
• Is this the same as the ZH1.5mm kit sold separately?
  No, SH1.0mm is even smaller than ZH1.5mm  the finest pitch in the JST lineup  and requires its own dedicated crimping tool.
• Can I use this for FPV camera or VTX connections?
  Yes, this is one of the most common uses for SH1.0 connectors in FPV drone builds.
• What's the maximum current these terminals can safely carry?
  Rated at 1A per the official JST specification  suitable for low-current signal and peripheral connections, not high-power applications.

• What's the voltage rating for this connector series?
  Rated up to 50V, confirmed from JST's official SH series specification.

• Is this suitable for telemetry or GPS module power connections?
  Yes, these low-current peripheral connections are exactly what SH1.0 is designed for.
• How fine does my wire need to be for these terminals?
  Typically 32-34 AWG  even finer than the ZH1.5 kit's wire gauge  check carefully before attempting a crimp.

• Can I use a ZH1.5 or PH2.0 crimping tool on these SH1.0 terminals?
  No, every other tool size in this session's connector lineup will damage these terminals  SH1.0 requires its own dedicated crimp die.

• Does pin order matter when assembling a connector?
  Yes, always match your pin order to your flight controller's documented pinout  reversing pins can damage sensitive peripherals.
• Why won't my crimped terminal stay locked in the housing?
  This usually means the crimp terminal's locking tab is bent or damaged during crimping  at this small scale, inspect carefully with a loupe before insertion.

• Why is my connection intermittent after crimping?
  A poor crimp is the most common cause, especially likely at this fine pitch  retest with a proper SH1.0 crimping tool and appropriately fine wire gauge.

• The male and female housings don't seem to click together  what's wrong?
  Confirm both housings are genuinely SH1.0-series (not a similar-looking but different pitch connector) before assuming a defect.

• Can a bad crimp on this very small connector cause intermittent readings from a flight controller peripheral?
  Yes, a loose or poorly seated crimp is especially common at this pitch  recheck and recrimp with the correct tool and magnification if you're seeing inconsistent behavior.
