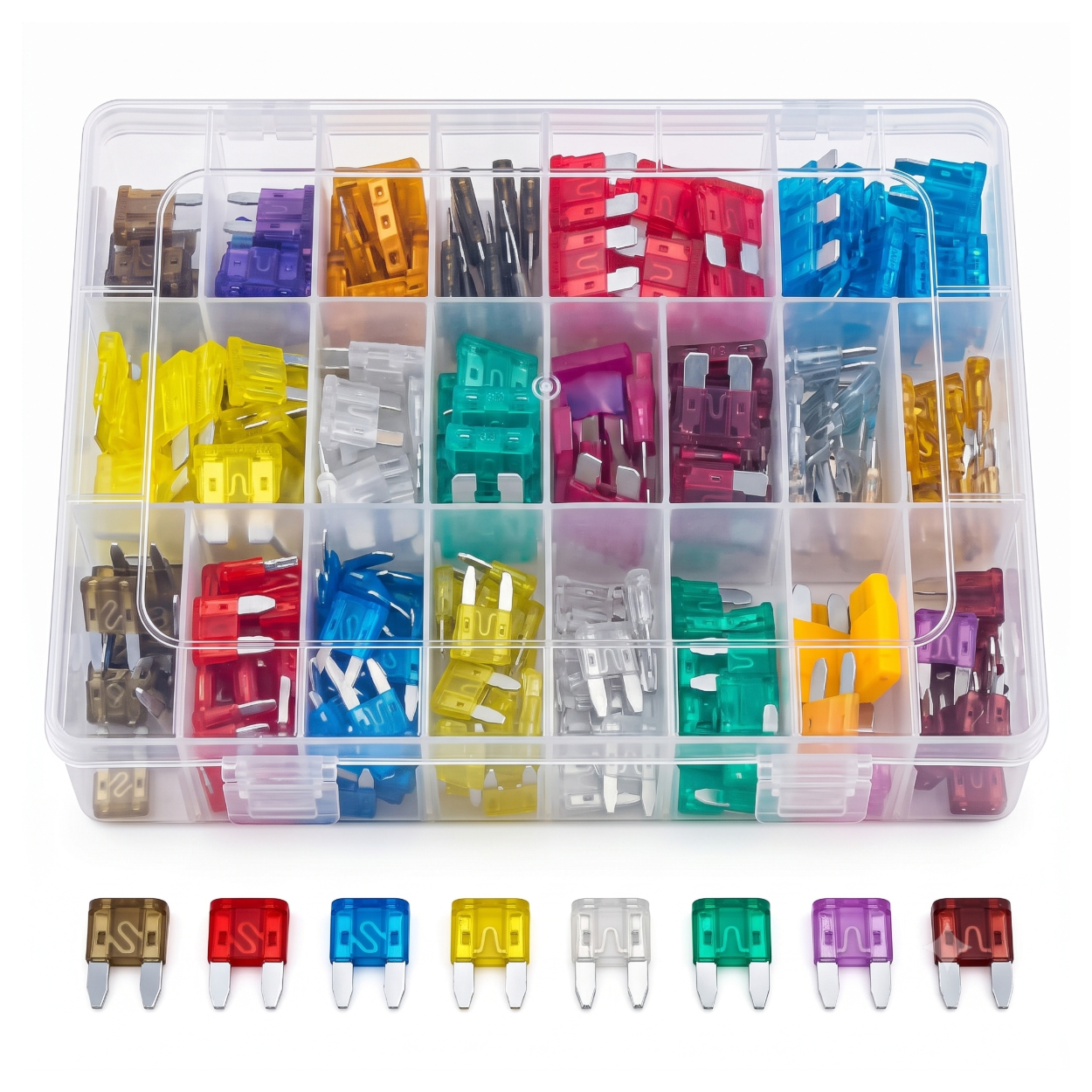

Automotive Blade Fuse Assortment Kit 2A to 40A Mini & Standard Fuses 300 Pieces

Specifications:

• Fuse Type: Mini Automotive Blade Fuse
• Terminal Material: Aluminum
• Housing Material: Transparent color-coded polycarbonate
• Voltage Rating: 12V / 24V / 32V DC Max
• Total Quantity: 300 Pieces

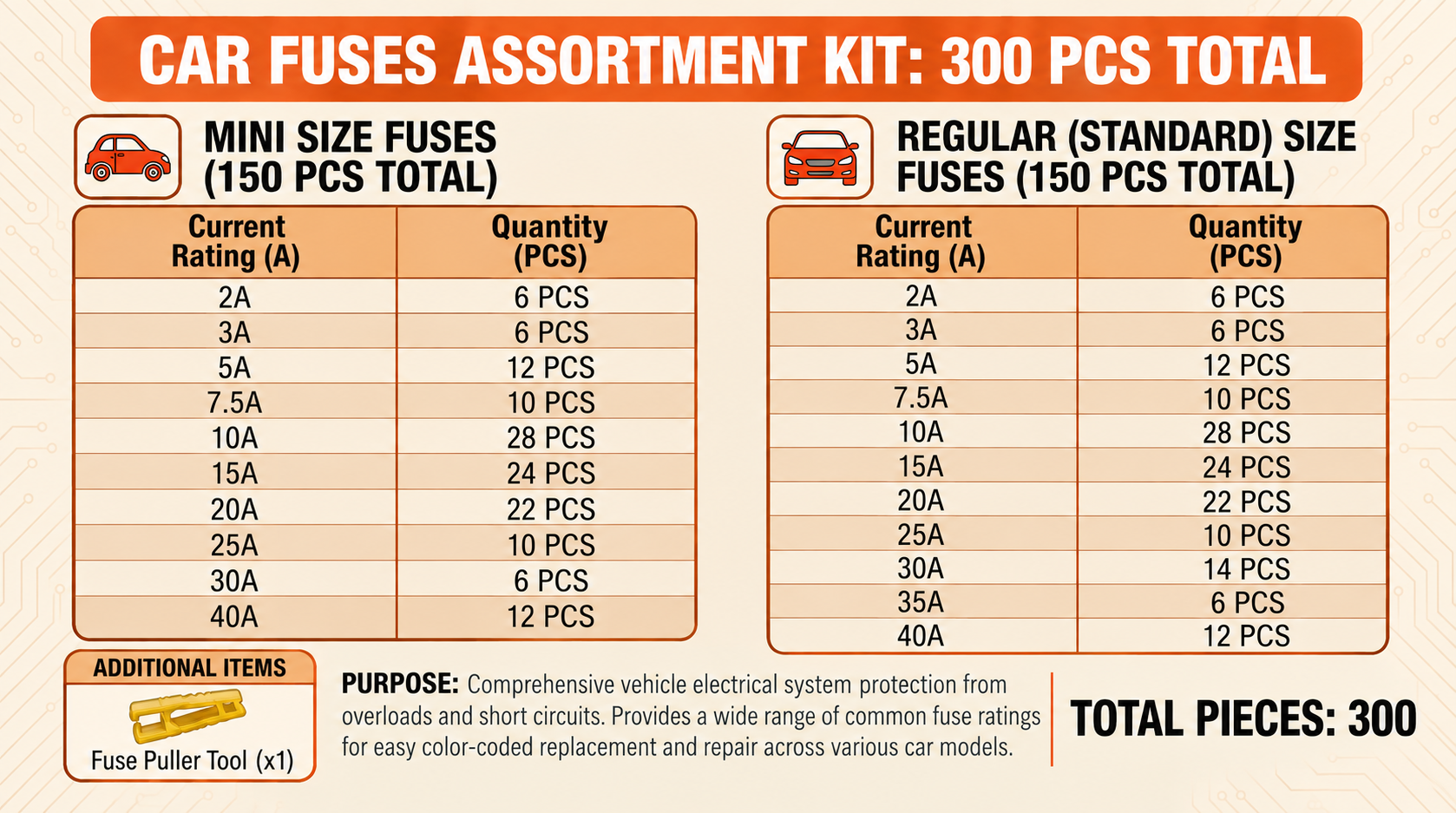

• Included Ampere Ratings: 2A, 3A, 5A, 7.5A, 10A, 15A, 20A, 25A, 30A, 35A, 40A
• Compatibility: Automotive circuits, custom DC robotics, marine electronics, and solar power setups

Minimum hardware to get started:

• Inline mini blade fuse holder or fuse block : the fuse needs a physical receptacle to connect it in series with your circuit; it cannot be soldered directly.
• Wire cutter and crimping tool : to cleanly prepare your power lines and attach spade connectors to your fuse block.
• Multimeter : to check for shorts in your circuit before inserting a new fuse, and to verify if an existing fuse has blown.

Safety Warnings:

• Never oversize a fuse: Always replace a blown fuse with the exact same amp rating. Using a higher-rated fuse can melt your wiring and cause a fire before the fuse blows.
• Power Disconnect: Always disconnect the main battery or power supply before replacing or installing a fuse.
• Identify the root cause: A blown fuse is a symptom, not the problem. Find and fix the short circuit or overload before installing a replacement fuse.

Accessories
Included in the Box:

• 300× Mini Automotive Blade Fuses (Assorted ratings from 2A to 40A)
• 1× Transparent Compartment Organizer Box

Frequently Asked Question

• Are these mini blade fuses compatible with standard car fuse boxes?
  Yes, they follow the industry-standard mini blade form factor used in most modern automotive fuse panels.
• Can I use these fuses for a 3D printer power supply?
  Yes, they are excellent for protecting 12V and 24V DC heater beds and mainboard power inputs when used with an inline holder.
• Do these fit into standard inline mini fuse holders?
  Yes, these fuses are specifically designed to push-fit securely into any standard mini blade fuse receptacle.
• Are these compatible with marine or boat 12V electronics?
  Yes, the aluminum terminals and enclosed plastic housing make them suitable for 12V marine DC distribution panels.
• What is the maximum voltage rating for these aluminum blade fuses?
  These automotive blade fuses are safely rated for up to 32V DC maximum.
• Can I use a 10A fuse for a circuit that draws exactly 10A constantly?
  No, you should size your fuse so that continuous current draw is only 80% of the fuse's rated capacity to prevent nuisance blowing.
• Are these safe to use in 24V and 32V DC systems?
  Yes, they will operate perfectly in standard 12V, 24V, and 32V DC systems common in robotics and automotive builds.
• Does polarity matter when installing a blade fuse?
  No, blade fuses are non-polarized and can be inserted into the holder in either orientation.
• How do I wire an inline fuse holder for these mini fuses?
  You must cut the positive power wire and splice the inline fuse holder in series so all current flows through the fuse.
• Should the fuse be placed on the positive or negative wire?
  Always place the fuse on the positive (live) wire, as close to the battery or power source as possible.
• Is there a reference library or chart for the fuse color codes included?
  Yes, the standard automotive color-coding (e.g., Red for 10A, Blue for 15A) is used to act as a visual reference library for quick identification.
• Do I need any software or code to monitor these fuses in an Arduino project?
  No, these are purely mechanical safety devices, though you can use a voltage divider on an Arduino analog pin to monitor if voltage drops to zero after a fuse blows.
• Where can I find a standard library of fuse amperage ratings and wire gauge pairings?
  Search "automotive wire gauge fuse size chart" on Google for reference tables matching AWG thickness to maximum safe fuse limits
