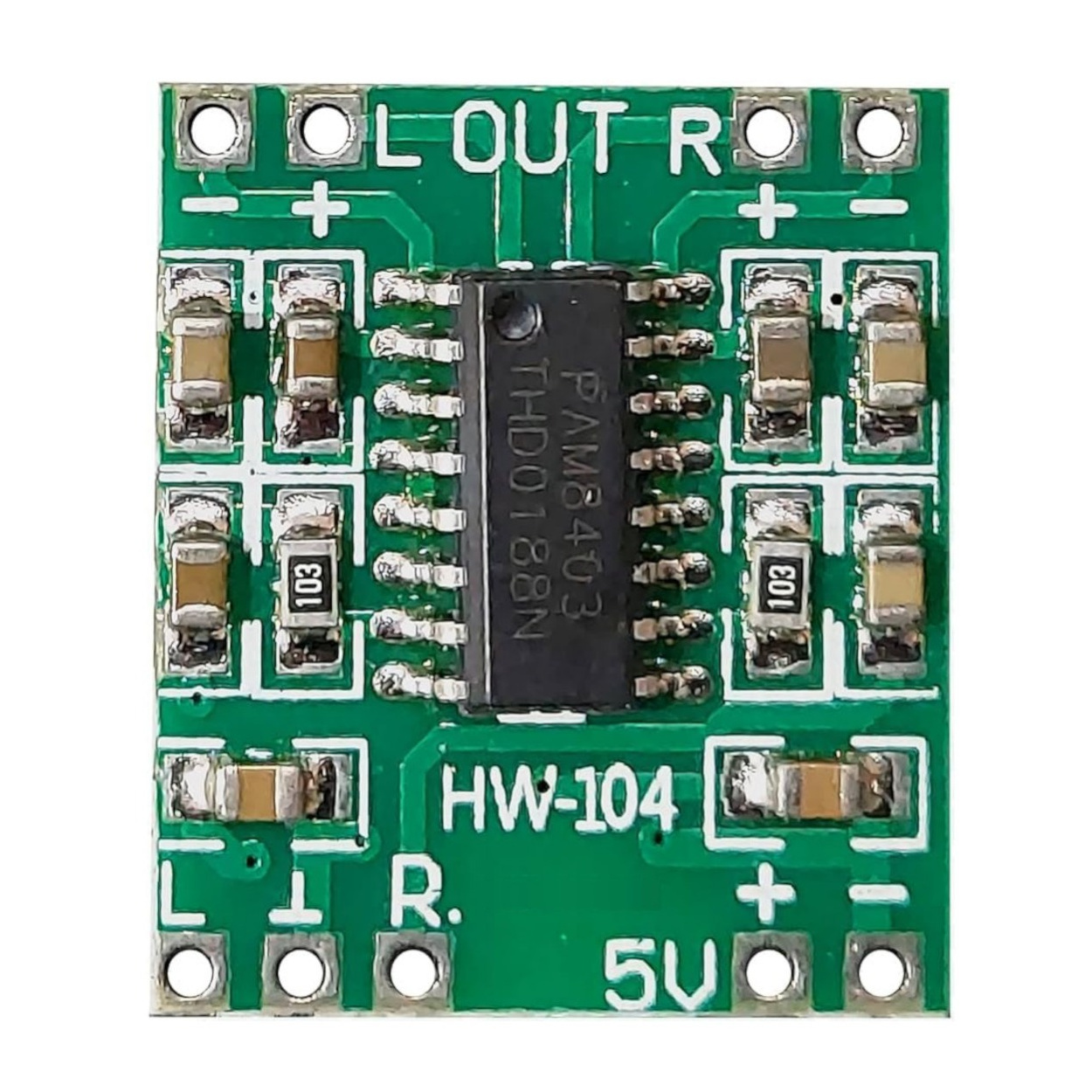

PAM8403 5V Mini Class-D Stereo Audio Amplifier Module

Common FAQs

1. Q: Can I use 8 ohm speakers?

   • A: Yes, 8Ω speakers work fine, but the volume (power) will be slightly lower (approx 1.5W per channel) compared to 4Ω speakers.

2. Q: Can I use a 9V battery?

   • A: No! 9V will instantly burn the chip. The maximum voltage is 5.5V.

3. Q: Do I need a heatsink?

   • A: Generally, no. The Class-D efficiency keeps it cool. If you run it at max volume for hours inside a hot enclosure, a tiny heatsink wouldn't hurt, but it's rarely needed.

4. Q: Can I bridge it for Mono 6W?

   • A: No, the chip is already internally bridged (BTL). You cannot bridge it further.

5. Q: Does it have volume control?

   • A: This specific module usually does not have a potentiometer. You control volume via your source (phone/PC) or by adding a 10K/50K log potentiometer on the input side.

6. Q: Why do I hear a buzzing sound?

   • A: Usually, ground loops or dirty power. Try using a separate power source for the amp, or ensure the audio input ground and power ground are connected at a single star point.

7. Q: Can I connect headphones?

   • A: No. Headphones share a common ground (TRS jack). Connecting this amp to headphones will short the L- and R- outputs and damage the amp.

8. Q: What is the "MUTE" or "SW" pin?

   • A: Some versions break out a Mute/Shutdown pin. Connecting it to Ground typically mutes the amp. Leaving it floating keeps it on.

9. Q: Can I use 18650 batteries?

   • A: Yes, a single 18650 cell (3.7V - 4.2V) is a perfect power source for this module.

10. Q: Is it stereo?

    • A: Yes, it has distinct Left and Right channels.

11. Q: How do I connect the audio input?

    • A: Use a 3.5mm aux cable. Connect Left to L-In, Right to R-In, and the sleeve (Ground) to the G (Ground) pin in the middle.

12. Q: Can I use it with Arduino Tone()?

    • A: Yes, but the Arduino output is a square wave and can be harsh. Use a low-pass filter (RC filter) or a potentiometer to lower the signal level before feeding it into the amp.

13. Q: Does it have bass?

    • A: The chip can reproduce bass, but the "bass" response depends entirely on your speakers and their enclosure. Tiny 3W speakers usually lack bass physically.

14. Q: Can I use a 12V adapter with a buck converter?

    • A: Yes, as long as the buck converter outputs a stable 5V.

15. Q: What is the quiescent current?

    • A: Very low, typically around 10-15mA when no audio is playing.

16. Q: Can I solder wires directly?

    • A: Yes, the pads are standard 2.54mm spacing, suitable for headers or direct wire soldering.

17. Q: Is there a pop noise at startup?

    • A: The PAM8403 has built-in "pop and click" suppression, so it is much quieter than older analog amps at startup.

18. Q: How long are the wires allowed to be?

    • A: Keep input wires short and shielded to avoid picking up radio interference. Output wires should also be kept reasonable (<50cm) to reduce EMI.

19. Q: Can I use 4 speakers?

    • A: You can connect two 8Ω speakers in parallel to each channel (creating a 4Ω load per channel), but ensure the total impedance doesn't drop below 4Ω.

20. Q: Is the board waterproof?

    • A: No, it is a bare PCB.
