PAM 8610 Digital Stereo Class-D Amplifier Board

Specifications

• Main Chip: PAM8610 (Original Class-D Architecture)
• Supply Voltage: 7V to 15V DC (12V Recommended for best performance)

       Output Power:

• 10W x 2 @ 8Ω Speaker (12V Supply)
• 15W x 2 @ 4Ω Speaker (12V Supply)

• Efficiency: > 90% (Extended battery life for portable builds)
• Signal-to-Noise Ratio (SNR): 90dB
• Frequency Response: 20Hz - 20kHz
• Input Impedance: 15KΩ
• Quiescent Current: 20mA (Low standby consumption)
• Protection Features: Over-current, Thermal, and Short-circuit protection

Applications

• Portable Boomboxes: Combine with a Bluetooth receiver and a 3S LiPo battery for a loud, portable party speaker.
• Arcade Cabinets: Perfect for driving stereo speakers in DIY RetroPie or MAME arcade machines.
• TV Audio Upgrade: Bypass weak built-in TV speakers by routing audio to this amp and external bookshelf speakers.
• Robotics Sound Effects: Give your robot a voice loud enough to be heard in a crowded room.

Project Evolution

       From Beeping to Booming

• Prerequisites: If you have previously worked with the LM386 Mono Amplifier, you know it's great for simple buzzers or lo-fi voice, but fails at music.
• The Upgrade: The PAM8610 is your gateway to High-Fidelity Stereo. It unlocks the ability to handle complex audio waveforms (music, speech, sound effects) with depth and clarity.
• Effort Level: Beginner. Requires basic soldering of wires to pads/terminals.

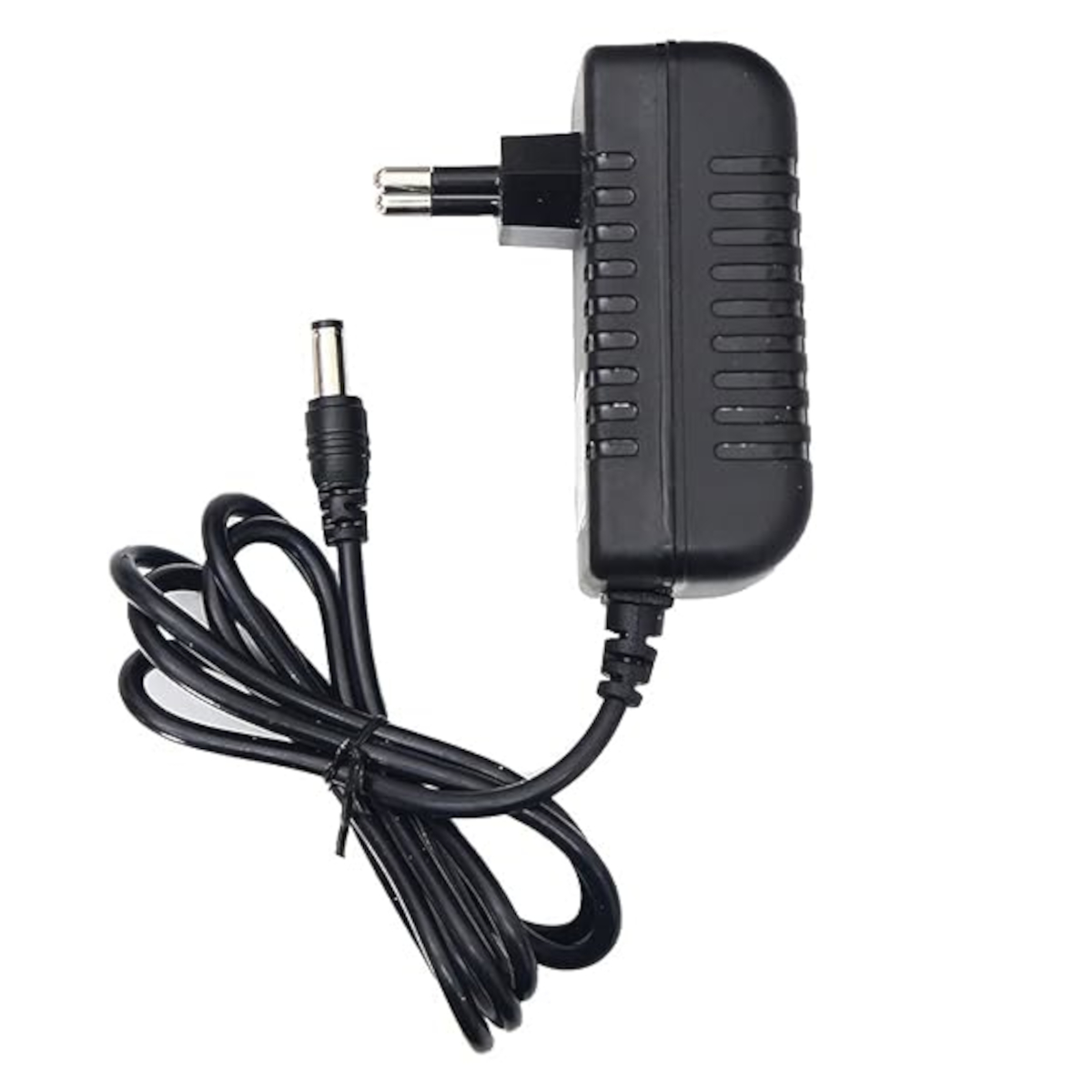

• Hardware Check: To max out this board, you need a stable 12V 2A Power Supply and 4-8 Ohm Speakers rated for at least 15W.
  Wiring Guide

 Pinout Mapping:

• Power: +12V / GND (Connect to DC Adapter or Battery).
• WARNING: Do not reverse polarity It will instantly destroy the chip.
• Input (Signal): R_IN (Right), GND (Audio Ground), L_IN (Left). Connect to your phone, MP3 player, or Bluetooth module.
• Output: R+ / R- (Right Speaker), L+ / L- (Left Speaker).

Warning: Do NOT connect the L- and R- grounds together. Class-D outputs are "Bridged Tied Load" (BTL). Connecting them to a common ground will short the amplifier.

Package Includes:

1 x PAM8610 Digital Stereo Class-D Amplifier Board

Frequently Asked Questions (Technical FAQs)

• Can I run this amplifier on a 9V battery?
  Yes, but a standard 9V battery has very low capacity. It will work for low volumes but will drain quickly. A 12V adapter or Li-Ion pack is better.
• Why is my audio cutting out at high volume?
  This usually indicates your power supply current is too low. The amp needs up to 2A to handle bass peaks.
• Can I bridge the outputs for a 30W mono amp?
  No, the PAM8610 outputs are already internally bridged (BTL). You cannot bridge them further.
• Do I need a heatsink?
  For normal use, no. The chip is very efficient. If running at full volume on 4Ω speakers continuously, a small stick-on heatsink is recommended.
• How do I control the volume?
   This board features an on-board potentiometer for smooth volume adjustment.
• Can I use 4 Ohm speakers?
  Yes, 4 Ohm speakers allow you to get the maximum 15W power output.
• Can I use 8 Ohm speakers?
  Yes, 8 Ohm speakers will work perfectly but max output will be around 10W per channel.
• What happens if I connect the speaker negative wires together?
   You will damage the amplifier. Each speaker output (+ and -) must remain isolated.
• Why do I hear a humming noise?
   Hum usually comes from a "ground loop" or a poor-quality power supply. Try powering it from a battery to test. If the hum stops, your wall adapter is noisy.
• Can I use this with an Arduino?
  Yes, an Arduino can provide the audio signal (via a DAC or filtered PWM), but it cannot power the amp directly.
• Is there a MUTE function?
  The chip supports it, but on this specific breakout board, the MUTE pin is usually tied high/low internally. Check the board traces if you need to mod it.
• What is the maximum input voltage?
   Absolute maximum is 15V. Do not exceed this.
• Can I use a 12V car battery?
  Yes, but be careful. Car batteries can spike to 14.4V or higher when charging. Ensure the voltage stays under 15V.
• Does it have Bluetooth?
  No, this is a pure amplifier. You need a separate Bluetooth receiver module to add wireless capability.
• What is the input sensitivity?
  It works well with standard line-level audio (phones, PCs, MP3 players).
• Why does the sound distort when I turn it up?
  You are likely "clipping." This means the input signal is too strong, or the power supply voltage is too low to produce the required output swing.
• Can I extend the volume knob wires?
  Yes, you can desolder the pot and extend it with shielded wires, but keep them short to avoid interference.
• Is this amplifier good for subwoofers?
  It can drive small woofers, but it lacks a low-pass filter. It outputs full-range sound by default.
• What gauge wire should I use for speakers?
  For 15W, standard 18AWG to 22AWG speaker wire is sufficient.
• Does it have reverse polarity protection?
  No. Double-check your Red (+) and Black (-) power connections before switching it on.
