MKS SERVO42C Stepper Closed Loop Motor Servo with Controller & Display

Specifications

• Model: MKS SERVO42C (Closed Loop Stepper Kit)
• Motor Type: NEMA17 Stepper (42mm)
• Input Voltage: 7V - 24V DC
• Current: 0 - 3000mA (Adjustable via menu)
• Microstepping: Up to 1/256
• Encoder: 14-bit Magnetic Encoder (High Precision)
• Control Method: Field-Oriented Control (FOC)
• Display: Integrated OLED Screen (for tuning/configuration)
• Holding Torque: ~52N.cm (varies by current setting)
• Shaft Diameter: 5mm (D-Type)

Applications

• High-End 3D Printers: Eliminates layer shifting on X/Y axes (perfect for Voron or Ender upgrades).
• Desktop CNC Machines: Provides servo-like performance for pen plotters and laser engravers.
• Camera Sliders: Silent operation is critical for video rigs; FOC ensures zero motor whine.
• Robotic Arms: Precise positioning with feedback prevents the arm from losing synchronization.

Project Evolution

• The Journey: You've likely mastered the Standard NEMA17 + A4988 Driver. You know how to calibrate VREF, but you're frustrated by the noise and the occasional ruined print caused by a skipped step.
• The Upgrade: The MKS SERVO42C unlocks "Error-Proof Motion." It transforms your machine from a blind executor into a smart system. You can push printing speeds higher (150mm/s+) because the motor will forcefully correct itself if it lags behind.
• Effort Level: Intermediate. Requires 12V-24V power wiring and possibly printing a mounting adapter if your current motor is tight on space.

• Hardware Required: 7V/24V Power Supply, existing motion controller (Marlin/Klipper compatible).

Virtual Technician & Wiring Guide

• Probots Logic-Safe: Before connecting, please note that while the motor power supports up to 24V, the logic signals (Step/Dir/Enable) are typically 3.3V/5V compatible. Do not feed 24V into the signal pins!

     Pin Mapping (Standard Interface):

• V+: 7V - 24V DC Power Input
• GND: Power Ground
• CLK/STEP: Step Pulse Signal
• DIR: Direction Signal
• EN: Enable Signal (Optional)

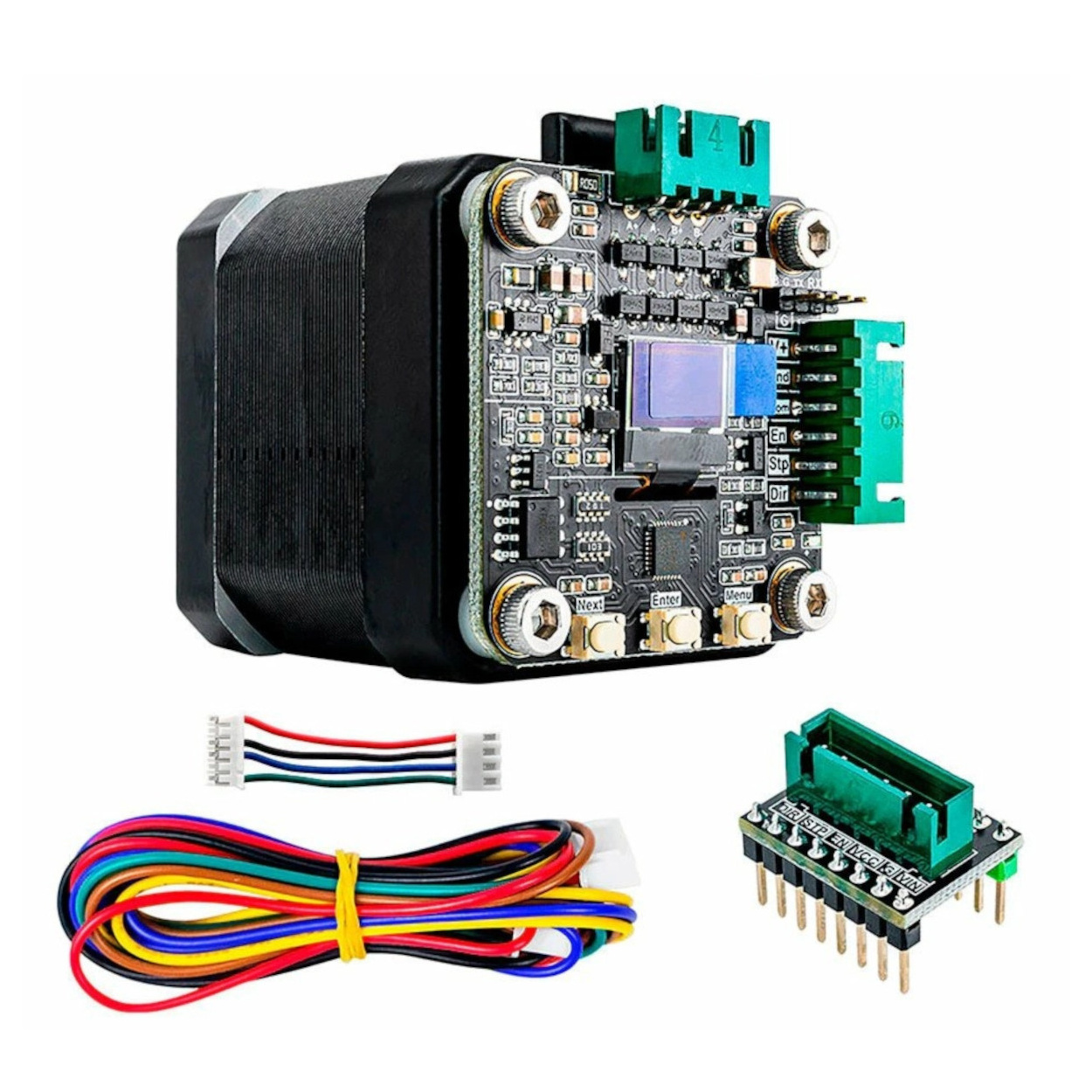

Package Contents:

• 1 x MKS SERV042c (including 42 stepper motors)
• 1 x Adapter board (MKS APT)
• 1 x 4pin Motor Cable
• 1 x 6pin Motherboard Link (60cm)

Frequently Asked Questions (FAQ)

• What is the difference between SERVO42A, 42B, and 42C?
  The 42C is the latest version featuring Field Oriented Control (FOC) for silent operation and an onboard OLED screen for PC-free tuning. The A/B versions use older, noisier technology.
• Does this require a special motherboard?
  No, it works with any standard 3D printer motherboard (RAMPS, MKS, SKR, Creality) that outputs Step/Dir signals.
• Do I need to modify my Marlin firmware?
  Generally, no. The motherboard sees it as a standard stepper driver. However, you may need to invert the direction pin in firmware if the motor spins the wrong way.
• Can I use this on the extruder?
  Yes, but it adds weight to the print head. It is most beneficial on the X and Y axes to prevent layer shifts.
• What voltage should I run this at?
  It supports 7V-24V. We recommend 24V for better torque at high speeds.
• Does it lose steps if I block the shaft by hand?
  No. It will fight back to maintain position. If forced out of position, the display will show the error, and it will return to the correct angle once released.
• Is the screen always on?
  Yes, the screen displays status. You can set it to dim or turn off in the menu settings to save power.
• How do I calibrate it?
  Use the OLED menu to run the "Phase Calibration" wizard. Ensure the motor shaft is free of load (remove belt) during this process.
• Can I control it via UART or CAN?
  The stock firmware uses Step/Dir. While the hardware has serial ports, standard usage is drop-in Step/Dir replacement. Custom firmware may be needed for advanced comms.
• Is it compatible with Klipper?
  Yes, Klipper works perfectly. Set the driver type to "generic" or simple step/dir in your printer.cfg.
• How much current does it draw?
  It can draw up to 2A-3A depending on load. Ensure your PSU has headroom.
• Why is my motor vibrating?
  Run the calibration again. Also, check PID settings in the menu; high P/I/D values can cause oscillation.
• Can I use the USB port on the board?
  Yes, the USB-C port is for firmware updates and advanced monitoring via the PC software.
• Does it get hot?
  FOC is efficient, but the motor can get warm (approx 40-50°C) during long prints. This is normal.
• What happens if the encoder fails?
  If the magnet slips or encoder fails, the motor will stop to prevent damage. This is a safety feature.
• Is the magnet pre-installed?
  Yes, the radial magnet is pre-installed on the rear shaft for the encoder to read.
• Can I use this for a high-speed plotter?
  Absolutely. It is ideal for plotters as it eliminates the "ringing" noise of traditional steppers.
• Does it support "StallGuard" sensorless homing?
  No. You must use physical endstops (limit switches) with this system.
• What is the maximum speed?
  It can reach 1000-2000 RPM depending on voltage and load, which is significantly faster than standard steppers without losing torque.
• Is technical support available?
  Yes! Probots Tech-Bridge ensures you have access to our engineers if you struggle with tuning the PID loops or wiring.
