Read Article β| Bulk Pricing | ||
|---|---|---|
| QTY | Unit Price(Inlc. GST) | |
| 10+ | βΉ587.02 βΉ 497.47 + 89.54 GST | |
| 15+ | βΉ575.04 βΉ 487.32 + 87.72 GST | |
| 25+ | βΉ563.06 βΉ 477.17 + 85.89 GST | |
| 50+ | βΉ551.08 βΉ 467.02 + 84.06 GST | |

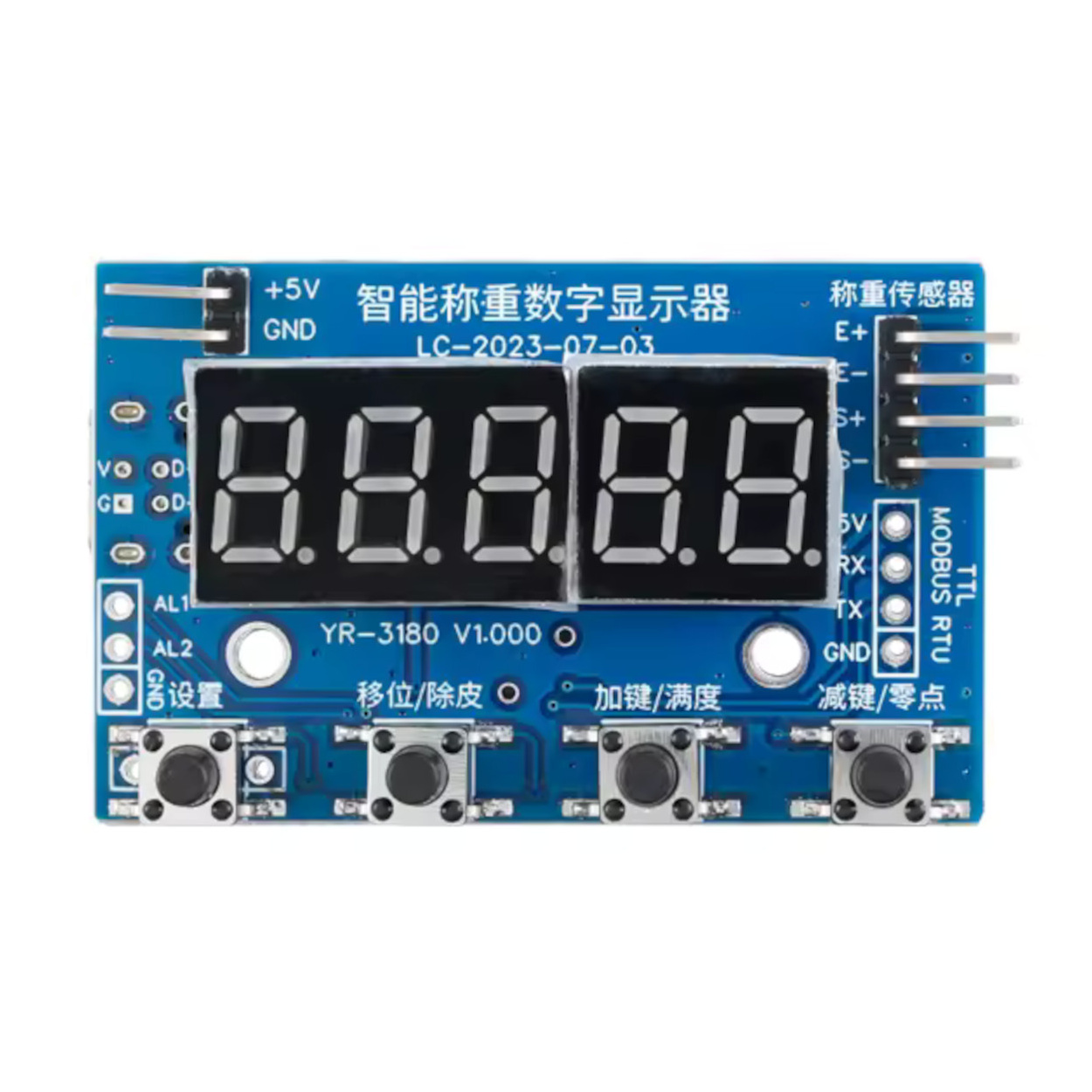

Turn any load cell into a smart IoT scale. This industrial-grade weighing controller features a high-precision 24-bit ADC, a bright 5-digit LED display output. Perfect for hopper scales, inventory monitoring, and PLC integration.
Quick Introduction: Stop struggling with raw HX711 modules and Arduino code for your industrial weighing projects. The Intelligent Weighing Controller is a standalone solution that reads raw signals from standard load cells (Wheatstone bridge), converts them with a high-precision 24-bit ADC, and displays the weight on a crisp LED screen.
Detailed Specifications
ADC Precision: 24-bit (High-resolution Sigma-Delta).
Input Signal: 0-12mV (Direct connection to Bridge Load Cells).
Display: 5-Digit Red LED (Adjustable Decimal Point).
Power Supply: Dual Mode: USB Type-C (5V DC) for testing/portable or Terminal Block (5V DC)for industrial cabinets.
Excitation Voltage: Provides ~5V excitation for load cells.
Alarms: Configurable Upper/Lower limit alarms (Relay/Output trigger).
Quality Advantage & Differentiation: Why choose this controller?
Standalone Reliability: Unlike microcontroller dev boards, this unit handles the complex filtering, zero-tracking, and calibration internally. It remembers settings even after a power loss.
Connectivity: It offersUSB Type-C for quick desktop configuratio.
Advanced Control: Built-in "Check Weighing" logic allows you to set High and Low alarm thresholds, perfect for automatic filling systems or overload protection.
Key Applications & Usage
Hopper & Silo Scales: Monitor material levels in real-time and trigger refill alarms.
Digital Platform Scales: Build your own robust shipping or inventory scale.
What's Included & Required
Included: 1x Intelligent Weighing Digital Display Module.
Required: Load Cell (4-Wire resistive strain gauge), Power Supply (5V DC).
Helpful Tutorials & Resources
The "Virtual Technician" Support Panel
β οΈ CRITICAL WIRING:
Load Cell: This module requires a 4-Wire Load Cell.
E+ / E-: Excitation (Red/Black).
S+ / S-: Signal (Green/White).
Note: Wire colours vary by manufacturer! Check your load cell datasheet. Wrong wiring results in unstable or drifting readings.
Troubleshooting: Reading fluctuates wildly?
Check connections; loose screw terminals are the #1 cause.
Ensure the load cell cable is shielded and grounded.
Increase the filter parameter (Lb) in the settings menu to dampen vibrations.
